Endress+Hauser

4-20mA HART, PROFINET mit Ethernet-APL

Pressure/DP Transmitter · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Maximaler Messbereich-16000 (-240) +16000 (+240) mbar (psi)
Kleinste (werkseitig voreingestellte) kalibrierbare Messspanne160 (2,4) mbar (psi)
StandardPN 250 / 25 MPa / 3626 psi
Berstdruck375 (5625) 1320 (19140) bar (psi)
Minimaler statischer Druck bei Referenzbedingungen25 mbar (0,0375 psi)abs
Minimaler statischer Druck bei 85 °C (185 °F)bis 250 mbar (4 psi) abs
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“MWP nur beidseitig. Gilt für die Prozessdichtungsmaterialien FKM, FFKM, EPDM und für beidseitig angelegten Druck. Bei Auswahl der Option seitliche Entlüftungsventile (sv) beträgt der Berstdruck 690…”

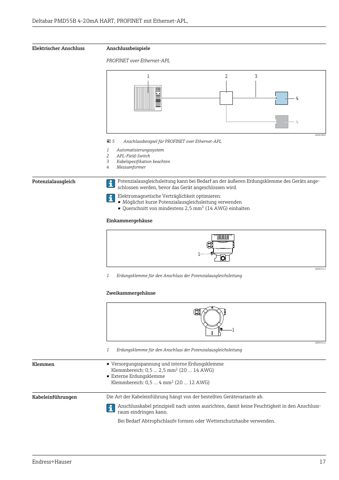

Endress+Hauser 4-20mA HART, PROFINET mit Ethernet-APL – Drawing (c3c51f331129_S9-40 S. 9)
Drawing · c3c51f331129_S9-40 · S. 9

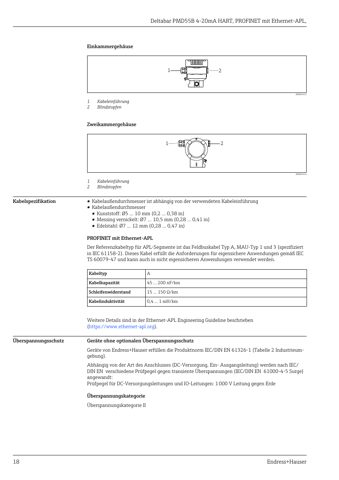

Endress+Hauser 4-20mA HART, PROFINET mit Ethernet-APL – Drawing (c3c51f331129_S9-40 S. 10)
Drawing · c3c51f331129_S9-40 · S. 10

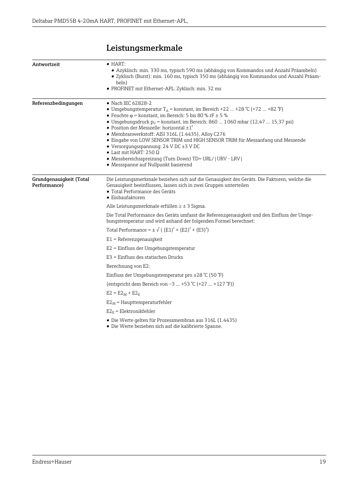

Endress+Hauser 4-20mA HART, PROFINET mit Ethernet-APL – Drawing (c3c51f331129_S9-40 S. 11)
Drawing · c3c51f331129_S9-40 · S. 11
Endress+Hauser 4-20mA HART, PROFINET mit Ethernet-APL – Page preview (c3c51f331129_S9-40 S. 12)
Page preview · c3c51f331129_S9-40 · S. 12
Endress+Hauser 4-20mA HART, PROFINET mit Ethernet-APL – Page preview (c3c51f331129_S9-40 S. 13)
Page preview · c3c51f331129_S9-40 · S. 13
Endress+Hauser 4-20mA HART, PROFINET mit Ethernet-APL – Page preview (c3c51f331129_S9-40 S. 14)
Page preview · c3c51f331129_S9-40 · S. 14

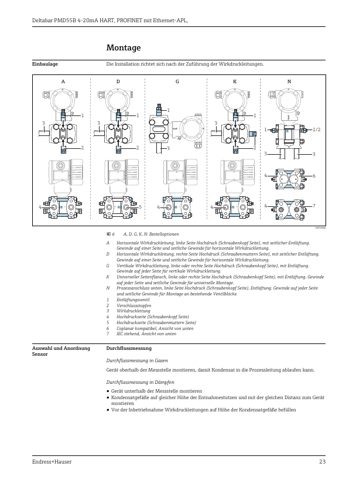

Endress+Hauser 4-20mA HART, PROFINET mit Ethernet-APL – Page preview (c3c51f331129_S9-40 S. 15)
Page preview · c3c51f331129_S9-40 · S. 15
Source: Endress+Hauser 4-20mA HART, PROFINET mit Ethernet-APL datasheet, p. 1
