Library› Engine Room› Tank Level & Measurement› Tank Level Gauging› Endress+Hauser Silopilot FMM20
Endress+Hauser

Silopilot FMM20

Tank Level Gauging · Tank Level & Measurement

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Dn100PN16 (Anschlussmaße nach DIN EN 109
Material316Ti (1.4571)
Weight15 kg (33.1 lb)
Max. Stutzenhöhe230 mm
Versorgungs- spannung90 ... 253 VAC, 50/60 Hz 20 ... 28 VDC
maximaler Leitungsquerschnitt2,5 mm2
maximale Last600 Ω
Kontaktbelastbarkeit250 VAC, 6 A V, A
Wartungsintervall45000 Messzyklen
Messfehler± 2,5 cm
Ablaufgeschwindigkeit0,21 m/s
Versorgungsspannung90 - 253 VAC, 50/60 Hz
maximaler Einschaltstrom DC-Version mit Heizung10 A (≤ 2 s)
KabeleinführungM20 x 1,5
Temperature-20 to +150°C (-4 to +302°F)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Silopilot FMM20 is a level measurement device used in bunkers or silos with significant dust development.

Applications

  • bunker level measurement

Features

  • Den Adapter nur für drucklose Prozesse verwenden.
Source: Endress+Hauser Silopilot FMM20 datasheet, p. 24

Options

  • various abstreifer lengths available

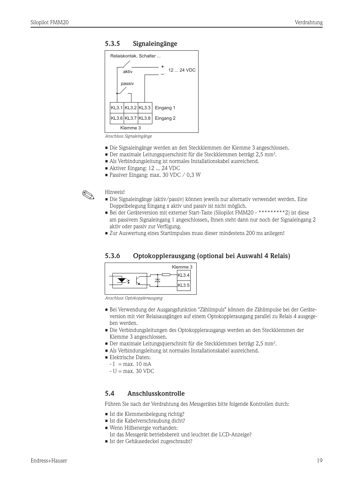

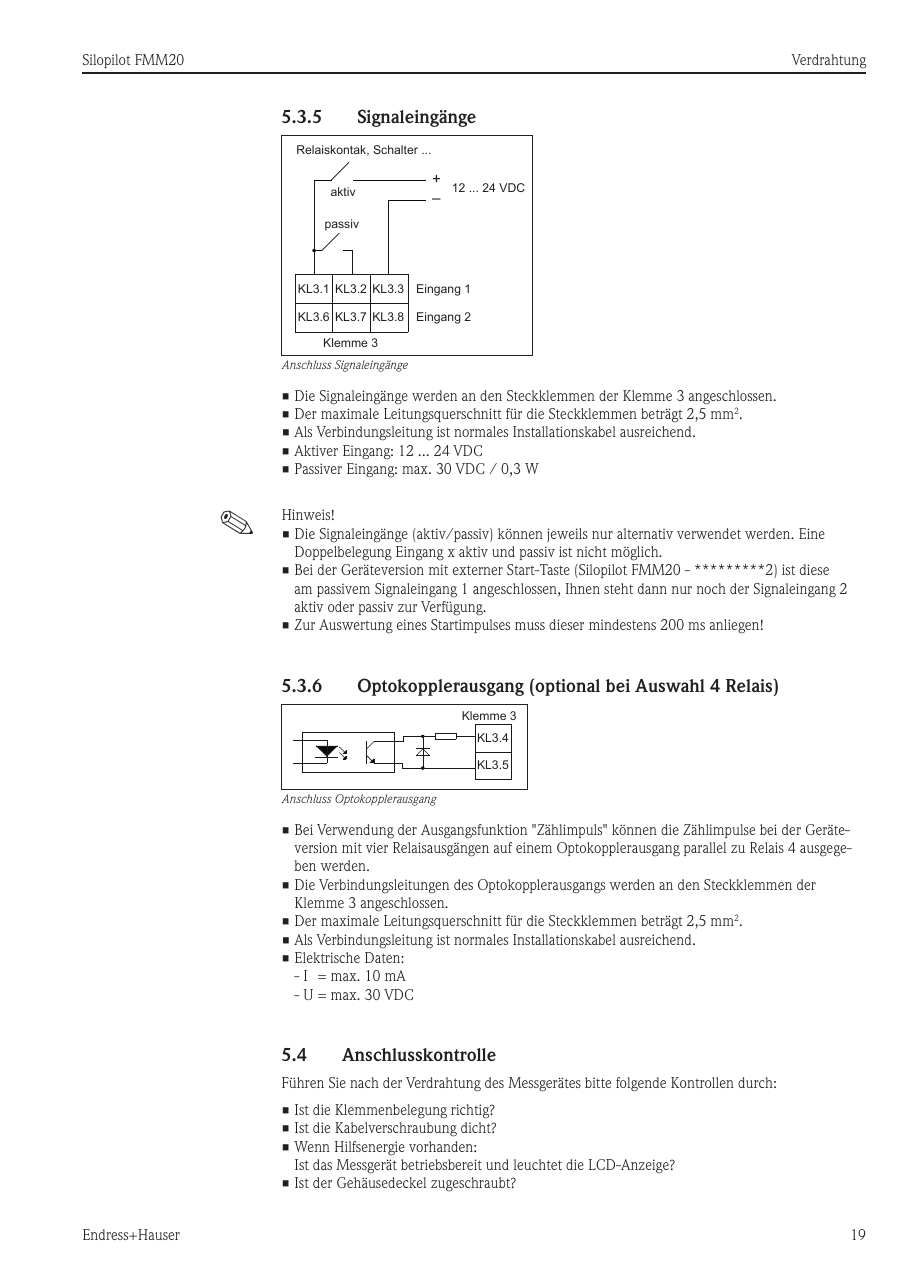

Endress+Hauser Silopilot FMM20 – Drawing (a8882d358737_S10-60 S. 10)
Drawing · a8882d358737_S10-60 · S. 10

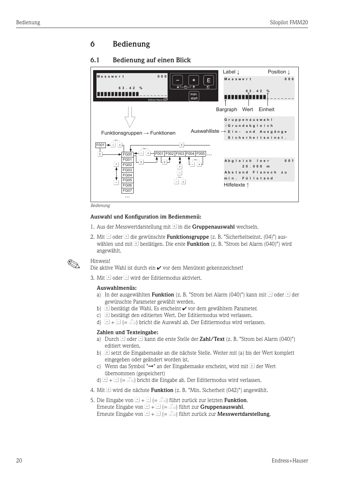

Endress+Hauser Silopilot FMM20 – Drawing (a8882d358737_S10-60 S. 11)
Drawing · a8882d358737_S10-60 · S. 11
Endress+Hauser Silopilot FMM20 – Drawing (a8882d358737_S10-60 S. 12)
Drawing · a8882d358737_S10-60 · S. 12

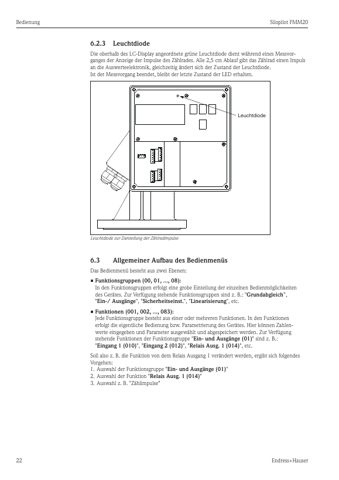

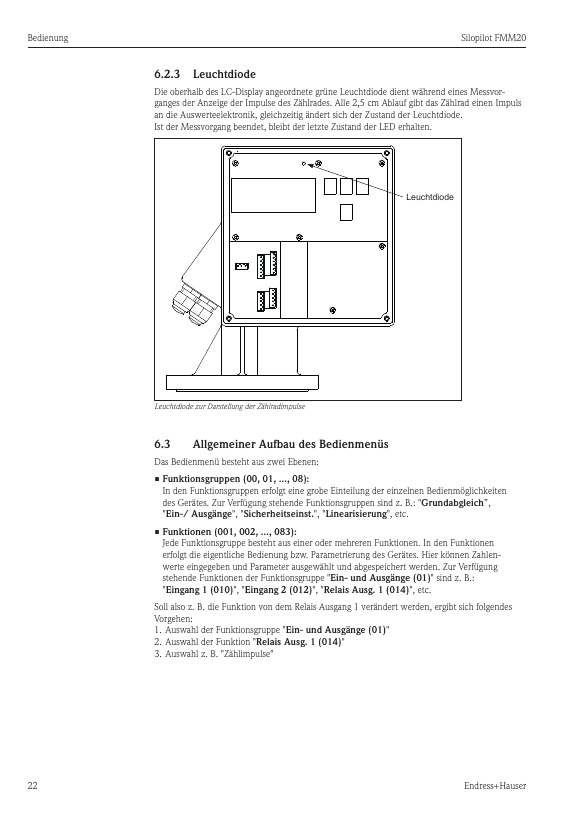

Endress+Hauser Silopilot FMM20 – Page preview (a8882d358737_S10-60 S. 13)
Page preview · a8882d358737_S10-60 · S. 13
Endress+Hauser Silopilot FMM20 – Page preview (a8882d358737_S10-60 S. 14)
Page preview · a8882d358737_S10-60 · S. 14
Endress+Hauser Silopilot FMM20 – Page preview (a8882d358737_S10-60 S. 15)
Page preview · a8882d358737_S10-60 · S. 15
Endress+Hauser Silopilot FMM20 – Page preview (a8882d358737_S10-60 S. 16)
Page preview · a8882d358737_S10-60 · S. 16
Source: Endress+Hauser Silopilot FMM20 datasheet, p. 15
