TMD1000 TMD1

Tank Level Gauging · Tank Level & Measurement

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Storage temperature–20 to +60 °C (–4 to 140 °F)
Weightover 18 kg (39.6 lbs)
Level range0 - 99999 mm
Level output0 to 65.535 mm or ± 32767 mm
Temperature output-49.9 to +199.9 °C
Input allowable impedanceWithin 600 Ω
Power supplyAC60, 100, 110, 200, 220V ± 10% 50/60 Hz 20-32 VDC DC power is not available for
Power consumptionAC: max. 14 W DC: max. 10 W
Level A/D conversionMethod: Optical non-contact absolute encoder Range: 0 to 99999 mm Accuracy: ± 1
ApprovalWaterproof and dust-proof (IP65) Flame proof (Ex d IIB T4) Flame proof (d2G4) (F
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The TMD1000 TMD1 is a digital transmitter that converts the level detected by a float level gauge into digital signals for monitoring and control.

Applications

  • marine level monitoring
  • industrial level measurement
  • process control

Features

  • digital level conversion
  • microprocessor calculation
  • alarm and temperature control

Options

  • external device communication
  • status input and alarm output
  • 2-way, 2-wire communication
  • HART device

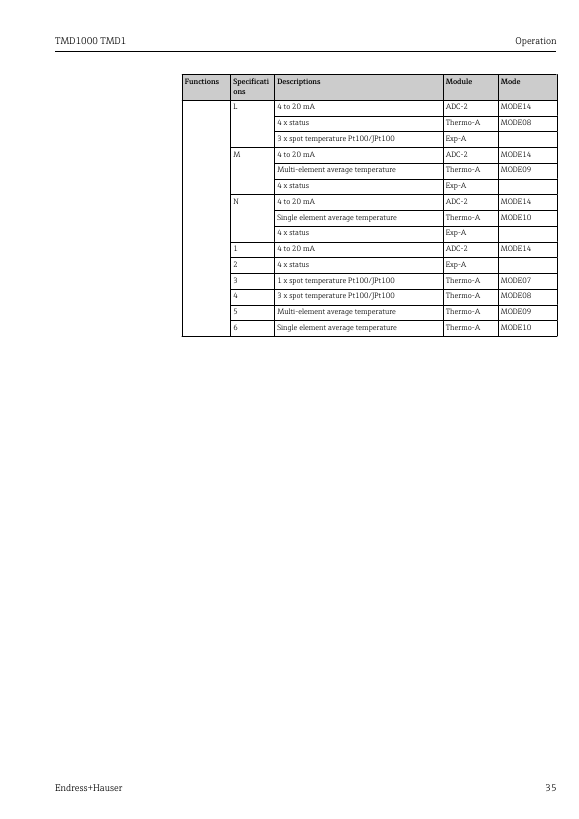

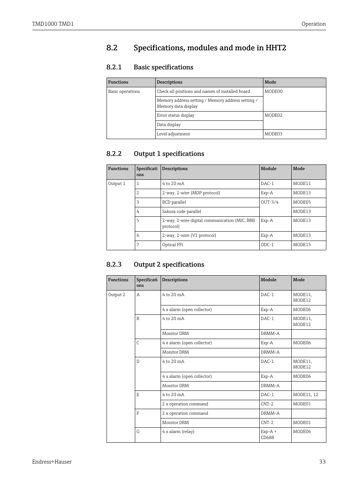

Endress+Hauser TMD1000 TMD1 – Drawing (ec2bed61cec1_S17-37 S. 17)
Drawing · ec2bed61cec1_S17-37 · S. 17

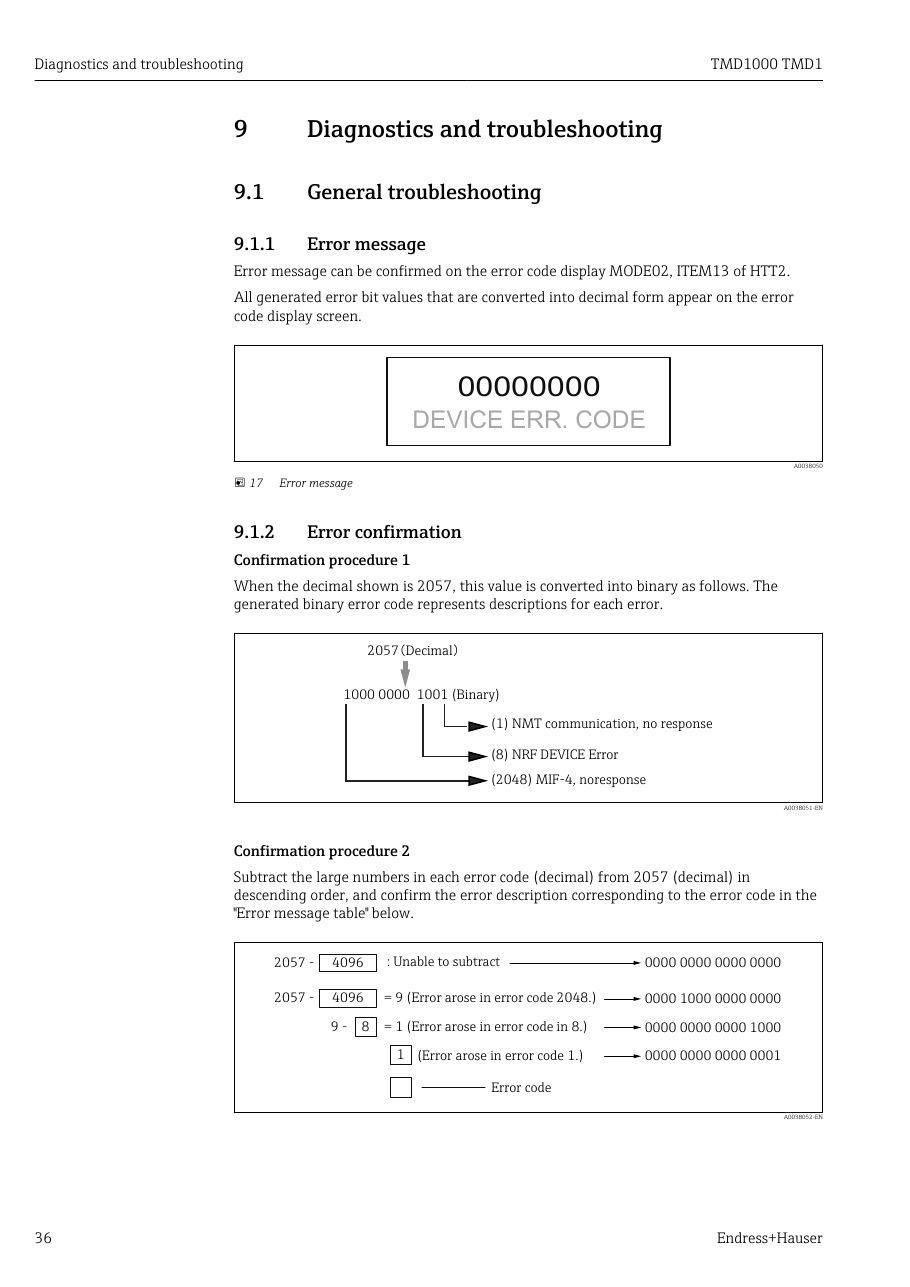

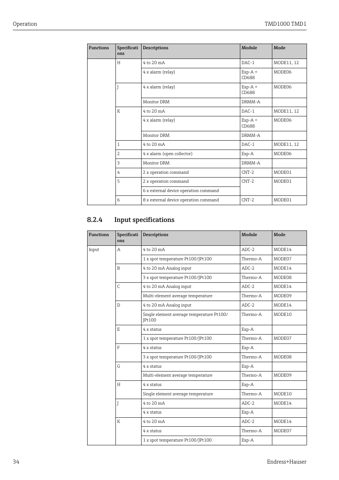

Endress+Hauser TMD1000 TMD1 – Drawing (ec2bed61cec1_S17-37 S. 18)
Drawing · ec2bed61cec1_S17-37 · S. 18
Endress+Hauser TMD1000 TMD1 – Drawing (ec2bed61cec1_S17-37 S. 20)
Drawing · ec2bed61cec1_S17-37 · S. 20

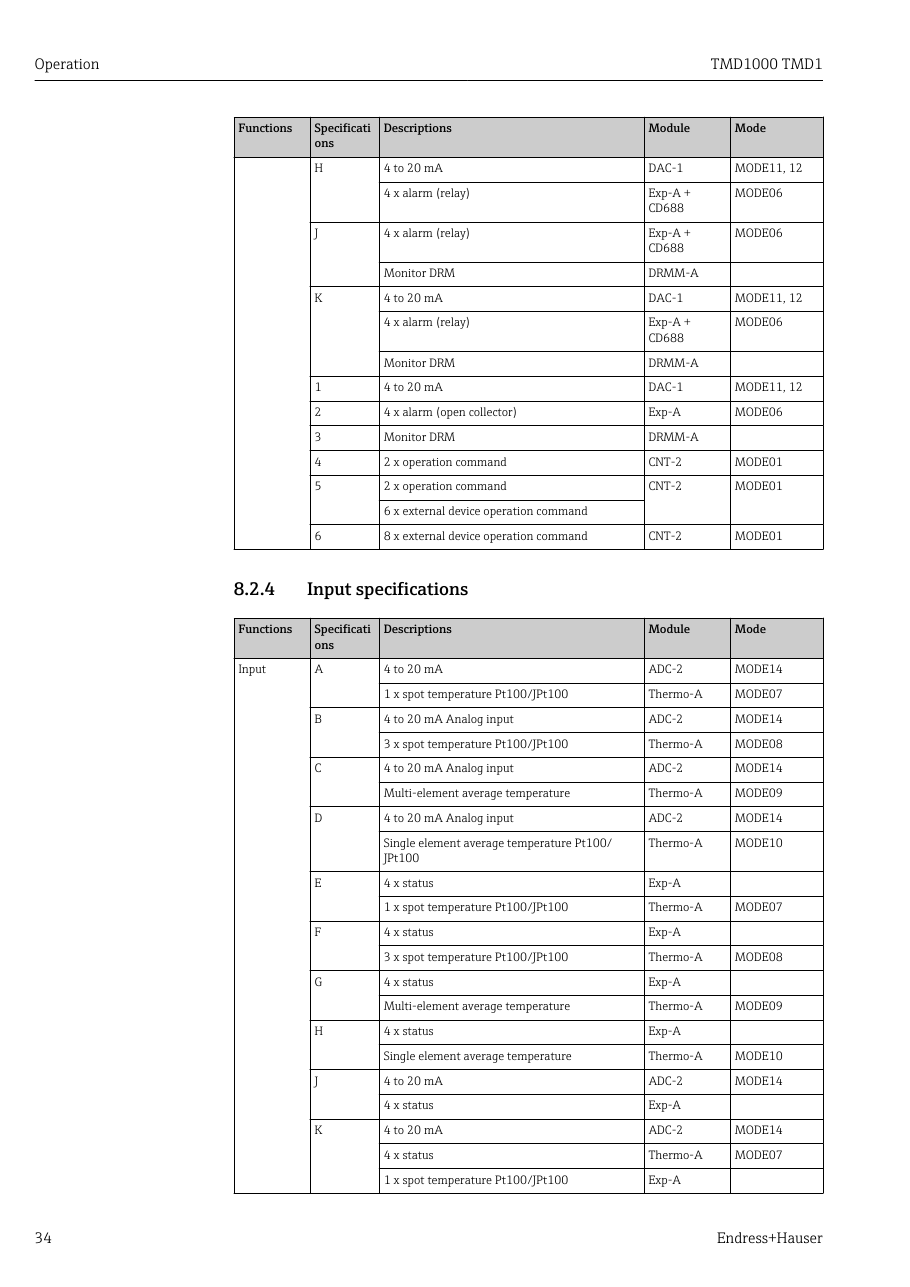

Endress+Hauser TMD1000 TMD1 – Page preview (ec2bed61cec1_S17-37 S. 19)
Page preview · ec2bed61cec1_S17-37 · S. 19

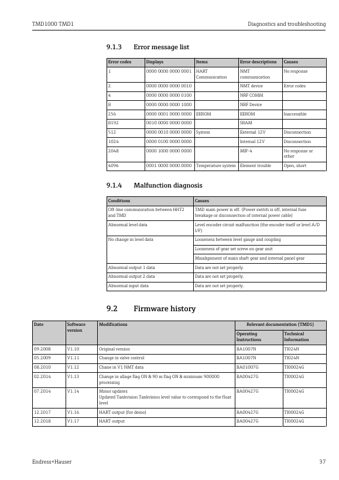

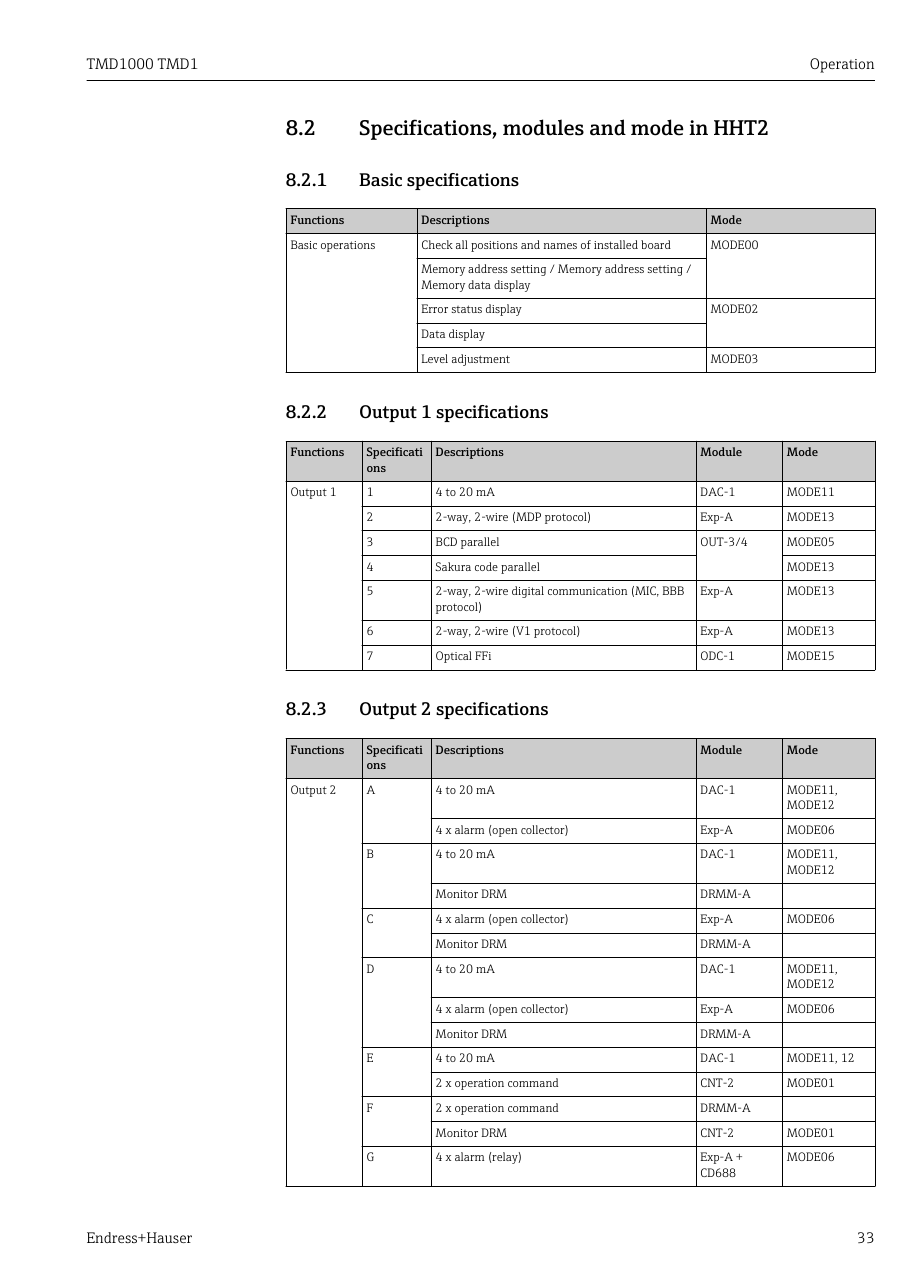

Endress+Hauser TMD1000 TMD1 – Page preview (ec2bed61cec1_S17-37 S. 21)
Page preview · ec2bed61cec1_S17-37 · S. 21

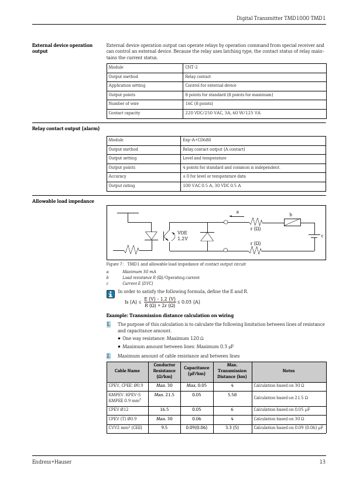

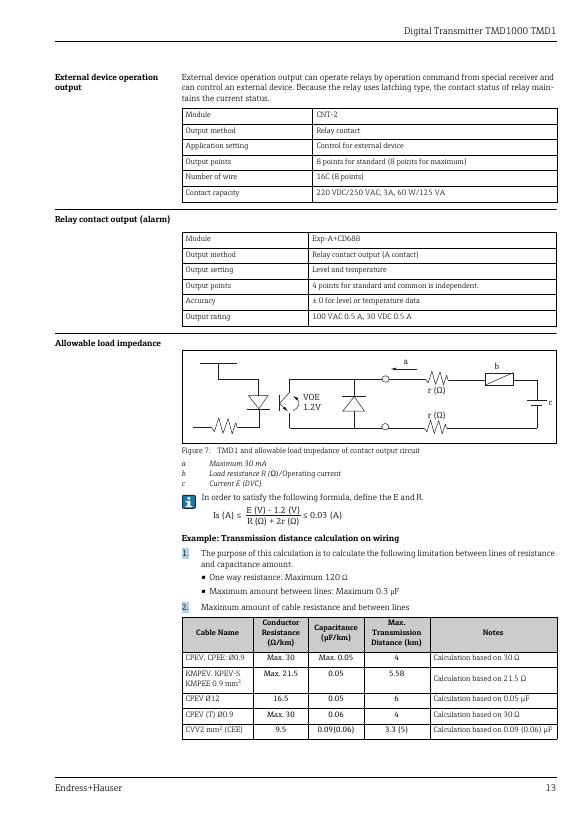

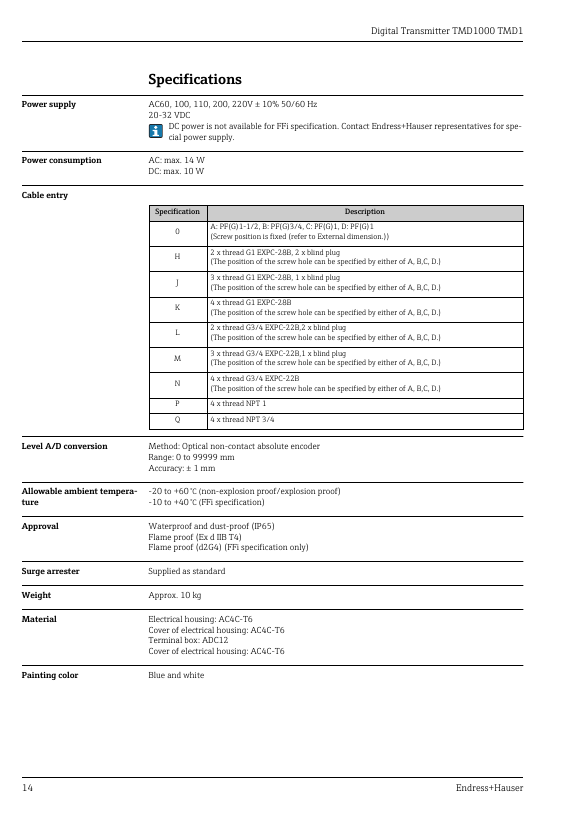

Endress+Hauser TMD1000 TMD1 – Page preview (1e3128523a96_S7-16 S. 7)
Page preview · 1e3128523a96_S7-16 · S. 7

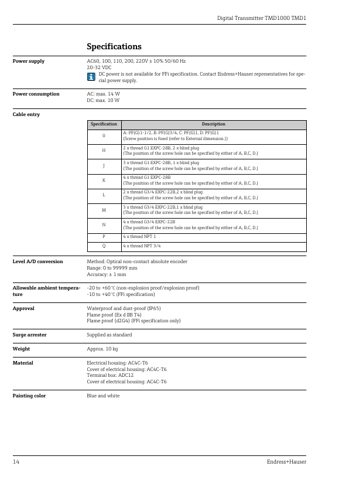

Endress+Hauser TMD1000 TMD1 – Page preview (1e3128523a96_S7-16 S. 8)
