Deltabar PMD55B HART

Pressure/DP Transmitter · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

OplThe OPL (overpressure limit = sensor overload limit) for the device depends on t🔖
MwpThe MWP (maximum working pressure) for the sensors depends on the lowest-rated e🔖
LrlLower range limit🔖
LrvLower range value🔖
UrlUpper range limit🔖
UrvUpper range value🔖
TdTurn down. Example - see the following section.🔖
Obere Messgrenze (URL)16 bar (240 psi)🔖
Druckmessung160 bar (2 400 psi) und 250 bar (3 750 psi)🔖
Pmax80 bar🔖
Tmax Umgebung60 °C🔖
Feststellschraubemaximal 1,5 Umdrehungen lösen🔖
Sicherungsschraubemaximal 3,5 Nm (2,58 lbf ft) ± 0,3 Nm (0,22 lbf ft)🔖
Versorgungsspannung und interne Erdungsklemme0,5 … 2,5 mm2 (20 … 14 AWG)🔖
Externe Erdungsklemme0,5 … 4 mm2 (20 … 12 AWG)🔖
Schutzleiter oder Erdung des KabelschirmsBemessungsquerschnitt > 1 mm2 (17 AWG)🔖
Bemessungsquerschnitt von Schutzleiter oder Erdung des Kabelschirms0,5 mm2 (20 AWG) bis 2,5 mm2 (13 AWG)🔖
KabelaußendurchmesserØ5 … 12 mm (0,2 … 0,47 in)🔖
HART Kommunikationswiderstand250 Ω🔖
Prüfpegel für DC-Versorgungsleitungen und IO-Leitungen1000 V Leitung gegen Erde🔖
Durchfluss0 ... 100 m3/h🔖
Minimale Anlaufspannung10,5 V🔖
Anlaufstrom>3,6 mA🔖
Minimale Betriebsspannung10,5 V🔖
KlimaklasseKlasse 4K4H (Lufttemperatur: –20 … +55 °C (–4 … +131 °F), relative Luftfeuchtigk🔖
Berstdruck1 250 bar (18 125 psi)🔖
Tmax60 °C🔖
Prozesstemperaturbereich Gerät ohne Ventilblock–40 … +85 °C (–40 … +185 °F)🔖
Maximale zulässige Prozesstemperatur an dem Ventilblock110 °C (230 °F)🔖
Tambient temperature max85 °C − 2,8 ⋅ (TProzess_Temperature − 85 °C)🔖
Zähler Grenzunterschreit. Benutzer Pmin0 … 65 535🔖
Zähler Grenzüberschreit. Benutzer Pmax0 … 65 535🔖
Minimale Sensortemperatur–273,15 … 9 726,85 °C🔖
Maximale Sensortemperatur–273,15 … 9 726,85 °C🔖
Zähler Grenzüberschreitung Sensor Tmax0 … 65 535🔖
Flow signal0 to 100 m3/h🔖
Pressure value 230 mbar🔖
Pressure for maximum volume450 mbar🔖
Pressure for minimum volume50 mbar🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

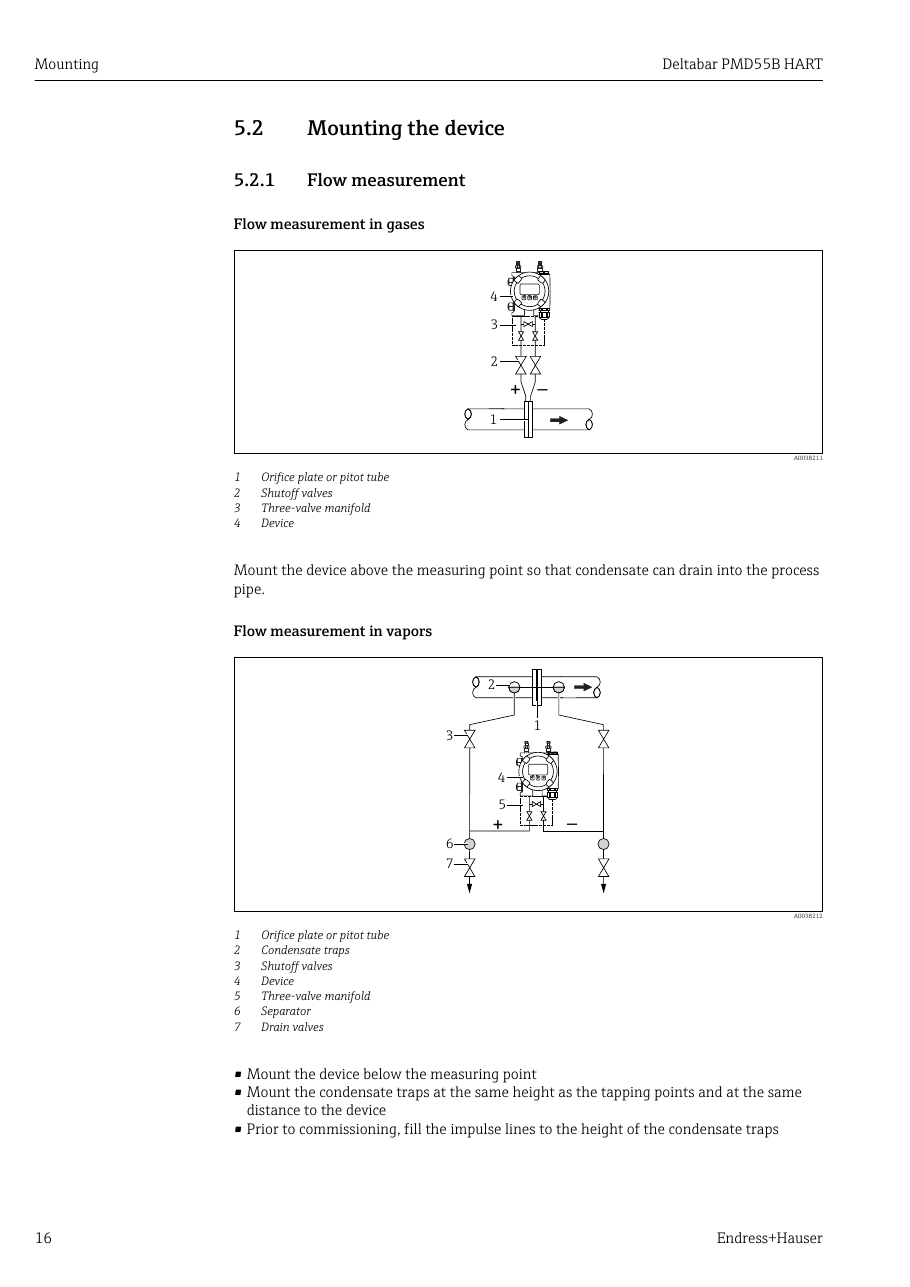

The Deltabar PMD55B HART is a flow meter that measures and outputs flow values.

Applications

  • industrial process control
Source: Endress+Hauser Deltabar PMD55B HART datasheet, p. 71

Features

  • Bluetooth connectivity
Source: Endress+Hauser Deltabar PMD55B HART datasheet, p. 8

Options

  • optional cleaning service for oxygen applications
Source: Endress+Hauser Deltabar PMD55B HART datasheet, p. 20

Standards

  • IEC / DIN EN 61326-1
  • IEC / DIN EN 61000-4-5
Source: Endress+Hauser Deltabar PMD55B HART datasheet, p. 26

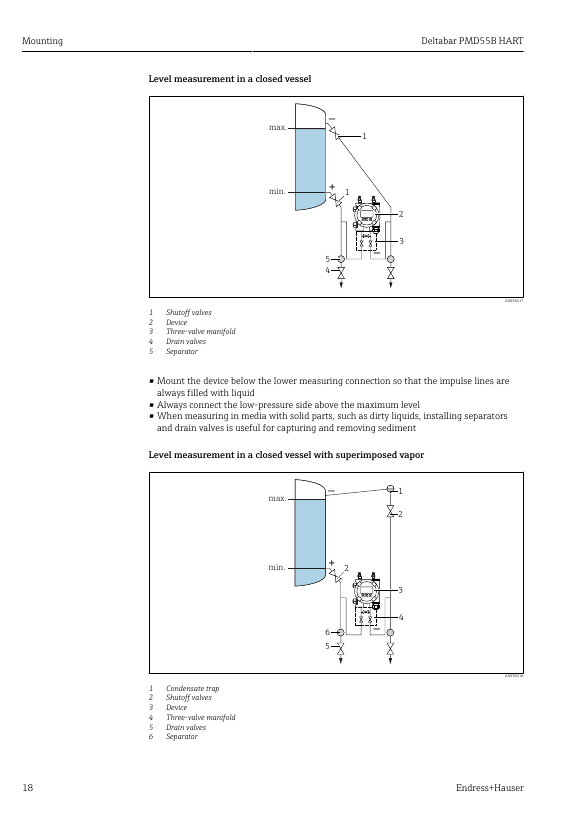

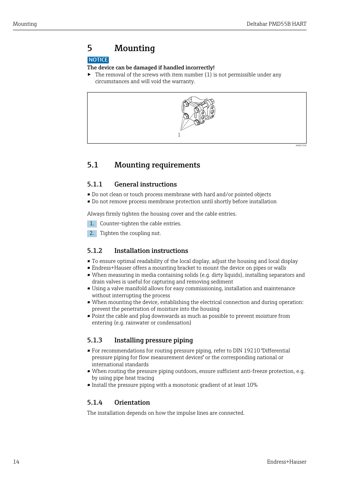

Endress+Hauser Deltabar PMD55B HART – Drawing (907a9ad06a49_S7-73 S. 8)
Drawing · 907a9ad06a49_S7-73 · S. 8

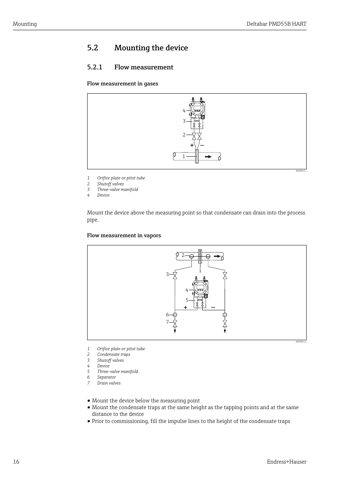

Endress+Hauser Deltabar PMD55B HART – Drawing (907a9ad06a49_S7-73 S. 10)
Drawing · 907a9ad06a49_S7-73 · S. 10

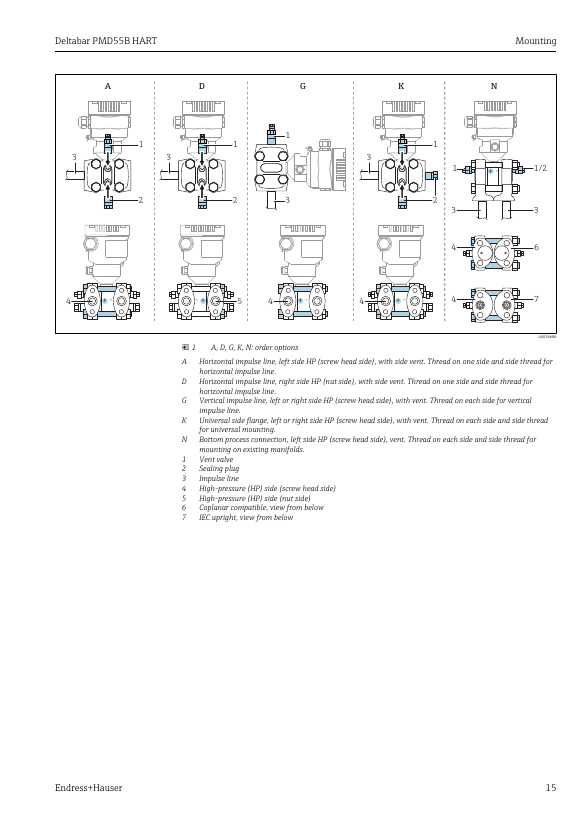

Endress+Hauser Deltabar PMD55B HART – Drawing (907a9ad06a49_S7-73 S. 15)
Drawing · 907a9ad06a49_S7-73 · S. 15

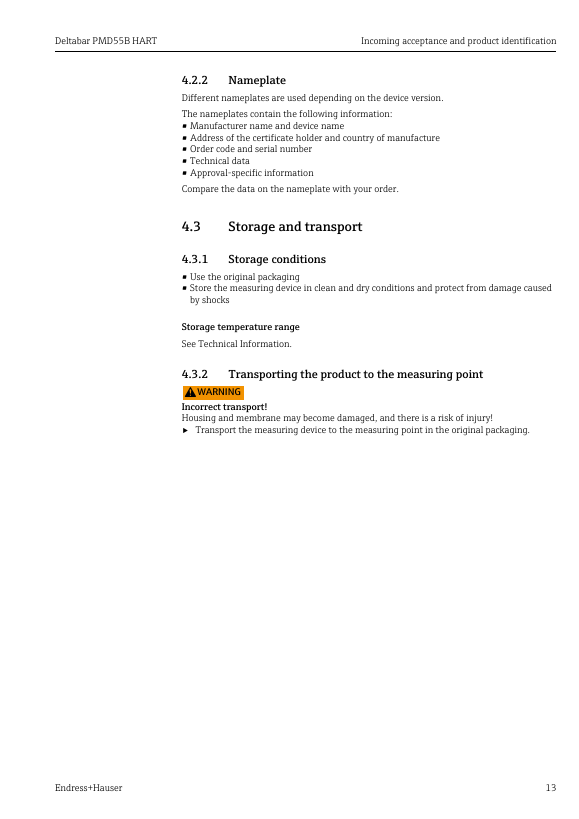

Endress+Hauser Deltabar PMD55B HART – Page preview (907a9ad06a49_S7-73 S. 7)
Page preview · 907a9ad06a49_S7-73 · S. 7
Endress+Hauser Deltabar PMD55B HART – Page preview (907a9ad06a49_S7-73 S. 9)
Page preview · 907a9ad06a49_S7-73 · S. 9

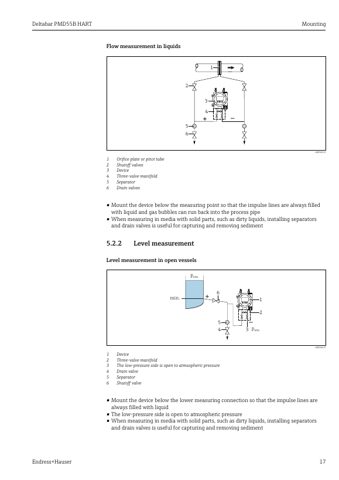

Endress+Hauser Deltabar PMD55B HART – Page preview (907a9ad06a49_S7-73 S. 11)
