Levelflex FMP56, FMP57

Temperature Sensor · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Operating heightGenerally up to 2 000 m (6 600 ft) above sea level.
Degree of protectionTested according to: With housing closed: IP68, NEMA6P (24 h at 1.83 m (6 ft) un
Vibration resistanceDIN EN 60068-2-64 / IEC 60068-2-64: 20 to 2 000 Hz, 1 (m/s2)2/Hz
Klemmenspannung U am Gerät13,5 … 35 V
Maximale Bürde R, abhängig von der Versorgungsspannung U0 des Speisegeräts500
K4-Draht 90-253VAC; 4-20mA HART 90 … 253 VAC (50 … 60 Hz)
L4-Draht 10,4-48VDC; 4-20mA HART 10,4 … 48 VDC
Hart4-Draht 90-253VAC; 4-20mA HART 90 … 253 VAC (50 … 60 Hz)
FOUNDATION Fieldbus4-Draht 10,4-48VDC; 4-20mA HART 10,4 … 48 VDC
A2-Draht; 4-20mA HART
B2-Draht; 4-20mA HART, Schaltausgang
Nennstrom15 mA
Ui17,5 V
Ii550 mA
Pi5,5 W
Li10 μH
Temperatur+24 °C (+75 °F) ±5 °C (±9 °F)
DC = 8080 (3.15)
Widerstand pro Kanal2 × 0,5 Ωmax
Ansprechgleichspannung400 … 700 V
Ansprechstoßspannung< 800 V
Kapazität bei 1 MHz< 1,5 pF
Nennableitstoßstrom (8/20 μs)10 kA
Schwellengleichspannung400 … 700 V
Schwellenstoßspannung< 800 V
Nennableitstrom (8/20 μs)10 kA
Passend für Leiterquerschnitte0,2 … 2,5 mm2 (24 … 14 AWG)
Klemmenloch≤ 3 (0.12) mm (in)
Sicherungskralle2,5 Nm
Umgebungstemperatur–40 … 80 °C (–40 … 176 °F)
VerbindungskabelMitgeliefertes Kabel bis 30 m (98 ft), Kundenseitiges Standardkabel bis 60 m (19
Passend für die AnzeigemoduleSD02 (Drucktasten), SD03 (Touch control)
Gerätefirmware01.01.zz
Maximal erlaubtes Anzugsdrehmoment45 Nm
Empfohlenes Drehmoment25 Nm
Abstand (A) von Seil- und Stabsonden zur Behälterwand> 50 mm (2 in)
Abstand (B) von Stabsonden zu Einbauten> 300 mm (12 in)
Mindestabstand zwischen den Sensorachsen100 mm (3,94 in)
Abstand (C) des Sondenendes vom Behälterboden> 150 mm (6 in)
Messfrequenzspektrum100 MHz...1,5 GHz
Bürde HARTmin. 250 Ω
Verbindungskabel minimaler Biegeradius100 mm (4 inch)
Minimum bending radius100 mm (4 inch)
Versorgungsspannung9 … 32 V
Überspannungsschutzmodul2 × 0,5 Ω max.
Passend für AnzeigemoduleSD02 (Drucktasten), SD03 (Touch control)
Maximum load R, depending on the supply voltage U0 at the supply unit500
Resistance per channel2 × 0.5 Ω max.
Manufacturer documentation

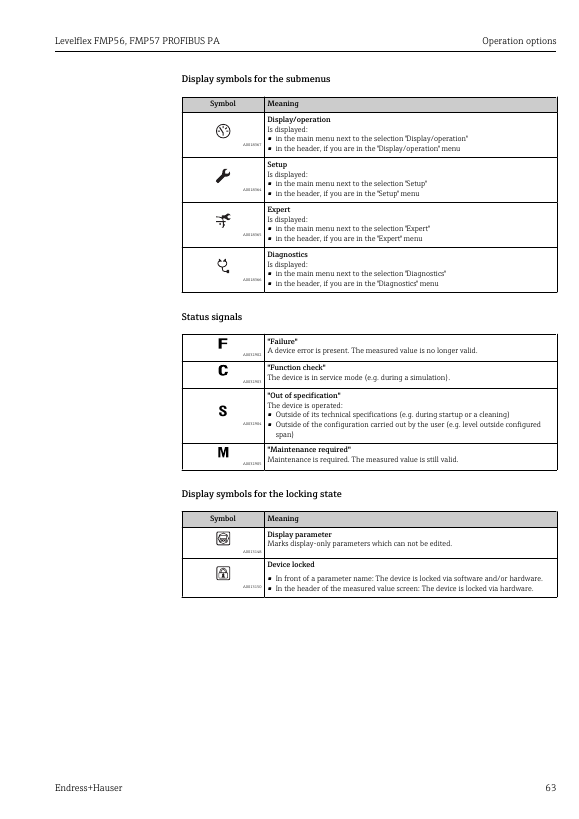

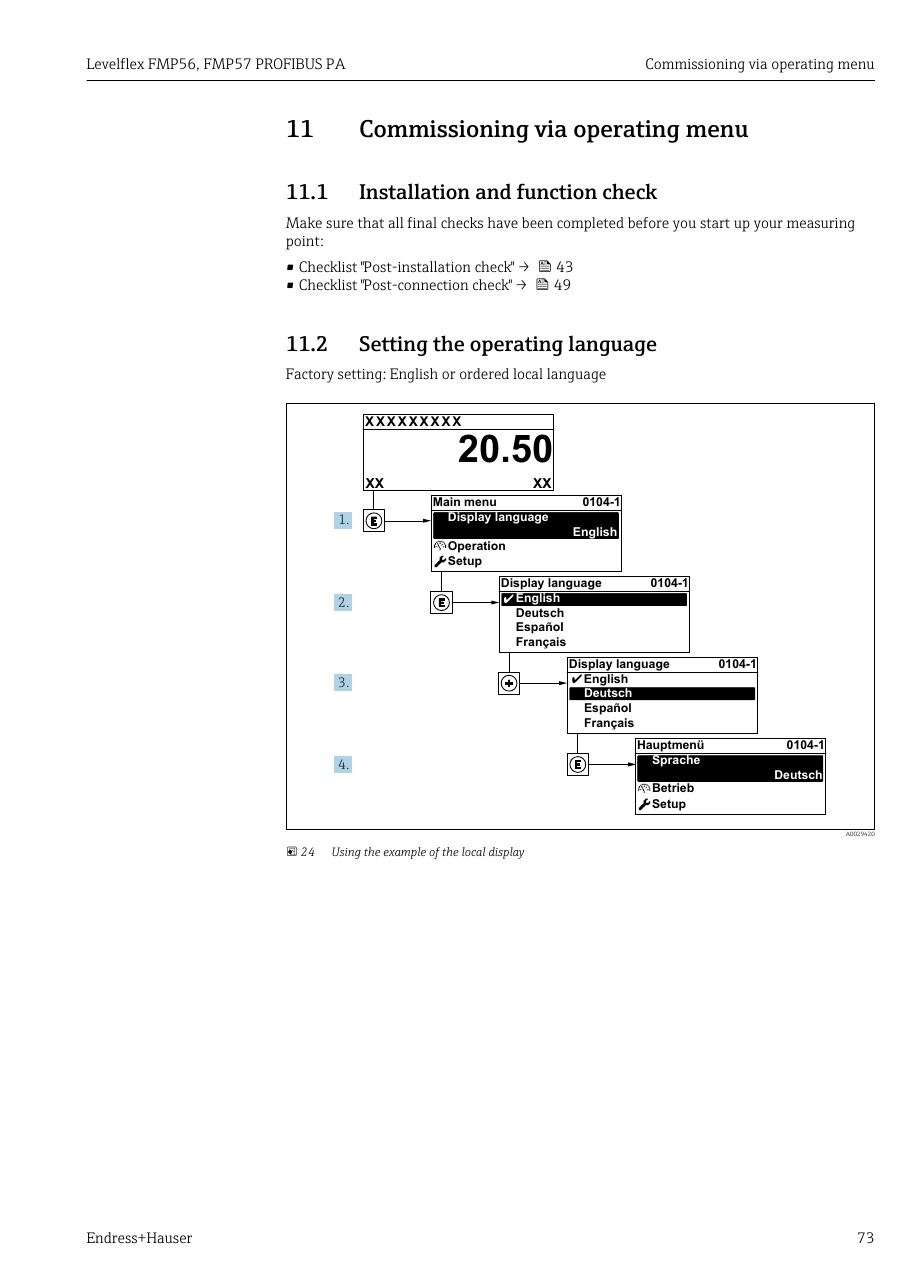

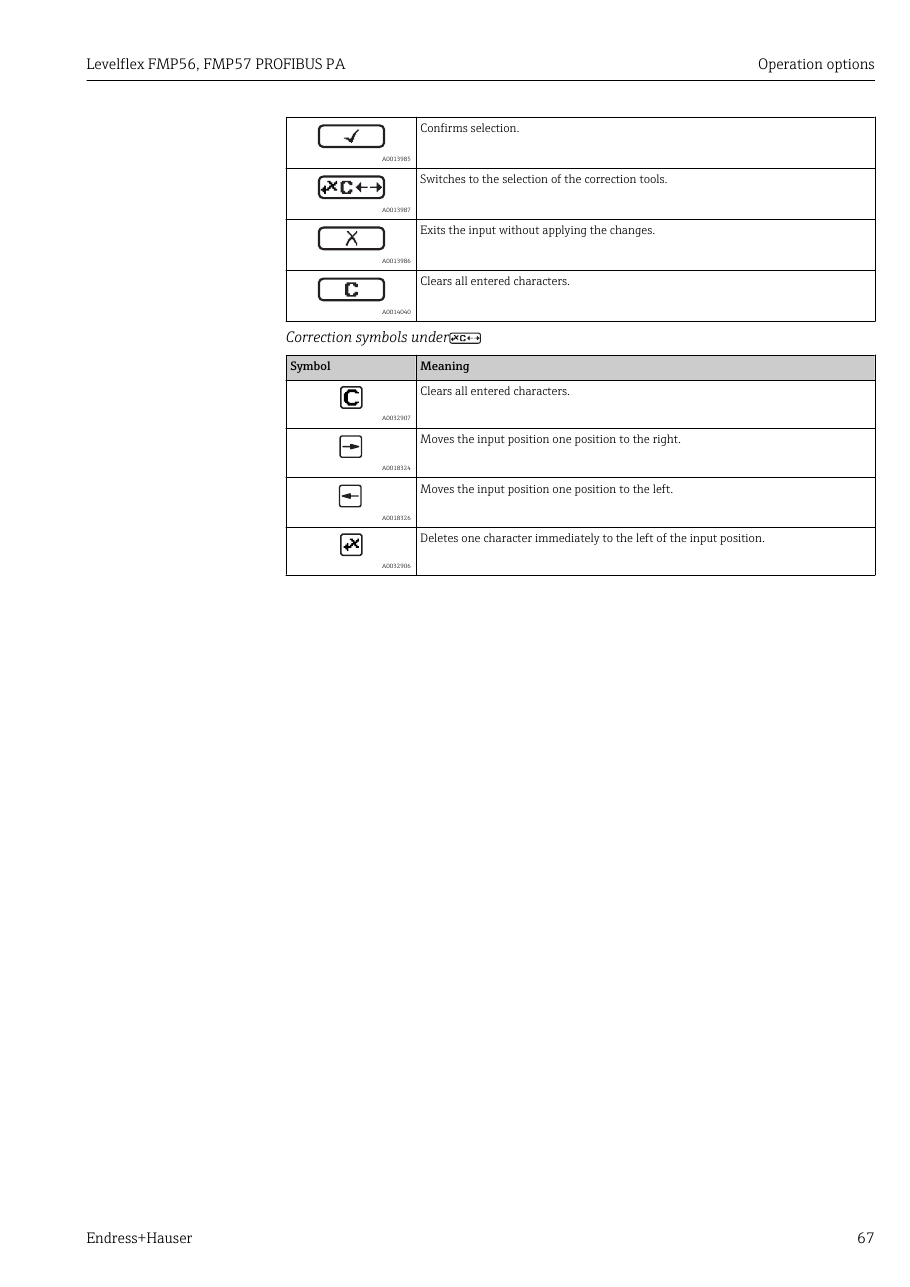

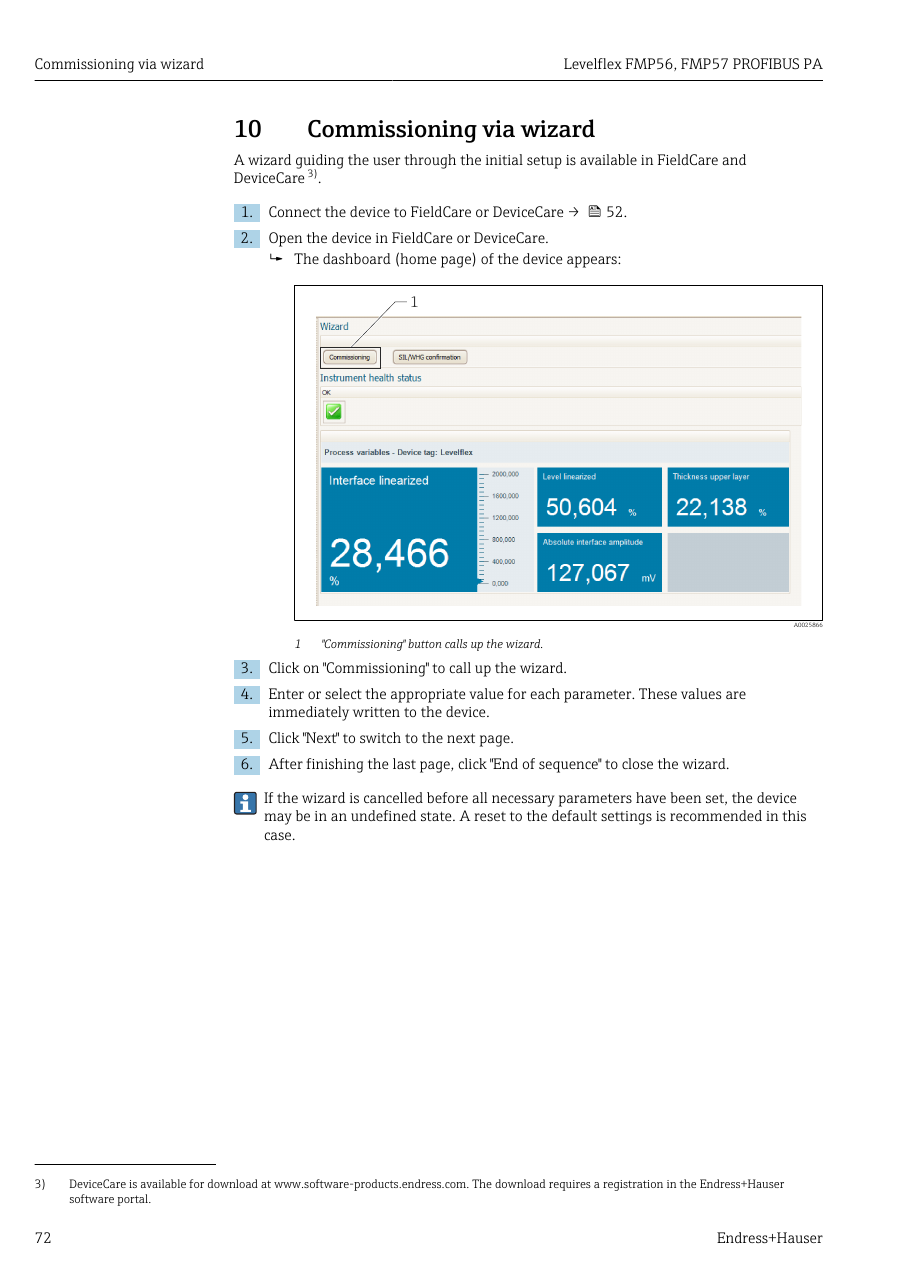

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Levelflex FMP56 and FMP57 are level measurement devices that use radar technology to measure liquid levels in tanks and vessels.

Applications

  • liquid level measurement

Features

  • Foundation Fieldbus compatible
Source: Endress+Hauser Levelflex FMP56, FMP57 datasheet, p. 32

Options

  • Klemmenspannung U
  • maximal Bürde R
  • temperature range -30°C to 60°C
Source: Endress+Hauser Levelflex FMP56, FMP57 datasheet, p. 28

Standards

  • DIN/EN
  • EN 1092-1:2007

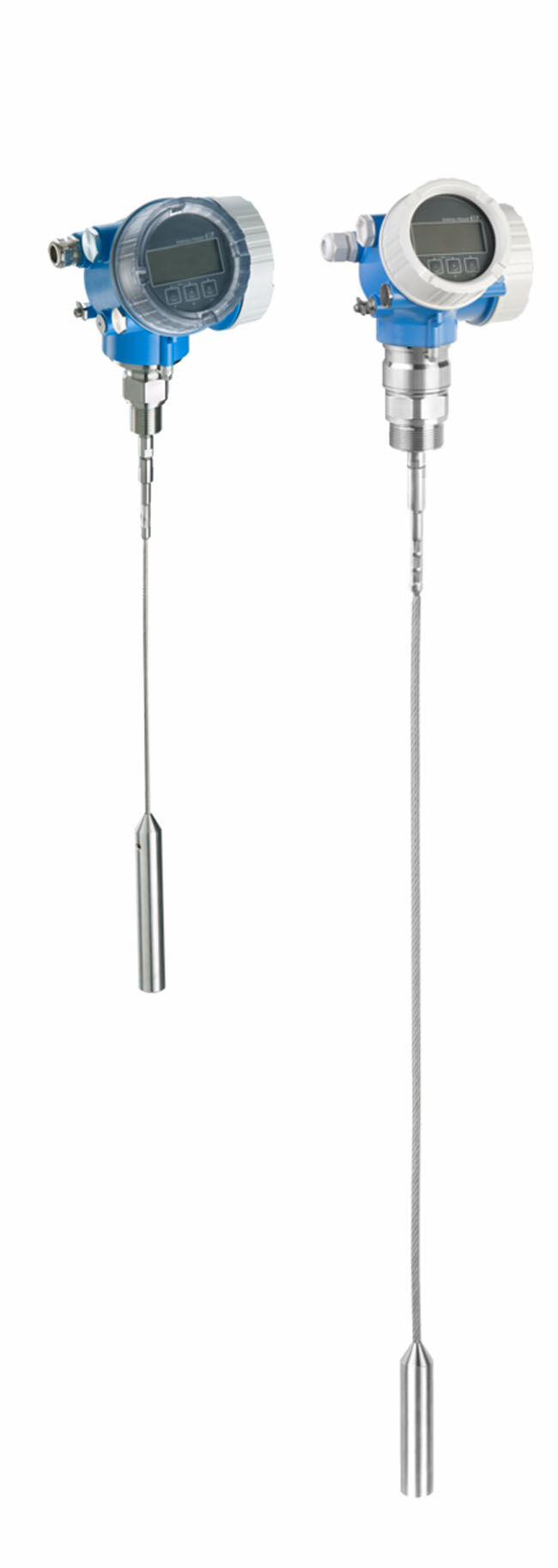

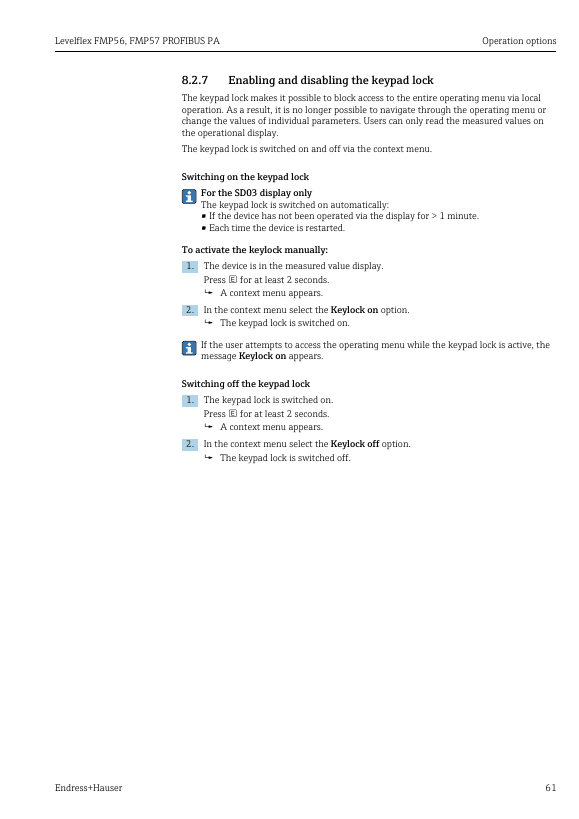

Endress+Hauser Levelflex FMP56, FMP57 – Photo (deeed884e569_S1-18 S. 1)
Photo · deeed884e569_S1-18 · S. 1

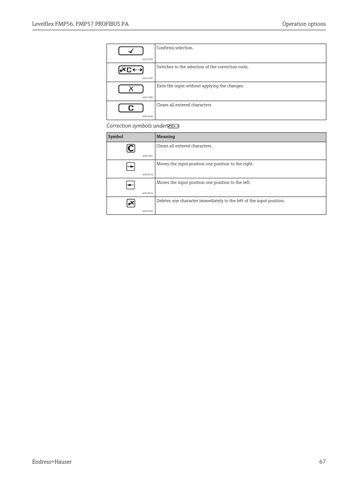

Endress+Hauser Levelflex FMP56, FMP57 – Drawing (aa2c1b5ccac8_S31-183 S. 37)
Drawing · aa2c1b5ccac8_S31-183 · S. 37
Endress+Hauser Levelflex FMP56, FMP57 – Drawing (aa2c1b5ccac8_S31-183 S. 42)
Drawing · aa2c1b5ccac8_S31-183 · S. 42
Endress+Hauser Levelflex FMP56, FMP57 – Drawing (aa2c1b5ccac8_S31-183 S. 43)
Drawing · aa2c1b5ccac8_S31-183 · S. 43

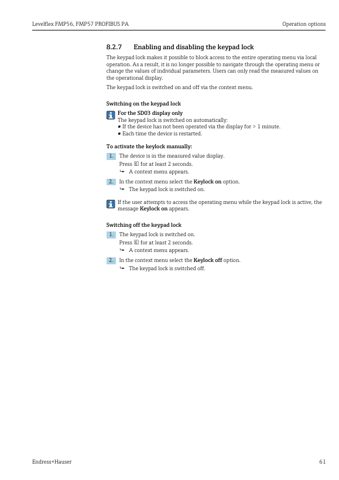

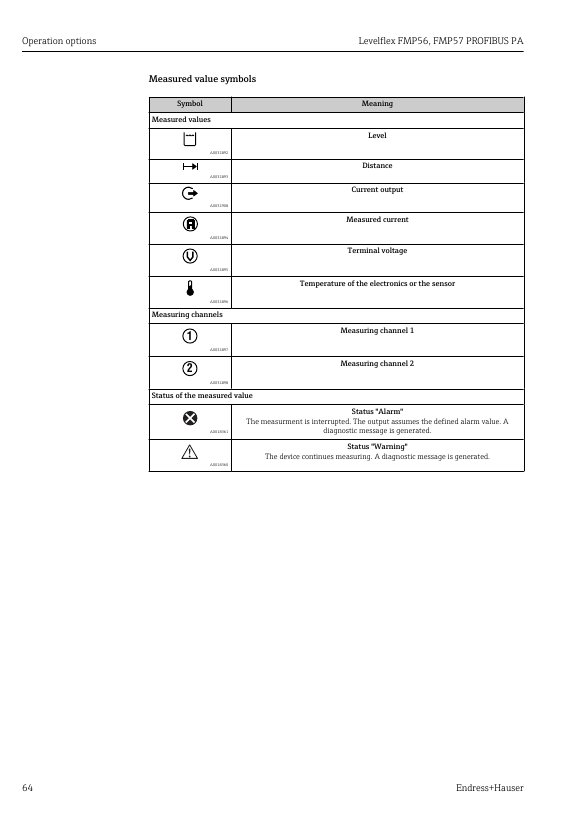

Endress+Hauser Levelflex FMP56, FMP57 – Page preview (aa2c1b5ccac8_S31-183 S. 31)
Page preview · aa2c1b5ccac8_S31-183 · S. 31

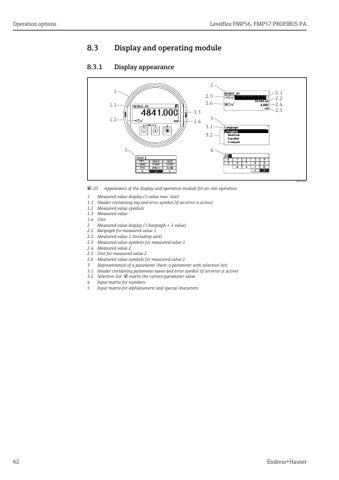

Endress+Hauser Levelflex FMP56, FMP57 – Page preview (aa2c1b5ccac8_S31-183 S. 32)
