Library› Cargo› Cargo Level & Temperature Gauging› Radar Level Gauge› Endress+Hauser Micropilot FMR66B HART
Endress+Hauser

Micropilot FMR66B HART

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Maximum measuring range22 m (72 ft)
AntennaEncapsulated, PVDF, 40 mm (1.5 in)
Antenne gekapselt, PVDF40 mm (1,5 in)
WerkzeugGabelschlüssel 50 mm
Maximal erlaubtes Drehmoment30 Nm (22 lbf ft)
Einkammer Gehäuse316L Hygiene (keine Feststellschraube)
Maximaler Messbereich30 m (98 ft)
Maximale Stutzenlänge Hmax750 mm (30 in)
Gehäuse drehenbis zu 380°
Maximale Drehung des Anzeigemoduls4 × 90 °
Festzugschraube der Deckelsicherung0,7 Nm (0,52 lbf ft) ±0,2 Nm (0,15 lbf ft)
Empfohlene SchraubengrößeM14
Empfohlene Schraubenlänge100 mm (3,9 in)
Prozessdruck–0,1 … 0,1 bar (–1,45 … 1,45 psi)
Prozesstemperatur–40 … +80 °C (–40 … +176 °F)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Micropilot FMR66B HART is a radar level meter designed to measure liquid levels in tanks and vessels. It helps in avoiding false echoes and optimizing measurement accuracy.Source: Endress+Hauser Micropilot FMR66B HART datasheet, p. 15

Features

  • EPDM sealing under potential equalization
  • PA66-GF30 adapter as a replacement for cable connections
  • TAG label made of plastic, metal, or customer-supplied
  • Coating of housing and cover: polyester
  • Aluminum blind cover EN AC 44300
  • Cover with aluminum EN AC 44300 and PC Lexan 943A window
  • Sealing material for cover: HNBR

Options

  • Stainless steel housing 316L for hygiene

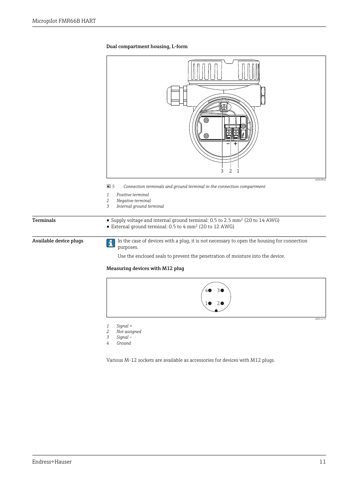

Endress+Hauser Micropilot FMR66B HART – Drawing (86463d076111_S6-41 S. 6)
Drawing · 86463d076111_S6-41 · S. 6

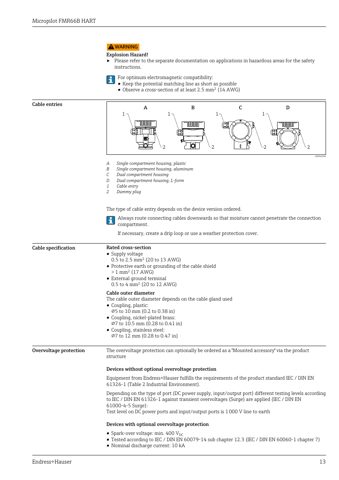

Endress+Hauser Micropilot FMR66B HART – Drawing (86463d076111_S6-41 S. 8)
Drawing · 86463d076111_S6-41 · S. 8

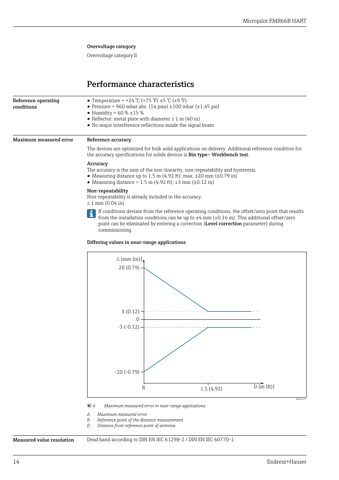

Endress+Hauser Micropilot FMR66B HART – Drawing (86463d076111_S6-41 S. 9)
Drawing · 86463d076111_S6-41 · S. 9

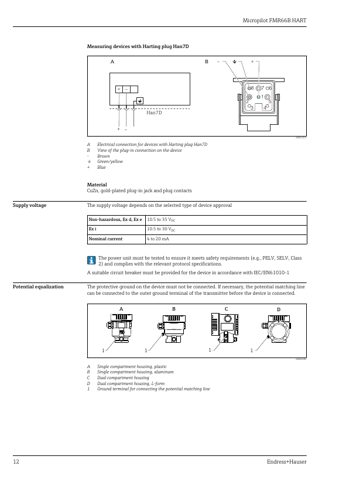

Endress+Hauser Micropilot FMR66B HART – Page preview (86463d076111_S6-41 S. 7)
Page preview · 86463d076111_S6-41 · S. 7

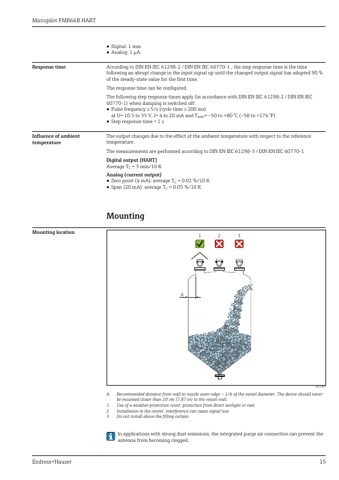

Endress+Hauser Micropilot FMR66B HART – Page preview (86463d076111_S6-41 S. 10)
Page preview · 86463d076111_S6-41 · S. 10

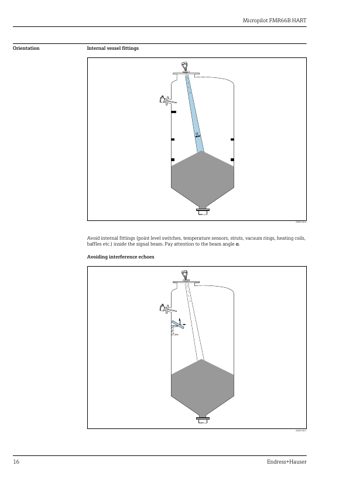

Endress+Hauser Micropilot FMR66B HART – Page preview (86463d076111_S6-41 S. 11)
Page preview · 86463d076111_S6-41 · S. 11
Endress+Hauser Micropilot FMR66B HART – Page preview (86463d076111_S6-41 S. 12)
Page preview · 86463d076111_S6-41 · S. 12
Source: Endress+Hauser Micropilot FMR66B HART datasheet, p. 37
