Endress+Hauser

NXA821

Tank Level Gauging · Tank Level & Measurement

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Versorgungsspannung90 - 250 VAC
Leistungsaufnahmemax. 23 VA
Stromaufnahmemax. 100 mA bei 230 V AC
Sicherung400 mA T
Schaltleistung25 VDC, 100 W
Number of tanks225 tanks
LAN connections100 BASE-TX, Full/Half Duplex, 100 Mbit, Shielded RJ45 connector
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The NXA821 Tankvision Data Concentrator is a solution for large tank farms and refineries, collecting data from multiple Tank Scanners and enabling centralized management.

Applications

  • large tank farms
  • refineries

Features

  • Normal closed in operation
Source: Endress+Hauser NXA821 datasheet, p. 20

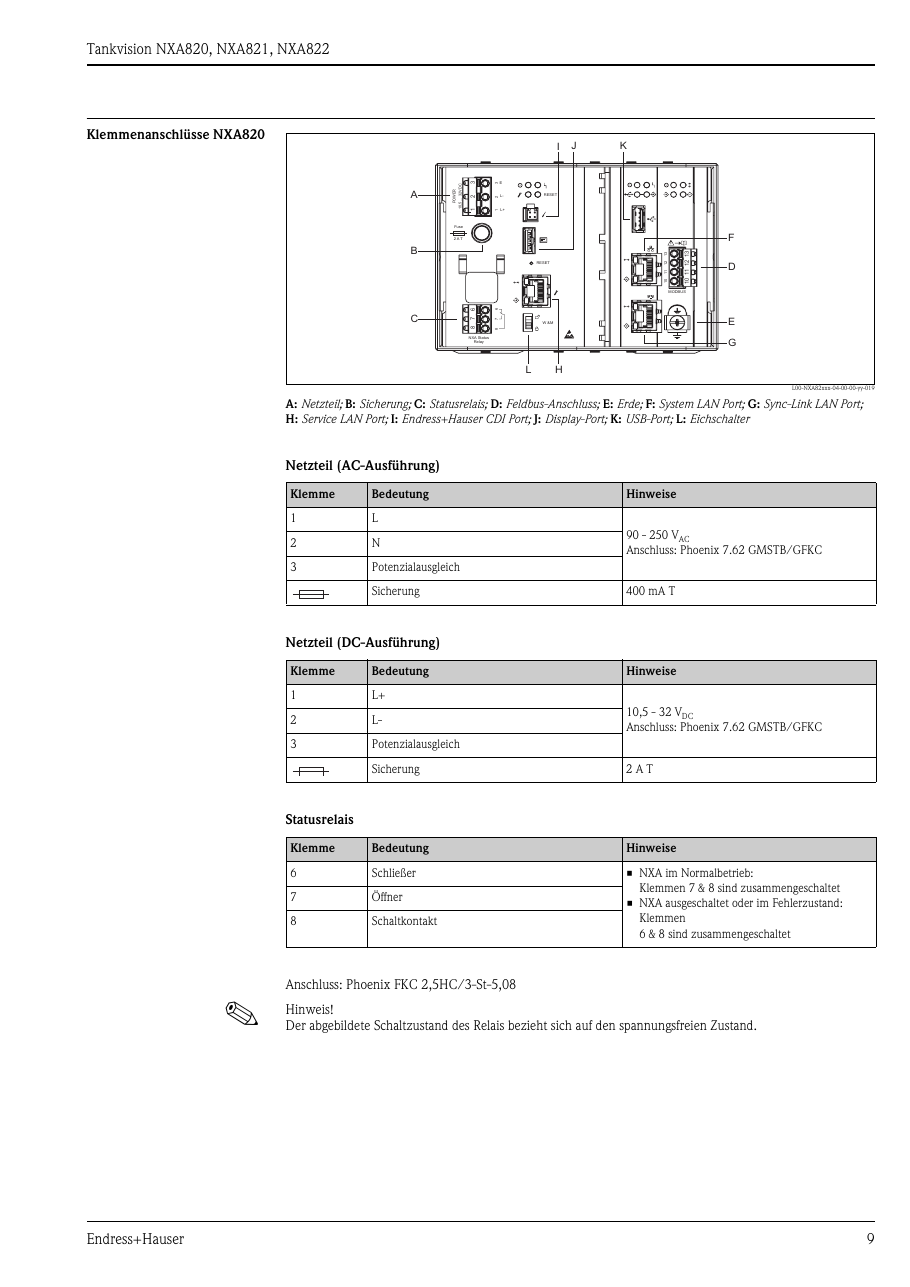

Endress+Hauser NXA821 – Drawing (08b08733d8a1_S3-40 S. 3)
Drawing · 08b08733d8a1_S3-40 · S. 3

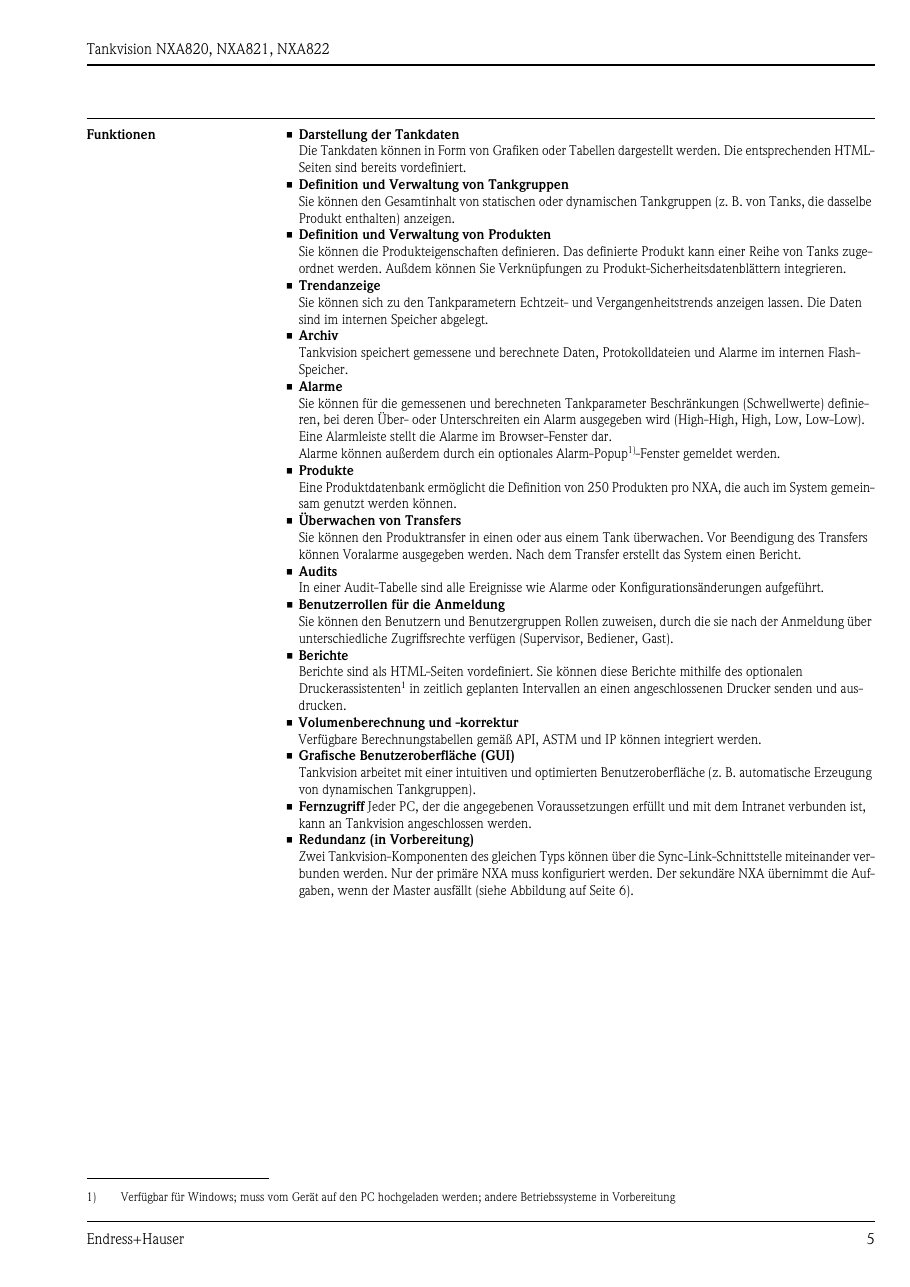

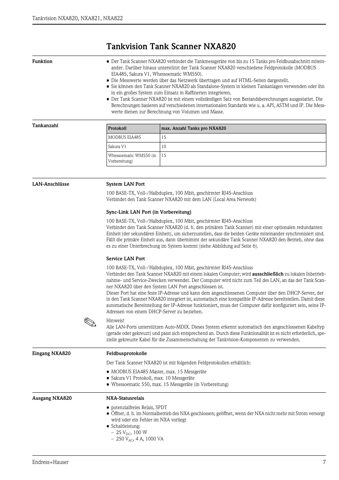

Endress+Hauser NXA821 – Drawing (08b08733d8a1_S3-40 S. 5)
Drawing · 08b08733d8a1_S3-40 · S. 5

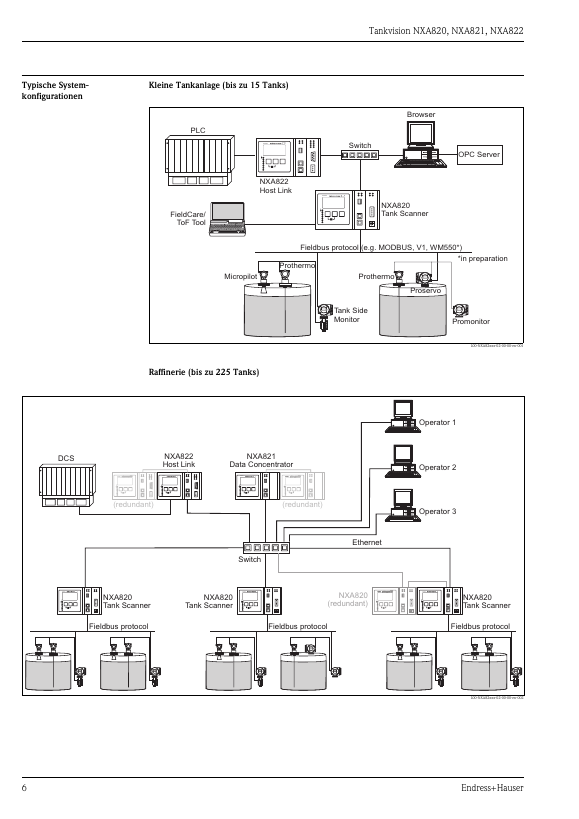

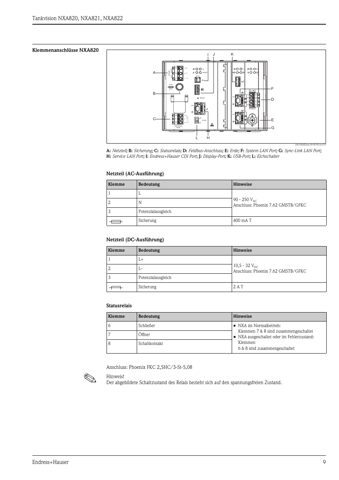

Endress+Hauser NXA821 – Drawing (08b08733d8a1_S3-40 S. 7)
Drawing · 08b08733d8a1_S3-40 · S. 7

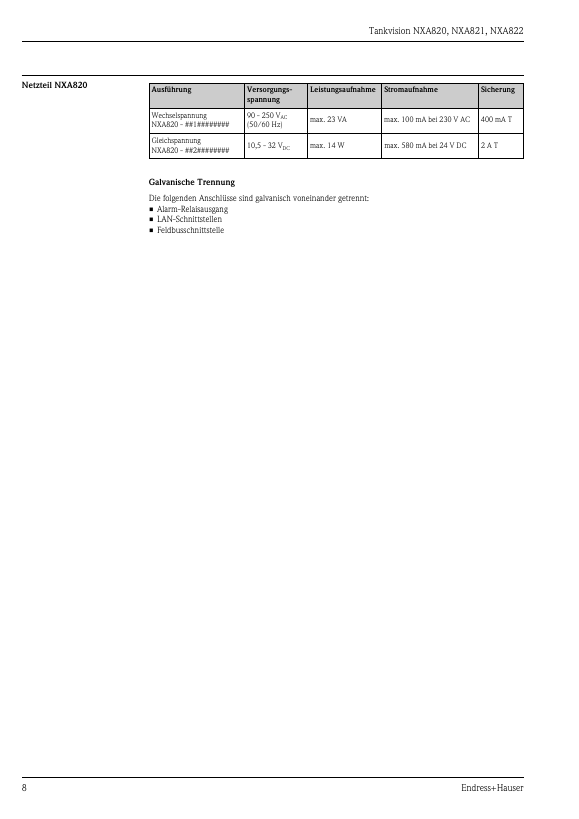

Endress+Hauser NXA821 – Page preview (08b08733d8a1_S3-40 S. 4)
Page preview · 08b08733d8a1_S3-40 · S. 4

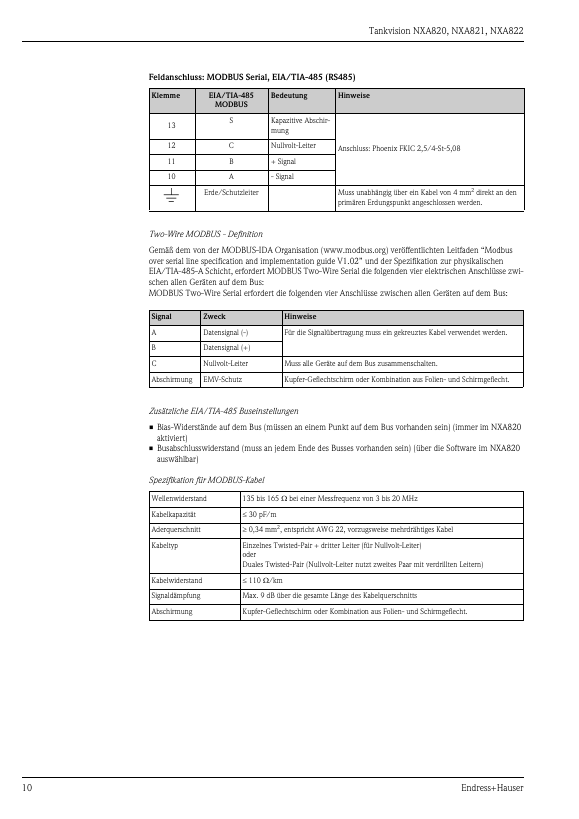

Endress+Hauser NXA821 – Page preview (08b08733d8a1_S3-40 S. 6)
Page preview · 08b08733d8a1_S3-40 · S. 6

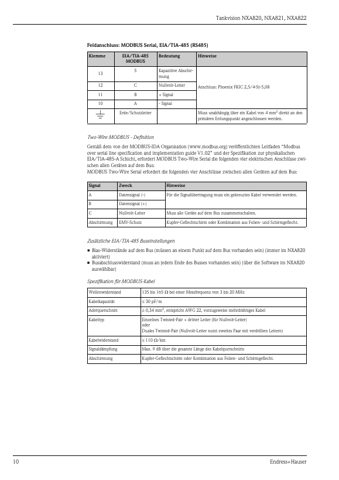

Endress+Hauser NXA821 – Page preview (08b08733d8a1_S3-40 S. 8)
Page preview · 08b08733d8a1_S3-40 · S. 8

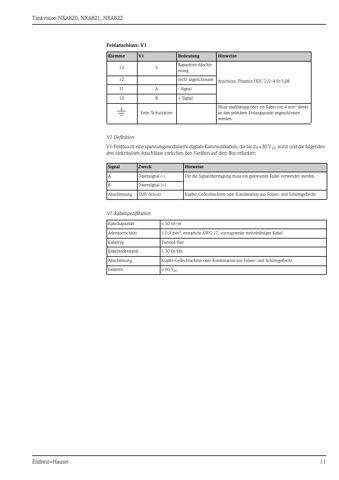

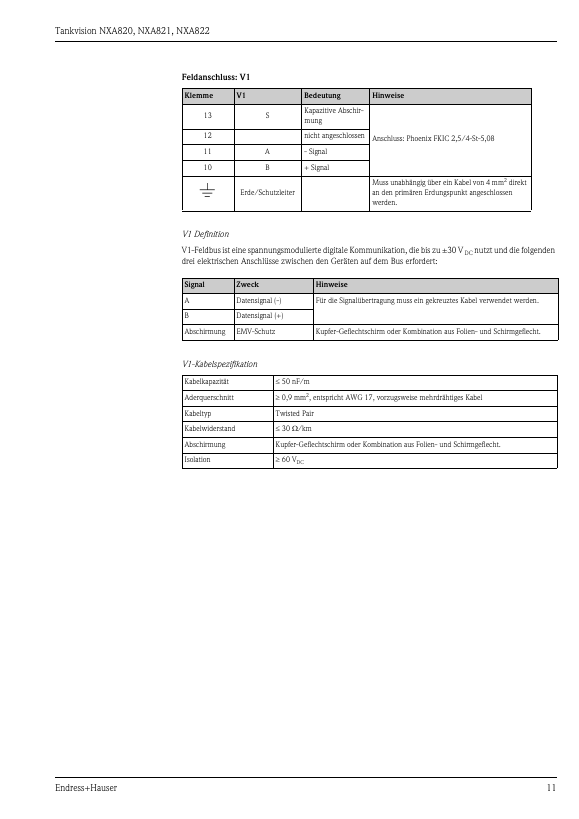

Endress+Hauser NXA821 – Page preview (08b08733d8a1_S3-40 S. 9)
Page preview · 08b08733d8a1_S3-40 · S. 9
Source: Endress+Hauser NXA821 datasheet, p. 19
