Library› Cargo› Cargo Level & Temperature Gauging› Radar Level Gauge› Endress+Hauser Micropilot FMR62B HART
Endress+Hauser

Micropilot FMR62B HART

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Usable measuring rangeLength of antenna + 10 mm (0.4 in)
Reference point of measurementvaries depending on the antenna system
Maximal erlaubtes Drehmoment50 Nm (36 lbf ft)
Maximale Stutzenlänge Hmax750 mm (30 in)
Anzugsdrehmoment45 … 65 Nm
AntennePTFE plattiert, frontbündig 50 mm (2 in)
SicherungsschraubeInnensechskant 4 mm (0,16 in)
Deckelsicherung0,7 Nm (0,52 lbf ft) ±0,2 Nm (0,15 lbf ft)
Versorgungsspannung10,5 … 35 VDC
Nennstrom4 … 20 mA
Leistungsaufnahmemax.0,9 W
Bemessungsquerschnitt0,5 … 2,5 mm2 (20 … 13 AWG)
Kabelaußendurchmesser⌀5 … 10 mm (0,2 … 0,38 in)
Measuring range7 m (23 ft)
MediengruppeA0 (εr 1,2 … 1,4) 7 m (23 ft)
Schaltverzögerung0 … 100 s
Ta+76 °C (+169 °F)
Tp+450 °C (+842 °F)
CSA C/US Zulassung und Kunststoffgehäuse; Prozesstemperatur0 … +200 °C (+32 … +392 °F)
P2Tp: +76 °C (+169 °F) | Ta: +76 °C (+169 °F)
P3Tp: +200 °C (+392 °F) | Ta: +27 °C (+81 °F)
P4Tp: +200 °C (+392 °F) | Ta: –40 °C (–40 °F)
P5Tp: –40 °C (–40 °F) | Ta: –40 °C (–40 °F)
Prozesstemperatur (TP)–40 … +450 °C (–40 … +842 °F)
Prozessdruckbereich–1 … 16 bar (–14,5 … 232 psi)
Elektrische AnschlusswerteU = 16 … 35 VDC, I = 0 … 40 mA
Horn antenna65 mm (2.56 in)
Maximum permissible torque3 Nm
Storage temperature–40 to +90 °C (–40 to +194 °F)
Climate classDIN EN 60068-2-38 (test Z/AD)
Degree of protectionIP66/68, NEMA TYPE 4X/6P
Housing316L, Hygiene
Einsatzhöhe nach IEC61010-1 Ed.3Generell bis 2 000 m (6 600 ft) über Normalnull
SchutzartIP66/68, NEMA TYPE 4X/6P
InnenwiderstandRI < 880 Ω
Mindestabstand400 mm (15,7 in)
Abstand von der Antennenkanteca. 100 mm (4 in)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A radar level meter designed to avoid signal interference and optimize measurement accuracy.

Features

  • radar technology
Source: Endress+Hauser Micropilot FMR62B HART datasheet, p. 3

Options

  • hygiene housing
Source: Endress+Hauser Micropilot FMR62B HART datasheet, p. 23

Standards

  • IEC/EN61010-1
Source: Endress+Hauser Micropilot FMR62B HART datasheet, p. 25

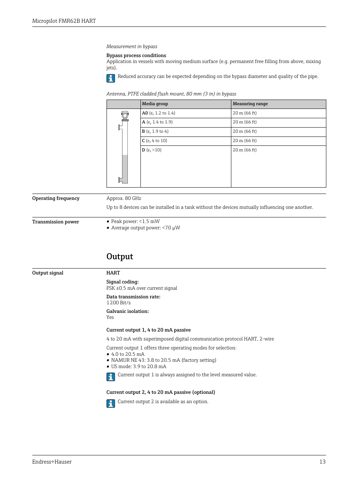

Endress+Hauser Micropilot FMR62B HART – Drawing (a792ab711a0a_S7-64 S. 7)
Drawing · a792ab711a0a_S7-64 · S. 7

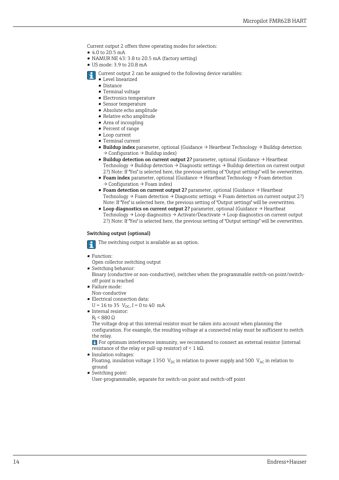

Endress+Hauser Micropilot FMR62B HART – Drawing (a792ab711a0a_S7-64 S. 8)
Drawing · a792ab711a0a_S7-64 · S. 8
Endress+Hauser Micropilot FMR62B HART – Drawing (a792ab711a0a_S7-64 S. 9)
Drawing · a792ab711a0a_S7-64 · S. 9
Endress+Hauser Micropilot FMR62B HART – Page preview (a792ab711a0a_S7-64 S. 10)
Page preview · a792ab711a0a_S7-64 · S. 10
Endress+Hauser Micropilot FMR62B HART – Page preview (a792ab711a0a_S7-64 S. 11)
Page preview · a792ab711a0a_S7-64 · S. 11

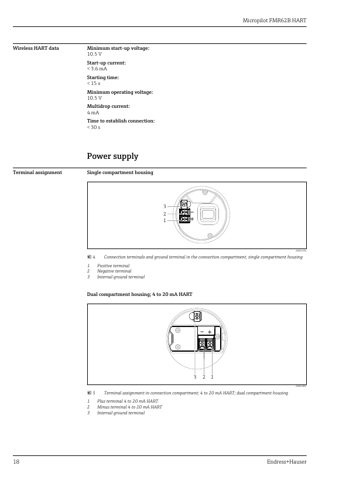

Endress+Hauser Micropilot FMR62B HART – Page preview (a792ab711a0a_S7-64 S. 12)
Page preview · a792ab711a0a_S7-64 · S. 12

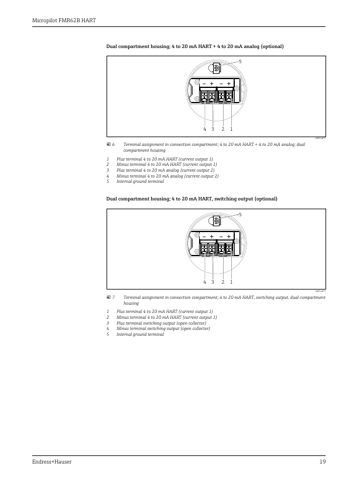

Endress+Hauser Micropilot FMR62B HART – Page preview (a792ab711a0a_S7-64 S. 13)
Page preview · a792ab711a0a_S7-64 · S. 13

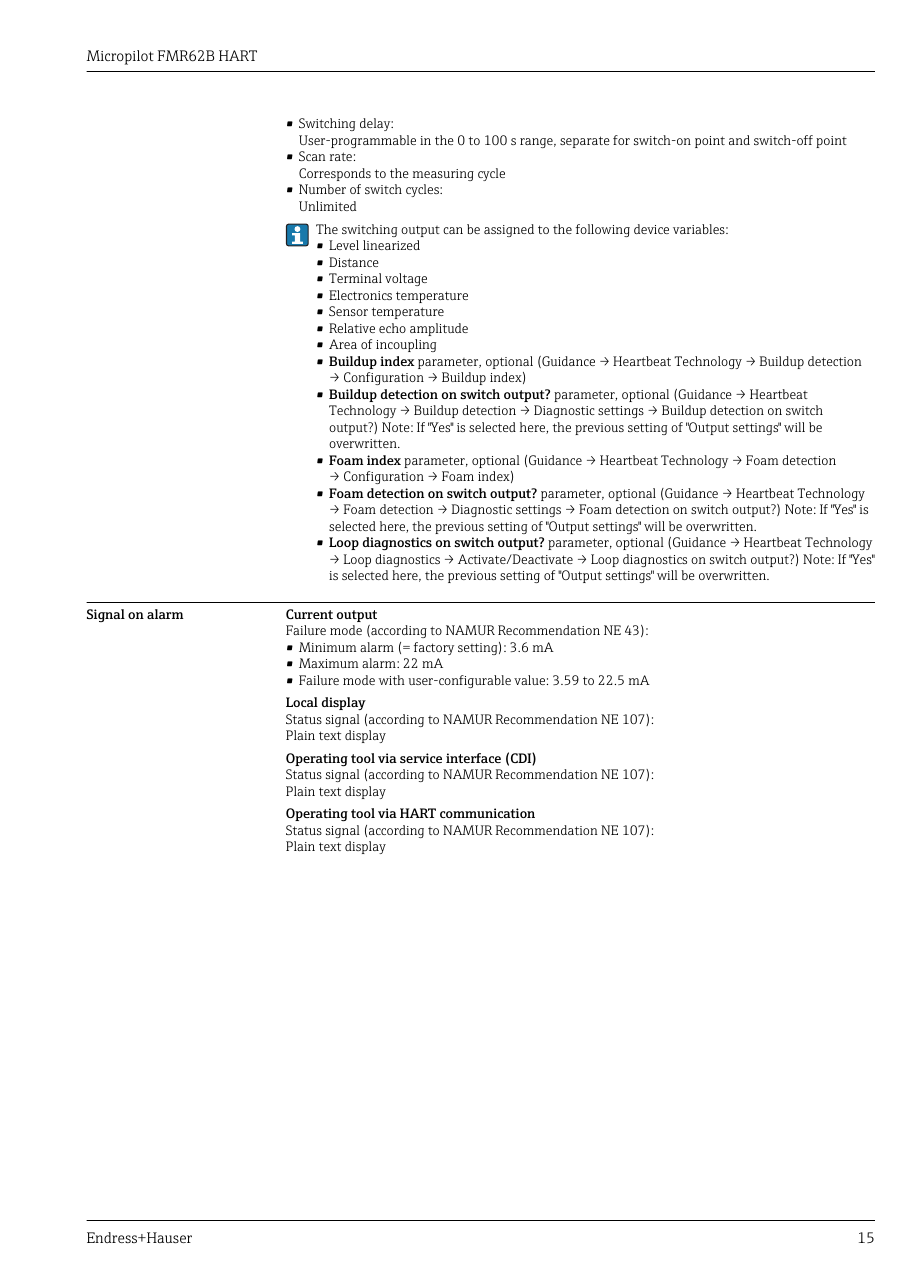

Source: Endress+Hauser Micropilot FMR62B HART datasheet, p. 15
