Micropilot FMR63B HART

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Maximum measuring range10 m (32.8 ft)
AntennaIntegrated, PEEK, 20 mm (0.75 in)
Maximaler Messbereich10 m (32,8 ft)
Antenneintegriert, PEEK, 20 mm (0,75 in)

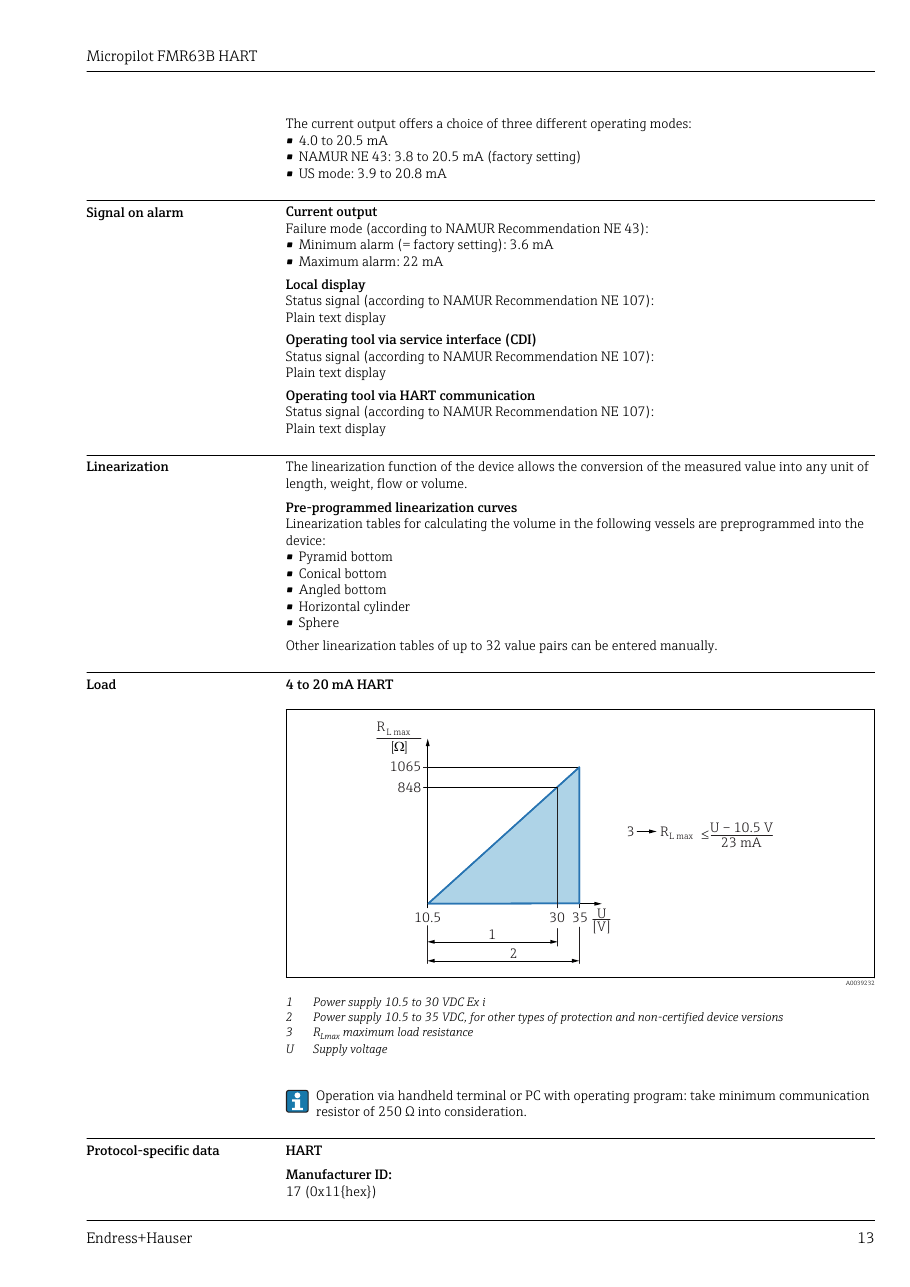

Referenzspannung10,5 … 35 V
Referenzstrom4 … 20 mA
Referenztemperatur–50 … +80 °C (–58 … +176 °F)
EinbauhinweiseAntenne integriert, PEEK 20 mm (0,75 in)
Optimale MaterialdickePE; εr 2,3 1,25 mm (0,049 in) PTFE; εr 2,1 1,30 mm (0,051 in) PP; εr 2,3 1,25 mm
UmgebungstemperaturbereichOhne LCD-Anzeige: Standard: –40 … +85 °C (–40 … +185 °F) Optional bestellbar: –5
Prozesstemperatur–20 … +150 °C (–4 … +302 °F)
Prozesstemperatur bei CSA C/US Zulassung0 … +150 °C (+32 … +302 °F)
Gehäusematerial316L
Prozesstemperaturbereich–40 … +200 °C (–40 … +392 °F)
KlimaklasseDIN EN 60068-2-38 (Prüfung Z/AD)
Einsatzhöhe nach IEC61010-1 Ed.3bis 2 000 m (6 600 ft) über Normalnull
SchutzartIP66/68, TYPE 4X/6P
U16 … 35 VDC
I0 … 40 mA
SchaltverzögerungFrei programmierbar im Bereich 0 … 100 s, getrennt für Ein- und Ausschaltpunkt
Kunststoffgehäuse; Prozesstemperatur–40 … +200 °C (–40 … +392 °F)
P1Tp: –40 °C (–40 °F) | Ta: +76 °C (+169 °F)
P2Tp: +76 °C (+169 °F) | Ta: +76 °C (+169 °F)
P5Tp: –40 °C (–40 °F) | Ta: –40 °C (–40 °F)
P3Tp: +200 °C (+392 °F) | Ta: +27 °C (+81 °F)
P4Tp: +200 °C (+392 °F) | Ta: –40 °C (–40 °F)
Process connection316L / 1.4404
Housing adapter316L / 1.4404
Antenna adapter316L / 1.4404
Cladded antenna type PEEK, 20 mm (0.75 in)1 m (3.3 ft)
Cladded antenna type PEEK, 40 mm (1.5 in)1.5 m (5 ft)
Ambient temperature range–40 to +85 °C (–40 to +185 °F)
Plastic housing; process temperature–40 to +200 °C (–40 to +392 °F)
Plastic housing; process temperature with CSA C/US approval0 to +200 °C (+32 to +392 °F)
Aluminum housing, coated; process temperature–10 to +150 °C (+14 to +302 °F)
Manufacturer documentation

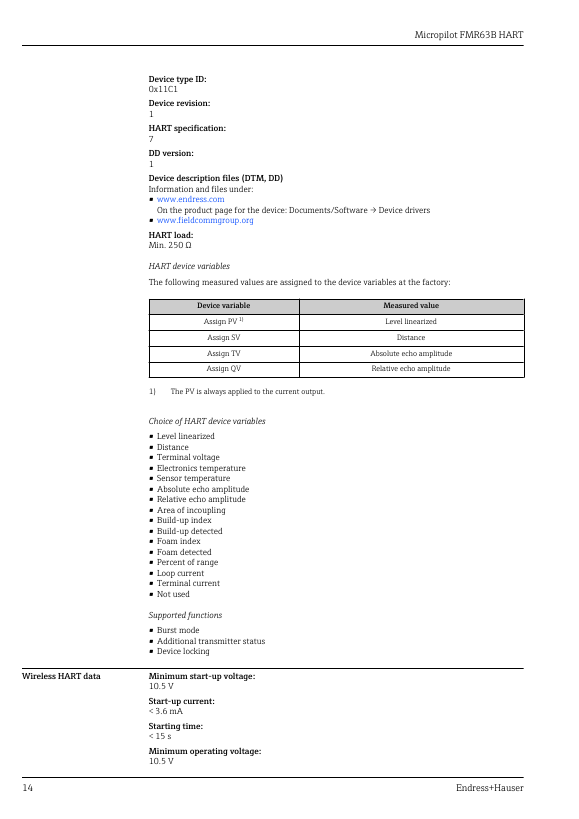

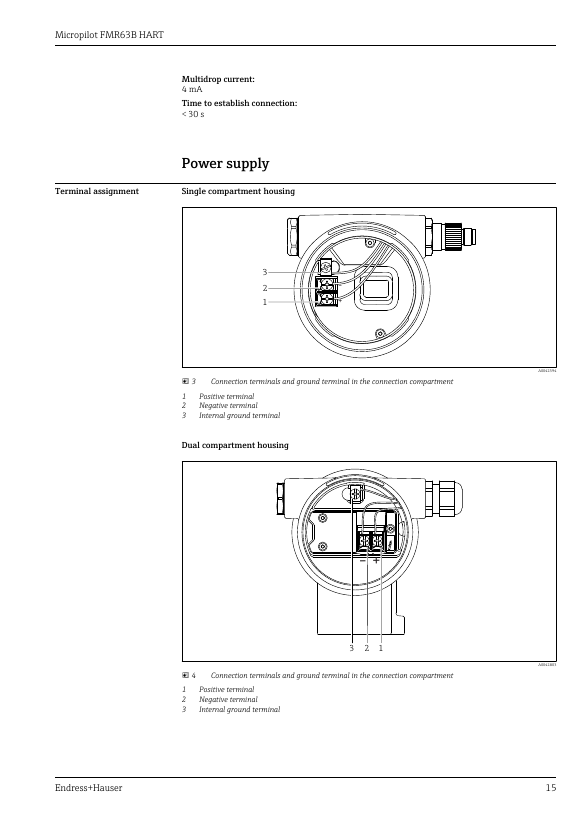

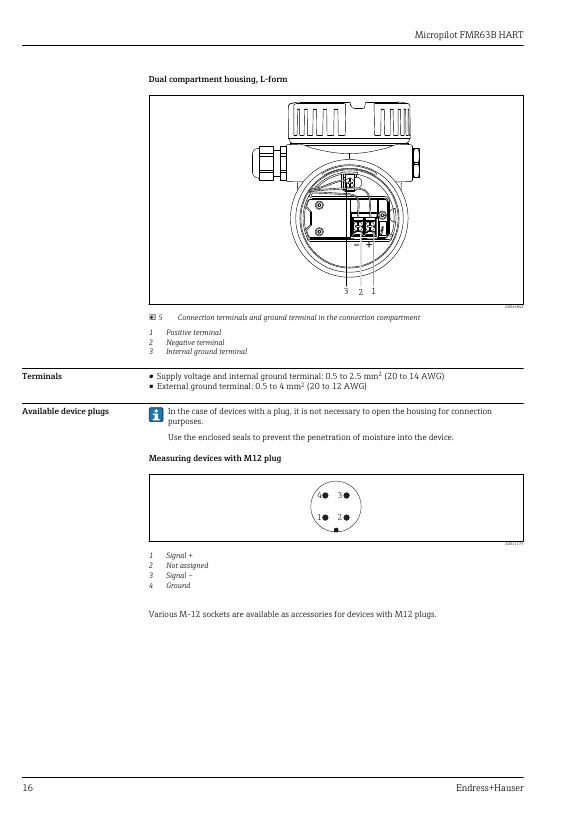

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Micropilot FMR63B HART is a downward-looking radar system that uses frequency modulated continuous wave (FMCW) technology to measure distances.

Applications

  • silos
  • liquid storage tanks
Source: Endress+Hauser Micropilot FMR63B HART datasheet, p. 6

Features

  • downward-looking radar
  • continuous wave radar

Options

  • Optional temperature range extensions
  • Optional display options
Source: Endress+Hauser Micropilot FMR63B HART datasheet, p. 26

Standards

  • DIN EN IEC 61298-2
  • DIN EN IEC 60770-1
Source: Endress+Hauser Micropilot FMR63B HART datasheet, p. 20

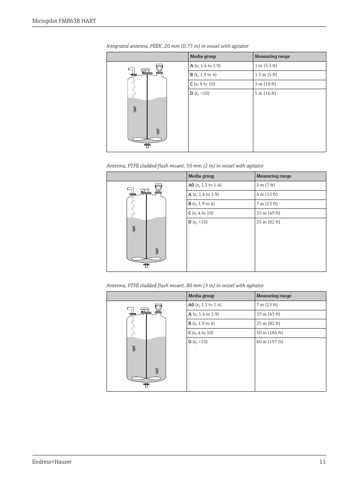

Endress+Hauser Micropilot FMR63B HART – Drawing (b5d1af136997_S6-52 S. 6)
Drawing · b5d1af136997_S6-52 · S. 6
Endress+Hauser Micropilot FMR63B HART – Drawing (b5d1af136997_S6-52 S. 7)
Drawing · b5d1af136997_S6-52 · S. 7
Endress+Hauser Micropilot FMR63B HART – Drawing (b5d1af136997_S6-52 S. 8)
Drawing · b5d1af136997_S6-52 · S. 8

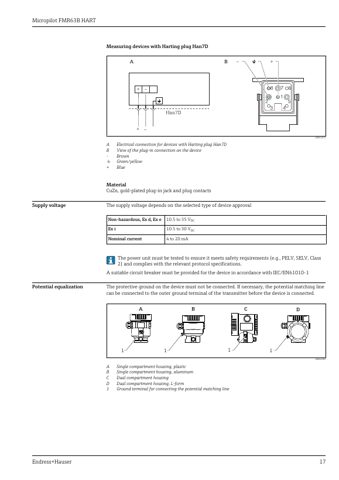

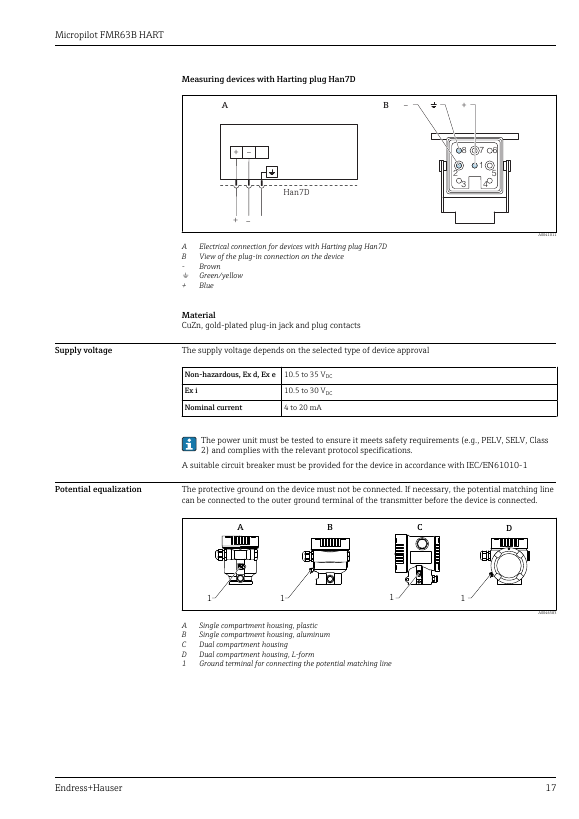

Endress+Hauser Micropilot FMR63B HART – Page preview (b5d1af136997_S6-52 S. 9)
