Library› Engine Room› Automation & Control› Level Switch› Endress+Hauser FTL375P
Endress+Hauser

FTL375P

Level Switch · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Stromimpulseca. 10 mA
Anschließbare MessaufnehmerLiquiphant DL 17 Z mit Elektronikeinsatz EL 17 Z, Liquiphant II FDL 30, FDL 31,
Versorgung der Messaufnehmerdurch Nivotester FTL 375 P
Leitungswiderstandmax. 25 Ω pro Ader
Schaltverzögerungca. 0,9 s
Schaltleistung der Relaiskontakte U~ max.253 V
Schaltleistung der Relaiskontakte I~ max.2,5 A
Schaltleistung der Relaiskontakte P~ max. bei cos ϕ = 1600 VA
Schaltleistung der Relaiskontakte P~ max. bei cos ϕ ≥ 0,7300 VA
Schaltleistung der Relaiskontakte U– max.100 V
Schaltleistung der Relaiskontakte I– max.2,5 A
Schaltleistung der Relaiskontakte P– max.100 W
Lebensdauermindestens 105 Schaltspiele bei maximaler Kontaktbelastung
Max. Strom bei Ausgangssignal high500 mA
Leistungsaufnahme 1-Kanalmax. 2,52 W
Leistungsaufnahme 2-Kanalmax. 3,15 W
Leistungsaufnahme 3-Kanalmax. 3,80 W
Zulässige Umgebungstemperaturen–20 °C...+70 °C
SchutzartSteckkarte IP00, Front IP20
Breite4 Teilungseinheiten (20,3 mm)
Höhe3 Höheneinheiten (128,4 mm)
Tiefe160 mm
Hinweis100 mm = 3.94 in
Weightca. 134 g
Power consumption 1-channelmax. 2.52 W (at Umax 30 V)
Power consumption 2-channelmax. 3.15 W (at Umax 30 V)
Power consumption 3-channelmax. 3.80 W (at Umax 30 V)
Accuracy Settling time/periodFinal switching state after switching on power supply: approx. 10...40 s, depend
Permissible ambient temperatures• –20 °C...+70 °C
Storage temperature• –25 °C...+85 °C (preferably at +20 °C)
Degree of protectionPlug-in card IP00, front panel IP20
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Nivotester FTL 375 P is a measuring transmitter used as a power supply for E+H limit switches with two-wire PFM signals.

Applications

  • liquid level detection in tanks
  • dust silos
Source: Endress+Hauser FTL375P datasheet, p. 1

Features

  • measuring transmitter power supply
  • compatible with E+H limit switches
  • two-wire PFM signal capability

Options

  • Monorack II (4 TE)
  • Monorack Schutzgehäuse
  • Racksyst-Baugruppenträger
  • Racksyst-Feldgehäuse
Source: Endress+Hauser FTL375P datasheet, p. 16

Standards

  • IEC 61508
Source: Endress+Hauser FTL375P datasheet, p. 1

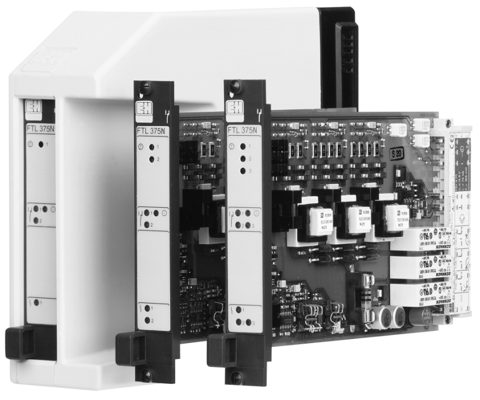

Endress+Hauser FTL375P – Photo (157b0b86ac03_S1-16 S. 1)
Photo · 157b0b86ac03_S1-16 · S. 1

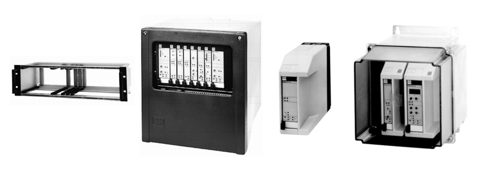

Endress+Hauser FTL375P – Photo (157b0b86ac03_S1-16 S. 10)
Photo · 157b0b86ac03_S1-16 · S. 10

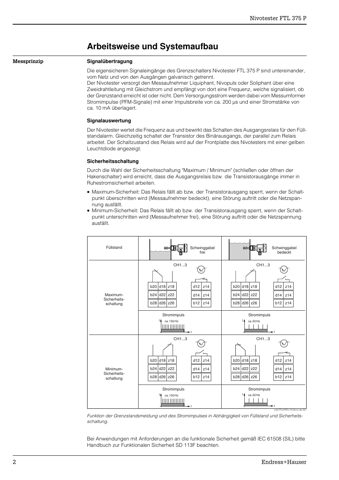

Endress+Hauser FTL375P – Drawing (157b0b86ac03_S1-16 S. 2)
Drawing · 157b0b86ac03_S1-16 · S. 2

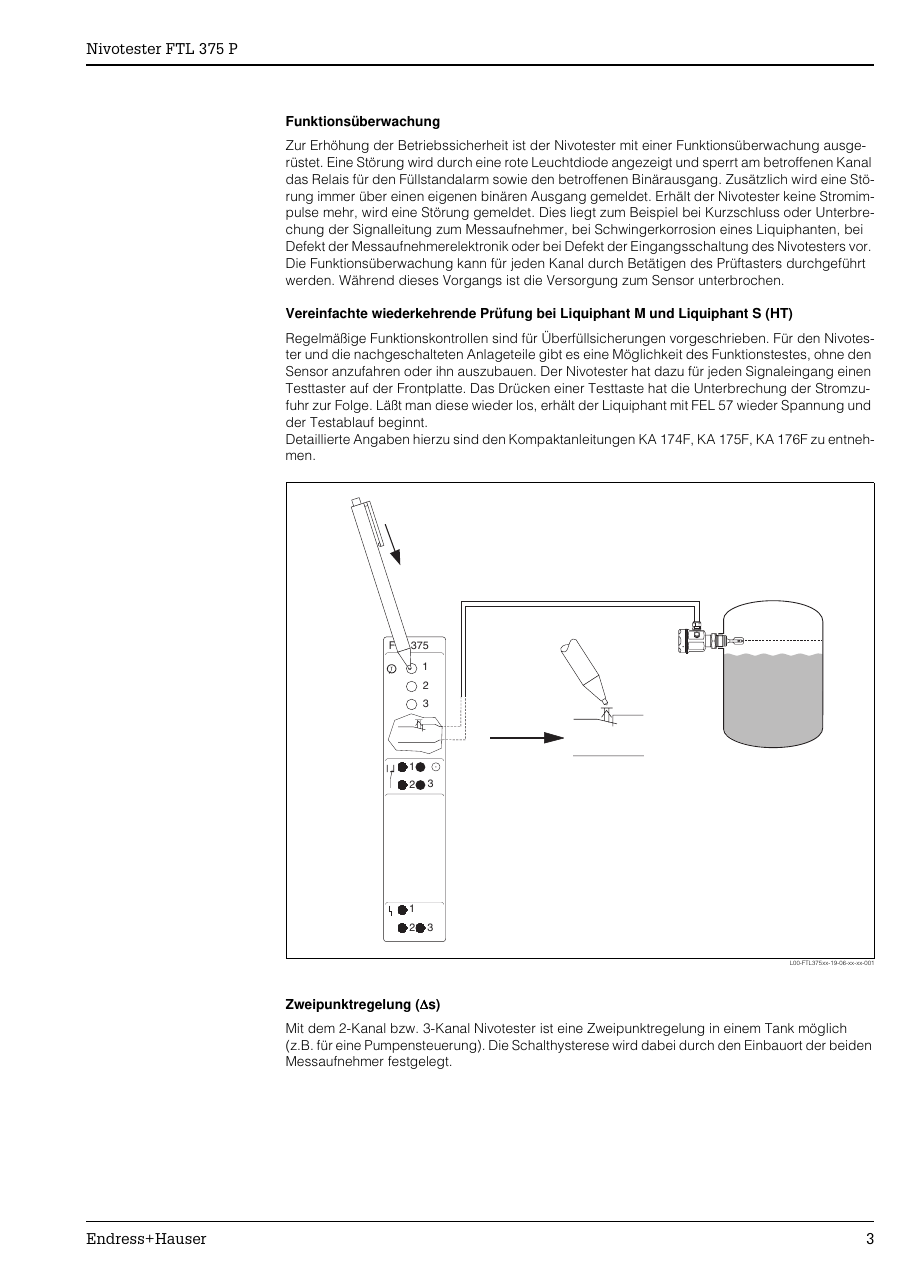

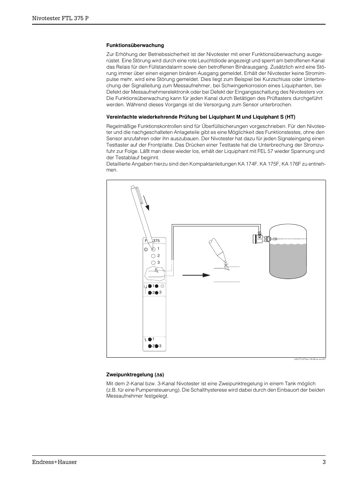

Endress+Hauser FTL375P – Drawing (157b0b86ac03_S1-16 S. 3)
Drawing · 157b0b86ac03_S1-16 · S. 3

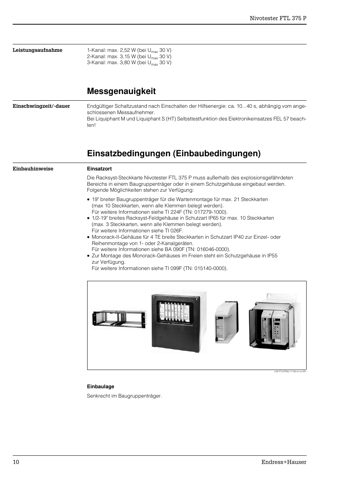

Endress+Hauser FTL375P – Drawing (157b0b86ac03_S1-16 S. 10)
Drawing · 157b0b86ac03_S1-16 · S. 10

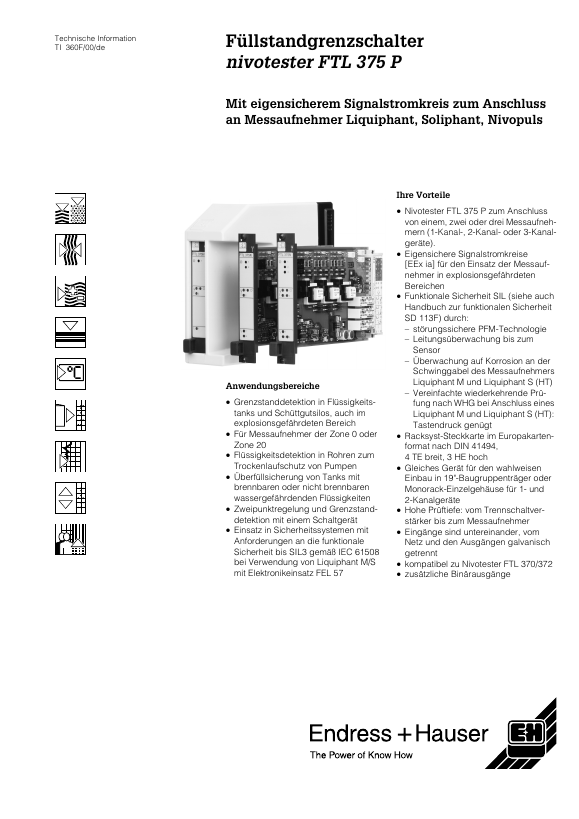

Endress+Hauser FTL375P – Page preview (157b0b86ac03_S1-16 S. 1)
Page preview · 157b0b86ac03_S1-16 · S. 1
Endress+Hauser FTL375P – Page preview (157b0b86ac03_S1-16 S. 4)
Page preview · 157b0b86ac03_S1-16 · S. 4
Endress+Hauser FTL375P – Page preview (157b0b86ac03_S1-16 S. 5)
Page preview · 157b0b86ac03_S1-16 · S. 5
Source: Endress+Hauser FTL375P datasheet, p. 4
