Soliwave FDR56/FQR56

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

maximaler Prozessdruck0,8 ... 5,1 bar (12 ... 74 psi)
maximale Temperatur am Prozessanschluss+450 °C (+842 °F)
maximale Temperatur am Geräteanschluss+70 °C (+158 °F)
maximale Temperatur am Innengewinde des Hochtemperaturadapters+160 °C (+320 °F)
Polzahl/querschnitt4 x 0,34 mm2
Einsatztemperaturbereich-25 ... +90 °C (-13 ... +194 °F)
SchutzartIP65, IP67, IP68, IP69K
Weightmax. 0,22 kg (0.49 lb)
Einschweißadapter316Ti (1.4571), Stahl P235GH (1.0345)
MaterialEdelstahl 316Ti (1.4571)
D1110 (4.33) mm (in)
D2150 (5.91) mm (in)
D318 (0.71) mm (in)
D18 (0.71) mm (in)
Druck10 bar (145 psi)
Dn50
Schauglasplatte71209118
Schaltleistung250 V / 4 A (Harting-Steckverbinder HAN8D max. 50 V), 125 V / 0,4 A oder 30 V /
Detektionsbereich0,3 ... 100 m
±10 mm10 mm
EinbauhinweiseDer FDR56/FQR56 ist mit einem Norm-Gewinde (R 1½ nach EN 10226, 1½ NPT nach ANSI
Max. Temperatur-40 °C ... +70 °C
Hochdruckadapter15
Temperaturbereich-40 °C ... +70 °C
Detektionsbereich A0,3 ... 100 m
Detektionsbereich B0,03 ... 0,3 m
Antennenöffnungswinkelca. 11°
Prozesstemperatur+70 ... +450 °C (+158 ... +842 °F)
Maximaler Prozessdruck21 bar (305 psi)
Material MontagearmEdelstahl 304 (1.4301)
Material EinschweißadapterEdelstahl 304 (1.4301)

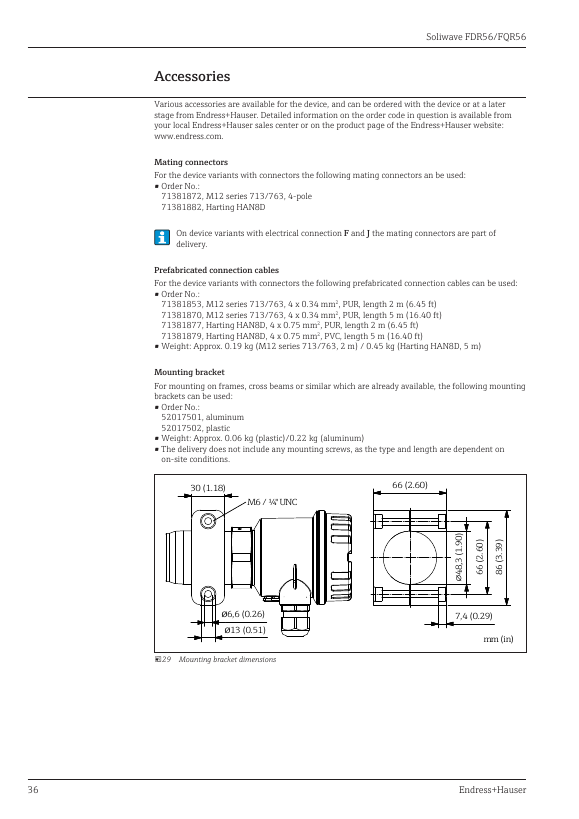

Einsatztemperatur Montageschelle Aluminium-40 ... +70 °C (-40 ... +158 °F)
Einsatztemperatur Montageschelle Kunststoff-20 ... +70 °C (-4 ... +158 °F)
Material Montageflansch316Ti (1.4571)
Gewicht Montageflansch DN40ca. 2,3 kg (5.07 lb)
Gewicht Montageflansch DN100ca. 5,8 kg (12.79 lb)
K120 (4.72) mm (in)
Abstand Amax. 40 mm
DurchmesserDN50
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Soliwave FDR56/FQR56 is a high-temperature adapter for process connections, designed to handle high temperatures and pressures.

Applications

  • high-temperature environments

Features

  • high-temperature adapter
  • temperature protection

Options

  • high-temperature adapter extensions

Standards

  • DIN EN 1092-1
  • EN10204
Source: FQR56 datasheet, p. 31

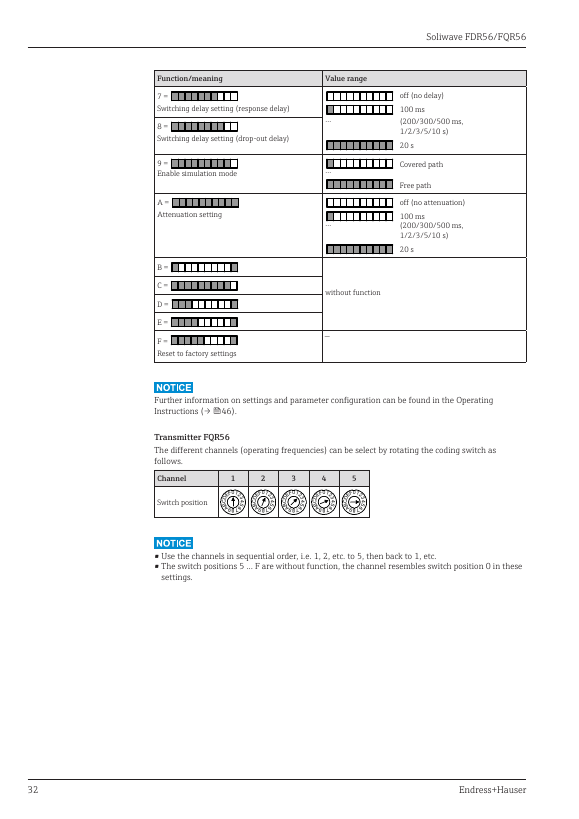

Endress+Hauser Soliwave FDR56/FQR56 – Drawing (fe05e0d91f33_S16-45 S. 16)
Drawing · fe05e0d91f33_S16-45 · S. 16

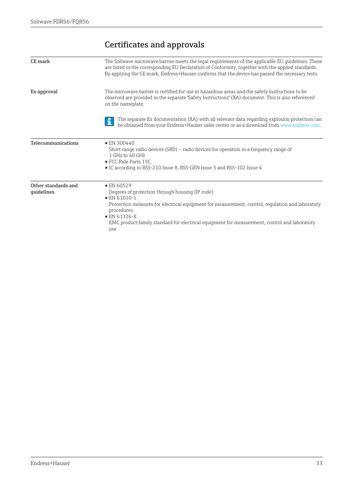

Endress+Hauser Soliwave FDR56/FQR56 – Drawing (fe05e0d91f33_S16-45 S. 18)
Drawing · fe05e0d91f33_S16-45 · S. 18

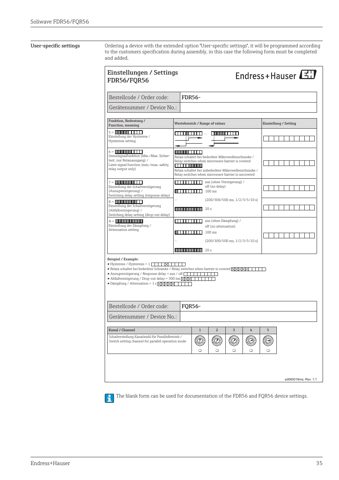

Endress+Hauser Soliwave FDR56/FQR56 – Drawing (fe05e0d91f33_S16-45 S. 20)
Drawing · fe05e0d91f33_S16-45 · S. 20

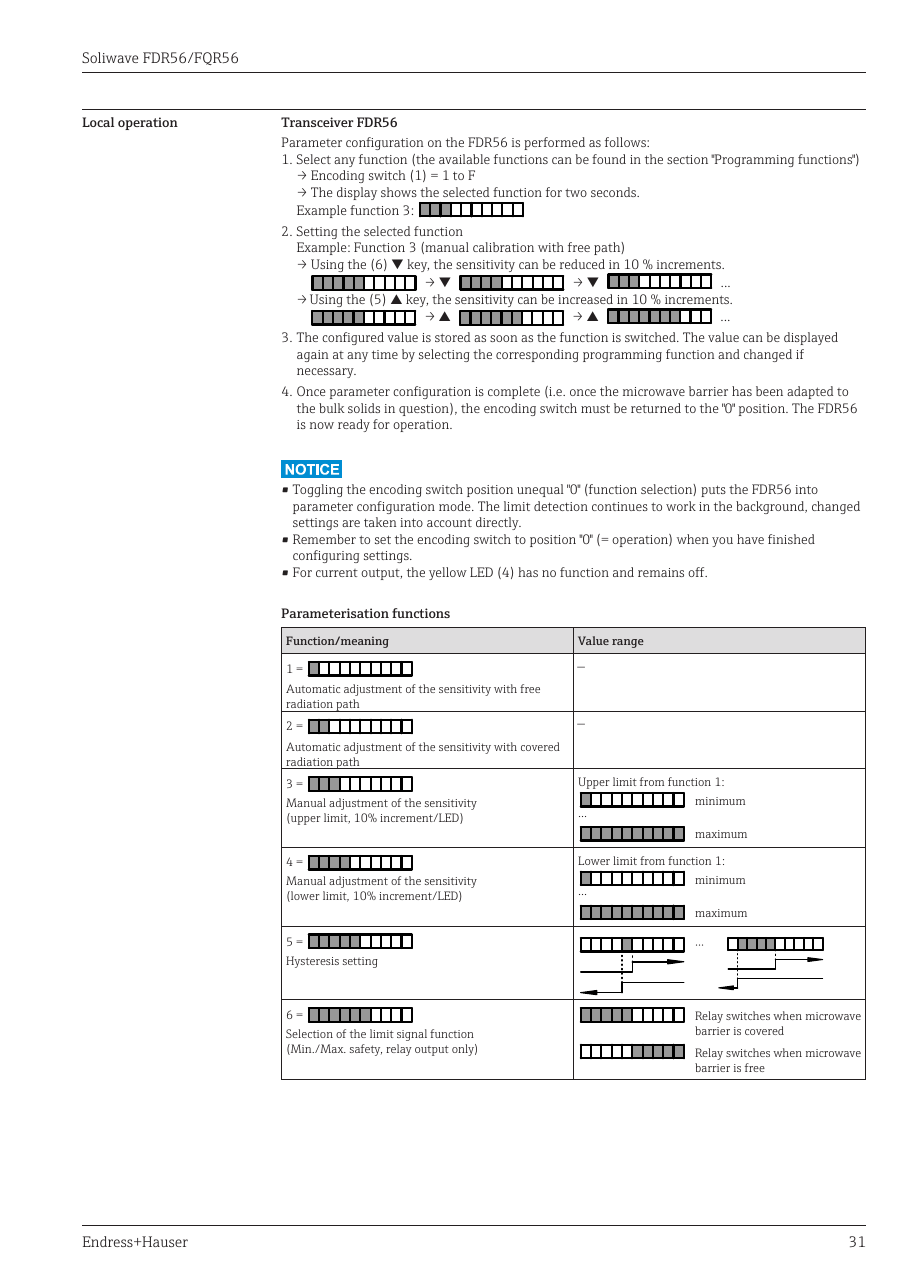

Endress+Hauser Soliwave FDR56/FQR56 – Page preview (fe05e0d91f33_S16-45 S. 17)
Page preview · fe05e0d91f33_S16-45 · S. 17

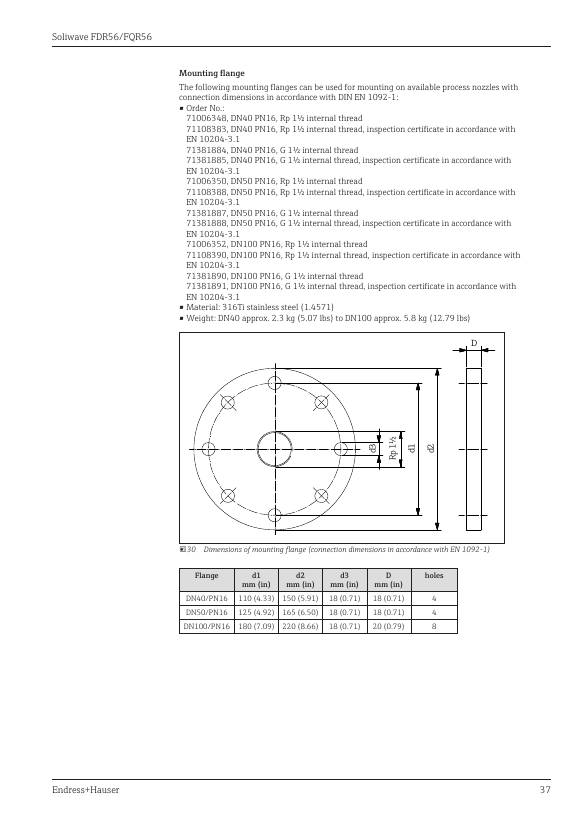

Endress+Hauser Soliwave FDR56/FQR56 – Page preview (fe05e0d91f33_S16-45 S. 19)
Page preview · fe05e0d91f33_S16-45 · S. 19

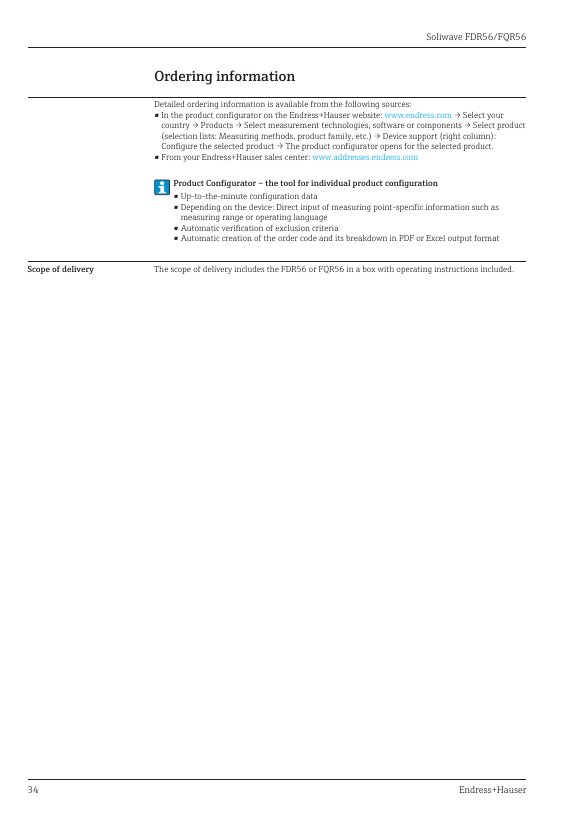

Endress+Hauser Soliwave FDR56/FQR56 – Page preview (fe05e0d91f33_S16-45 S. 21)
Page preview · fe05e0d91f33_S16-45 · S. 21

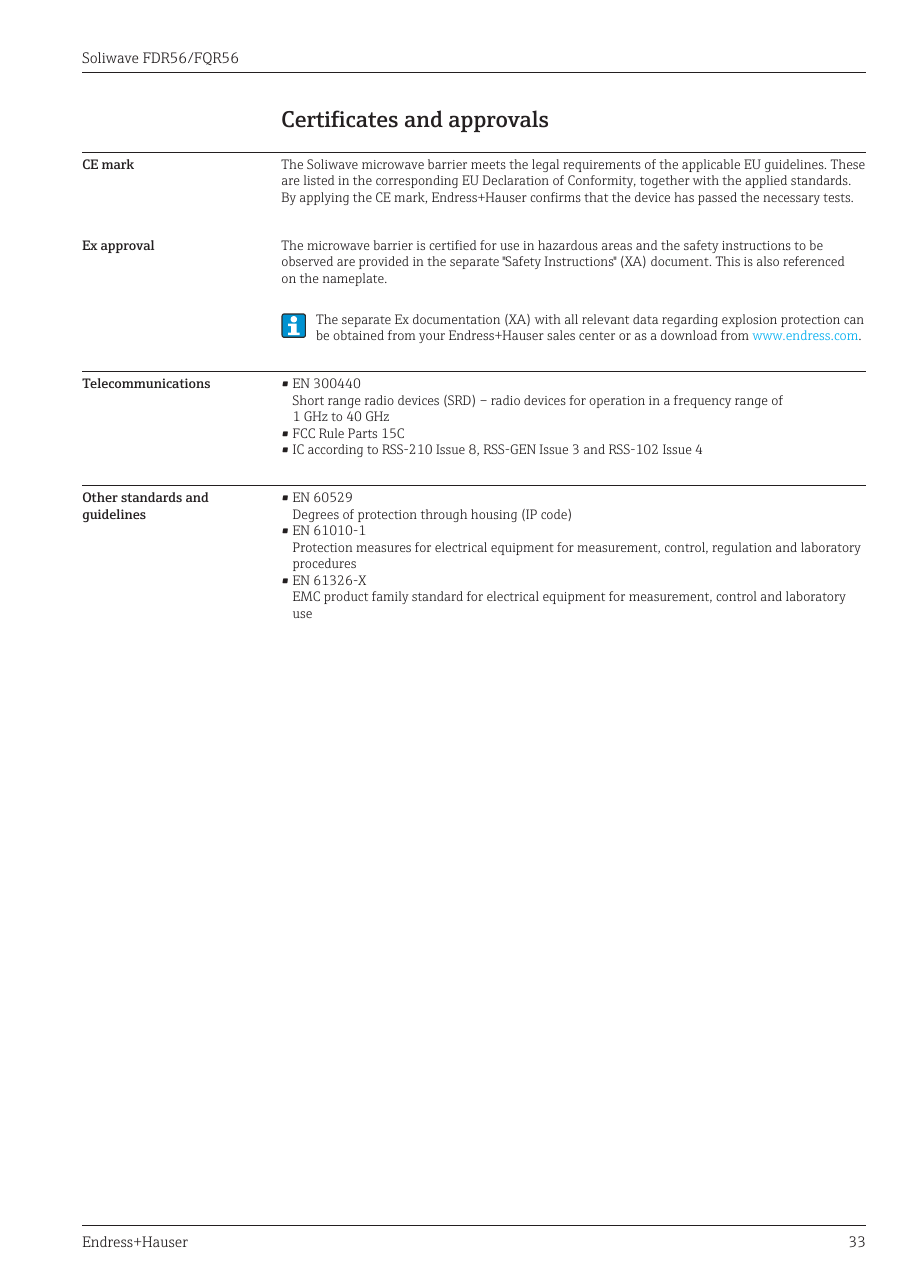

Endress+Hauser Soliwave FDR56/FQR56 – Page preview (fe05e0d91f33_S16-45 S. 22)
