Library› Engine Room› Automation & Control› Level Switch› Endress+Hauser FTC262
Endress+Hauser

FTC262

Level Switch · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

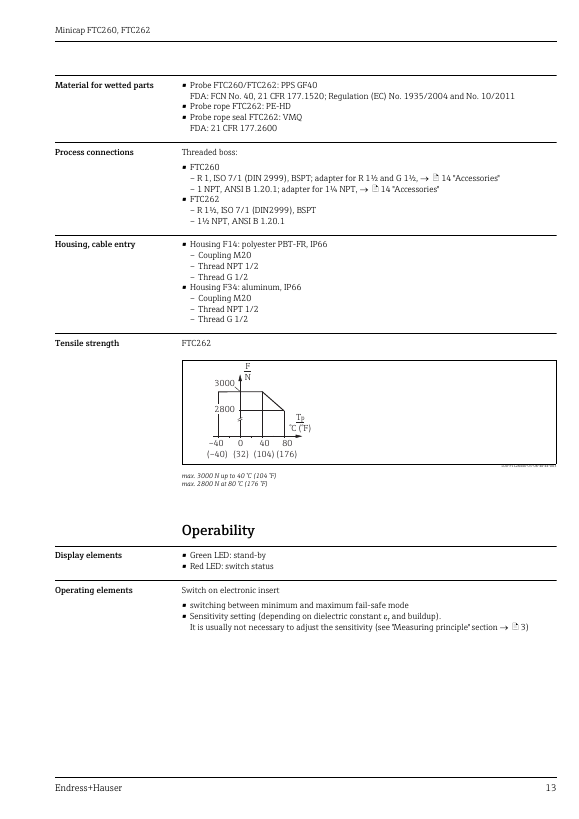

Maximum pull-down forces at room temperature and at –40 °C3 000 N
Maximum pull-down forces at +80 °C2 800 N
Process pressure-1 to 25bar/-14 to 360psi
Process temperature-40 to +120°C/-40 to +250°F
Grain sizeUp to 30mm/1.2"
Measuring range140 to 6,000mm/5 to 230"
DcStarting 1.6
U~ max.253 V AC
I max200 mA
U max55 V
IL max.200 mA
Il500 mA
U–10,8…45 V (DC)
U~20…253 V (AC)
P~ max.1000 VA
Cos ϕ> 0,7
I–… max. 0,2 A
I~ max.4 A
Power up responseCorrect switching after max. 2 s
Hysteresis5 mm (0.2 in) vertical
Long-term driftVertical 6 mm (0.24 in)
Process pressure range pp–1 to +6 bar (-14.5 to +87 psi)
SondeSeilsonde bis 6 m
Schaltverzögerung bei Bedecken oder Freiwerden0,8 s
Prozessdruckgrenze pp–1…+6 bar (–14,5 to +87 psi)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Minicap FTC262 is a cable gland designed for secure cable entry and protection in various environmental conditions.

Applications

  • marine equipment protection
Source: Endress+Hauser FTC262 datasheet, p. 11

Features

  • secure cable clamping

Options

  • different thread sizes
  • alternative sealing materials

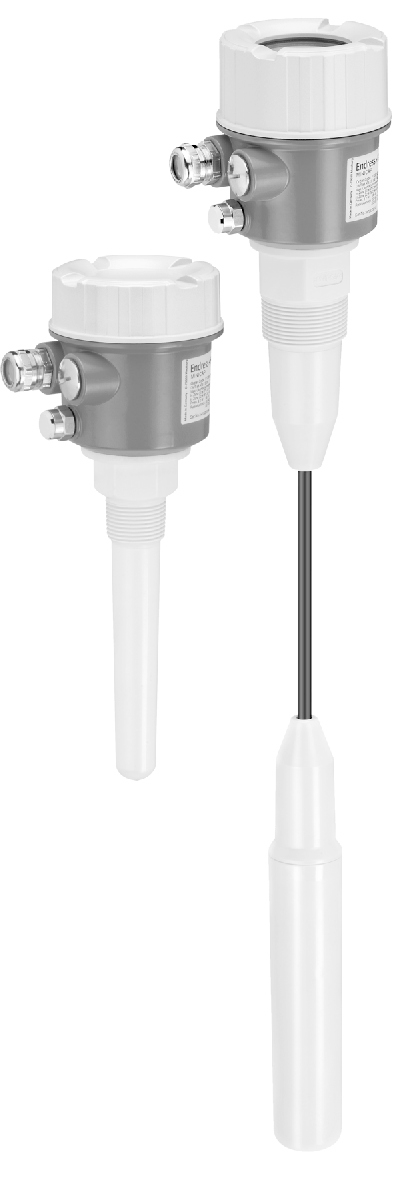

Endress+Hauser FTC262 – Photo (da258a2dda5b_S1-14 S. 1)
Photo · da258a2dda5b_S1-14 · S. 1

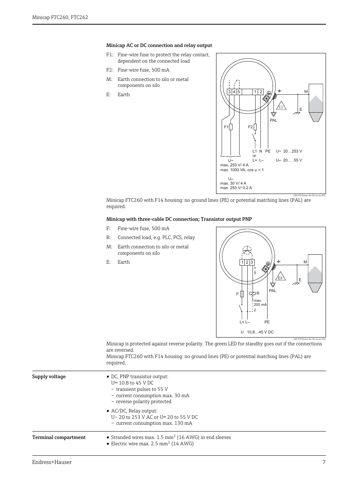

Endress+Hauser FTC262 – Drawing (075a2b35cc03_S4-14 S. 4)
Drawing · 075a2b35cc03_S4-14 · S. 4

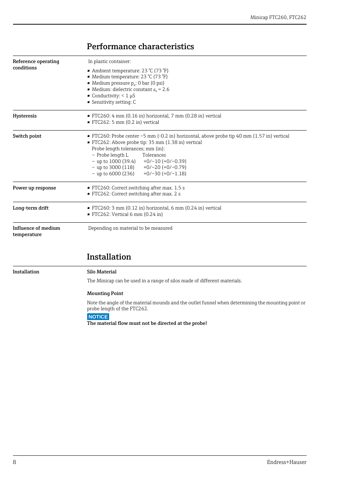

Endress+Hauser FTC262 – Drawing (075a2b35cc03_S4-14 S. 5)
Drawing · 075a2b35cc03_S4-14 · S. 5
Endress+Hauser FTC262 – Drawing (075a2b35cc03_S4-14 S. 6)
Drawing · 075a2b35cc03_S4-14 · S. 6
Endress+Hauser FTC262 – Page preview (075a2b35cc03_S4-14 S. 7)
Page preview · 075a2b35cc03_S4-14 · S. 7

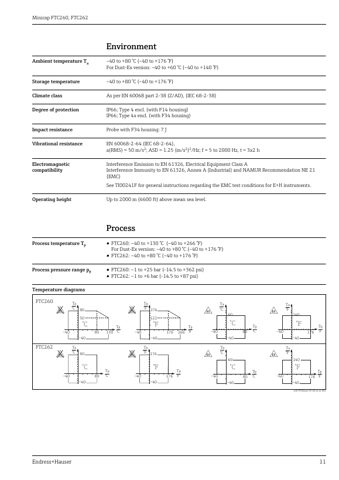

Endress+Hauser FTC262 – Page preview (075a2b35cc03_S4-14 S. 8)
Page preview · 075a2b35cc03_S4-14 · S. 8

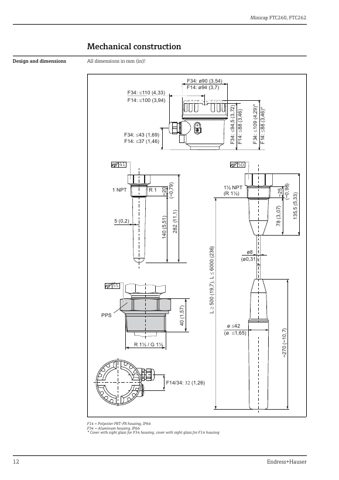

Endress+Hauser FTC262 – Page preview (075a2b35cc03_S4-14 S. 9)
Page preview · 075a2b35cc03_S4-14 · S. 9

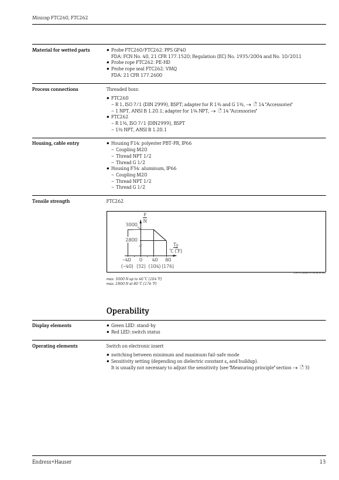

Endress+Hauser FTC262 – Page preview (075a2b35cc03_S4-14 S. 10)
Page preview · 075a2b35cc03_S4-14 · S. 10
Source: Endress+Hauser FTC262 datasheet, p. 9
