Library› Engine Room› Automation & Control› Level Switch› Endress+Hauser FDR56
Endress+Hauser

FDR56

Level Switch · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Leistungsaufnahmemax. 4,8 VA (85 ... 253 V, 50/60 Hz)
BedienkonzeptTransceiver FDR56
Signalausgang4-20 mA
±10 mm10 mm
Position 1 (approval)ATEX II 1/2 D Ex ta/tb IIIC T200102°C Da/Db
Position 3 (supply voltage)85 to 253 V AC, 50/60 Hz
Position 4 (housing)F15 stainless steel hygiene, IP66
Position 5 (electrical connection)Cable gland M20
Housing protection ratingIP66
Supply voltageU ≤ 253 V AC
RelayU ≤ 250 V AC / 4A, 125 V DC / 0.4 A or 30 V DC / 4 A
Solid-state relayU ≤ 30 V AC or 40 V DC, I ≤ 0.4 A
4-20 mARL ≤ 600 Ω
Temperatura–40 a +70 °C (–40 a +158 °F)
Presión del proceso+0,5 a +6,8 bar abs (+7,3 a +98,6 psi)
Rango de mediciónhasta 100 m (328 ft)
VersorgungsspannungU ≤ 253 V AC
RelaisU ≤ 250 V AC / 4A, 125 V DC / 0,4 A oder 30 V DC / 4 A
Strom 4-20 mARL ≤ 600 Ω
SsrU ≤ 30 V AC oder 40 V DC, I ≤ 0,4 A
Position 1 (Zulassung)ATEX II 1/2 D Ex ta/tb IIIC T200102°C Da/Db
Position 2 (Ausgang)4-20 mA
Position 3 (Versorgungsspannung)85 ... 253 V AC, 50/60 Hz
Position 4 (Gehäuse)F15 Edelstahl Hygiene, IP66
Position 5 (Elektrischer Anschluss)Verschraubung M20
Zulässiger Umgebungstemperaturbereich am Elektronikgehäuse-40 ... +70 °C (-40 ... +158 °F)
Gehäuse muss mindestens die SchutzartIP66
GehäuseschutzartIP66
Solid-state-relaisU ≤ 30 V AC oder 40 V DC
250 VAC250 VAC / 4 A *1
125 VDC125 VDC / 0.4 A
30 VDC30 VDC / 4 A *1
(a)85 ... 253 VAC, 50/60 Hz, P ≤ 7.3 VA
(e)20 ... 60 VDC, P ≤ 3.2 W
20 ... 30 VAC20 ... 30 VAC, 50/60 Hz, P ≤ 4.2 VA
20 ... 30 VAC, 50/60 HzP ≤ 1.2 VA
Ac30 V / 0.4 A
Dc40 V / 0.4 A
P≤ 7.3 VA
Order codeFDR56
Voltage85 ... 253 VAC, 50/60 Hz
Voltage AC250 V VAC
Voltage DC125 V VDC
Current DC0.4 A
Current AC4 A
Detection range A0.3 to 100 m (11.8 to 3937 in)
Detection range B0.03 to 0.3 m (1.18 to 11.8 in)
Antenna opening angleapprox. 11°
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The FDR56 is a device that allows for automatic or manual setting of sensitivity for free or covered path.

Applications

  • signal strength monitoring
Source: Endress+Hauser FDR56 datasheet, p. 25

Features

  • signal strength display
Source: Endress+Hauser FDR56 datasheet, p. 26

Options

  • Custom wiring configurations
Source: Endress+Hauser FDR56 datasheet, p. 28

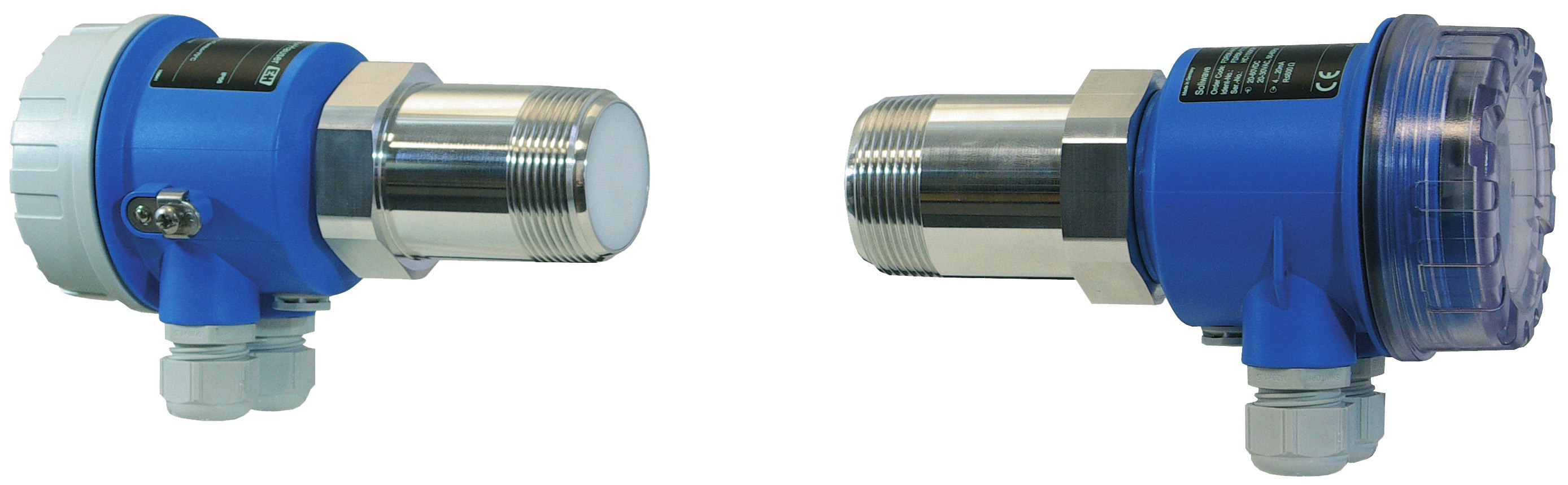

Endress+Hauser FDR56 – Photo (35527c52cd20_S1-43 S. 1)
Photo · 35527c52cd20_S1-43 · S. 1

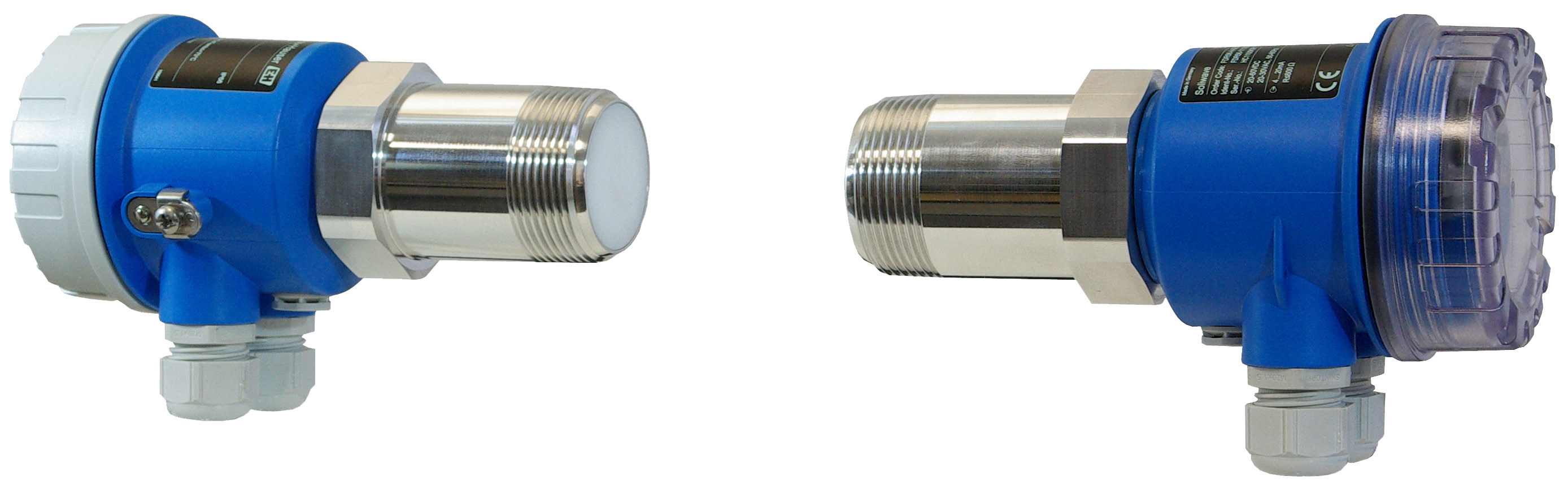

Endress+Hauser FDR56 – Photo (275a6b271286_S1-39 S. 1)
Photo · 275a6b271286_S1-39 · S. 1
Endress+Hauser FDR56 – Photo (52a03fc916f8_S1-43 S. 1)
Photo · 52a03fc916f8_S1-43 · S. 1

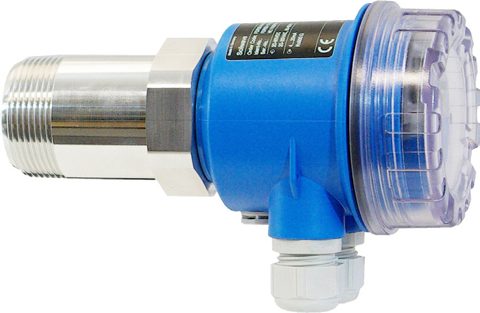

Endress+Hauser FDR56 – Photo (5e3491e0f19a_S1-35 S. 1)
Photo · 5e3491e0f19a_S1-35 · S. 1
Endress+Hauser FDR56 – Photo (5e3491e0f19a_S1-35 S. 1)
Photo · 5e3491e0f19a_S1-35 · S. 1

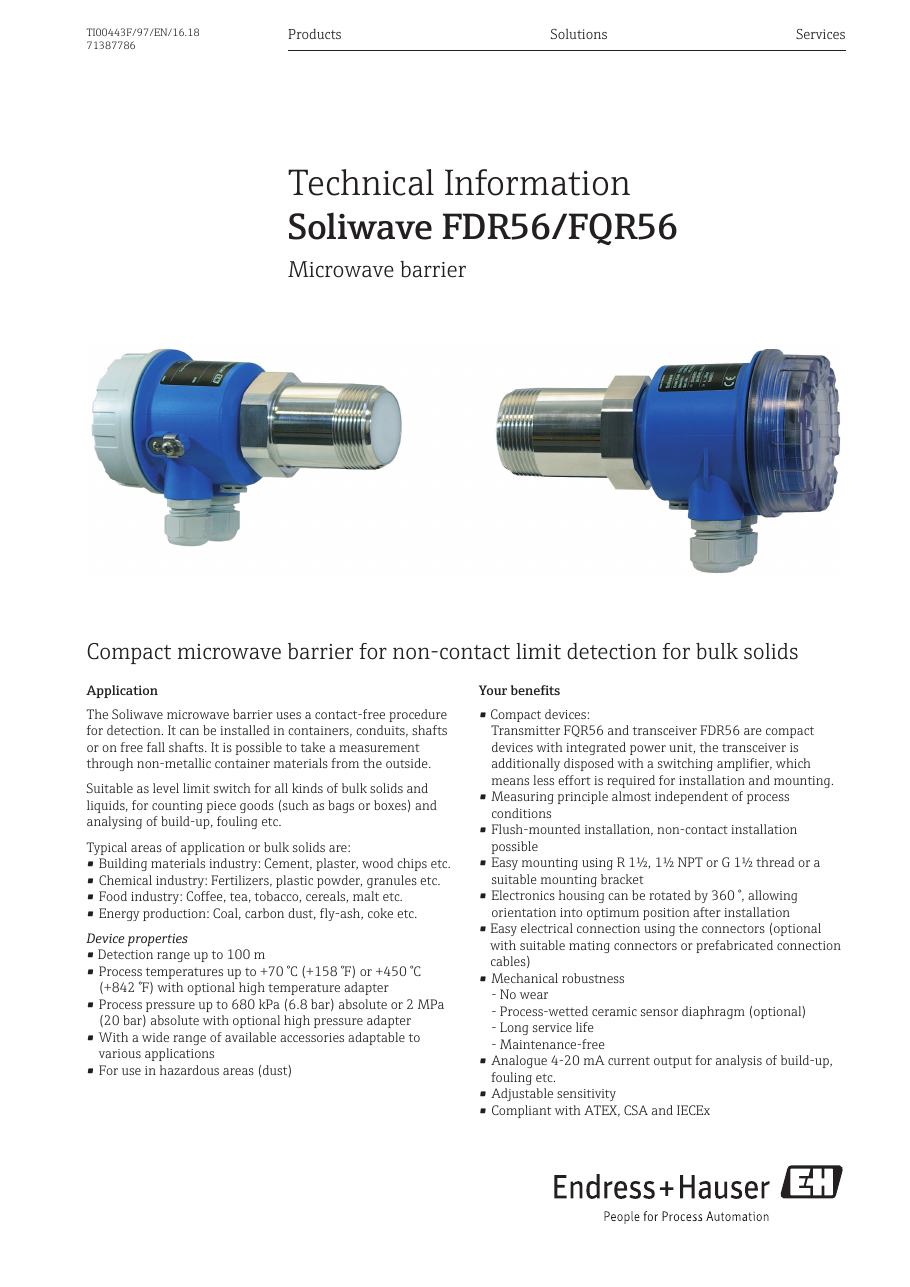

Endress+Hauser FDR56 – Drawing (35527c52cd20_S1-43 S. 1)
Drawing · 35527c52cd20_S1-43 · S. 1

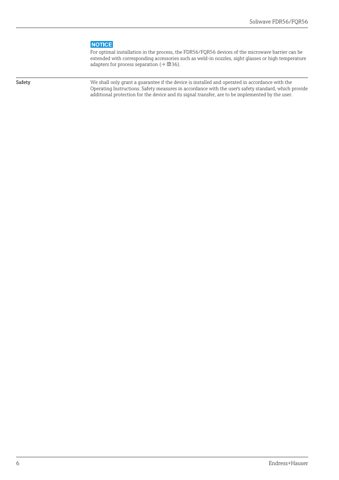

Endress+Hauser FDR56 – Drawing (35527c52cd20_S1-43 S. 6)
Drawing · 35527c52cd20_S1-43 · S. 6

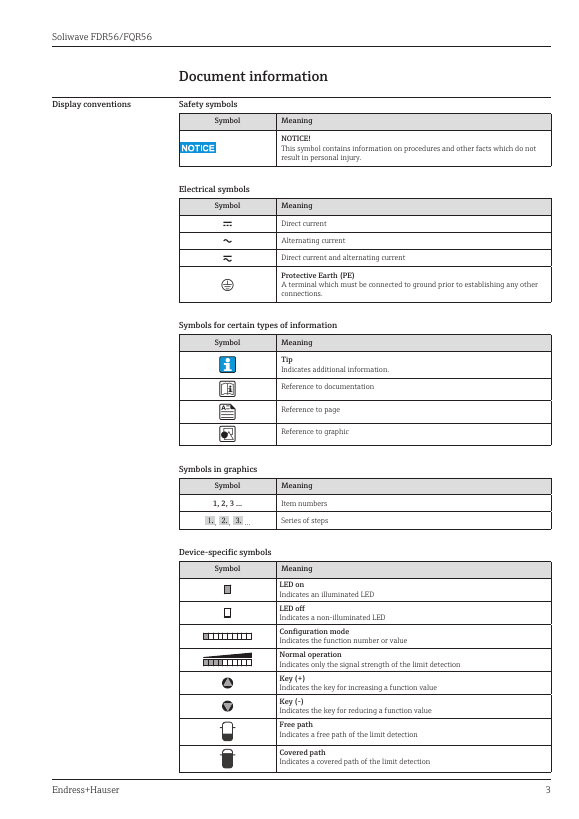

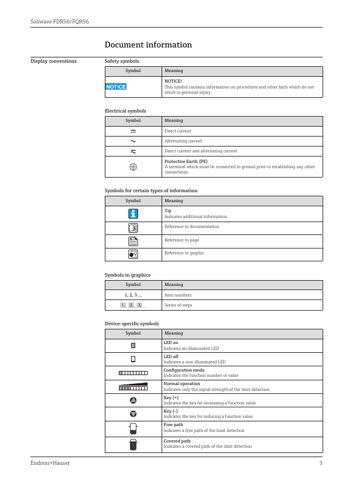

Endress+Hauser FDR56 – Page preview (35527c52cd20_S1-43 S. 3)
Page preview · 35527c52cd20_S1-43 · S. 3
Source: Endress+Hauser FDR56 datasheet, p. 35
