Endress+Hauser

Liquiphant FTL64 HART

Flow Meter · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Maximum lateral loading capacity of the pipe extensions and sensors75 Nm (55 lbf ft)
Minimale Anlaufspannung10,5 V
Anlaufstrom> 3,6 mA
Minimale Betriebsspannung10,5 V
Versorgungsspannung und interne Erdungsklemme0,5 … 2,5 mm2 (20 … 14 AWG)
MessabweichungMax. ±1 mm (0,04 in)
Totzeit100 ms
Zeitkonstante T63einstellbar 0 … 999 s
EinschwingzeitMinimal 250 ms
Zykluszeit (Update-Zeit)Zyklisch (Burst): Mindestens 300 ms
Zulässige Umgebungstemperatur Ta am Gehäuse in Abhängigkeit von der Prozesstemperatur Tp im Behälter230 °C (446 °F) Sensor
Max. kumuliert50 h
Relative LuftfeuchteBetrieb bis zu 100 %
BetriebshöheBis zu 5 000 m (16 404 ft) über Meereshöhe
KlimaklasseNach IEC 60068-2-38 Prüfung Z/AD
SchutzartNach DIN EN 60529, NEMA 250
Schwingungsfestigkeita(RMS) = 50 m/s2, f = 5 … 2 000 Hz, t = 3 Achsen x 2 h
Schockfestigkeit300 m/s² [= 30 gn] + 18 ms
Elektromagnetische Verträglichkeit (EMV)EN 61326-Serie und NAMUR-Empfehlung EMV (NE21)
Maximale Abweichung unter Störeinfluss< 0,5% der Spanne
Prüfdruck1,5 · PN
TemperaturPFA (leitfähig) 230 °C (446 °F)
Sondenlängeca. 160 mm (6,3 in)
Weight0.2 kg (0.44 lb)
Vor-ort-bedienungElektronikeinsatz 4 … 20 mA HART (FEL60H)
Maximale seitliche Belastbarkeit75 Nm
Entriegelungmaximal 4 × 90 ° in jede Richtung
Schraube der Deckelsicherung0,7 Nm (0,52 lbf ft) ±0,2 Nm (±0,15 lbf ft)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Wireless communication device for process monitoring and control.

Applications

  • Process monitoring
  • Wireless data transmission

Features

  • HART or Blue-tooth enabled
Source: Endress+Hauser Liquiphant FTL64 HART datasheet, p. 5

Options

  • Write protection via hardware lock switch
Source: Endress+Hauser Liquiphant FTL64 HART datasheet, p. 5

Standards

  • IEC/DIN EN 61326-1
  • IEC/DIN EN 61000-4-5 Surge
Source: Endress+Hauser Liquiphant FTL64 HART datasheet, p. 10

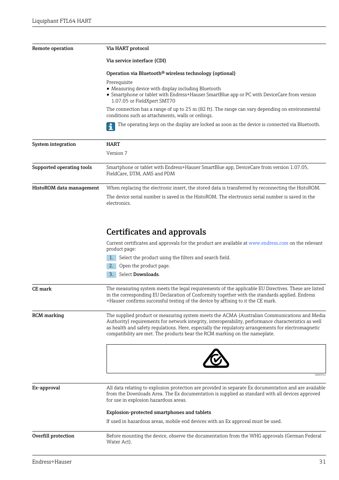

Endress+Hauser Liquiphant FTL64 HART – Drawing (f22c843df5c4_S16-36 S. 16)
Drawing · f22c843df5c4_S16-36 · S. 16

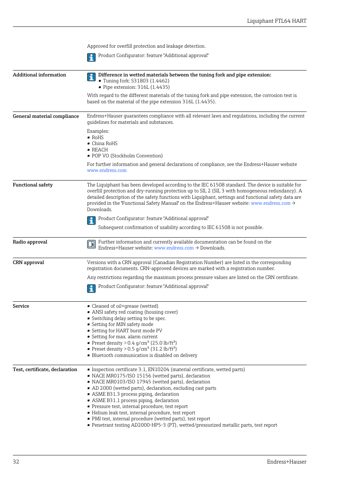

Endress+Hauser Liquiphant FTL64 HART – Drawing (f22c843df5c4_S16-36 S. 17)
Drawing · f22c843df5c4_S16-36 · S. 17

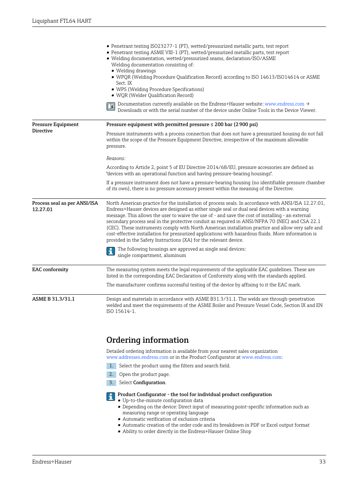

Endress+Hauser Liquiphant FTL64 HART – Drawing (f22c843df5c4_S16-36 S. 18)
Drawing · f22c843df5c4_S16-36 · S. 18

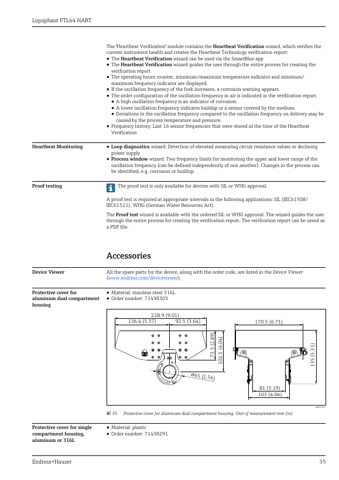

Endress+Hauser Liquiphant FTL64 HART – Page preview (f22c843df5c4_S16-36 S. 19)
Page preview · f22c843df5c4_S16-36 · S. 19

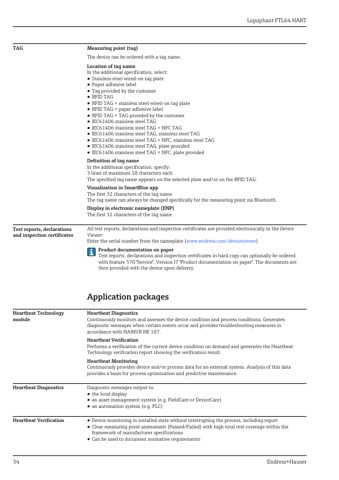

Endress+Hauser Liquiphant FTL64 HART – Page preview (f22c843df5c4_S16-36 S. 20)
Page preview · f22c843df5c4_S16-36 · S. 20

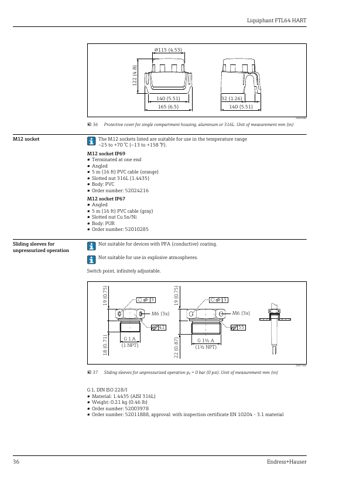

Endress+Hauser Liquiphant FTL64 HART – Page preview (f22c843df5c4_S16-36 S. 21)
