Library› Cargo› Cargo Level & Temperature Gauging› Radar Level Gauge› Endress+Hauser Soliwave FQR57/FDR57
Endress+Hauser

Soliwave FQR57/FDR57

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Versorgungsspannungvom Nivotester FTR525 zur Verfügung gestellt
Potenzialausgleichan der äußeren Erdungsklemme des FQR57/FDR57 anzuschließen
KlemmenMax. 2,5 mm2
KabeleinführungenKabelverschraubung M20 x 1,5 oder Kabeleinführung ½ NPT
Temperaturbereich-40 ... +70 °C
Prozesstemperatur+70 ... +450 °C (+158 ... +842 °F)
T P,max+ 450 °C (+ 842 °F)
P max80 ... 510 kPa (0,8 ... 5,1 bar) abs.
L+70 °C (+ 158 °F)
Weightca. 0,06 kg (Kunststoff)
MaterialEdelstahl 316Ti (1.4571) und Stahl P235GH (1.0345)
FlanschDN40/PN16 110 (4.33) 150 (5.91) 18 (0.71) 18 (0.71) 4
Gewicht (Hochtemperaturadapter)ca. 1,4 kg (3.09 lbs)
Gewicht (Verlängerung 225 mm)ca. 1,1 kg (2.43 lbs)
Gewicht (Verlängerung 525 mm)ca. 2,2 kg (4.85 lbs)
Bestell-Nr. (Hochtemperaturadapter)71113449, Gewinde 1½ NPT
Bestell-Nr. (Verlängerung)71113450, Gewinde R 1½/Rp 1½, L = 225 mm
AusgangssignalSerielles Signal für den Nivotester FTR525
Detektionsbereich0,5 ... 100 m
max. Temperatur-40 ... +70 °C
Prozessdruckbis 2 MPa (20 bar)
Hochdruckadapter32
Klemmbereich der Kabelverschraubung Kunststoff5 ... 10 mm nach EN 62444 bzw. 7 ... 10 mm nach UL-514 B
Klemmbereich der Kabelverschraubung Metall7 ... 10,5 mm
Montagehinweis MetallkabelverschraubungAnzugdrehmoment max. 10 Nm
Anschlussquerschnitt max.2,5 mm2
Vorkonfektionierte AnschlussleitungM12 Binder Serie 713/763, 4-polig, Länge 2 m
MontageflanschRp 1½ nach EN 1092-1: DN40 ... DN100, PN16, 316Ti
SchauglasEinschweißarmatur: DN50 ... DN100, Tmax +200 °C, drucklos, 316Ti
Hochtemperatur-adapterR 1½/Rp 1½, SW55, 316Ti
Verlängerung225 ... 525 mm (8.86 ... 20.67 in), R 1½/Rp 1½ oder 1½ NPT, SW55, 316Ti
Antennenöffnungswinkelca. 9 °
TerminalsMax. 2.5 mm2
Temperature range+70 to +450 °C (+158 to +842 °F)
T max+70 °C (+158 °F)
Connecting cable lengthmax. 500 m
Potential matching2.5 mm2
Degree of protectionMin. IP66
Umgebungstemperaturbereich-40 ... +70 °C -40 ... +158 °F
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Soliwave FQR57/FDR57 is a device that receives power and signal transmission from the Nivotester FTR525 and requires potential equalization at the external grounding terminal.

Applications

  • material level detection
Source: FDR57 datasheet, p. 18

Features

  • receives power from Nivotester FTR525

Options

  • adapter FAR51
Source: FDR57 datasheet, p. 21

Standards

  • DIN EN 1092-1
  • ANSI/ASME B16.5
  • EN 10204-3.1
Source: FDR57 datasheet, p. 32

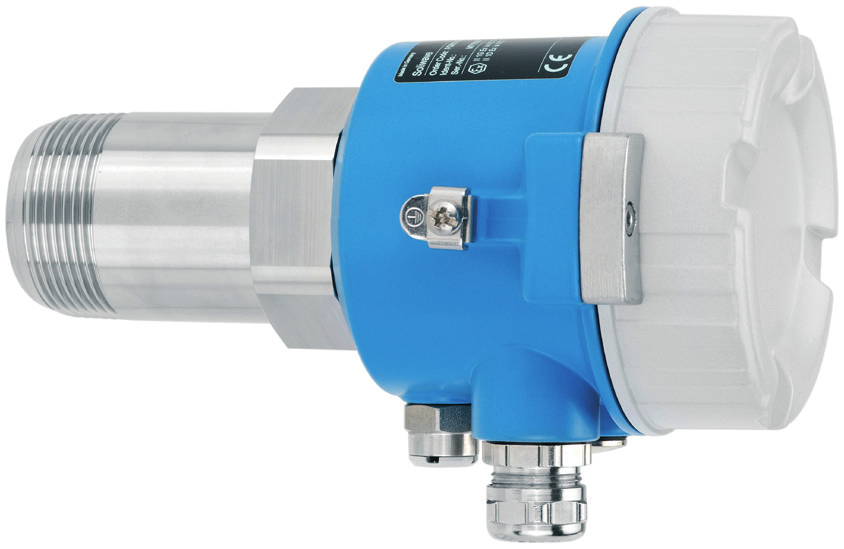

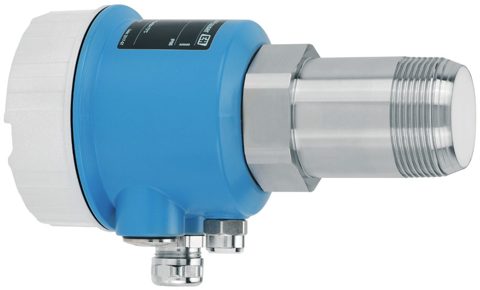

Endress+Hauser Soliwave FQR57/FDR57 – Photo (a9128c7c17b1_S1-42 S. 1)
Photo · a9128c7c17b1_S1-42 · S. 1
Endress+Hauser Soliwave FQR57/FDR57 – Photo (a9128c7c17b1_S1-42 S. 1)
Photo · a9128c7c17b1_S1-42 · S. 1

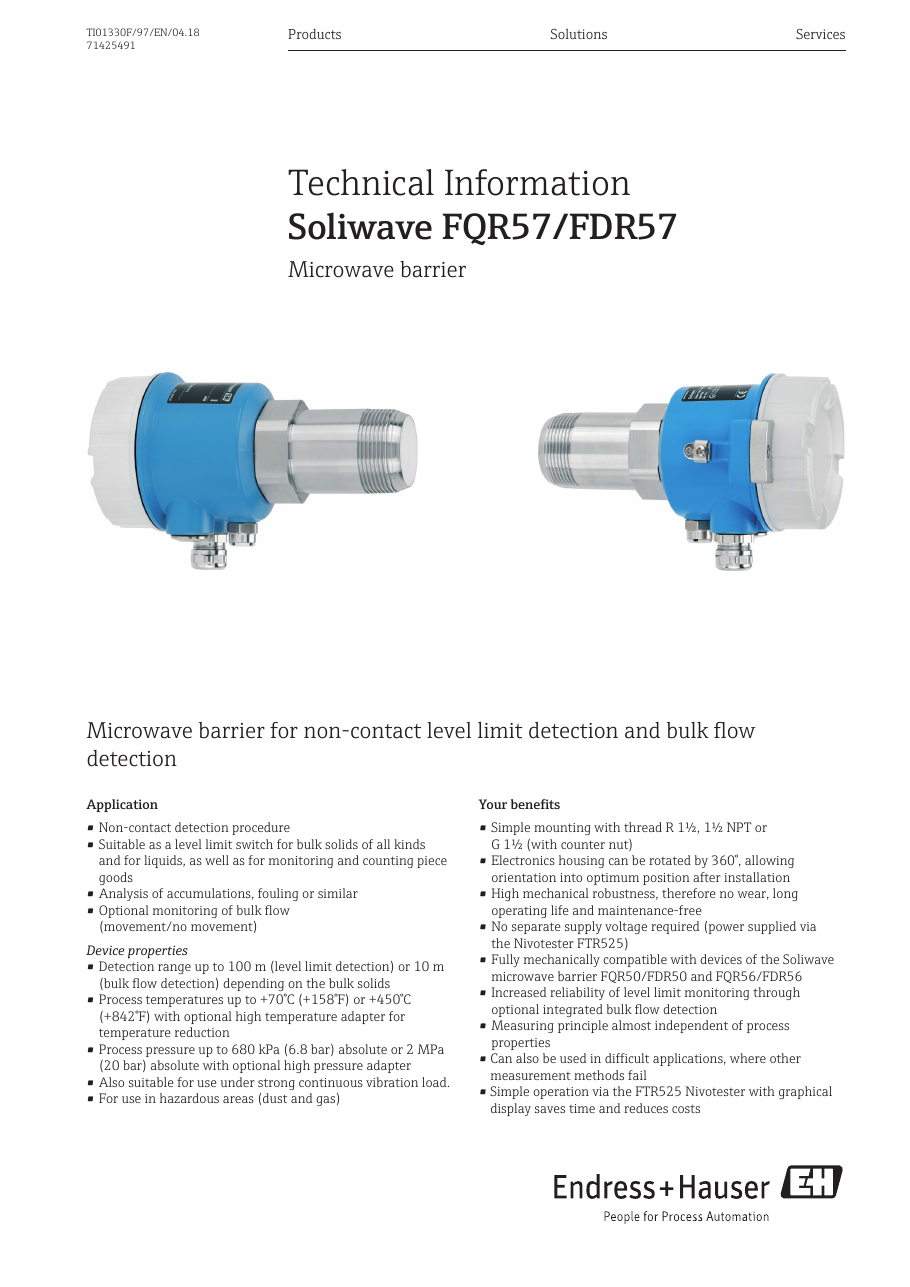

Endress+Hauser Soliwave FQR57/FDR57 – Drawing (a9128c7c17b1_S1-42 S. 1)
Drawing · a9128c7c17b1_S1-42 · S. 1

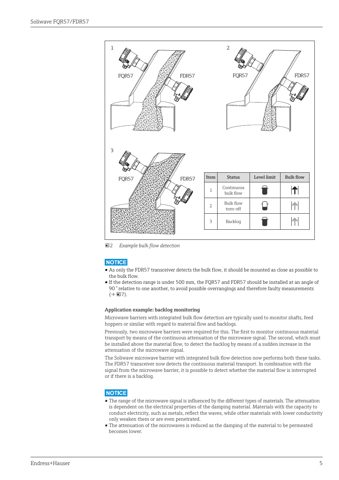

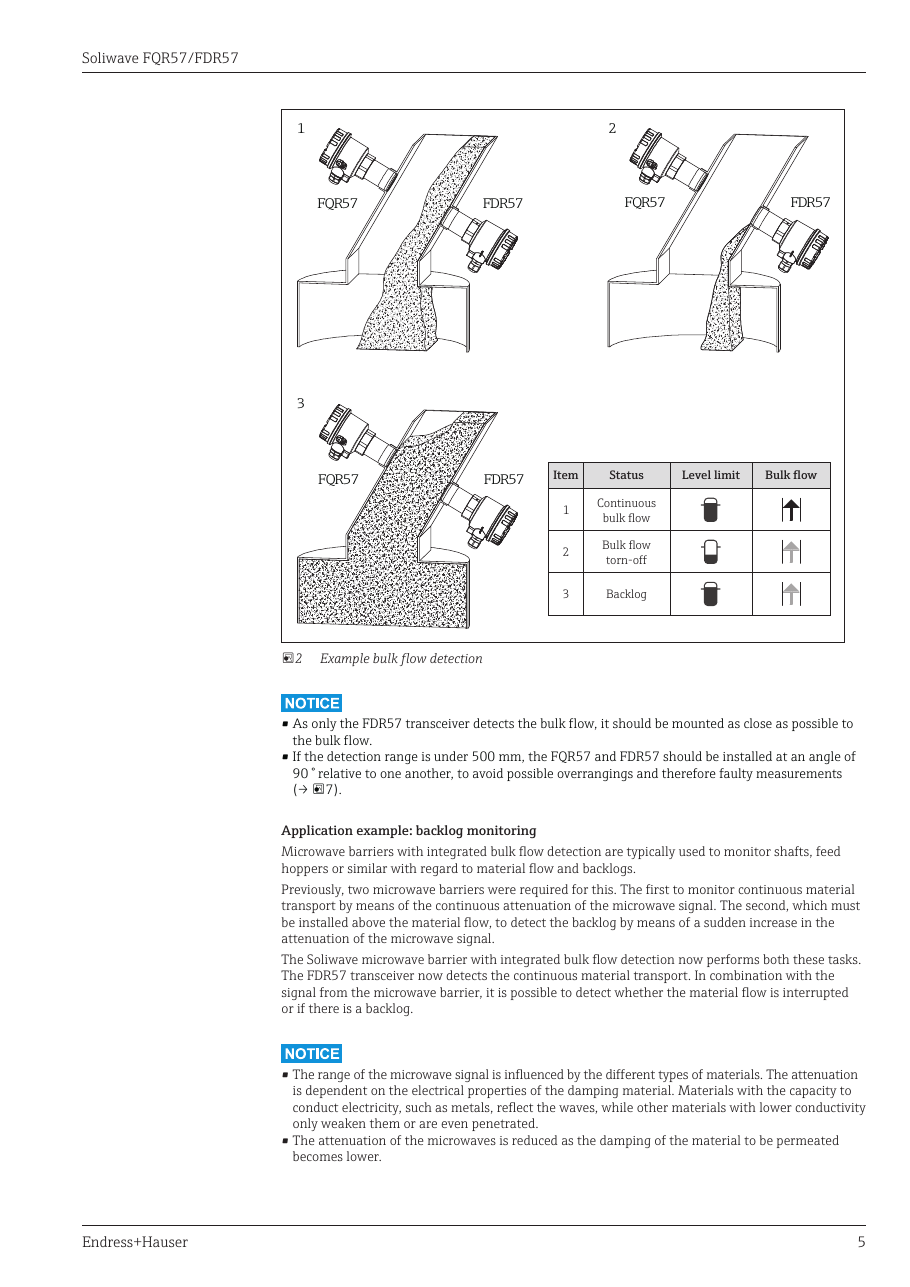

Endress+Hauser Soliwave FQR57/FDR57 – Drawing (a9128c7c17b1_S1-42 S. 5)
Drawing · a9128c7c17b1_S1-42 · S. 5

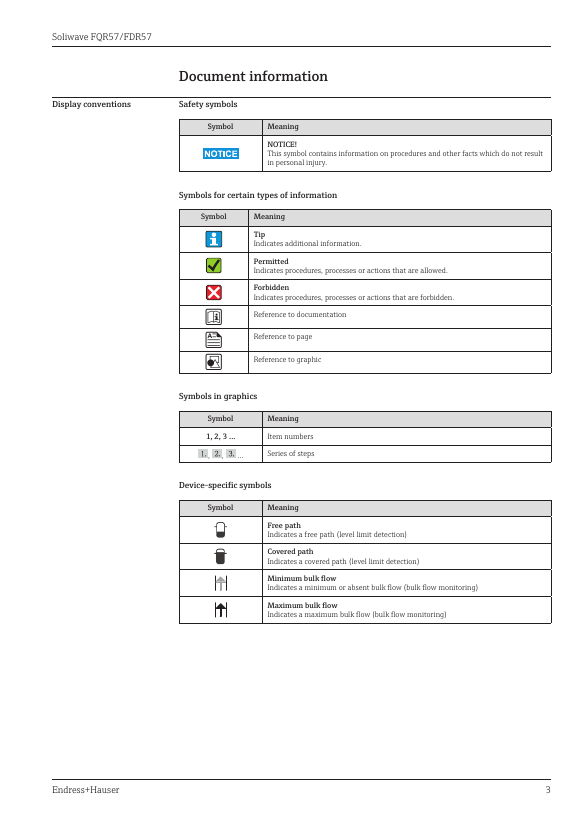

Endress+Hauser Soliwave FQR57/FDR57 – Page preview (a9128c7c17b1_S1-42 S. 3)
Page preview · a9128c7c17b1_S1-42 · S. 3

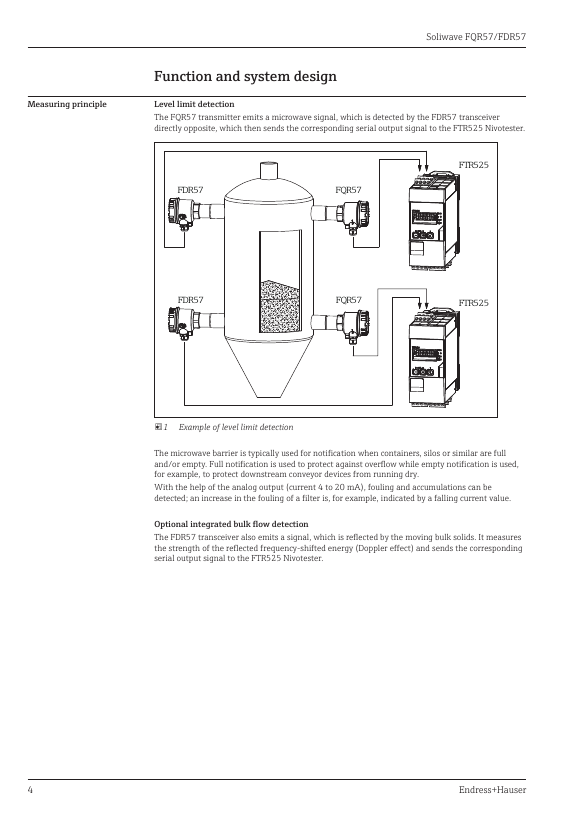

Endress+Hauser Soliwave FQR57/FDR57 – Page preview (a9128c7c17b1_S1-42 S. 4)
Page preview · a9128c7c17b1_S1-42 · S. 4

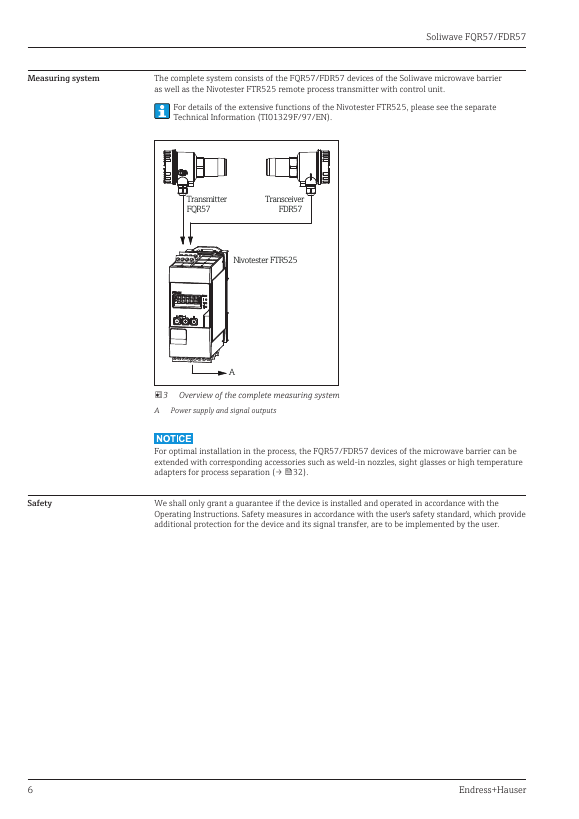

Endress+Hauser Soliwave FQR57/FDR57 – Page preview (a9128c7c17b1_S1-42 S. 6)
Page preview · a9128c7c17b1_S1-42 · S. 6

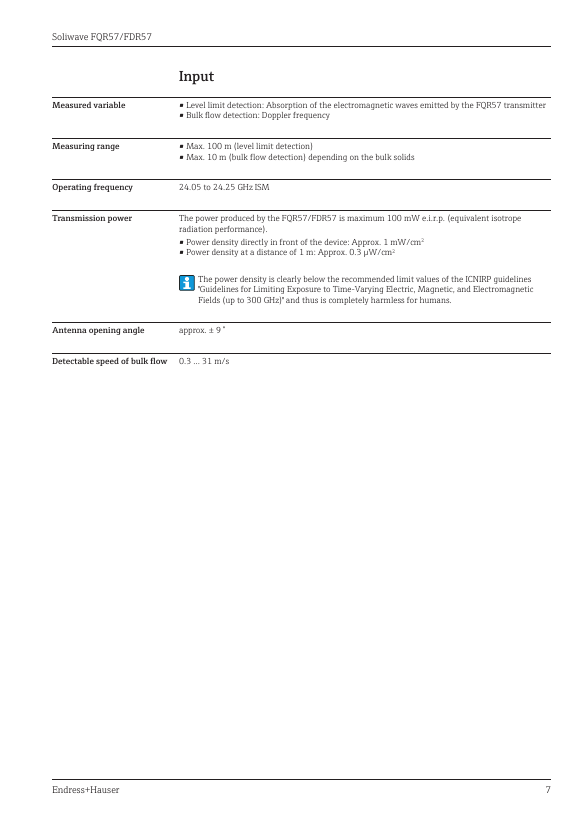

Endress+Hauser Soliwave FQR57/FDR57 – Page preview (a9128c7c17b1_S1-42 S. 7)
Page preview · a9128c7c17b1_S1-42 · S. 7
Source: FDR57 datasheet, p. 9
