Library› Engine Room› Automation & Control› Level Switch› Endress+Hauser FTM20
Endress+Hauser

FTM20

Level Switch · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Presión–1 a +40 bar (–14,5 a 580 psi)
Longitud del sensorhasta 225 mm (9")
Versorgungsspannung10 … 45 VDC
Vibration rod length250 mm
Mwp25 bar (360 psi)
Tamax. 150 °C (max. 300 °F)
SchutzartIP66/IP67, NEMA4X
Elektrische SicherheitIEC 61010, CSA 1010.1-92, FM3600
Einsatzhöhe nach IEC61010-1 Ed.3Bis 2000 m (6600 ft) über Normalnull.
Configurationkompakte Bauform 250 mm (10 in)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“The measuring range depends on the mounting location of Soliphant T and the length of the pipe extension selected. The pipe extension is available in the following lengths: 500 mm, 1000 mm, 1500 mm…”Source: Endress+Hauser FTM20 datasheet, p. 1

Features

  • Non-hazardous area approval
  • Various process connection options
  • Multiple housing and cable entry configurations

Options

  • Special versions available
  • Custom process connections
  • Different output electronics options

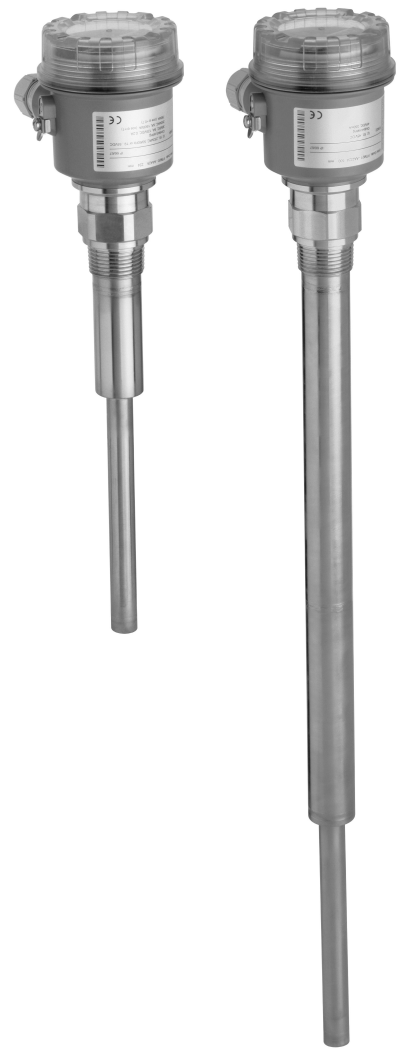

Endress+Hauser FTM20 – Photo (0e31c2b63fbf_S1-15 S. 1)
Photo · 0e31c2b63fbf_S1-15 · S. 1

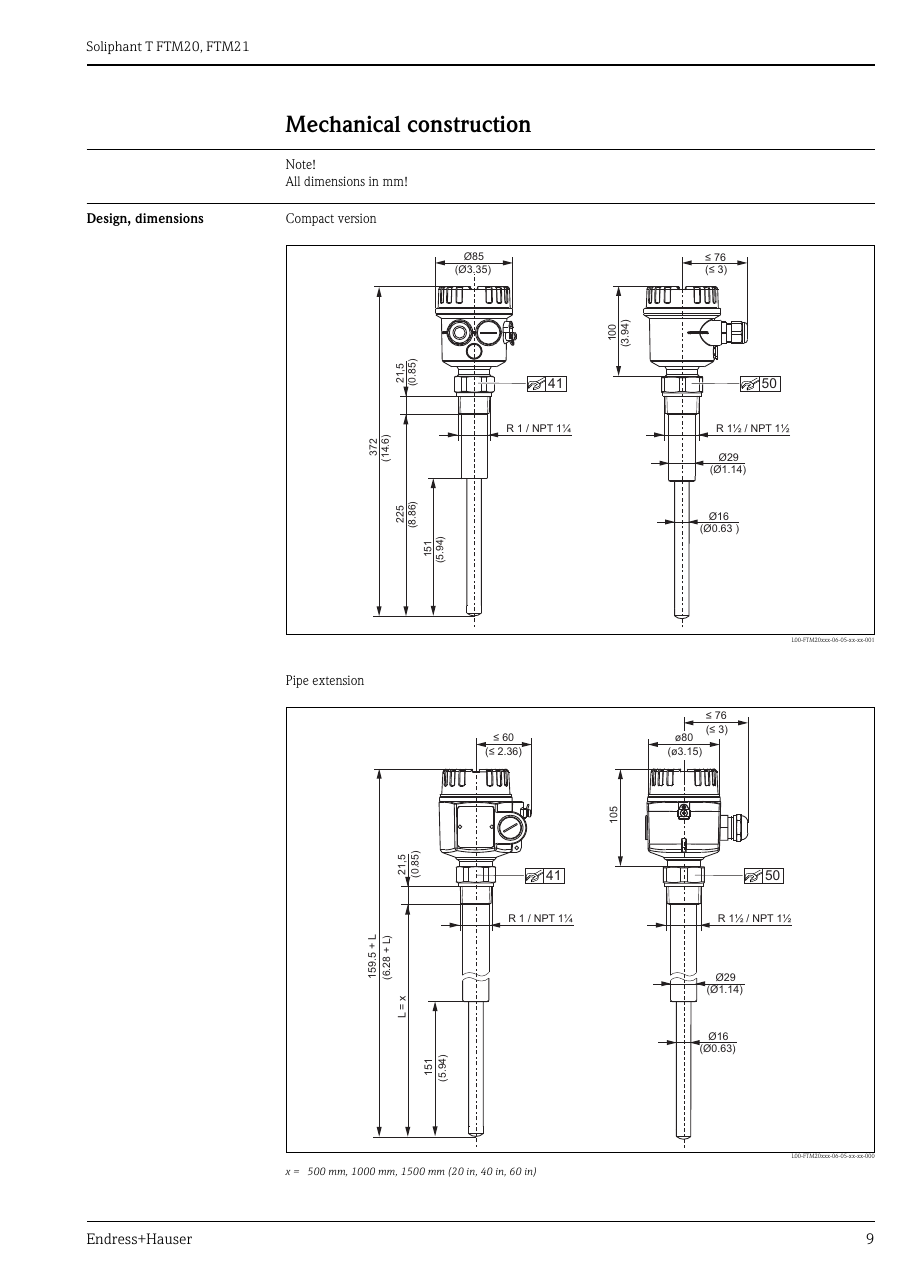

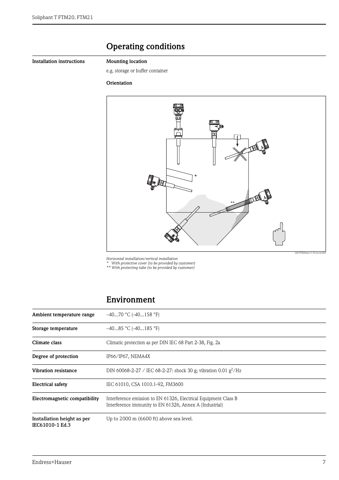

Endress+Hauser FTM20 – Drawing (3f8182b3473a_S4-15 S. 4)
Drawing · 3f8182b3473a_S4-15 · S. 4

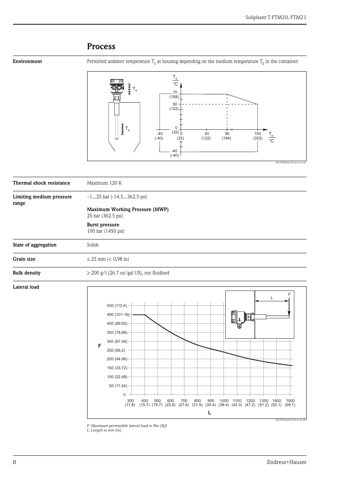

Endress+Hauser FTM20 – Drawing (3f8182b3473a_S4-15 S. 5)
Drawing · 3f8182b3473a_S4-15 · S. 5
Endress+Hauser FTM20 – Drawing (3f8182b3473a_S4-15 S. 6)
Drawing · 3f8182b3473a_S4-15 · S. 6
Endress+Hauser FTM20 – Page preview (3f8182b3473a_S4-15 S. 7)
Page preview · 3f8182b3473a_S4-15 · S. 7
Endress+Hauser FTM20 – Page preview (3f8182b3473a_S4-15 S. 8)
Page preview · 3f8182b3473a_S4-15 · S. 8

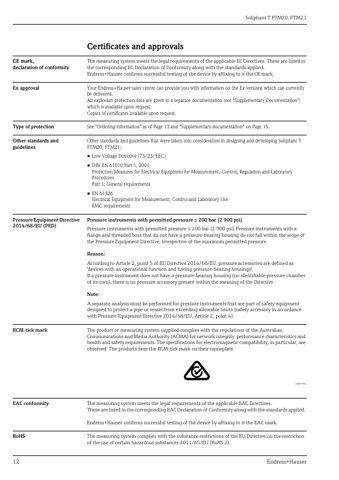

Endress+Hauser FTM20 – Page preview (3f8182b3473a_S4-15 S. 9)
Page preview · 3f8182b3473a_S4-15 · S. 9

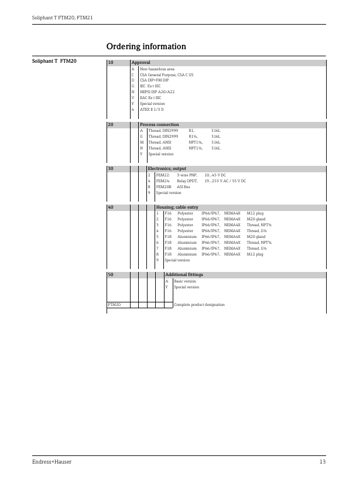

Endress+Hauser FTM20 – Page preview (3f8182b3473a_S4-15 S. 10)
Page preview · 3f8182b3473a_S4-15 · S. 10
Source: Endress+Hauser FTM20 datasheet, p. 13
