Library› Engine Room› Tank Level & Measurement› Tank Level Gauging› Temposonics MC420
Temposonics

MC420

Tank Level Gauging · Tank Level & Measurement

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

TRANSMITTER ORDER LENGTHS457 mm (18 in.) to 5486 mm (216 in.)
Non-linearity0.02% F.S. or 0.794 mm (1/32 in.)
Repeatability0.01% F.S. or 0.381 mm (0.015 in.)
Input voltage10.5 to 36 Vdc maximum
Enclosure ratingNEMA Type 4X
Operating temperatures-34 °C (-30 °F) to 71 °C (160 ºF)
Sensing element temperatures-40 °C (-40 °F) to 125 °C (257 °F)
Housing dimensions81 mm (3.2 in.) by 123 mm (4.85 in.) O.D.
Imax118mA
Rated Voltage36V dc
Output4-20 mA
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“M-Series Model MC420 liquid-level transmitter Comes with one standard product level float (part number 251981-X, see Standard float section below). TRANSMITTER ORDER LENGTHS¤ Length 457 mm (18 in.)…”

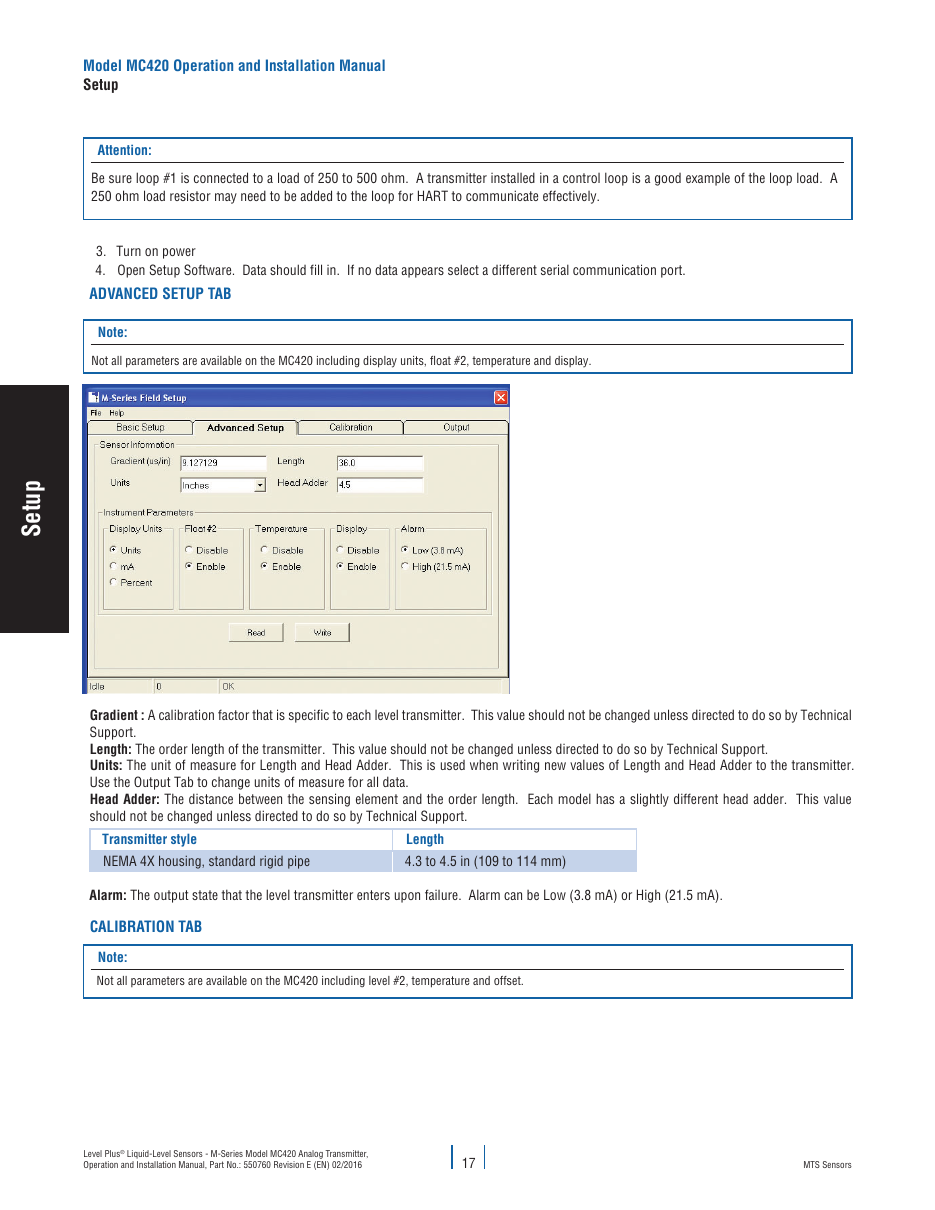

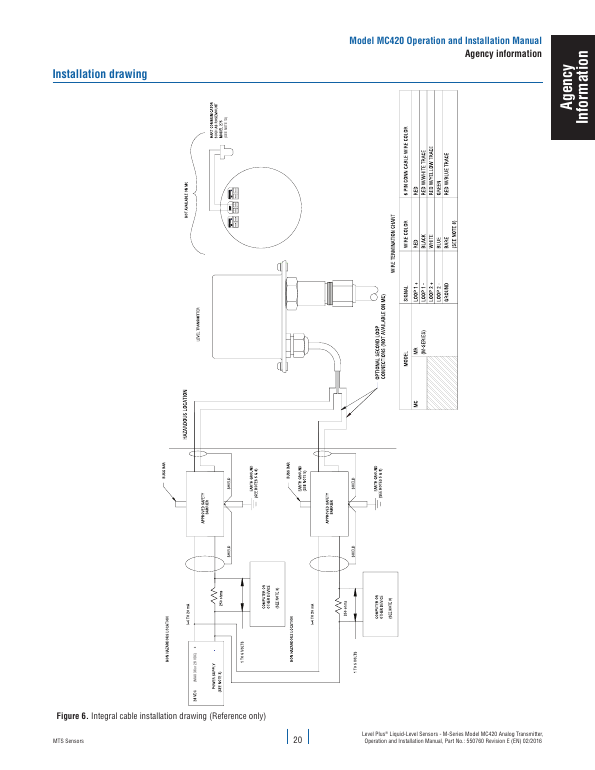

Temposonics MC420 – Drawing (168c2ea0f8d3_S11-40 S. 11)
Drawing · 168c2ea0f8d3_S11-40 · S. 11

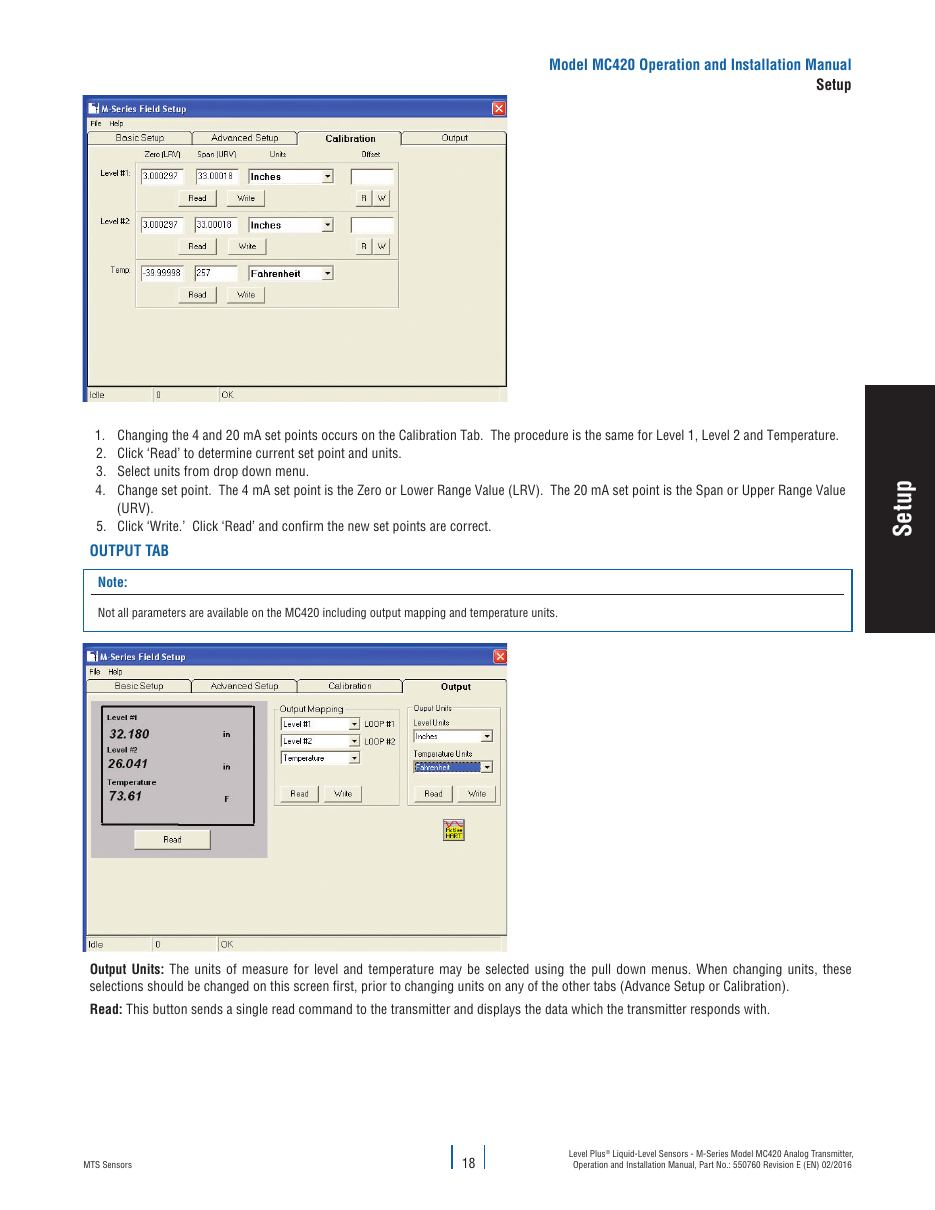

Temposonics MC420 – Drawing (168c2ea0f8d3_S11-40 S. 12)
Drawing · 168c2ea0f8d3_S11-40 · S. 12

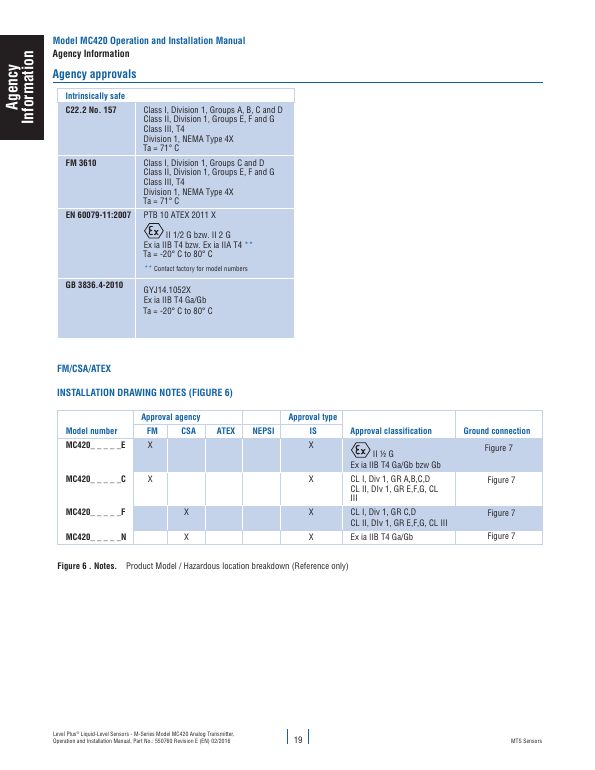

Temposonics MC420 – Drawing (168c2ea0f8d3_S11-40 S. 13)
Drawing · 168c2ea0f8d3_S11-40 · S. 13
Temposonics MC420 – Page preview (168c2ea0f8d3_S11-40 S. 14)
Page preview · 168c2ea0f8d3_S11-40 · S. 14
Temposonics MC420 – Page preview (168c2ea0f8d3_S11-40 S. 15)
Page preview · 168c2ea0f8d3_S11-40 · S. 15

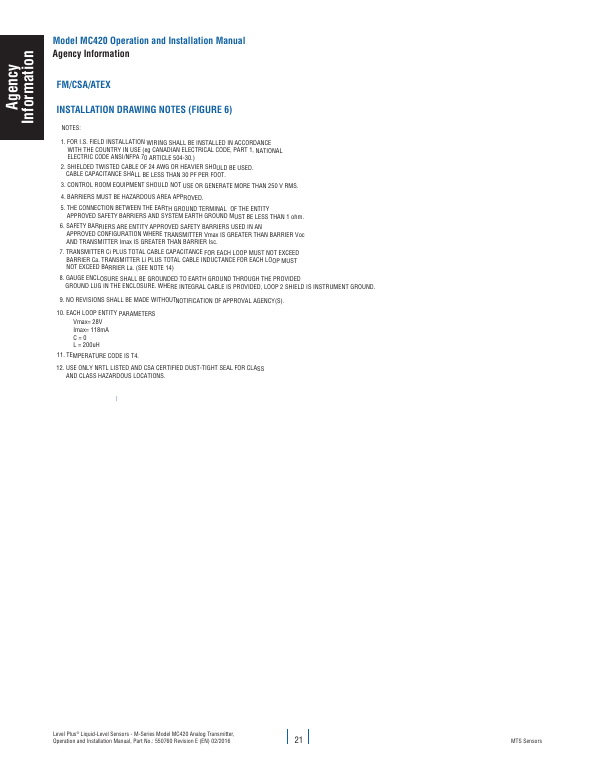

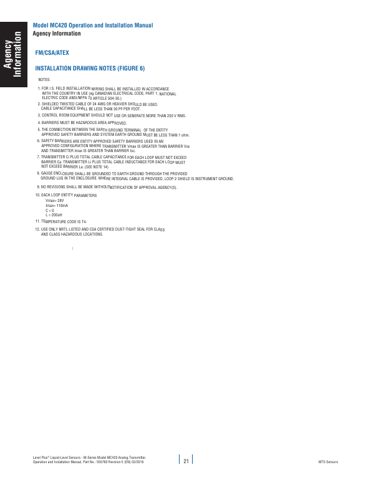

Temposonics MC420 – Page preview (168c2ea0f8d3_S11-40 S. 16)
Page preview · 168c2ea0f8d3_S11-40 · S. 16

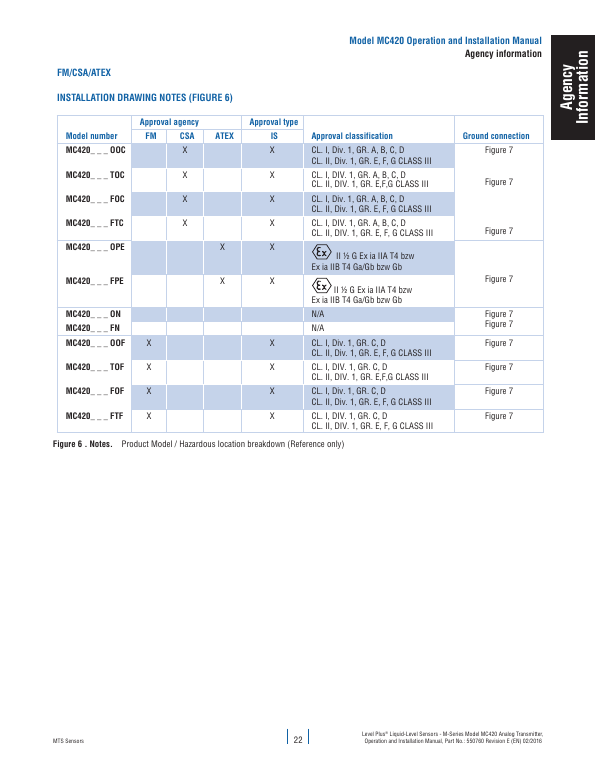

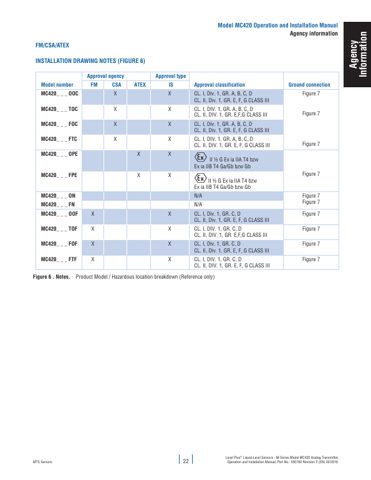

Temposonics MC420 – Page preview (168c2ea0f8d3_S11-40 S. 17)
Page preview · 168c2ea0f8d3_S11-40 · S. 17
Source: Temposonics MC420 datasheet, p. 1
