Library› Engine Room› Automation & Control› Level Switch› Endress+Hauser FTL63 HART
Endress+Hauser

FTL63 HART

Level Switch · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Mindestabstand der Schwinggabel zur Tankwand oder zur Rohrwandung10 mm
Drehwinkel380°
Sicherungsschraube4 mm (0,16 in)
Anziehmoment3,5 Nm (2,58 lbf ft)
Schraube der Deckelsicherung0,7 Nm (0,52 lbf ft) ±0,2 Nm (±0,15 lbf ft)
Versorgungsspannung10,5 … 35 VDC
Nennstrom4 … 20 mA HART
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Housing with electronic insert and cover Temperature spacer, pressure-tight feedthrough (second line of defense), optional Process connection, e.g. clamp/Tri-Clamp Process connection, e.g. thread…”

Features

  • compact version available
Source: Endress+Hauser FTL63 HART datasheet, p. 12
Endress+Hauser FTL63 HART – Drawing (6fa8d44fc63f_S10-22 S. 10)
Drawing · 6fa8d44fc63f_S10-22 · S. 10
Endress+Hauser FTL63 HART – Drawing (6fa8d44fc63f_S10-22 S. 11)
Drawing · 6fa8d44fc63f_S10-22 · S. 11
Endress+Hauser FTL63 HART – Drawing (6fa8d44fc63f_S10-22 S. 12)
Drawing · 6fa8d44fc63f_S10-22 · S. 12

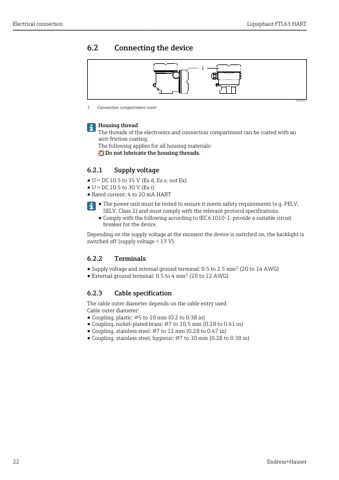

Endress+Hauser FTL63 HART – Page preview (6fa8d44fc63f_S10-22 S. 13)
Page preview · 6fa8d44fc63f_S10-22 · S. 13
Source: Endress+Hauser FTL63 HART datasheet, p. 1
