Endress+Hauser

FTL43 HART

Level Switch · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Supply voltage12 to 30 V🔖
Hazardous area100 mA🔖
Potential equalizationIf necessary, establish potential equalization using the process connection or t🔖
Overvoltage protectionThe device satisfies the IEC/DIN EN 61326-1 product standard (Table 2 Industrial🔖
Response timeHART: acyclic: min. 330 ms, typically 590 ms (depending on commands and number o🔖
Prozesstemperaturbereich–40 … +150 °C (–40 … +302 °F)🔖
Druckbis 64 bar🔖
Viskositätbis 10 000 mPa⋅s🔖
ZertifikateEG1935/2004🔖
Spannungsversorgung12 … 30 V🔖
Rlmax782 W🔖
Hart-spezifikation7.6🔖
Versorgungsspannung12 … 30 VDC🔖
Überspannungsschutz1 000 V Leitung gegen Erde🔖
Antwortzeit HART Azyklischmin. 330 ms, typisch 590 ms🔖
Antwortzeit HART Zyklisch (Burst)min. 160 ms, typisch 350 ms🔖
Dichteeinstellung TKtyp–0,2 mm/10 k🔖
Dichteeinstellung Drucktyp–0,3 mm/10 bar🔖
TotzeitMaximal 3,5 ms🔖
Zeitkonstante T63Maximal 30 ms🔖
Zeitkonstante T90Maximal 65 ms🔖
Aufwärmzeit≤ 10 s🔖
BetriebshöheBis zu 5 000 m (16 404 ft) über Meereshöhe.🔖
KlimaklasseNach IEC 60068-2-38 Prüfung Z/AD (relative Luftfeuchtigkeit 4 … 100 %).🔖
SchutzartPrüfung gemäß IEC 60529 Edition 2.2 2013-08/ DIN EN 60529:2014-09 DIN EN 60529:2🔖
VerschmutzungsgradVerschmutzungsgrad 2 gemäß IEC/EN 61010-1.🔖
Schwingungsfestigkeit• Stochastisches Rauschen (Random Sweep) nach DIN EN 60068-2-64 Fall 2/ IEC 6006🔖
Schockfestigkeit• Prüfnorm: DIN EN 60068-2-27 Fall 2 • Schockfestigkeit: 30 g (18 ms) in allen 3🔖
Elektromagnetische Verträglichkeit (EMV)• Elektromagnetische Verträglichkeit nach EN 61326-Serie und NAMUR-Empfehlung EM🔖
Temperaturdistanzstück mit/ohne druckdichter Durchführung mit maximaler Länge der Isolation140 mm (5,51 in)🔖
Druckdichte Durchführungbis 100 bar (1 450 psi)🔖
KurzrohrversionGewinde G 1 ca. 118 mm (4,65 in)🔖
RohrverlängerungSensorlängen L: 148 … 1 500 mm (5,83 … 59,06 in)🔖
Gewicht0,2 kg (0,44 lb)🔖
Temperaturdistanzstück0,6 kg (1,32 lb)🔖
Rohrverlängerung 1000 mm0,9 kg (1,98 lb)🔖
Rohrverlängerung 50 in1,15 kg (2,54 lb)🔖
RohrverschraubungSMS1145🔖
Höhe Prozessanschluss A18 (0.71) mm (in)🔖
Höhe Prozessanschluss B18 (0.71) mm (in)🔖
Höhe Prozessanschluss C37 (1.46) mm (in)🔖
Material316L🔖
Druckstufe, Temperatur≤ 40 bar (580 psi), ≤ +100 °C (+212 °F)🔖
Druckstufe≤ 16 bar (232 psi)🔖
Temperatur≤ 150 °C (302 °F)🔖
Rohrverschraubung SMS1145316L🔖
Maximum load resistance782 W🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Liquiphant FTL43 is a liquid level switch for detecting minimum or maximum levels in tanks and pipelines, suitable for hazardous areas.

Applications

  • process and storage tanks

Features

  • hygienic design
  • Heartbeat Technology
  • Bluetooth wireless technology

Options

  • Bluetooth configuration
  • FieldCare configuration
Source: Endress+Hauser FTL43 HART datasheet, p. 7

Standards

  • IEC/EN 61010-1
  • IEC/DIN EN 61326-1
  • IEC/DIN EN 61000-4-5
  • IEC 62828-2
Source: Endress+Hauser FTL43 HART datasheet, p. 9
Endress+Hauser FTL43 HART – Drawing (d980e40d001b_S9-20 S. 9)
Drawing · d980e40d001b_S9-20 · S. 9
Endress+Hauser FTL43 HART – Drawing (d980e40d001b_S9-20 S. 10)
Drawing · d980e40d001b_S9-20 · S. 10

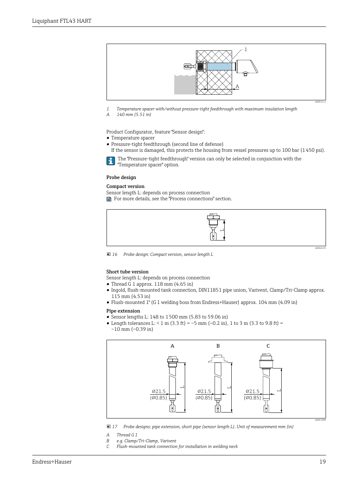

Endress+Hauser FTL43 HART – Drawing (d980e40d001b_S9-20 S. 11)
Drawing · d980e40d001b_S9-20 · S. 11
Endress+Hauser FTL43 HART – Page preview (d980e40d001b_S9-20 S. 12)
Page preview · d980e40d001b_S9-20 · S. 12

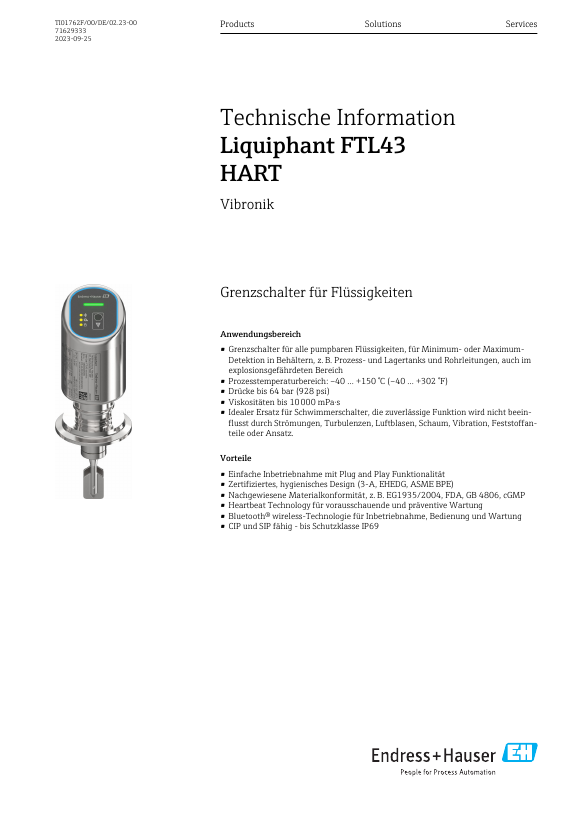

Endress+Hauser FTL43 HART – Page preview (2ce38a65fe96_S1-24 S. 1)
