Endress+Hauser

Micropilot FMR43 HART

Programmable Logic Controller (PLC) · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified​⁠​‌‌‍⁠​‍⁠​⁠​​‌‍​‍‍‌
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Measuring principlefrequency modulated continuous wave method (FMCW)
Maximaler Messbereich15 m
Prozesstemperatur–40 … +150 °C
Druck–1 … +20 bar
Nichtwiederholbarkeit≤ 1 mm (0,04 in)
Offset/nullpunkt±4 mm (±0,16 in)
Abweichende Werte im Nahbereich für Flüssigkeiten4 (0.16) mm (in)
Abweichende Werte im Nahbereich für Feststoffe20 (0.79) mm (in)
FunkrichtlinieEN 302372
FccPart 15 of the FCC rules
Kalibrierpunktegleichmäßig über den Messbereich (0 … 100 %) verteilt
Minimale Spanne45 mm (1,77 in)
Maximalwert für Parameter Abgleich Leer15 m (49 ft)
Genauigkeit±1 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Micropilot FMR43 HART is a radar level sensor used for measuring the level of solids and liquids in tanks and vessels.

Applications

  • Level measurement

Features

  • Advanced settings
  • Full calibration
  • Maximum draining speed solid

Options

  • Einschweißadapter
  • Prozessadapter
  • Flansche
Source: Endress+Hauser Micropilot FMR43 HART datasheet, p. 41

Standards

  • cGMP
  • 3-A
  • EHEDG
  • ASME BPE
  • TSE (BSE) Konformität
  • EN 302372
  • FCC
Source: Endress+Hauser Micropilot FMR43 HART datasheet, p. 41

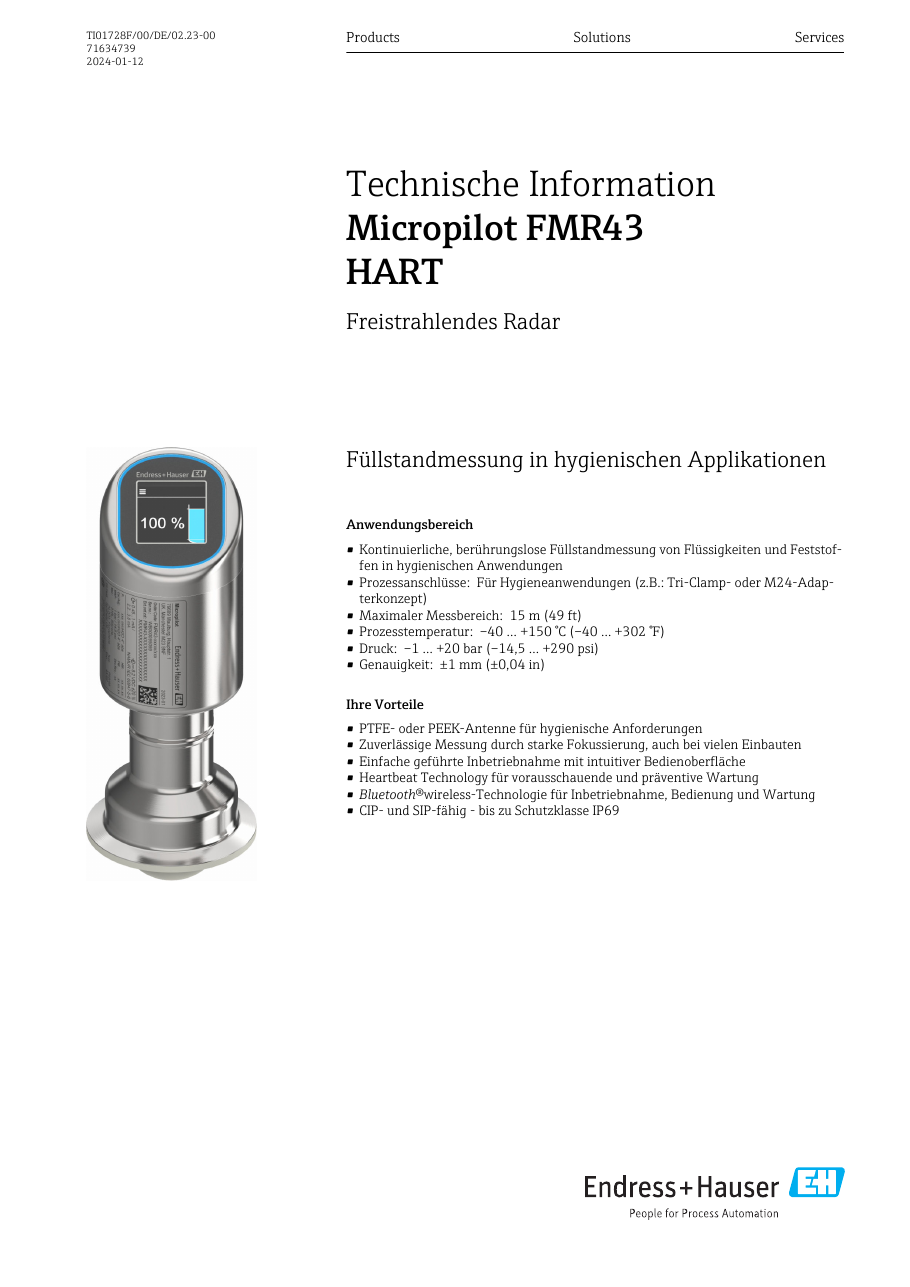

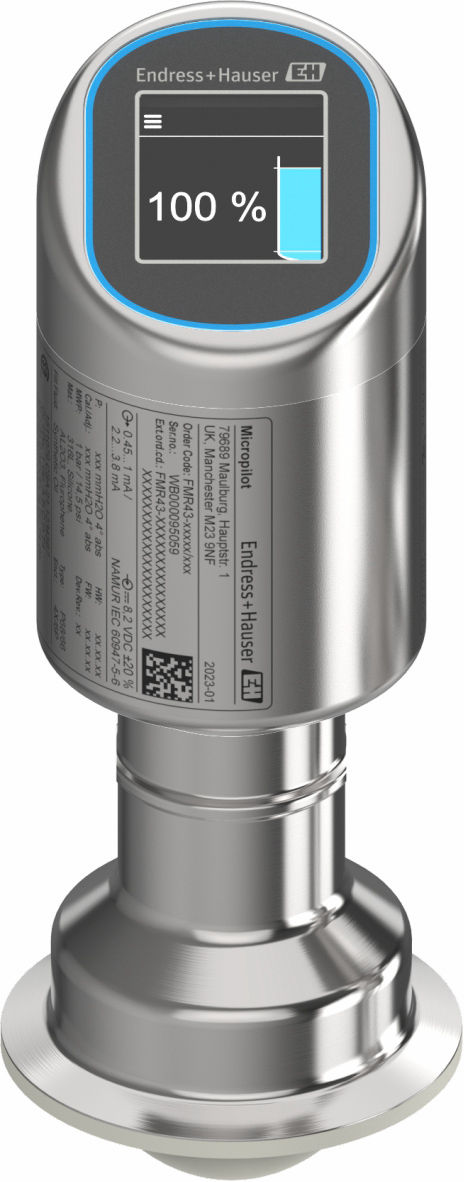

Endress+Hauser Micropilot FMR43 HART – Photo (41a5a639e1c3_S1-43 S. 1)
Photo · 41a5a639e1c3_S1-43 · S. 1
Endress+Hauser Micropilot FMR43 HART – Drawing (41a5a639e1c3_S1-43 S. 1)
Drawing · 41a5a639e1c3_S1-43 · S. 1

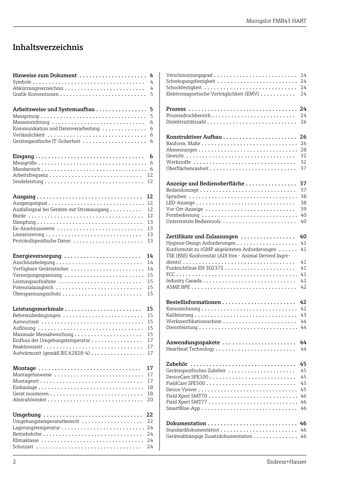

Endress+Hauser Micropilot FMR43 HART – Drawing (41a5a639e1c3_S1-43 S. 2)
Drawing · 41a5a639e1c3_S1-43 · S. 2
Endress+Hauser Micropilot FMR43 HART – Drawing (41a5a639e1c3_S1-43 S. 3)
Drawing · 41a5a639e1c3_S1-43 · S. 3

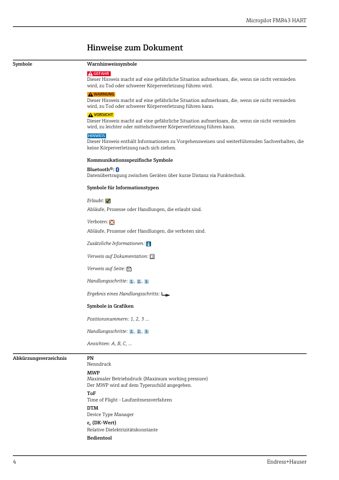

Endress+Hauser Micropilot FMR43 HART – Page preview (41a5a639e1c3_S1-43 S. 4)
Page preview · 41a5a639e1c3_S1-43 · S. 4

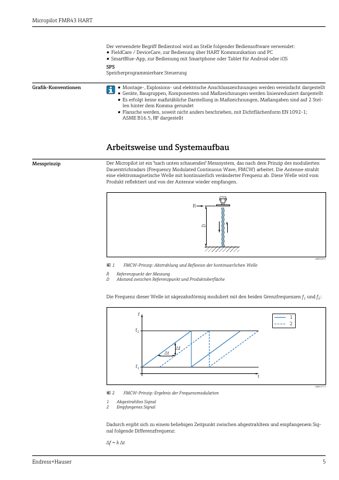

Endress+Hauser Micropilot FMR43 HART – Page preview (41a5a639e1c3_S1-43 S. 5)
Page preview · 41a5a639e1c3_S1-43 · S. 5

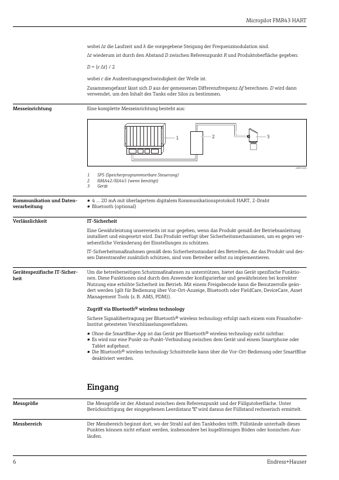

Endress+Hauser Micropilot FMR43 HART – Page preview (41a5a639e1c3_S1-43 S. 6)
Page preview · 41a5a639e1c3_S1-43 · S. 6
Endress+Hauser Micropilot FMR43 HART – Page preview (41a5a639e1c3_S1-43 S. 7)
Page preview · 41a5a639e1c3_S1-43 · S. 7
Source: Endress+Hauser Micropilot FMR43 HART datasheet, p. 55
