FTL51B HART, PROFINET over Ethernet-APL

Level Switch · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified​⁠​‌‌‌​‌⁠‍‍‍⁠​​‌​‍‍⁠
Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Overvoltage protectionDevices without optional overvoltage protection🔖
Spark-over voltagemin. DC 400 V🔖
Nominal discharge current10 kA🔖
Overvoltage categoryII🔖
Reference operating conditionsAs per IEC 62828-2🔖
Ambient temperature+23 °C (+73 °F)🔖
Process temperature+23 °C (+73 °F)🔖
Humidity j5 to 80 % rF ± 5 %🔖
Medium density (water)1 g/cm³ (62.4 lb/ft³)🔖
Medium viscosity1 mPa⋅s🔖
Atmospheric pressure pA860 to 1 060 mbar (12.47 to 15.37 psi)🔖
Process pressureatmospheric pressure/unpressurized🔖
Sensor installationvertically and from above🔖
Density selection switch> 0.7 g/cm3 (43.7 lb/ft3)🔖
Switch direction of sensoruncovered to covered🔖
Supply voltageDC 24 V ±3 V🔖
Load with HART250 Ω🔖
Minimum distance between the tuning fork and the tank wall or pipe wall10 mm (0.39 in)🔖
Zulässige Umgebungstemperatur Ta am Gehäuse in Abhängigkeit von der Prozesstemperatur Tp im Behälter+70 °C (+158 °F)🔖
Relative LuftfeuchteBetrieb bis zu 100 %. Nicht in kondensierender Atmosphäre öffnen.🔖
BetriebshöheBis zu 5 000 m (16 404 ft) über Meereshöhe.🔖
IP68 Testbedingung1,83 m H2O für 24 h m h🔖
Schwingungsfestigkeita(RMS) = 50 m/s2, f = 5 … 2 000 Hz, t = 3 Achsen x 2 h🔖
Schockfestigkeit300 m/s² [= 30 gn]🔖
Mechanische Belastung75 Nm (55 lbf ft)🔖
Prozesstemperaturbereich–50 … +150 °C (–58 … +302 °F)🔖
Thermischer Schock≤ 120 K/s🔖
Prozessdruckbereich–1 … +64 bar (–14,5 … 928 psi) bei max. 150🔖
HartErfüllt die Anforderungen an die funktionale Sicherheit (SIL) gemäß EN 61326-3-1🔖
PROFINET over Ethernet-APLMaximale Abweichung während EMV- Prüfungen: < 0,5 des aktuellen digitalen Messwe🔖
CertificationsEN 61326-Serie🔖
Prozessdruckbereich der Sensoren1450 100 psi bar🔖
Berstdruck der Membran2900 psi🔖
Messstoffdichte> 0,7 g/cm³ (43,7 lb/ft³)🔖
Viskosität≤ 10 000 mPa⋅s🔖
Feststoffanteil⌀ ≤ 5 mm (0,2 in)🔖
Höhe bei Deckel mit Sichtscheibe aus Glas101🔖
Deckel ohne Sichtscheibe138🔖
Temperaturdistanzstück und/oder druckdichte Durchführung mit maximaler Länge der Isolation140 mm (5.51 in)🔖
Druckdichte Durchführungbis 100 bar (1 450 psi)🔖
Ex d-Glasdurchführung für Rohrverlängerungenca. 76 mm (2,99 in)🔖
Flanschca. 115 mm (4,53 in)🔖
Gewinde G ¾ca. 115 mm (4,53 in)🔖
Gewinde G 1ca. 118 mm (4,65 in)🔖
Gewinde NPT, Rca. 99 mm (3,9 in)🔖
Tri-clampca. 115 mm (4,53 in)🔖
Frontbündig 1" (G 1 Einschweißmuffen von Endress+Hauser)ca. 104 mm (4,09 in)🔖
Rohrverlängerung Sensorlänge L117 … 6 000 mm oder 4,61 ... 236,22 in (Material: 316L)🔖
Längentoleranzen L < 1 m–5 mm (–0,2 in)🔖
Längentoleranzen L 1 … 3 m–10 mm (–0,39 in)🔖
Längentoleranzen L 3 … 6 m–20 mm (–0,79 in)🔖
Druckstufe≤ 100 bar (1 450 psi)🔖
Temperatur≤ 150 °C (302 °F)🔖
Weight0,3 kg (0,66 lb)🔖
Material316/316L🔖
TypeDN32🔖
Prozessberührende Werkstoffe316L (1.4404 oder 1.4435), optional Alloy C22 (2.4602)🔖
Schwinggabel316L (1.4435)🔖
Flansch-plattierungAlloy C22 (2.4602)🔖
Dichtungenfaserverstärkte Elastomerdichtung, asbestfrei nach DIN 7603🔖
📄
Download datasheet (PDF) (1816 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Liquiphant FTL51B is a level sensor designed for liquid level detection in tanks and vessels, offering robust protection against high pressure and hazardous environments.Source: Endress+Hauser FTL51B HART, PROFINET over Ethernet-APL datasheet, p. 30

Features

  • PROFINET over Ethernet-APL

Options

  • PROFINET over Ethernet-APL

Standards

  • EN 61326-3-1
  • EN 1092-1
  • ASME B 16.5a
  • JIS B 2220
Source: Endress+Hauser FTL51B HART, PROFINET over Ethernet-APL datasheet, p. 23

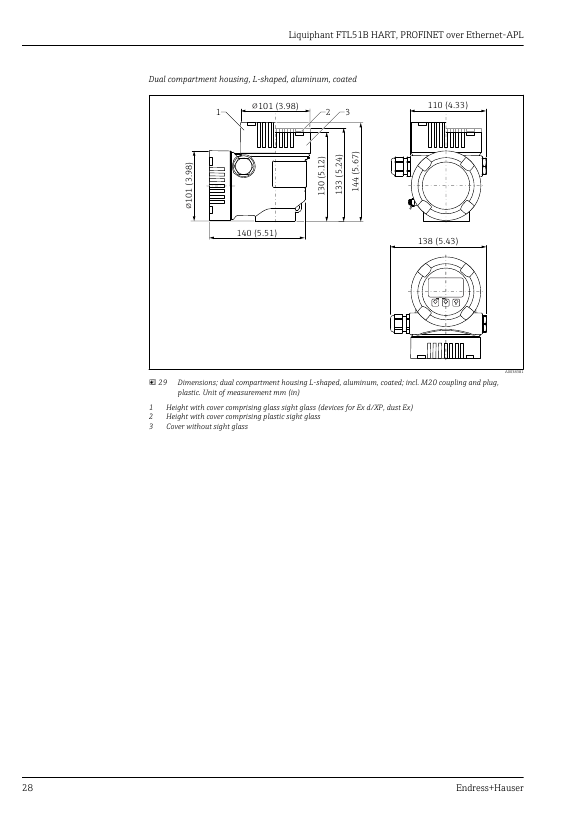

Endress+Hauser FTL51B HART, PROFINET over Ethernet-APL – Drawing (a16f4cda4e42_S13-40 S. 13)
Drawing · a16f4cda4e42_S13-40 · S. 13

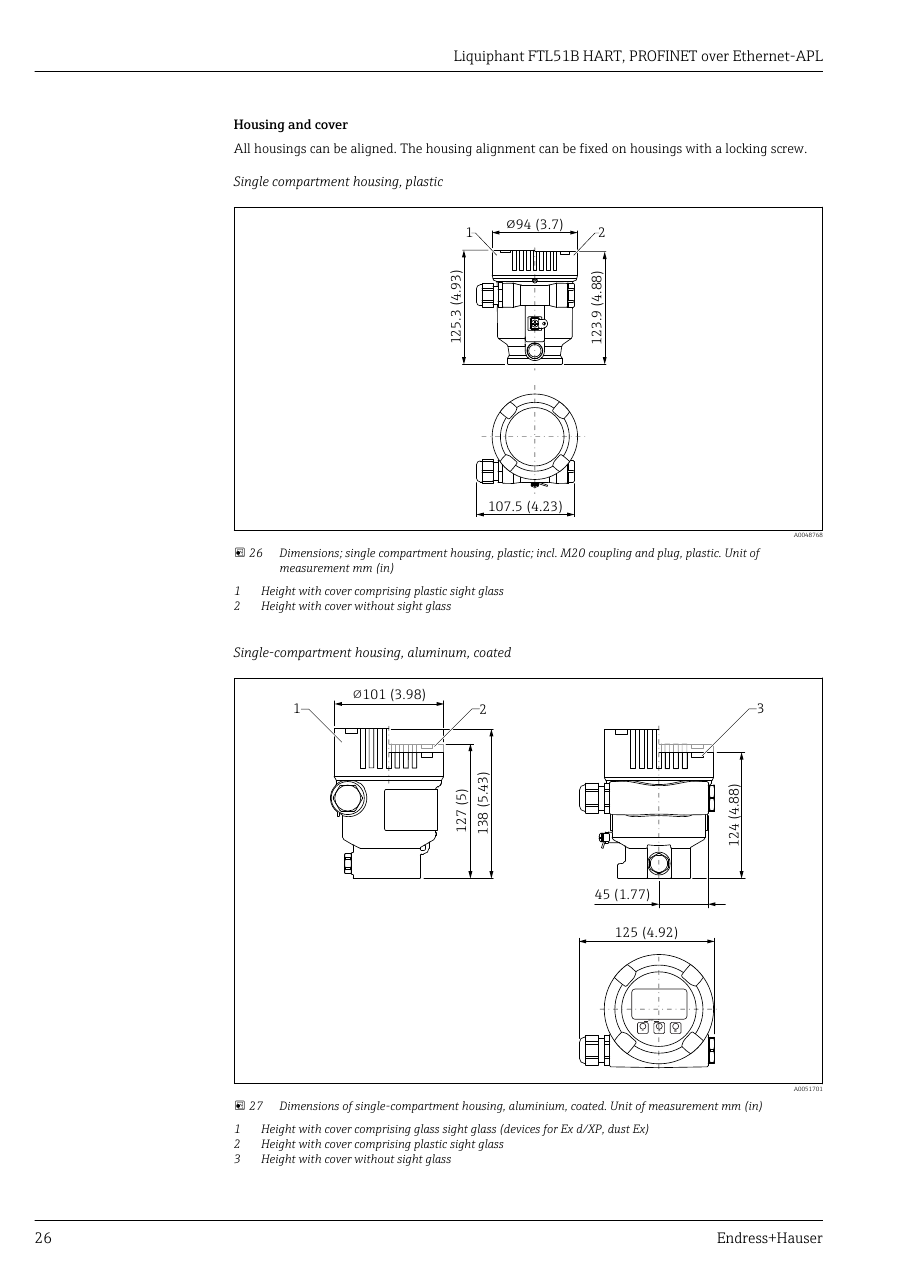

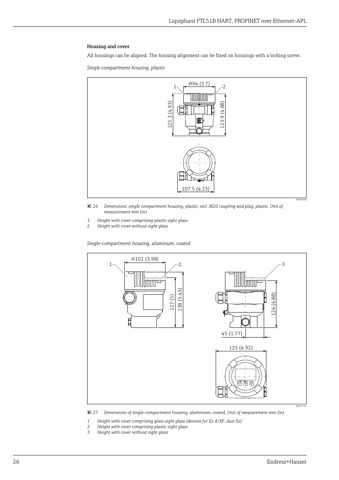

Endress+Hauser FTL51B HART, PROFINET over Ethernet-APL – Drawing (a16f4cda4e42_S13-40 S. 14)
