Library› Navigation› Radar & ECDIS› Radar› Endress+Hauser FWR30
Endress+Hauser

FWR30

Radar · Radar & ECDIS

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Maximum measuring range15 m (49 ft)🔖
Ambient temperature–20 to 60 °C (–4 to 140 °F)🔖
Accuracy±10 mm (0.39 in)🔖
Measuring rangeMaximum measuring range 0 to 30 m (0 to 98 ft)🔖
Position0 to 180°🔖
GPS accuracy±20 m (66 ft) in free field conditions🔖
Operating frequency80 GHz🔖
Battery life> 10 years🔖
Threaded adapterMNPT 1½" (process pressure max. 4 bar abs. (58 psi))🔖
Ø32.5 mm🔖
M442 mm🔖
Storage temperature–20 to 60 °C (–4 to 140 °F)🔖
Relative humidity0 to 95%🔖
Climate classDIN EN 60068-2-38/IEC 68-2-38: Test Z/AD🔖
Operating altitude according to DIN EN 61010-1 Ed. 3Up to 2 000 m (6 600 ft) above sea level.🔖
Degree of protectionIP66, IP68🔖
Vibration and shock resistanceIn accordance with DIN EN 60068-2-27/IEC 60068-2-27/DIN EN 60068-2-64: 18 ms, 30🔖
Electromagnetic compatibilityIn accordance with IEC/EN 61326-1🔖
Mounting bracket materialAISI316 L (1.4404)🔖
Adapter materialAISI316 L (1.4404)🔖
Position angle0 to 180°🔖
Blocking distance (BD)Empty tank - full tank - 100 mm (3.94 in) = blocking distance (min. 0 mm)🔖
Humidity0 to 95%🔖
Weight with original battery0.5 kg (1.1 lb)🔖
Weight without battery0.4 kg (0.88 lb)🔖
Ingress protection:IP66/IP68, NEMA Type 4X/6P🔖
Maximum measuring range:15 m (49 ft)🔖
Ambient temperature:–20 to 60 °C (–4 to 140 °F)🔖
Accuracy:10 mm (0.39 in)🔖
2G GPRS/EDGEGSM850, EGSM900, DCS1800, PCS1900🔖
4G LTE-M1 (LTE Cat-M1)LTE-FDD: B2/B3/B4/B5/B8/B18/B19/B20/B26🔖
Lte-tddB39🔖
4G LTE-NB1 (NB-IoT)LTE-FDD: B2/B3/B8/B20🔖
Transmission interval15 min🔖
Protocol-specific datainternet protocol TCP/IP and the secure transport layer TLS (v1.2), application🔖
Supply voltage3.6 V🔖
Designation in accordance with IECER34615 (primary battery lithium thionyl chloride); product recommendation: Tadi🔖
Calculation applies toTadiran SL-2880 battery (Europe), Tadiran TL-4930 battery (outside Europe)🔖
Temperatureapprox. +25 °C (+77 °F)🔖
Reference operating conditionsTemperature = +24 °C (+75 °F) ±5 °C (±9 °F)🔖
Pressure960 mbar abs. (14 psia) ±100 mbar (±1.45 psi)🔖
ZertifikateEN 302729-1/2🔖
Measured process variablesLevel: 0 to 30 m (0 to 98 ft) ±2 mm (0.08 in)🔖
Battery capacity19 Ah🔖
Measurement accuracy in liquid applications±2 mm (0.08 in) within the entire measuring ra🔖
Measurement accuracy in solids applications±5 mm (0.2 in) within the entire measuring ra🔖
Temperature coefficient≤ 4 mm (0.16 in) per 10 K🔖
Process temperature range–20 to 60 °C (–4 to 140 °F)🔖
Process pressure range, thread without PVDF washer• pgauge = –1 to 1 bar (–14.5 to 14.5 psi)🔖
Process pressure range, thread process connection with PVDF washer• pgauge = –1 to 6 bar (–14.5 to 87 psi)🔖
DimensionsØ32.5 (1.28)🔖
Weight Housing0.5 kg (1.1 lb)🔖
Ambient temperature range–20 to +60 °C (–4 to +140 °F)🔖
Battery discharge is at its lowest if the battery is stored at temperatures from0 to +30 °C (+32 to +86 °F)🔖
Diameter D40 mm🔖
Hmax230 mm🔖
Measuring distance500 mm🔖
Radiation width 1)70 mm🔖
Range0 to 180°🔖
GPS±20 m (66 ft)🔖
Battery typeStandard size, lithium (D), 3.6 V, 19 Ah🔖
Specification according to IECER34615 (primary lithium-thionyl chloride battery)🔖
Product recommendationTadiran SL-2880 (Europe), Tadiran TL-4930 (outside Europe)🔖
Operating altitudeUp to 2 000 m (6 600 ft) above sea level.🔖
Messbereich0 … 15 m (0 … 49 ft)🔖
Arbeitsfrequenz80 GHz🔖
VersorgungsspannungAustauschbare Batterie, Standardgröße Lithium (D), 3,6 V, 19 Ah (im Lieferumfang🔖
Batteriekapazität19 Ah🔖
Batteriebezeichnung nach IECER34615🔖
ProduktempfehlungTadiran SL-2880 (Europa), Tadiran TL-4930 (außerhalb Europa)🔖
Maximale Messabweichung Messgenauigkeit:±10 mm (0,39 in) innerhalb des gesamten Messbereiches🔖
Temperaturkoeffizient:≤ 4 mm (0,16 in) pro 10 K🔖
Umgebungstemperatur–20 … 60 °C (–4 … 140 °F)🔖
Relative Luftfeuchte0 ... 95%🔖
KlimaklasseDIN EN 60068-2-38/IEC 68-2-38: Prüfung Z/AD🔖
Einsatzhöhe nach DIN EN 61010-1 Ed. 3Bis 2 000 m (6 600 ft) über Normalnull.🔖
SchutzartIP66, IP68🔖
Vibrations- und StoßfestigkeitGemäß DIN EN 60068-2-27 / IEC 60068-2-27: 18 ms, 30g, Halbsinus🔖
Elektromagnetische VerträglichkeitGemäß IEC/EN 61326-1🔖
Gewicht Gehäuse0,5 kg (1,1 lb)🔖
Gewicht ohne Batterie0,4 kg🔖
Füllstand0 … 30 m (0 … 98 ft)🔖
Lage0 ... 180°🔖
Durchmesser D40 mm🔖
Messdistanz500 mm🔖
Breite der Abstrahlung70 mm🔖
Länge42 mm🔖
Gewicht mit Originalbatterie0,5 kg🔖
G 1½" Adapter300 g🔖
MNPT 1½" Adapter300 g🔖
Montagebügel Rohr / IBCAISI316 L (1.4404)🔖
Montagebügel UniversalAISI316 L (1.4404)🔖
Maxium operation height15 m🔖
radius around RAS stations40 km🔖
Maximale MessabweichungMessgenauigkeit: ±10 mm (0,39 in) innerhalb des gesamten Messbereiches🔖
Einsatzhöhe nach DIN ENBis 2 000 m (6 600 ft) über Normalnull.🔖
Contains transmitter module IC ID10224A-201709BG96🔖
Maximale Messbereich15 m (49 ft)🔖
Genauigkeit10 mm (0,39 in)🔖
MessgrößeFüllstand: 0 … 15 m (0 … 49 ft) ±10 mm (0,39 in)🔖
Batterielaufzeit (Messintervall 6 h, Übertragungsintervall 12 h)> 10 Jahre🔖
Batterielaufzeit (Messintervall 1 h, Übertragungsintervall 24 h)> 10 Jahre🔖
Batterielaufzeit (Messintervall 1 h, Übertragungsintervall 1 h)ca. 500 Tage🔖
Batterielaufzeit (Messintervall 1 min, Übertragungsintervall 1 h)ca. 400 Tage🔖
Batterielaufzeit (Messintervall 1 min, Übertragungsintervall 15 min)ca. 140 Tage🔖
Bezeichnung nach IECER34615 (Primärbatterie Lithium-Thionylchlorid)🔖
Prozesstemperaturbereich–20 … 60 °C (–4 … 140 °F)🔖
Prozessdruckbereich, Gewinde ohne PVDF-Scheibeprel = –1 … 1 bar (–14,5 … 14,5 psi), pabs < =2 bar (29 psi)🔖
Prozessdruckbereich, Prozessanschluss Gewinde mit PVDF-Scheibeprel = –1 … 6 bar (–14,5 … 87 psi), pabs < =7 bar (101,5 psi)🔖
Montagebügel Wand / Decke450 g🔖
G 1½" Adapter mit PVDF-Scheibe340 g🔖
MNPT 1½" Adapter mit PVDF-Scheibe340 g🔖
Entnahmeschutz47,3 g🔖
Maximaler Messbereich0 … 30 m (0 … 98 ft)🔖
Gemessene Prozessgrößen - Abstand zur Wasseroberfläche0 … 30 m (0 … 98 ft)🔖
Gemessene Prozessgrößen - Umgebungstemperatur–20 … 60 °C (–4 … 140 °F)🔖
Lage - Winkelabweichung des Geräts zur Horizontalen0 ... 180°🔖
InternetprotokollTCP/IP und die Secure Transport Layer TLS (v1.2)🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Micropilot FWR30 is a downward-looking radar measuring system that uses the time-of-flight method to measure distance from the reference point to the product surface.

Applications

  • Level measurement
  • Ambient temperature monitoring
  • Position angle measurement
  • GPS accuracy determination

Features

  • Time-of-flight measuring principle
  • Measures distance to product surface
  • Operates in a range of temperatures

Options

  • mounting bracket pipe/IBC
  • horizontal mounting
Source: Endress+Hauser FWR30 datasheet, p. 8

Standards

  • DIN EN 60068-2-38
  • IEC 68-2-38
  • DIN EN 61010-1
  • DIN EN 60068-2-27
  • IEC 60068-2-27
  • DIN EN 60068-2-64
  • IEC/EN 61326-1
Source: Endress+Hauser FWR30 datasheet, p. 11

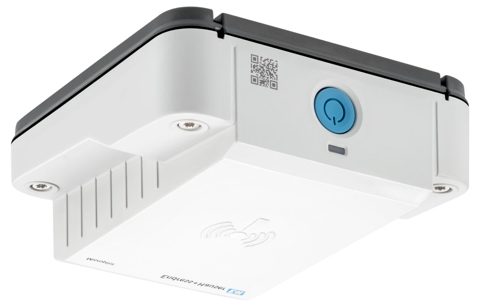

Endress+Hauser FWR30 – Photo (2f18b9d1a1e4_S1-1 S. 1)
Photo · 2f18b9d1a1e4_S1-1 · S. 1

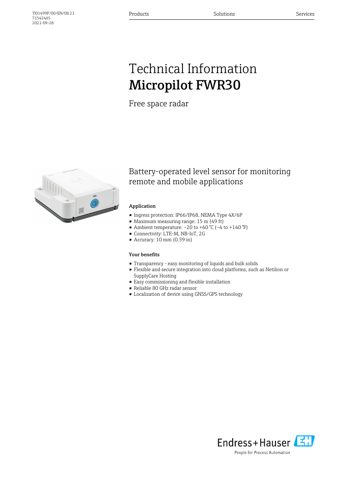

Endress+Hauser FWR30 – Drawing (f4215e1c12e7_S1-16 S. 1)
Drawing · f4215e1c12e7_S1-16 · S. 1

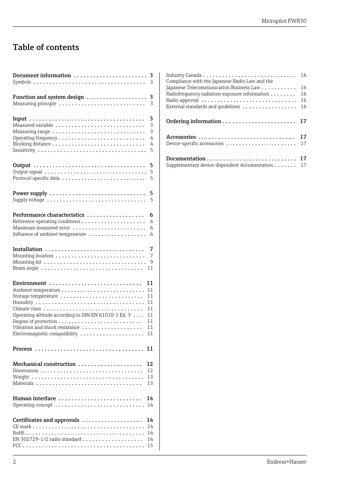

Endress+Hauser FWR30 – Drawing (f4215e1c12e7_S1-16 S. 2)
Drawing · f4215e1c12e7_S1-16 · S. 2

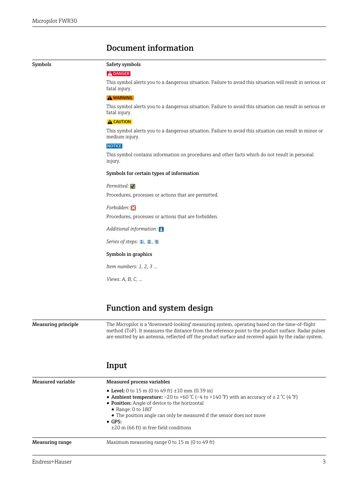

Endress+Hauser FWR30 – Drawing (f4215e1c12e7_S1-16 S. 3)
Drawing · f4215e1c12e7_S1-16 · S. 3

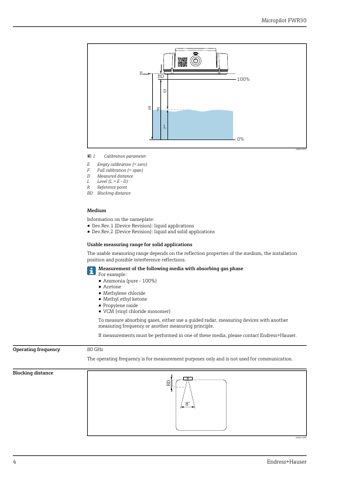

Endress+Hauser FWR30 – Page preview (f4215e1c12e7_S1-16 S. 4)
Page preview · f4215e1c12e7_S1-16 · S. 4

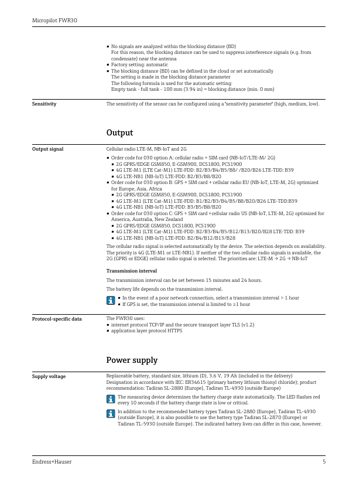

Endress+Hauser FWR30 – Page preview (f4215e1c12e7_S1-16 S. 5)
Page preview · f4215e1c12e7_S1-16 · S. 5
Endress+Hauser FWR30 – Page preview (f4215e1c12e7_S1-16 S. 6)
Page preview · f4215e1c12e7_S1-16 · S. 6

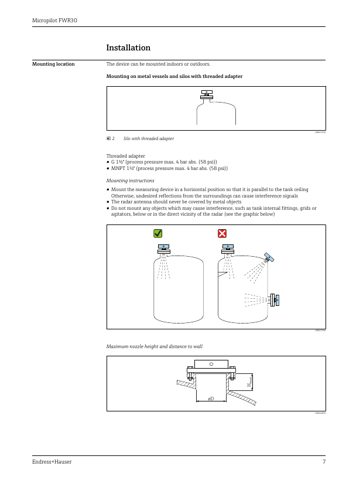

Endress+Hauser FWR30 – Page preview (f4215e1c12e7_S1-16 S. 7)
Page preview · f4215e1c12e7_S1-16 · S. 7
Source: Endress+Hauser FWR30 datasheet, p. 3
