FEI52

Level Switch · Automation & Control

​⁠​‌​⁠⁠‍⁠​‌⁠​‌‌⁠‌‌‌‍
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

3-wire direct current versionSwitch the load via the transistor (PNP) and separate supply voltage connection
Point level adjustmentdirectly at the point level switch
Schaltverzögerung0,3 … 10 s.
Switching delay0.3 to 10 s
Supply voltage10 to 55 V DC
Ripplemax. 1.7 V, 0…400 Hz
Current consumption< 20 mA
Power consumption without loadmax. 0.9 W
Power consumption with full load (350 mA)1.6 W
Separation voltage3.7 kV
Signal on alarmOutput signal on power failure or in the event of device failure: IR < 100 μA
Connectable load• Load switched via transistor and separate PNP connection, max. 55 V
Load currentmax. 350 mA (cyclical overload and short-circuit protection)
Residual current< 100 μA (with transistor blocked)
Capacitive loadmax. 0.5 μF at 55 V; max. 1.0 μF at 24 V
Versorgungsspannung10…55 V DC
Stromaufnahme< 20 mA
Leistungsaufnahme ohne Lastmax. 0,9 W
Leistungsaufnahme bei Volllast1,6 W
Trennspannung3,7 kV
Welligkeitmax. 1,7 V, 0…400 Hz
Leistungsaufnahme bei Volllast (350 mA)1,6 W
Ausgangssignal bei Netzausfall und bei GeräteausfallIR < 100 μA
Last über Transistor und separaten PNP-Anschluss geschaltetmax. 55 V
Laststrommax. 350 mA (getakteter Überlast- und Kurzschlussschutz)
Reststrom< 100 μA (bei gesperrtem Transistor)
Kapazitive Lastmax. 0,5 μF bei 55 V; max. 1,0 μF bei 24 V
L+ L–10…55 V (DC)
min. U19 V
F0.5A
I L I max.350 mA
U max.55V
NivotesterFTC325 3-WIRE
U~ max.253 V AC 50/60 Hz
U~ 19…253 V/ U– 19…55 V (DC)
Voltage11...36 V DC
Power supply10 V…55 V
Power consumptionmax. 0.9 W
Tension d’alimentation10... 55 V DC
Elektronikeinsatz SpannungsversorgungFEI52
Umgebungstemperatur Elektronik–50 °C ≤ Ta ≤ +70 °C
min. Spannungsversorgung19 V
max. Stromstärke0.5A
Frequenz50/60 Hz
Spannungsversorgung DC10…55 V
Spannungsversorgung einschalten11...36V DC
I=16mA
Power consumption with full load1.6 W
Restspannung< 3 V (bei durchgeschaltetem Transistor)
Manufacturer documentation

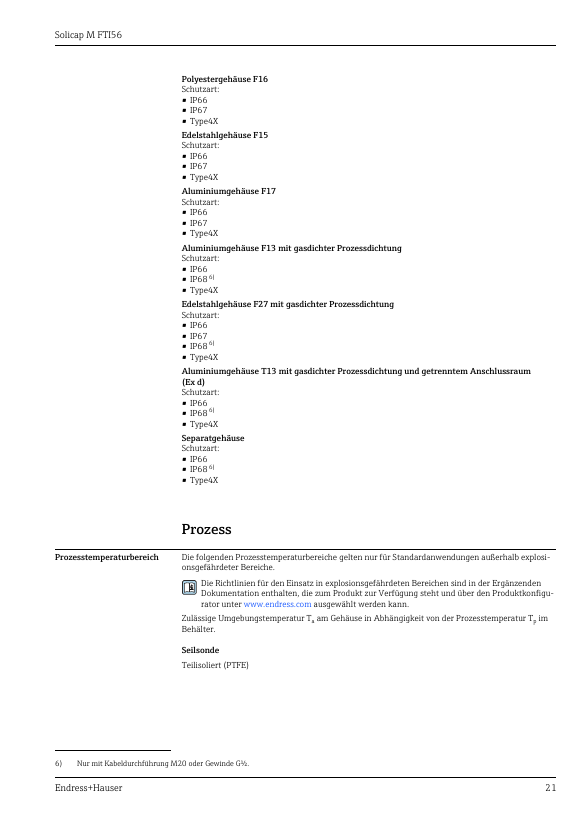

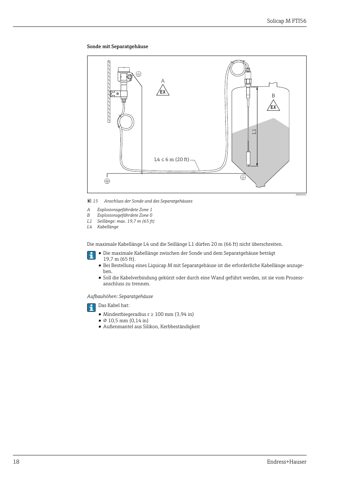

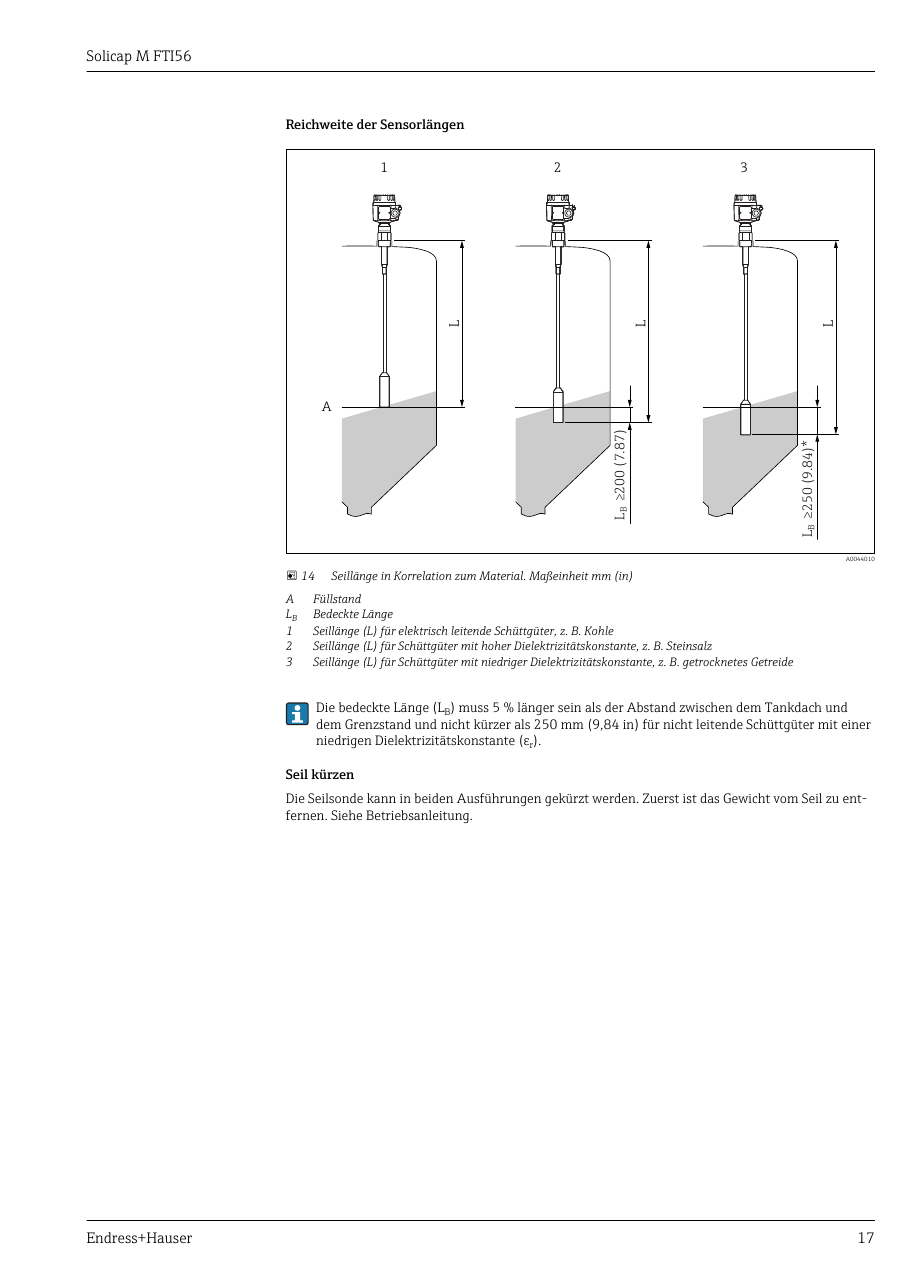

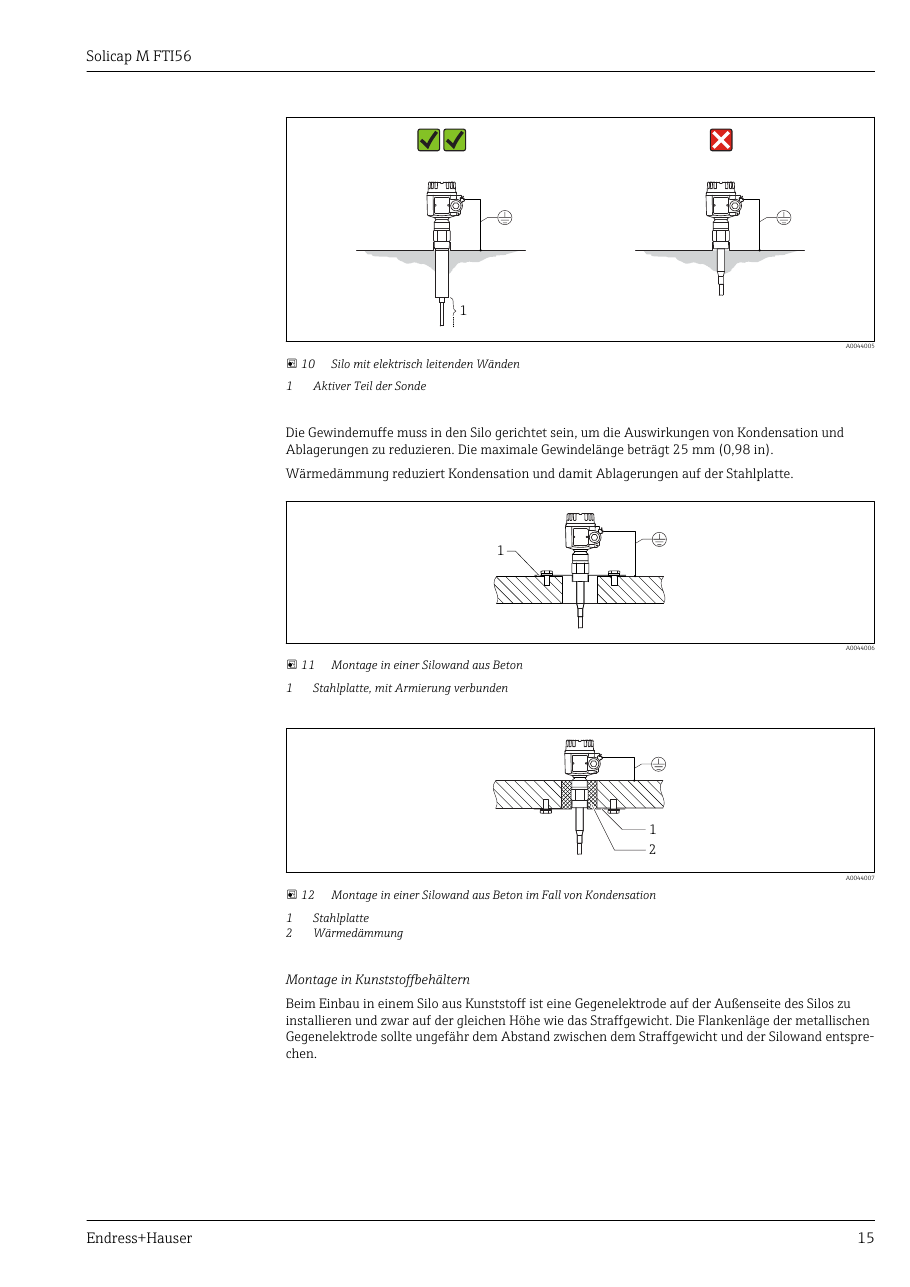

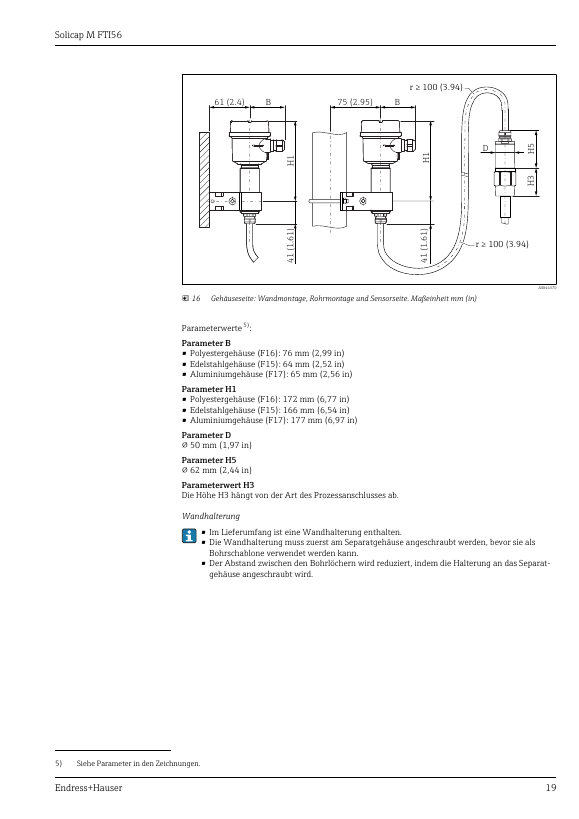

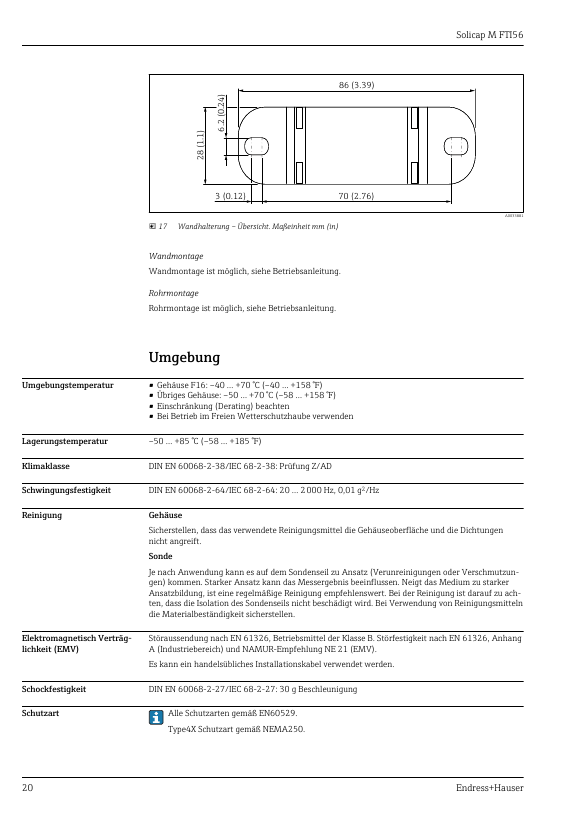

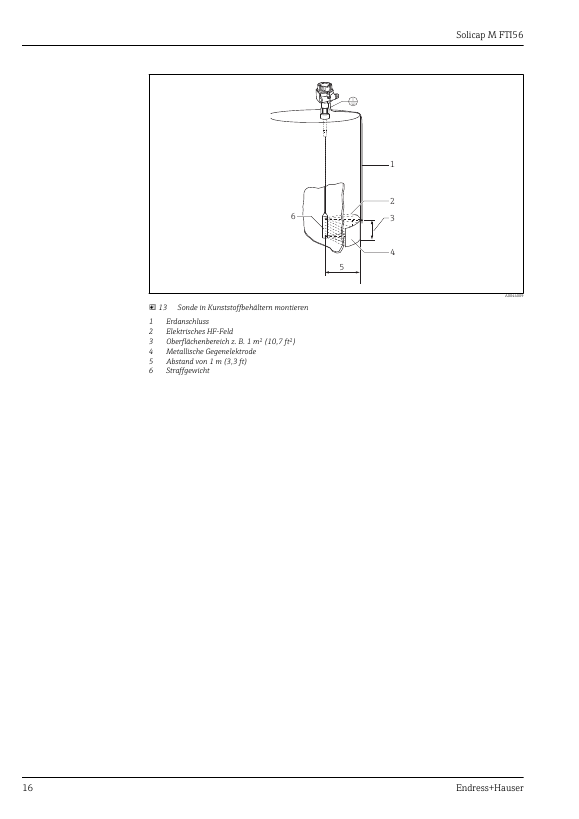

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The FEI52 is a three-wire DC electronic insert for use with programmable logic controllers (PLCs) and DI modules.

Applications

  • Industrial control systems
Source: Endress+Hauser FEI52 datasheet, p. 34

Features

  • ripple protection
Source: Endress+Hauser FEI52 datasheet, p. 34

Options

  • cable gland

Standards

  • EN 61131-2
Endress+Hauser FEI52 – Drawing (3dad1d343cde_S8-34 S. 8)
