Library› Navigation› Radar & ECDIS› Radar› Furuno DRS2D-NXT
Furuno

DRS2D-NXT

Radar · Radar & ECDIS

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Horizontal Beam Width5.2° typical (-3 dB)
Vertical Beam Width25°
Antenna Rotation Speed24 rpm fixed
Peak Output PowerSolid-State, 25W
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

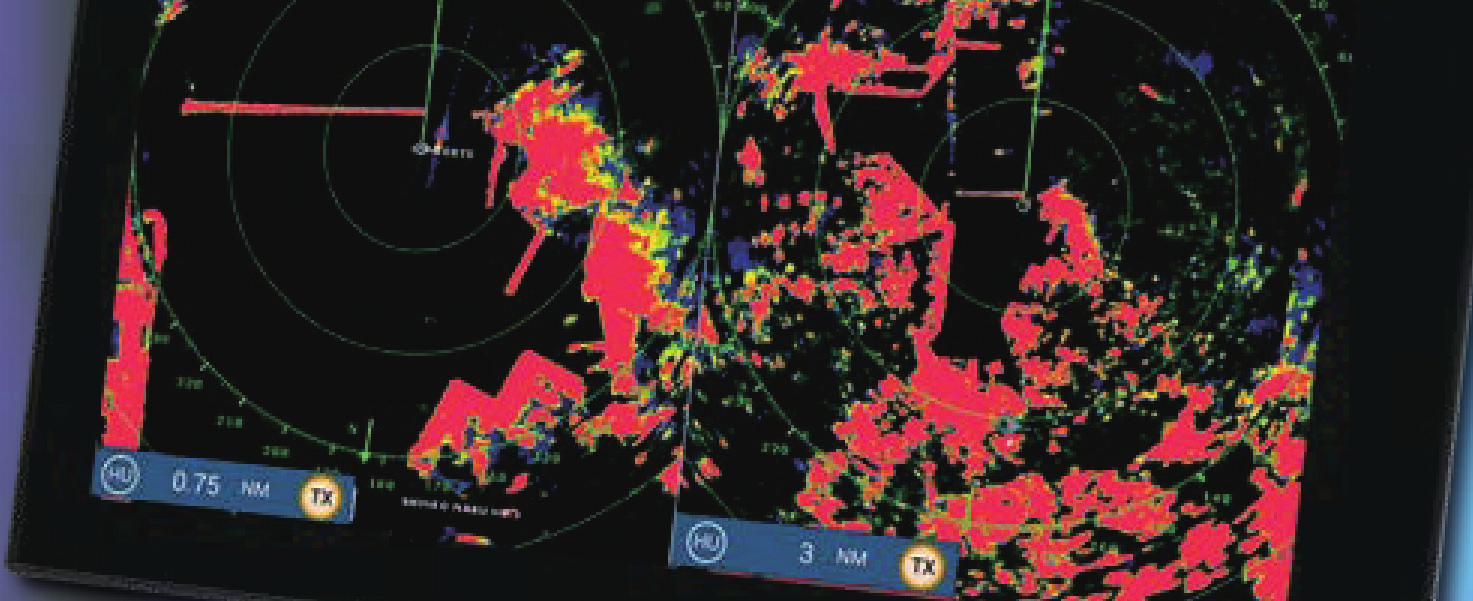

The DRS-NXT Radar series is a solid-state pulse compression radar system with no preheating time and low energy consumption. It features a Target Analyzer™ function to identify hazardous targets and other advanced features for improved situational awareness.

Applications

  • fishing

Features

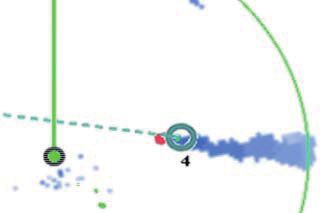

  • Target Analyzer™ function
  • Fast Target Tracking
  • Auto Target Acquire
  • RezBoost™ beam sharpening
  • Simple installation

Options

  • 24" Radome Antenna
  • 19" Radome Antenna
  • 3.5/4/6’ open array antenna options

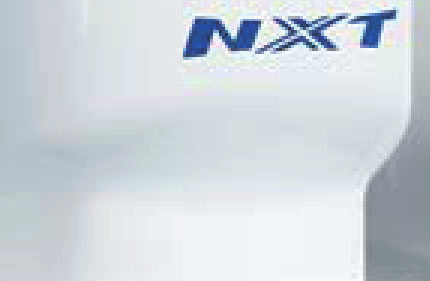

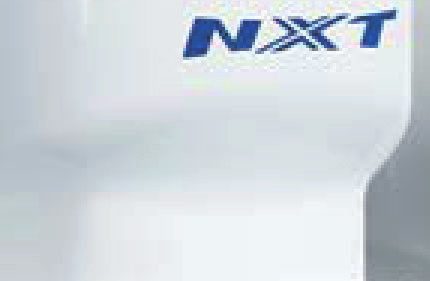

Furuno DRS2D-NXT – Photo (2d52ffbe2113_S2-4 S. 2)
Photo · 2d52ffbe2113_S2-4 · S. 2
Furuno DRS2D-NXT – Photo (2d52ffbe2113_S2-4 S. 2)
Photo · 2d52ffbe2113_S2-4 · S. 2
Furuno DRS2D-NXT – Photo (2d52ffbe2113_S2-4 S. 2)
Photo · 2d52ffbe2113_S2-4 · S. 2
Furuno DRS2D-NXT – Photo (2d52ffbe2113_S2-4 S. 2)
Photo · 2d52ffbe2113_S2-4 · S. 2
Furuno DRS2D-NXT – Photo (2d52ffbe2113_S2-4 S. 2)
Photo · 2d52ffbe2113_S2-4 · S. 2
Furuno DRS2D-NXT – Photo (2d52ffbe2113_S2-4 S. 2)
Photo · 2d52ffbe2113_S2-4 · S. 2
Furuno DRS2D-NXT – Photo (2d52ffbe2113_S2-4 S. 2)
Photo · 2d52ffbe2113_S2-4 · S. 2
Furuno DRS2D-NXT – Photo (2d52ffbe2113_S2-4 S. 2)
Photo · 2d52ffbe2113_S2-4 · S. 2
Source: furunojapanesemanuals DRS2D-NXT datasheet, p. 2
