Library› Engine Room› Shaft Line & Propulsion› Propulsion Equipment› Volvo Penta IPS900
Volvo Penta

IPS900

Propulsion Equipment · Shaft Line & Propulsion

Class-certified type (DNV register) · technical data sheet not yet verified
Volvo Penta in the SpecCodex register — view brand page →
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

System designationIPS900
Engine displacement, l (in3)12.8 (780)
Crankshaft power, kW (hp)515 (701) @ 2250 rpm
Propshaft power, kW (hp)485 (660) @ 2250 rpm
Package dry weight, approx.2300 (5060) kg (lb)
Voltage24V
Speed range21 to 39 knots
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Inboard performance system for twin/multiple engine installations in planing and semi-planing hulls.

Applications

  • planing hulls
  • semi-planing hulls

Features

  • dual stage turbo with twin charge air coolers
  • R3* rating for commercial vessels or craft
  • high demands on speed and acceleration
  • IMO NOx, EU RCD Stage II, US EPA Tier 3 emission compliance

Standards

  • Technical data according to ISO 8665.

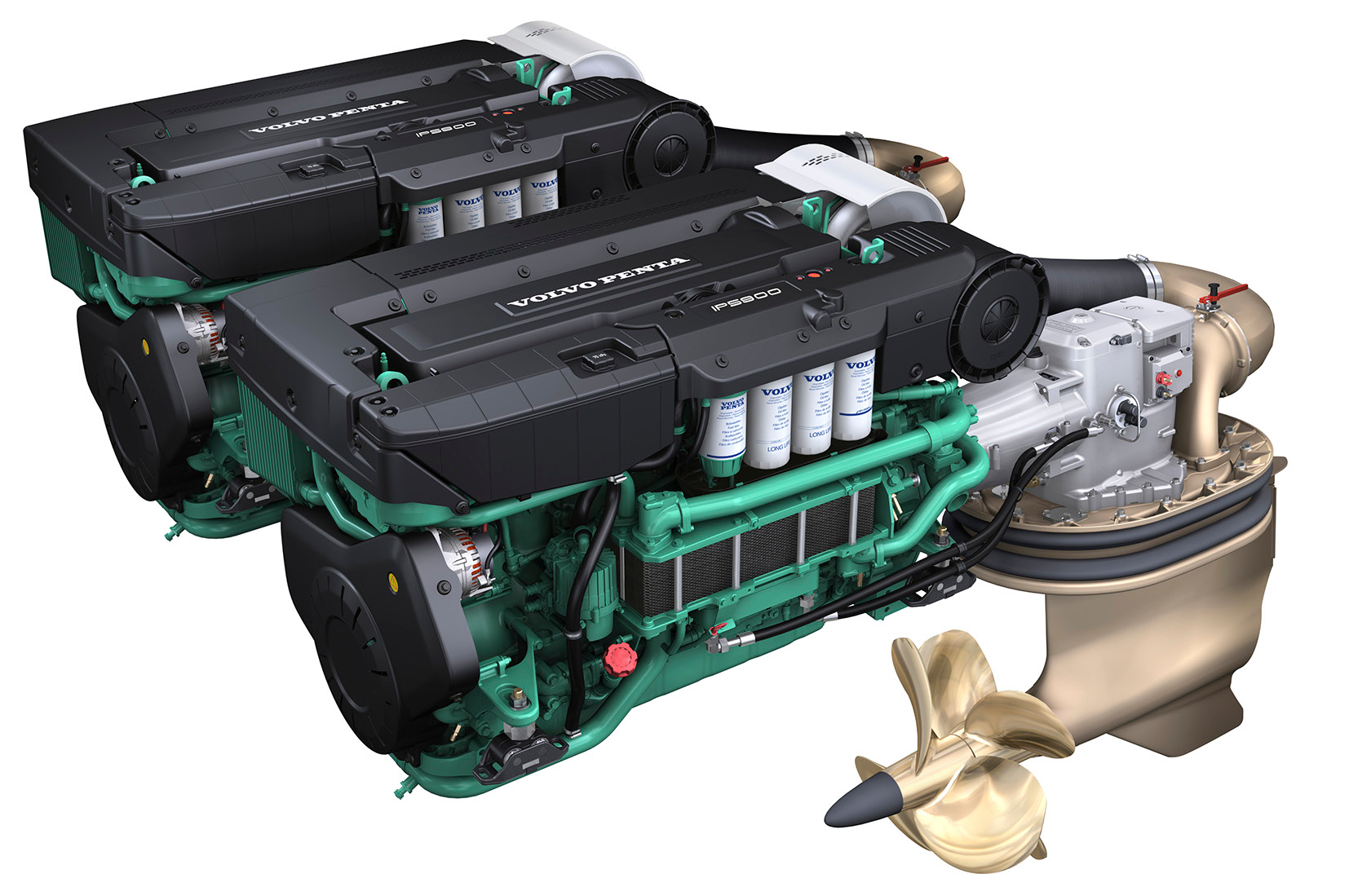

Volvo Penta IPS900 – Photo (7faa441a2f49_S1-2 S. 1)
Photo · 7faa441a2f49_S1-2 · S. 1

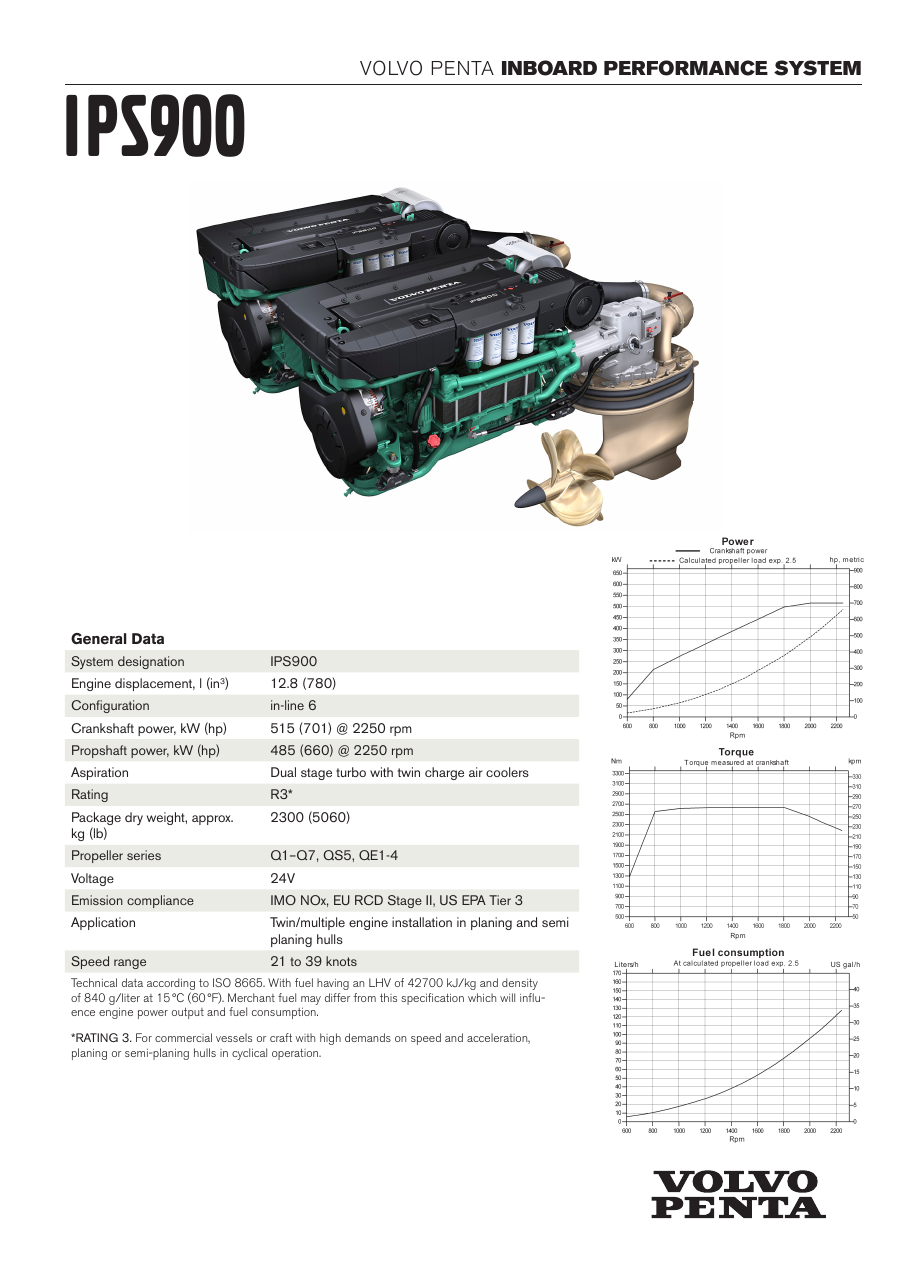

Volvo Penta IPS900 – Drawing (7faa441a2f49_S1-2 S. 1)
Drawing · 7faa441a2f49_S1-2 · S. 1

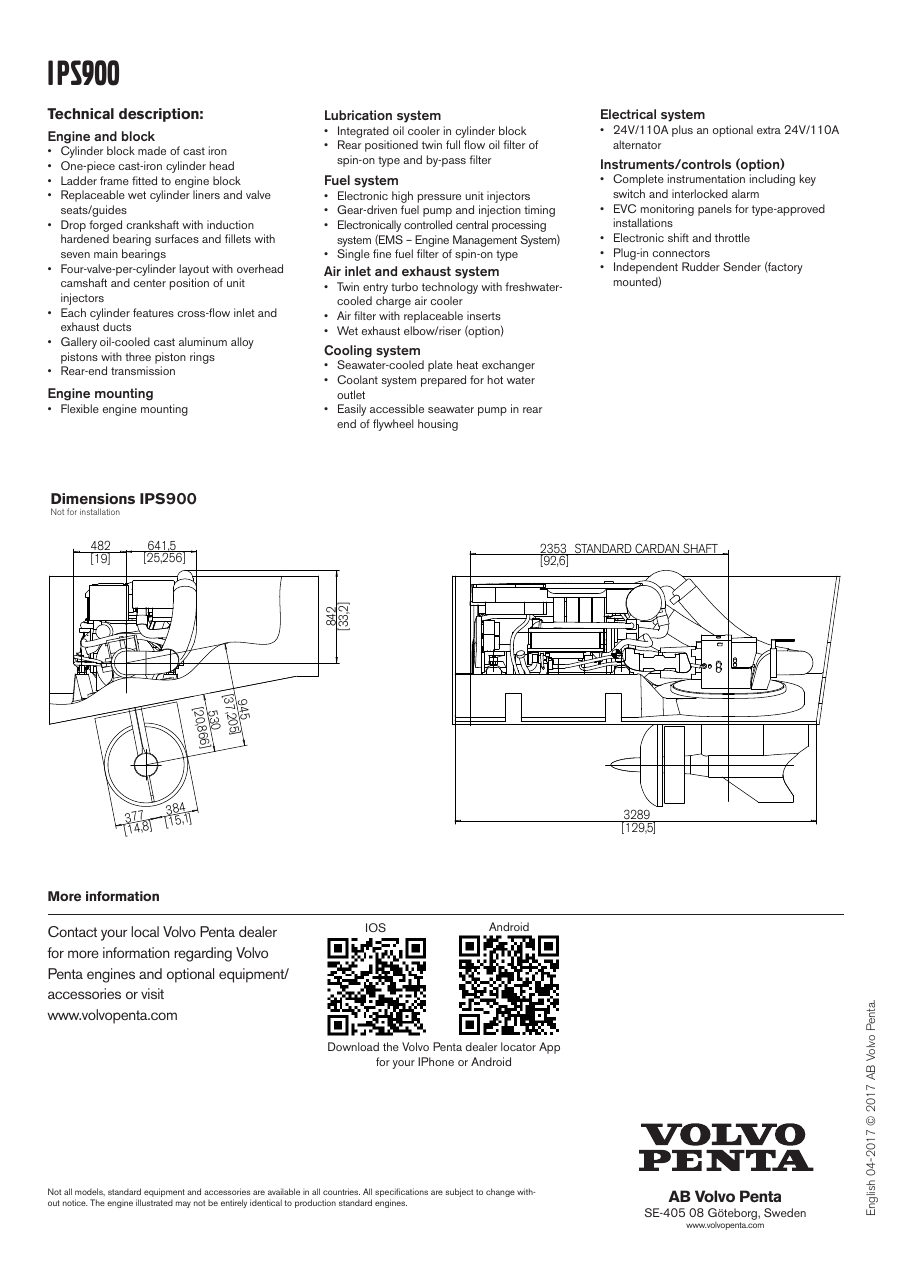

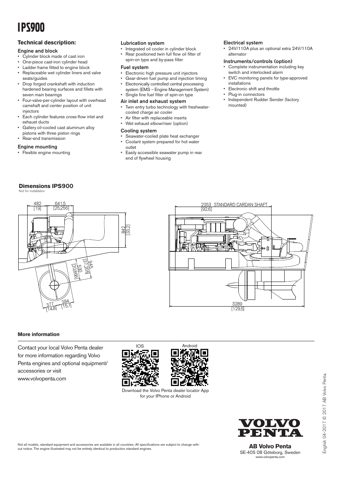

Volvo Penta IPS900 – Drawing (7faa441a2f49_S1-2 S. 2)
Drawing · 7faa441a2f49_S1-2 · S. 2
Source: Volvo Penta IPS900 datasheet, p. 1
