Library› Electrical› Power Distribution› Battery Charger Panel› victronenergy IP22
victronenergy

IP22

Battery Charger Panel · Power Distribution

Class-certified type (DNV register) · technical data sheet not yet verified

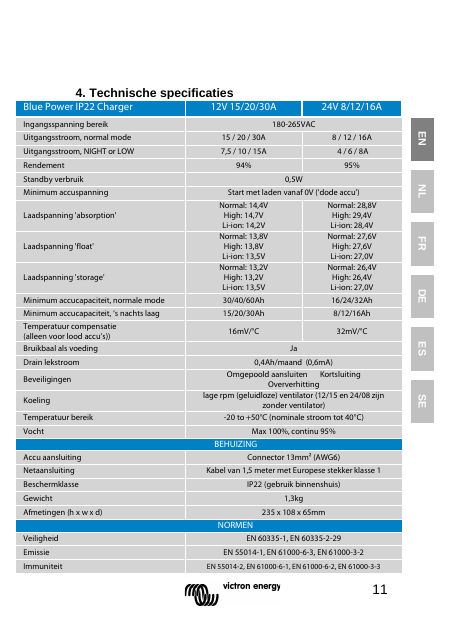

Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Input voltage range180-265VAC🔖
Output current, normal mode15 / 20 / 30A🔖
Output current, NIGHT or LOW7,5 /10 / 15A🔖
Efficiency94%🔖
Standby power consumption0,5W🔖
Minimum battery voltageStarts charging from 0V (‘dead battery’)🔖
Charge voltage 'absorption'High: 14,7V🔖
Charge voltage 'float'High: 13,8V🔖
Charge voltage 'storage'High: 13,2V🔖
Min. battery capacity, normal mode30/40/60Ah🔖
Min. battery capacity, night on low15/20/30Ah🔖
Temperature compensation16mV/°C🔖
Can be used as power supplyYes🔖
Back current drain0,4Ah/month (0,6mA)🔖
ProtectionReverse polarity (fuse) Output short circuit🔖
Coolinglow rpm (silent) fan (12/15 and 24/08 are without fan)🔖
Operating temp. range-20 to +50°C (full rated output up to 40°C)🔖
Humidity (non condensing)Max 95%🔖
Battery-connectionConnector 13mm² (AWG6)🔖
230V AC-connectionCEE 7/7, BS 1363 plug (UK) or AS/NZS 3112 plug🔖
Protection categoryIP22 (indoor use)🔖
Weight1,3kg🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“0,4Ah/month (0,6mA) Reverse polarity (fuse) Output short circuit Over temperature low rpm (silent) fan (12/15 and 24/08 are without fan) -20 to +50°C (full rated output up to 40°C)”

victronenergy IP22 – Photo (54b43dfa1b19_S13-77 S. 18)
Photo · 54b43dfa1b19_S13-77 · S. 18
victronenergy IP22 – Photo (54b43dfa1b19_S13-77 S. 18)
Photo · 54b43dfa1b19_S13-77 · S. 18

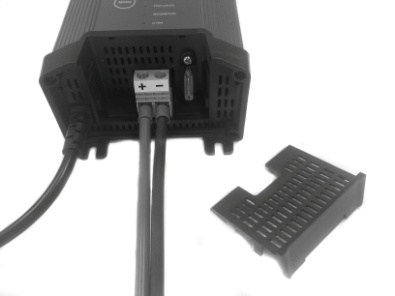

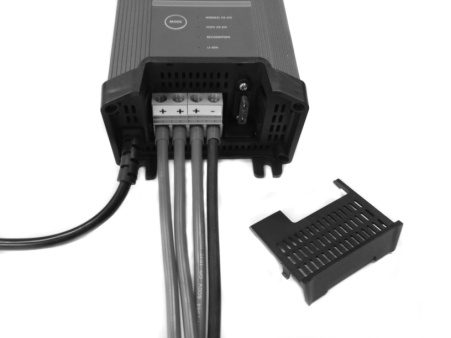

victronenergy IP22 – Photo (54b43dfa1b19_S13-77 S. 32)
Photo · 54b43dfa1b19_S13-77 · S. 32

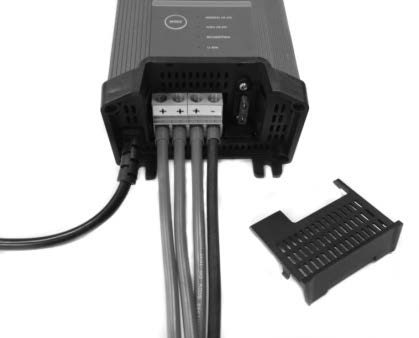

victronenergy IP22 – Photo (54b43dfa1b19_S13-77 S. 58)
Photo · 54b43dfa1b19_S13-77 · S. 58
victronenergy IP22 – Photo (54b43dfa1b19_S13-77 S. 58)
Photo · 54b43dfa1b19_S13-77 · S. 58
victronenergy IP22 – Drawing (54b43dfa1b19_S13-77 S. 13)
Drawing · 54b43dfa1b19_S13-77 · S. 13
victronenergy IP22 – Drawing (54b43dfa1b19_S13-77 S. 15)
Drawing · 54b43dfa1b19_S13-77 · S. 15

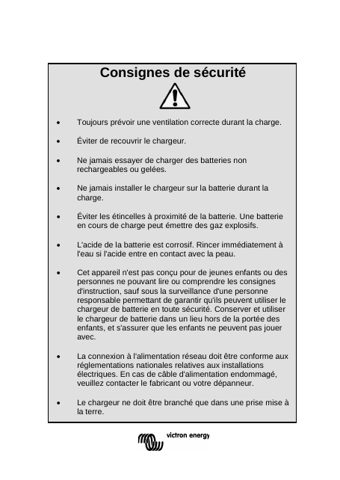

victronenergy IP22 – Drawing (54b43dfa1b19_S13-77 S. 16)
Drawing · 54b43dfa1b19_S13-77 · S. 16
Source: victronenergy IP22 datasheet, p. 1
