hanlaims

F828S

Fire Nozzle · Fire Hoses & Nozzles

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Nominal Angle70🔖
K-factor2.7 psi🔖
K-factor (ISO)38,9 bar🔖
Gpm/psi½2.5🔖
Lpm/bar ½36,0🔖
ColorWhite🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Design Criteria Nozzle Placement Where direct impingement of water spray onto all of the protected surface is required by the authority having jurisdiction, the nozzles are to be spaced and directed…”

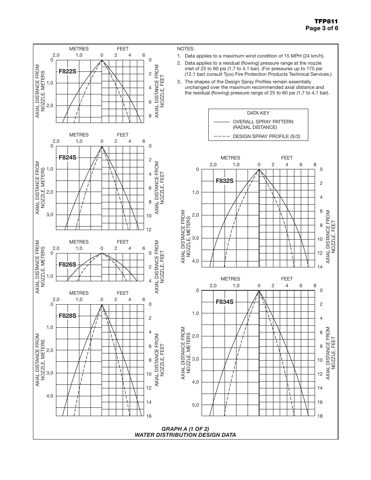

hanlaims F828S – Drawing (e1426396f478_S2-5 S. 2)
Drawing · e1426396f478_S2-5 · S. 2

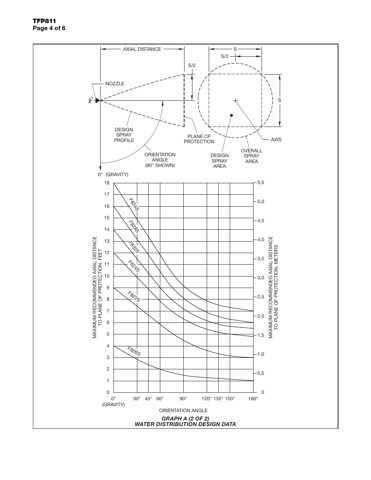

hanlaims F828S – Drawing (e1426396f478_S2-5 S. 3)
Drawing · e1426396f478_S2-5 · S. 3
hanlaims F828S – Drawing (e1426396f478_S2-5 S. 4)
Drawing · e1426396f478_S2-5 · S. 4
Source: hanlaims F828S datasheet, p. 1
