Library› Engine Room› Pumps› Pump› Kolmeks LP-50A
Kolmeks

LP-50A

Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Rated working voltage230/400V
Max continuous operating320V
Voltage protection level up kV< 2.0kV
Impulsive discharge current Limp (10/350µs)kA25kA
Housing materialFlame-retardant Reinforced Nylon (UL 94V-0 )
Response time100ns
Recommended grounding conductor16mm2 Multi-Strand Flexible Wire
Max Intensity of backup fuse (If mains >250A)250AgL
Insulation resistance>5M Ω
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The LP-50A is a low voltage surge protection device designed to protect Class I equipment from overvoltage caused by lightning or surges.

Applications

  • Class I

Features

  • Large current capacity
  • Low residual voltage
  • Totally enclosed structure, no arc escape

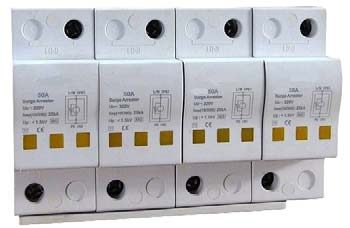

Kolmeks LP-50A – Photo (c0bdb777f60c_S1-1 S. 1)
Photo · c0bdb777f60c_S1-1 · S. 1

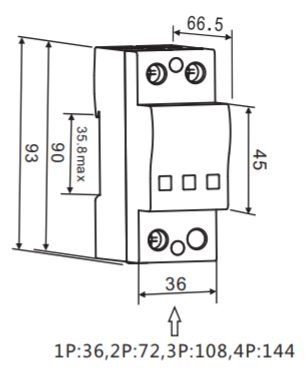

Kolmeks LP-50A – Photo (c0bdb777f60c_S1-1 S. 1)
Photo · c0bdb777f60c_S1-1 · S. 1

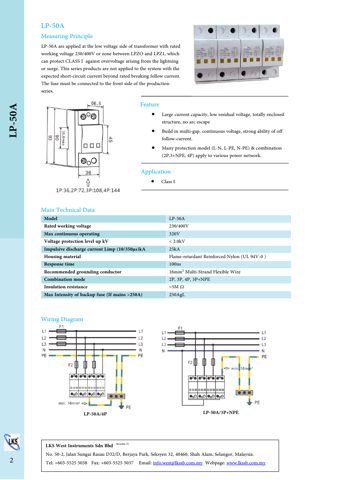

Kolmeks LP-50A – Drawing (c0bdb777f60c_S1-1 S. 1)
Drawing · c0bdb777f60c_S1-1 · S. 1
Source: Kolmeks LP-50A datasheet, p. 1
