Library› Electrical› Power Distribution› Battery Charger Panel› Mecc Alte MAS 1024R
Mecc Alte

MAS 1024R

Battery Charger Panel · Power Distribution

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Voltage range, V IN100 - 264V AC
Frequency47 - 63Hz
Input current2.5A max.
Leakage current<1mA / 240VAC
Voltage / Current24.0V Nominal 10A.
Ripple and noise±0.5%
Line regulation±0.5%
Load regulation±1.0%
EfficiencyUp to 88%
Overload protectionConstant current limit
Over temp. protectionOutput shutdown with automatic recovery
Reversed battery protectionAutomatic protection.
Working temperature-10ºC to +50ºC
Working humidity20 - 90% RH
Storage temperature-20ºC to +85ºC
Storage humidity10 - 95% RH
Unpacked weight1.2 kgs
DC output24V 10A
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“fCharge automatic battery chargers provide a cost effective solution to most industrial battery charging requirements. Utilising the latest high efficiency switch-mode technology and microprocessor…”

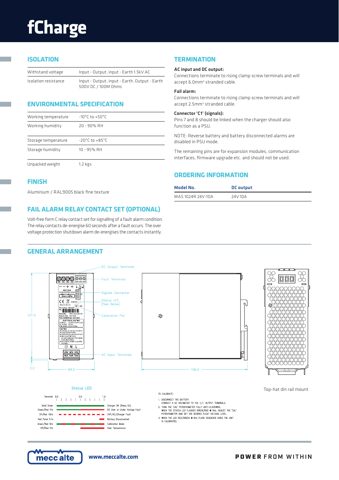

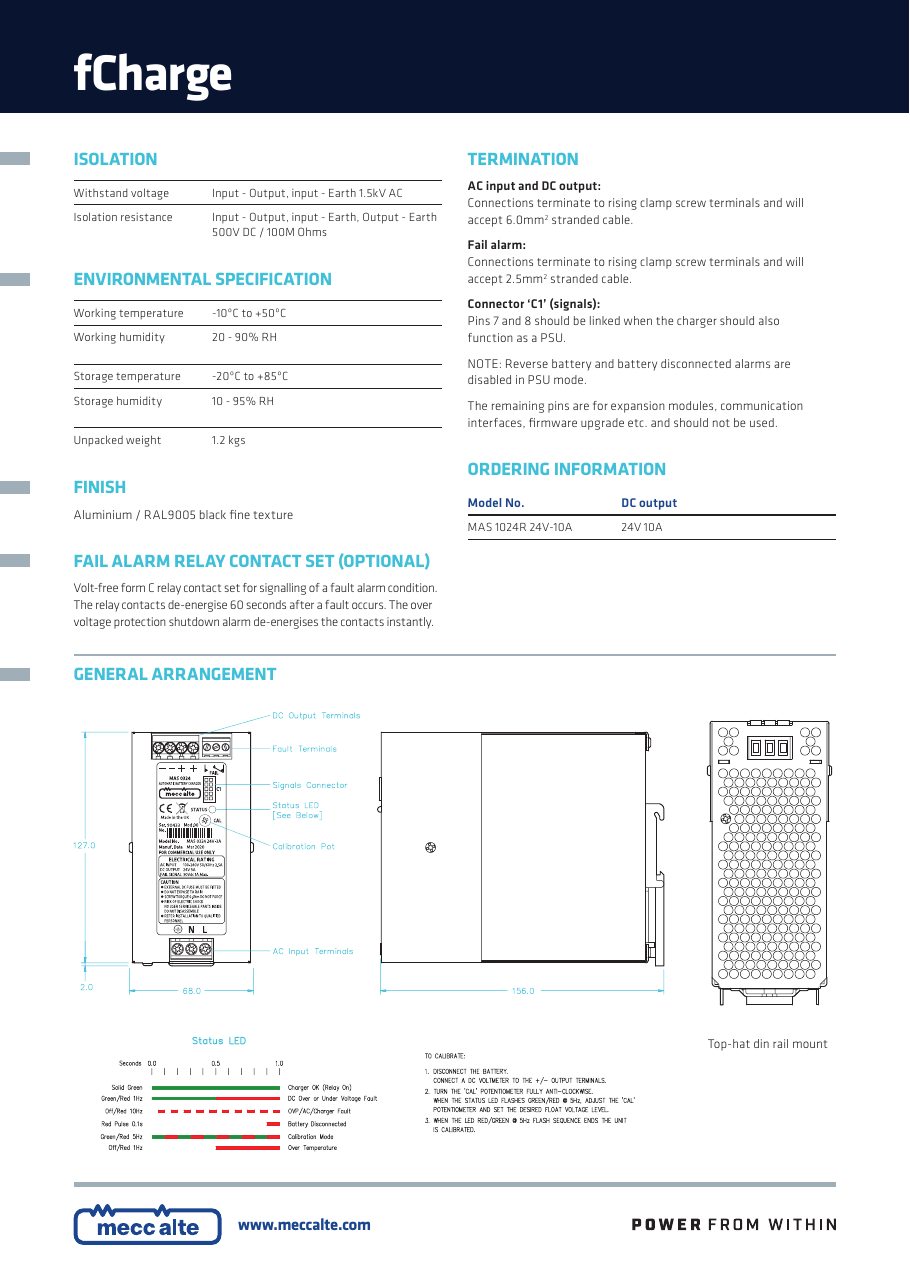

Mecc Alte MAS 1024R – Drawing (982a4dcdae9f_S1-2 S. 2)
Drawing · 982a4dcdae9f_S1-2 · S. 2

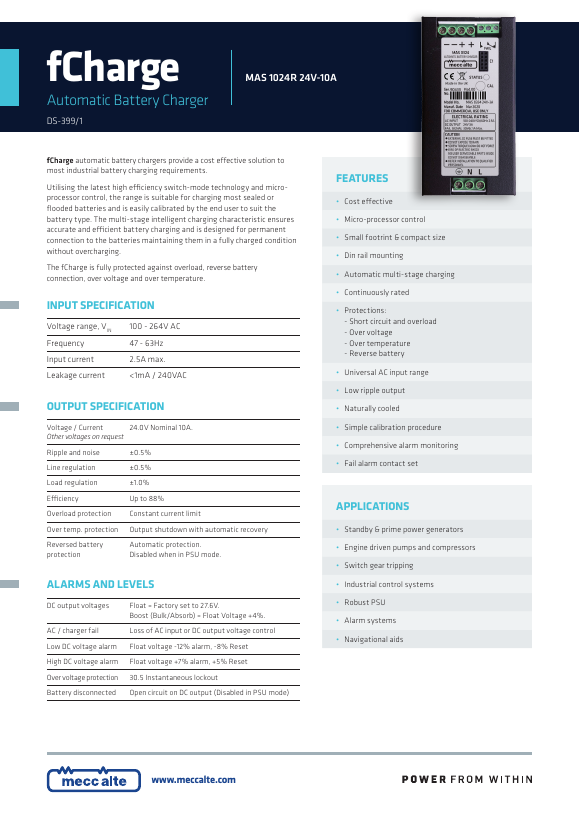

Mecc Alte MAS 1024R – Page preview (982a4dcdae9f_S1-2 S. 1)
Page preview · 982a4dcdae9f_S1-2 · S. 1
Source: meccaltecom MAS 1024R datasheet, p. 1
