DZ-120

Signal Converter / Isolator · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Power supply:24 VDC nom. (± 0.5 V)
Nominal resistance:265 Ω
Max. series resistance:270 Ω
Max. load resistance:150 Ω
Fuse rating:50 mA
Operating temperature:- 20 ˚C to + 70 ˚C
Storage temperature:- 25 ˚C to + 70 ˚C
Dimension:12.5 x 114.5 x 99.0 mm (width x height x depth)
Protection grade:IP20
Weight:0.1 kg
Terminal size:2.5 mm2
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“ZENER BARRIER UNIT The KONGSBERG DZ-120 Zener Barrier Unit is designed to safely provide signal interface and power supply to Kongsberg instrumentation located in hazardous area. The unit connects…”

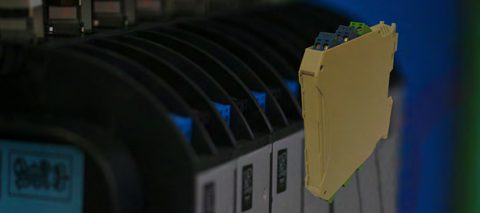

Kongsberg DZ-120 – Photo (ce34fa1e7628_S1-2 S. 1)
Photo · ce34fa1e7628_S1-2 · S. 1

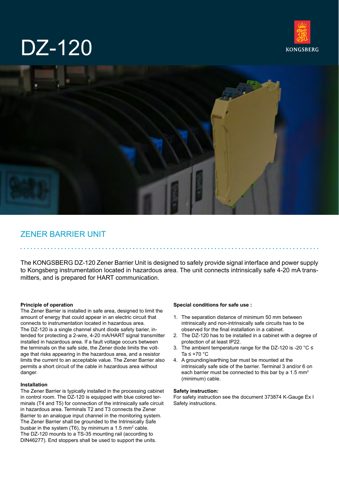

Kongsberg DZ-120 – Drawing (ce34fa1e7628_S1-2 S. 1)
Drawing · ce34fa1e7628_S1-2 · S. 1

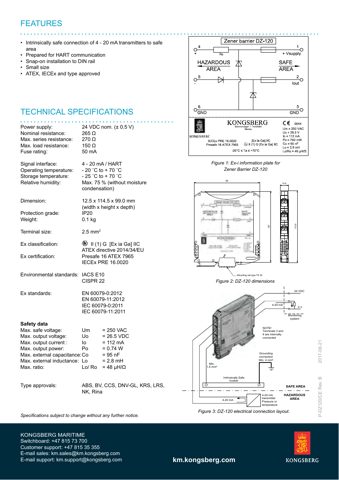

Kongsberg DZ-120 – Drawing (ce34fa1e7628_S1-2 S. 2)
Drawing · ce34fa1e7628_S1-2 · S. 2
Source: Kongsberg DZ-120 datasheet, p. 1
