Tokyo Keiso

EGM4100C

Flow Meter · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Function·Flow rate indication ·Totalizer ·Current output (HART) ·Pulse output ·Status ou
Protection classIP66/67 (IEC 60529)
Meter body materialMeasuring tube : Stainless steel / SS304 Primary head housing : Size 20mm or les Material
Setting value0.0 to 20.0% FS
Fluid temperature10 to 30ºC
Conductivity150μS/cm or more
Ambient temperature18 to 28ºC
Upstream / Downstream pipe length10D / 2D (D: Diameter)
Warm-up timeAbout 10 minutes
Fluid Temperature–40 to +140˚C
Nominal size:10 to 20mm
Nominal size200 to 600mm
Setting value (Standard)Current output, Indicator ; 4s
Supply voltageRated voltage ±2%
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The MAGMAX® EGM4100C is a compact electromagnetic flowmeter that combines a flange-type primary head with a converter.

Features

  • High accuracy of ±0.5% of reading.

Options

  • Various flange connections
Source: Tokyo Keiso EGM4100C datasheet, p. 5

Standards

  • JIS
  • ASME
  • DIN
Source: Tokyo Keiso EGM4100C datasheet, p. 5

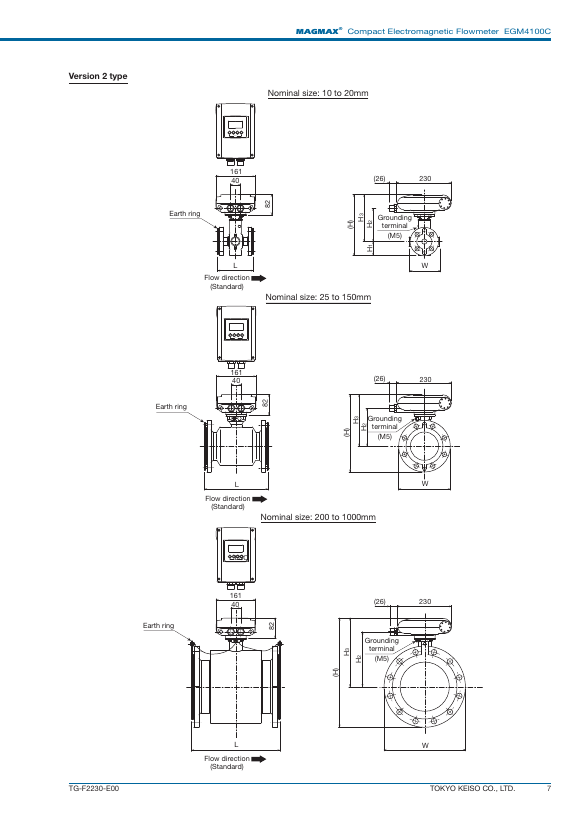

Tokyo Keiso EGM4100C – Drawing (fbc5e839948b_S1-12 S. 1)
Drawing · fbc5e839948b_S1-12 · S. 1

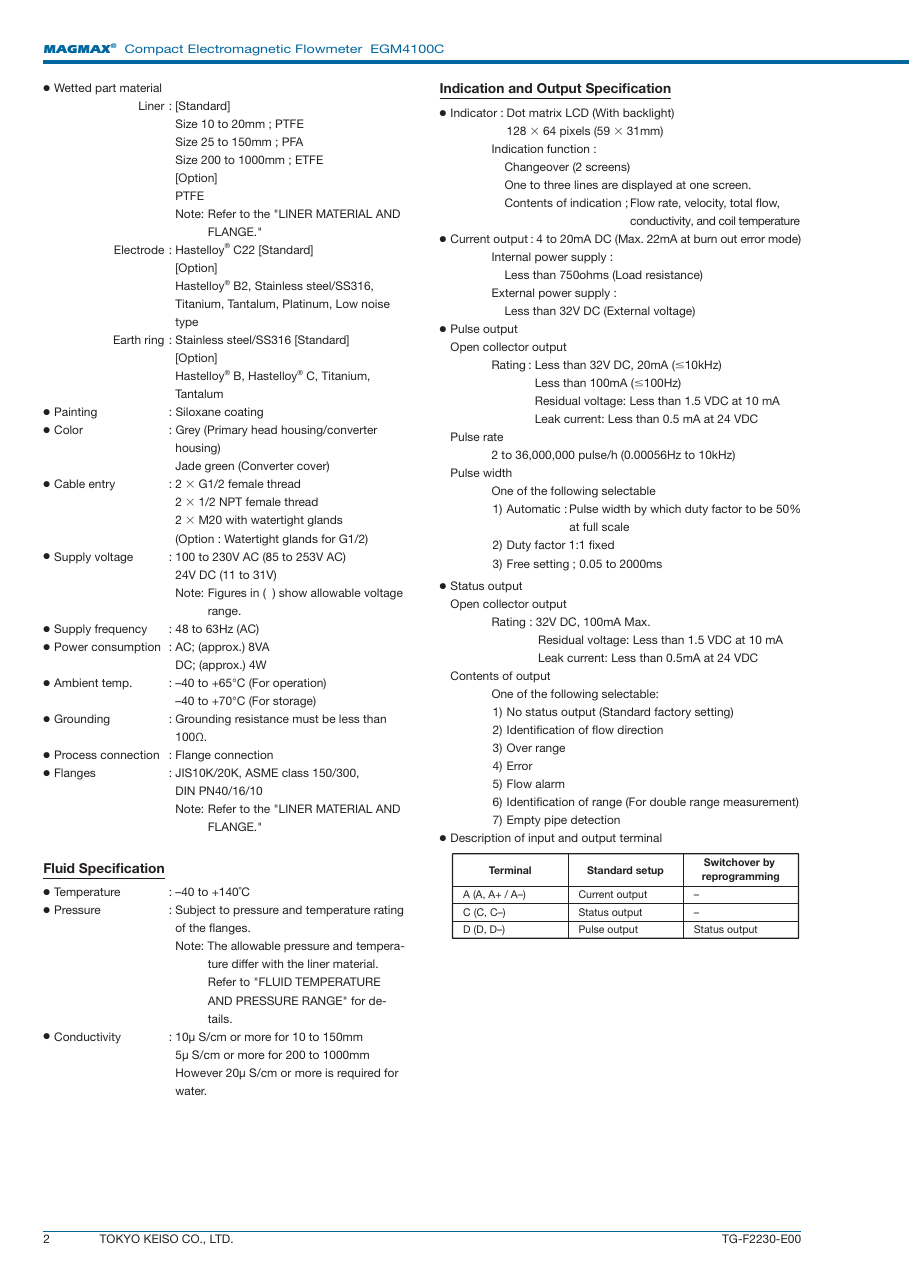

Tokyo Keiso EGM4100C – Drawing (fbc5e839948b_S1-12 S. 2)
Drawing · fbc5e839948b_S1-12 · S. 2

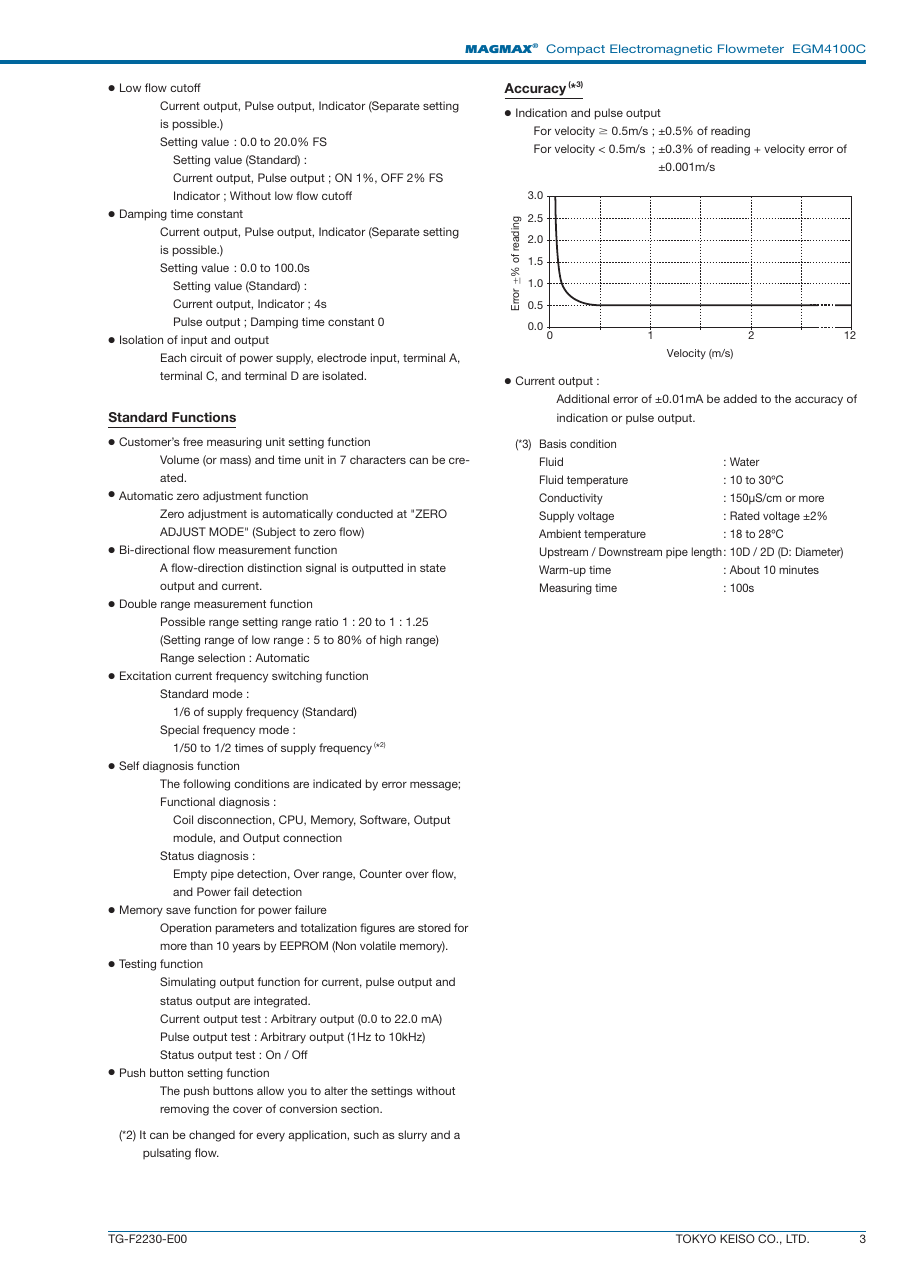

Tokyo Keiso EGM4100C – Drawing (fbc5e839948b_S1-12 S. 3)
Drawing · fbc5e839948b_S1-12 · S. 3

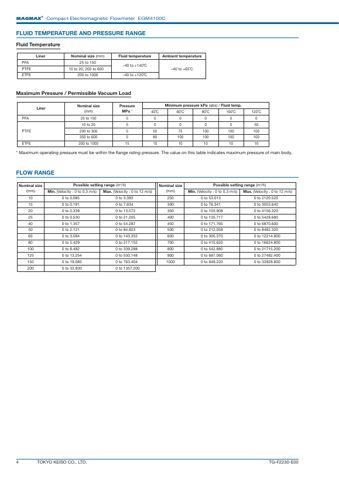

Tokyo Keiso EGM4100C – Page preview (fbc5e839948b_S1-12 S. 4)
Page preview · fbc5e839948b_S1-12 · S. 4

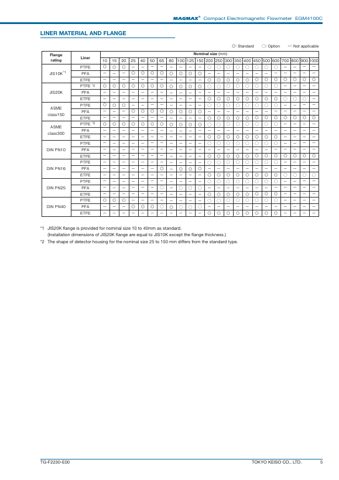

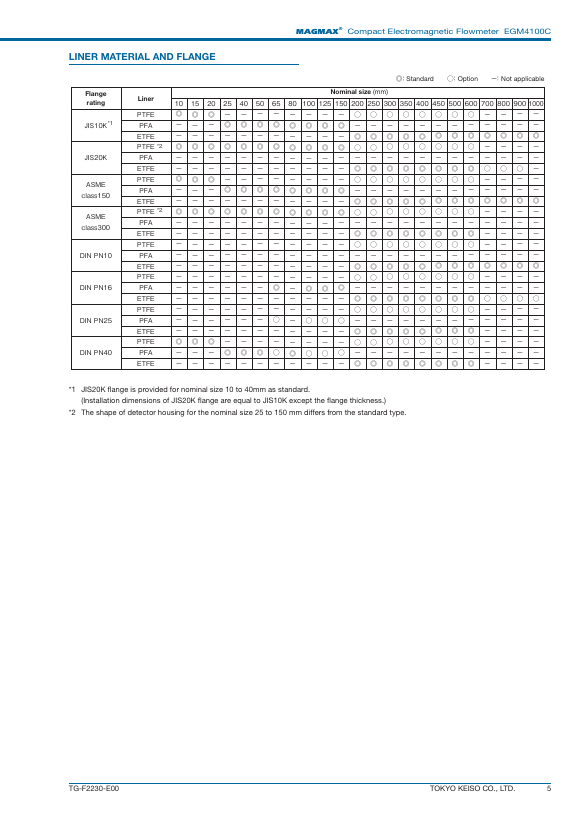

Tokyo Keiso EGM4100C – Page preview (fbc5e839948b_S1-12 S. 5)
Page preview · fbc5e839948b_S1-12 · S. 5

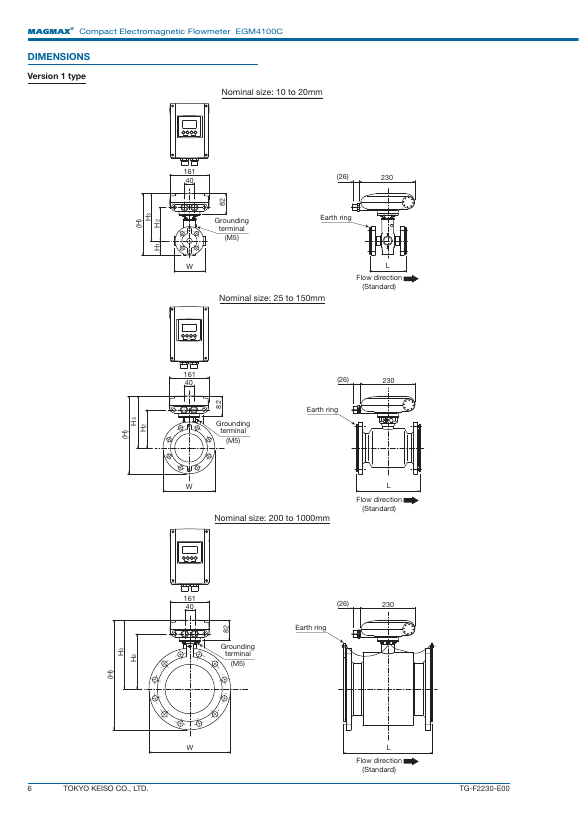

Tokyo Keiso EGM4100C – Page preview (fbc5e839948b_S1-12 S. 6)
Page preview · fbc5e839948b_S1-12 · S. 6
Tokyo Keiso EGM4100C – Page preview (fbc5e839948b_S1-12 S. 7)
Page preview · fbc5e839948b_S1-12 · S. 7
Source: Tokyo Keiso EGM4100C datasheet, p. 1
