LT-2500

DC Power Supply · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified​‍⁠⁠⁠⁠‌⁠‍​‍‍⁠​‍‍‌⁠‌‌
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Input115-240 VAC + 24 VDC (battery)
Output28 VDC (up to 18 A)
Ambient temperature-25°C to +55°C
Input Frequency47-63 Hz
Input Current5.2A @115 VAC, 2.8A @240 VAC
Output Voltage28 VDC
Output Current18 A
Output Power500 Watt
Certification & standardsMaritime CE, IEC 60945
Vibration, operationalIEC 60945
Vibration, shockIEC 60945
Power output: Operating mode, max500 W (28VDC / 18A)
Weight3.90 kg (8.60 lbs)
Dimensions329.4 x 270.0 x 64.5 mm (12.97 x 10.63 x 2.54 in)
Temperature, operational-25°C to +55°C (-13°F to +131°F)
Compass Safe Distance, std0.7 m (2.3 ft)
Compass Safe Distance, steer0.6 m (2.0 ft)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

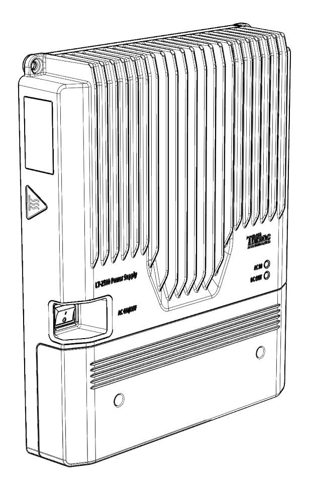

SAILOR / Thrane & Thrane LT-2500 – Photo (c39b5ecb399d_S1-35 S. 1)
Photo · c39b5ecb399d_S1-35 · S. 1
SAILOR / Thrane & Thrane LT-2500 – Photo (c39b5ecb399d_S1-35 S. 12)
Photo · c39b5ecb399d_S1-35 · S. 12
SAILOR / Thrane & Thrane LT-2500 – Photo (c39b5ecb399d_S1-35 S. 13)
Photo · c39b5ecb399d_S1-35 · S. 13

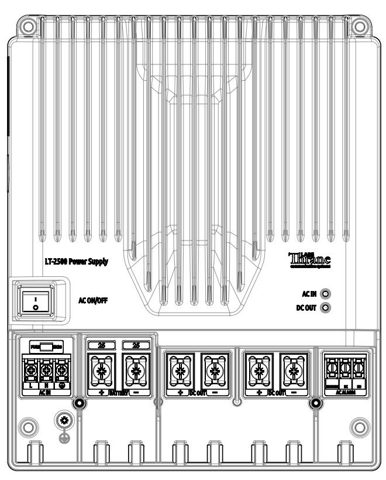

SAILOR / Thrane & Thrane LT-2500 – Photo (c39b5ecb399d_S1-35 S. 14)
Photo · c39b5ecb399d_S1-35 · S. 14

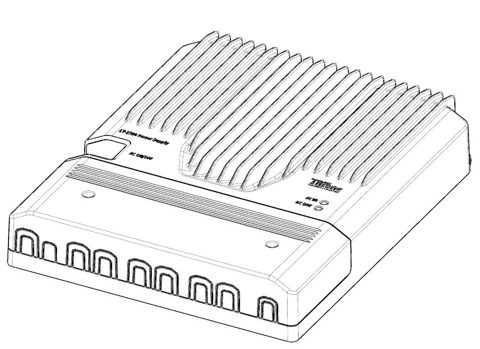

SAILOR / Thrane & Thrane LT-2500 – Photo (c39b5ecb399d_S1-35 S. 16)
Photo · c39b5ecb399d_S1-35 · S. 16
SAILOR / Thrane & Thrane LT-2500 – Photo (c39b5ecb399d_S1-35 S. 16)
Photo · c39b5ecb399d_S1-35 · S. 16
SAILOR / Thrane & Thrane LT-2500 – Photo (c39b5ecb399d_S1-35 S. 18)
Photo · c39b5ecb399d_S1-35 · S. 18
SAILOR / Thrane & Thrane LT-2500 – Photo (c39b5ecb399d_S1-35 S. 18)
Photo · c39b5ecb399d_S1-35 · S. 18
