RN200

Power Management System (PMS) · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Power supply voltage7-32Vdc
Power supply consumptionless than 6W (225mA @ 27 Vdc)
Rated frequency50Hz or 60Hz
Operating temperature-25°/+60°C
Storage temperature-30°/+80°C
Humidity10-90% (non-condensing)
Dimensions244 (L) x 178 (H) x 83 (P) mm
Panel cut-out218 (L) x 159 (H) mm
Weight1100grammes
Protection degreeIP65 with provided gasket
Graphic colour displayTFT 4.3” 480 x 272 pixel with backlight
EMC compliant toEN61326-1
Safety compliant toEN61010-1
Rated supply voltage (Vn)12VDC or 24 VDC
Operating range (variation of Vn)From 8 to 32VDC with continuous operation
Sampling rate10Khz.
Resolution12 bits.
Minimum current consumption350mA @ 13.5 VDC, 200mA @ 27 VDC
Maximum current absorption in working conditionMax. 810mA @ 7 VDC, 440mA @ 13.5 VDC, 260mA @ 27 VDC
Rated voltage (Vn)400Vac L-L (230Vac L-N), 100Vac L-L (58Vac L-N)
Measurement scale400V (HV – High voltage scale), 100V (LV – Low voltage scale)
Input impedance> 0.8 MΩ L-B-.
Maximum applicable voltagesMax. 300Vac CAT.IV for L-N measures.
Maximum voltages measurableMax. 448 VAC for L-N measures (with N-B- voltage = 0 VRMS).
Maximum common mode voltageMax. 100 VRMS.
Accuracy<0,5% @ Vn.
Permanent thermal limit+40% of the rated current.
Typical current with active input5.3 mA @ VBATT= 13.5 VDC
Rated current500 mA maximum continuous for each output
AC currentsMin. 0.1 A (it depends on C.T. ratio).
Frequencies0.1Hz ± 50ppm, 35ppm/C typical.
PowersMin. 0.1 kW / kVA / kvar (it depends on C.T. ratio).
Power factors0.01
Load per phase (self-consumption)< 1VA.
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The RN200 is a controller used for managing generating sets and photovoltaic systems.

Applications

  • generating sets
  • photovoltaic systems
  • renewable energy sources

Features

  • requires specific knowledge for use
  • dangerous voltages present
  • qualified personnel required
  • supplied with default configuration

Options

  • Modbus registers
Source: Mecc Alte RN200 datasheet, p. 134
Mecc Alte RN200 – Photo (534e5cc2a14d_S9-171 S. 17)
Photo · 534e5cc2a14d_S9-171 · S. 17

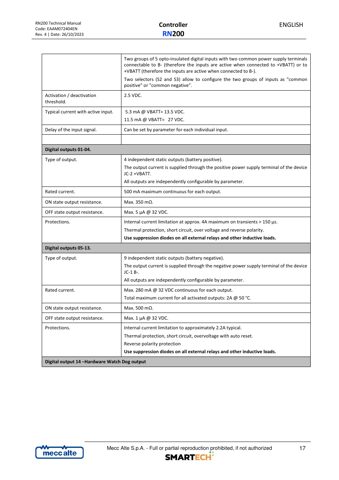

Mecc Alte RN200 – Drawing (534e5cc2a14d_S9-171 S. 9)
Drawing · 534e5cc2a14d_S9-171 · S. 9

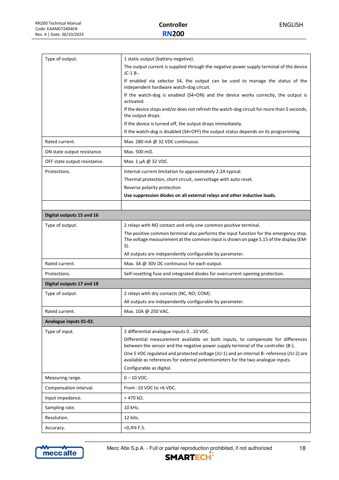

Mecc Alte RN200 – Drawing (534e5cc2a14d_S9-171 S. 10)
Drawing · 534e5cc2a14d_S9-171 · S. 10

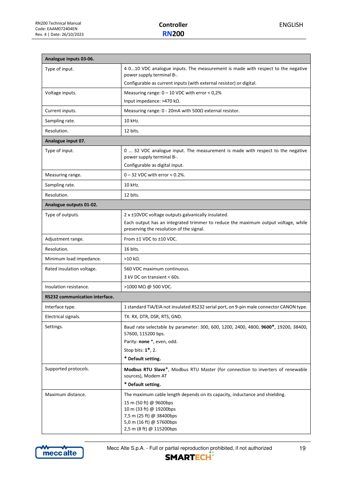

Mecc Alte RN200 – Drawing (534e5cc2a14d_S9-171 S. 11)
Drawing · 534e5cc2a14d_S9-171 · S. 11

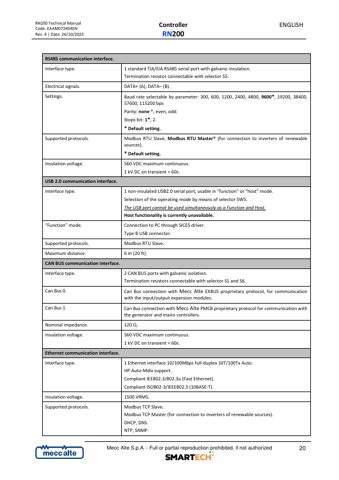

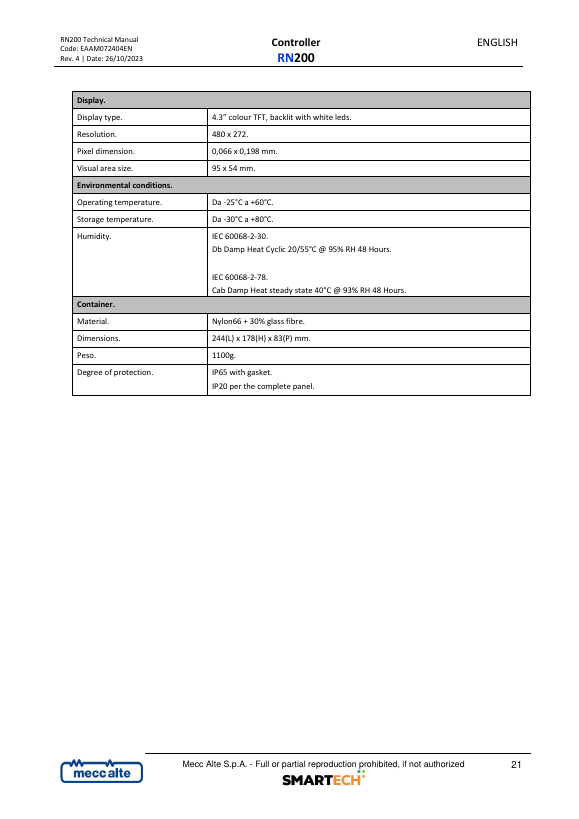

Mecc Alte RN200 – Page preview (534e5cc2a14d_S9-171 S. 12)
Page preview · 534e5cc2a14d_S9-171 · S. 12

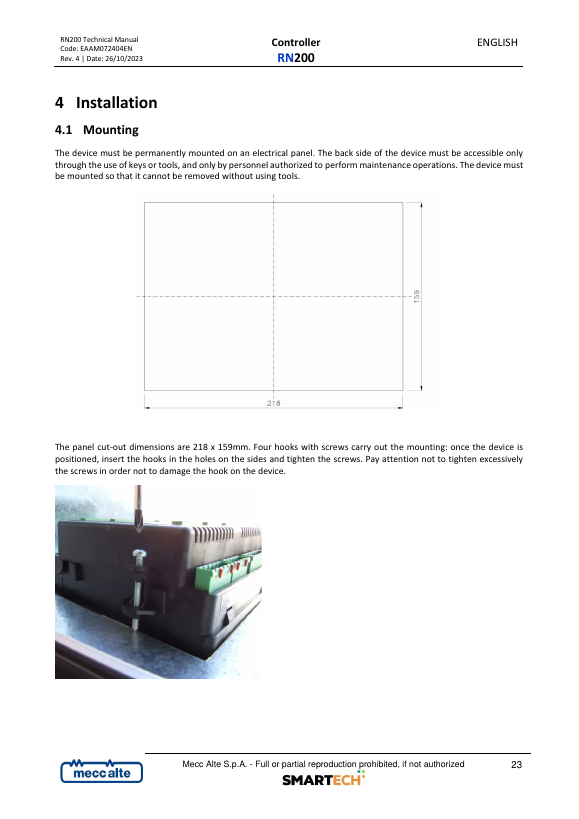

Mecc Alte RN200 – Page preview (534e5cc2a14d_S9-171 S. 13)
Page preview · 534e5cc2a14d_S9-171 · S. 13

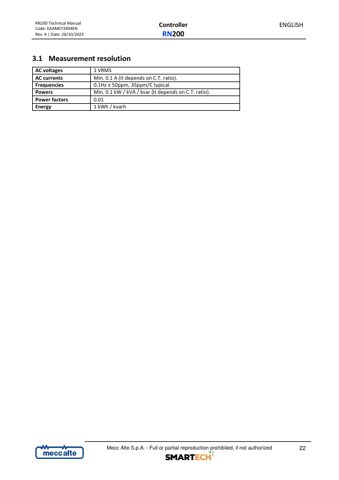

Mecc Alte RN200 – Page preview (534e5cc2a14d_S9-171 S. 14)
