Library› Engine Room› Industrial Valves› Butterfly Valve› Hanla IMS BFV-250
Hanla IMS

BFV-250

Butterfly Valve · Industrial Valves

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Sizes2 in. – 12 in. (DN50 – DN300)
Maximum Working Pressure2 in. – 8 in. (DN50 – DN200). . . 250 psi (17,3 bar)
Maximum Working Temperature212°F (100°C) in accordance with UL 1091
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“The TYCO Model BFV-250 Wafer Style Butterfly Valves are indicating type valves designed for use in fire protection systems where a visual indication is required as to whether the valve is open or…”

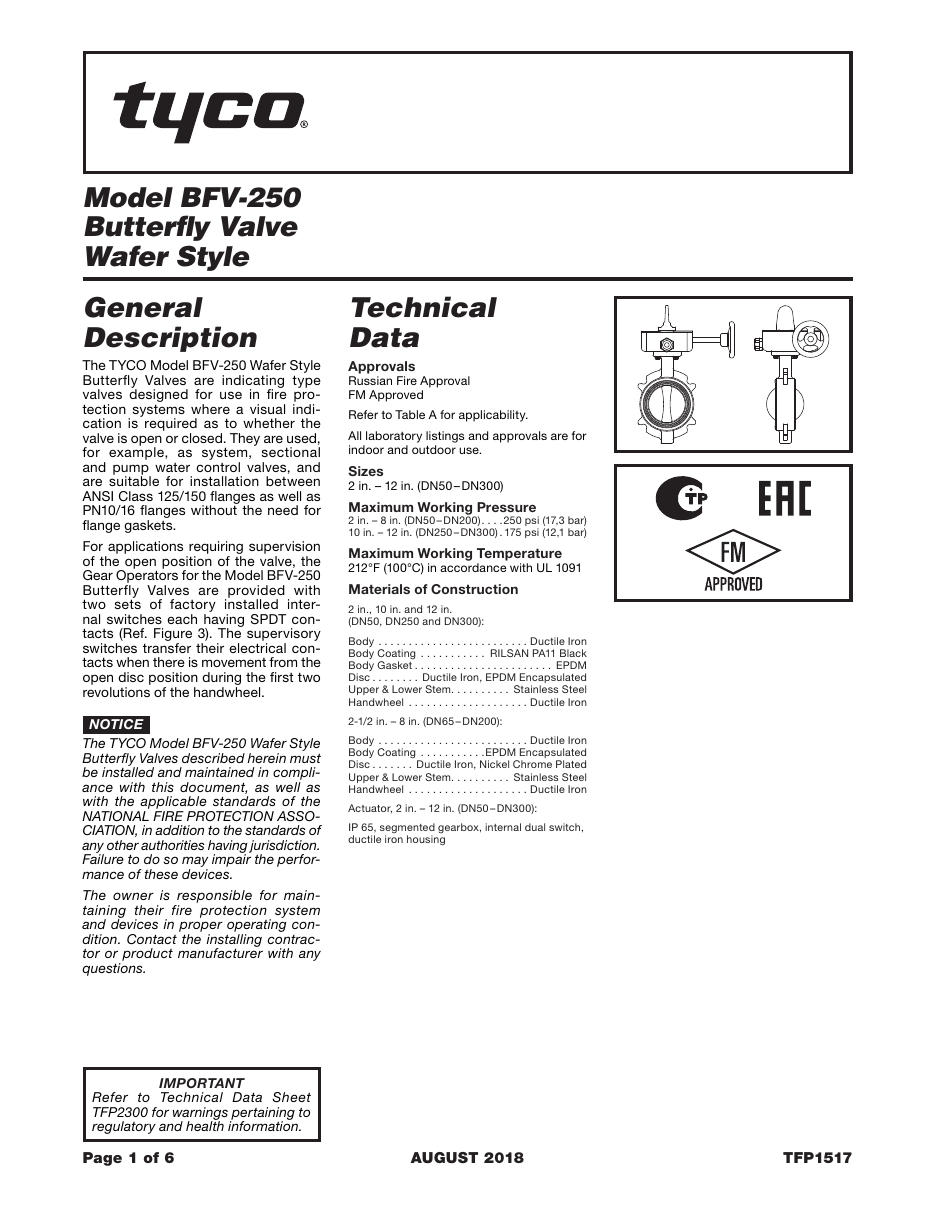

Hanla IMS BFV-250 – Drawing (dd08791a27b1_S1-5 S. 1)
Drawing · dd08791a27b1_S1-5 · S. 1

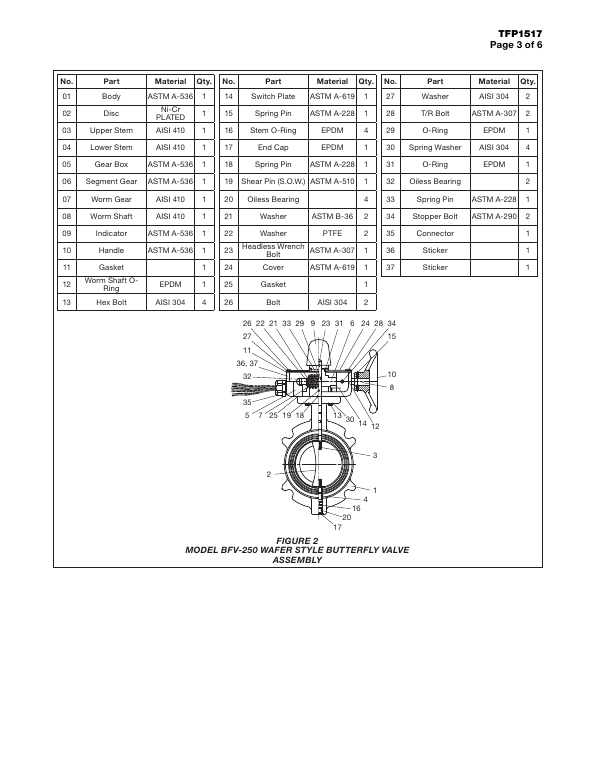

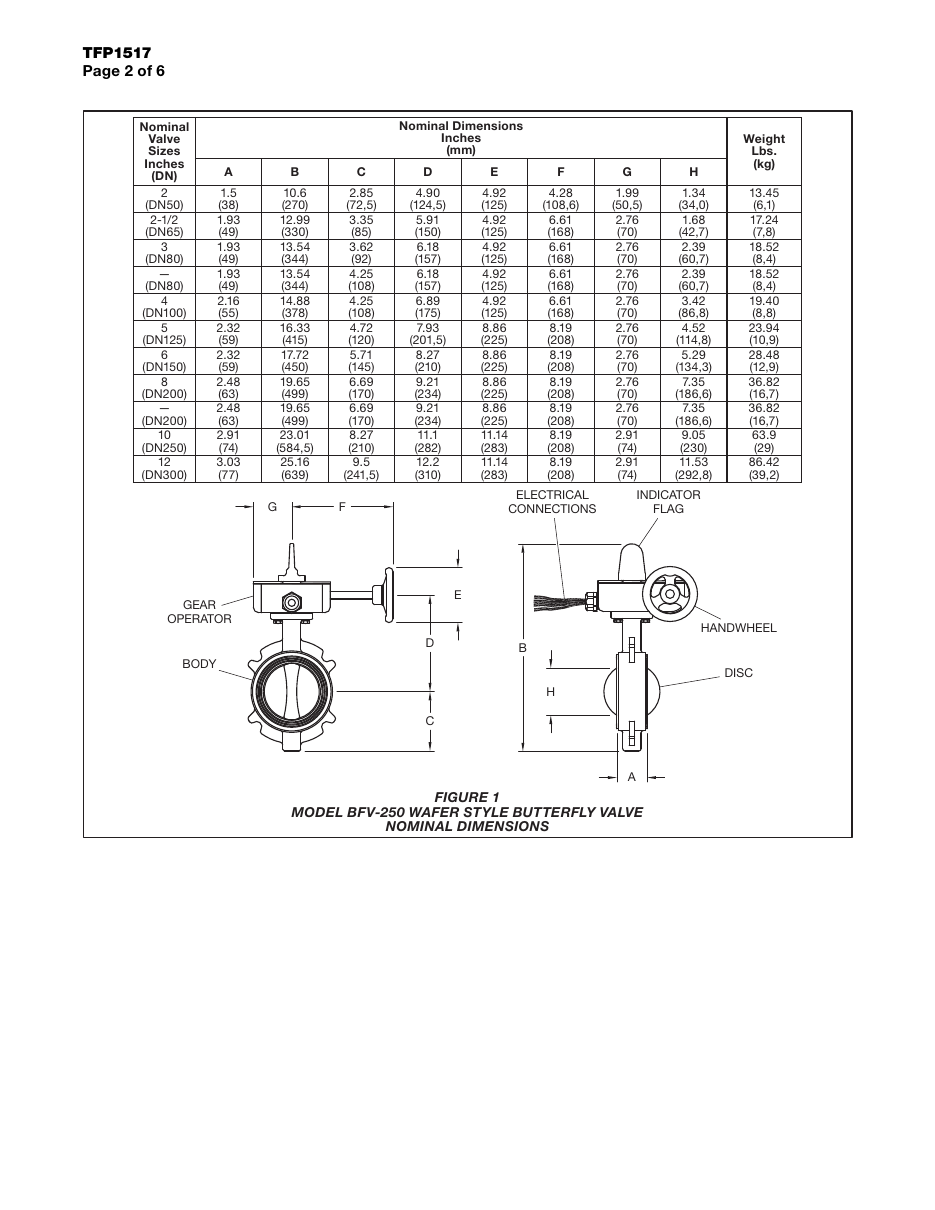

Hanla IMS BFV-250 – Drawing (dd08791a27b1_S1-5 S. 2)
Drawing · dd08791a27b1_S1-5 · S. 2

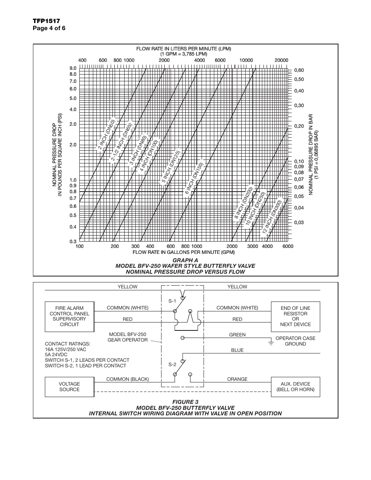

Hanla IMS BFV-250 – Drawing (dd08791a27b1_S1-5 S. 4)
Drawing · dd08791a27b1_S1-5 · S. 4
Hanla IMS BFV-250 – Page preview (dd08791a27b1_S1-5 S. 3)
Page preview · dd08791a27b1_S1-5 · S. 3

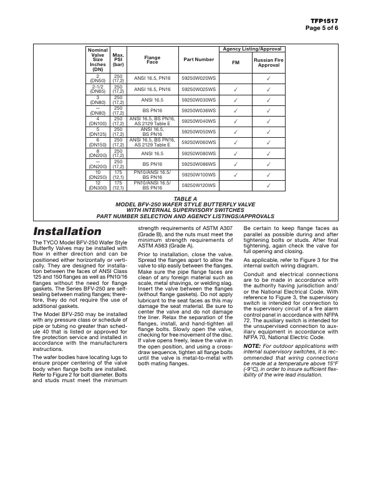

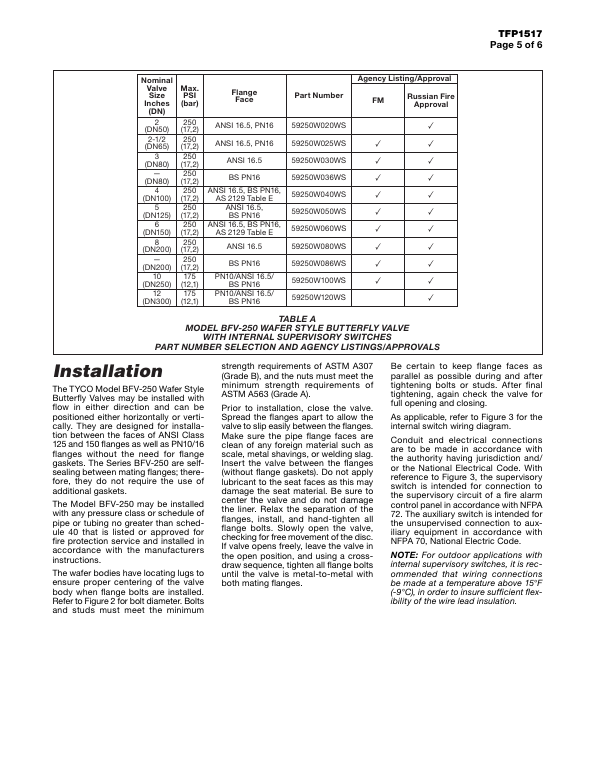

Hanla IMS BFV-250 – Page preview (dd08791a27b1_S1-5 S. 5)
Page preview · dd08791a27b1_S1-5 · S. 5
Source: hanlaims BFV-250 datasheet, p. 1
