Library› Electrical› Electrical Components & Switchgear› Electrical Enclosure / Junction Box› Vaisala GMP343
Vaisala

GMP343

Electrical Enclosure / Junction Box · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Operating voltage11 ... 36 VDC
Power consumption with optics heating<3.5 W
Analog outputs Current output range4 ... 20 mA
Analog outputs Current output resolution14 bits
Analog outputs Current output max. load800 Ohm @ 24 VDC, 150 Ohm @ 10 VDC
Analog outputs Voltage output range0 ... 2.5 V, 0 ... 5 V
Analog outputs Voltage output resolution14 bits (13 bits with 0 ... 2.5 V)
Digital outputsRS485, RS232
IP classification Housing (cable attached)IP67
IP classification Diffusion filter (weather protection)IP65
IP classification Diffusion filter (sintered PTFE)IP66
Cable connector type8-pin M12
Weight (probe only)360 g
Power consumption without optics heating<1 W
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Vaisala GMP343 is a probe-type instrument for measuring carbon dioxide levels in ecological applications.

Applications

  • CO2 soil respiration
  • ambient CO2 monitoring
  • plant growth chambers
  • OEM applications

Features

  • Excellent accuracy and stability
  • Low power consumption and heat emission
  • Designed for outdoor use
  • Compact and lightweight

Options

  • Wall mount bracket
Source: Vaisala GMP343 datasheet, p. 2

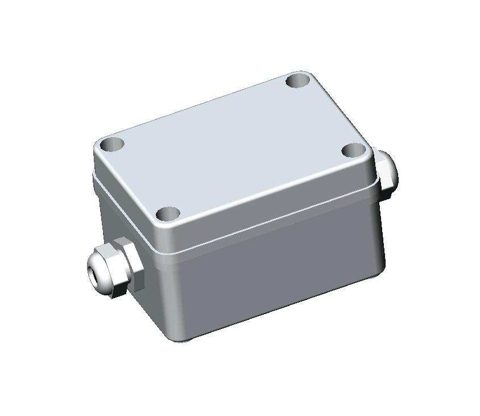

Vaisala GMP343 – Photo (f65dd32ae579_S1-1 S. 1)
Photo · f65dd32ae579_S1-1 · S. 1

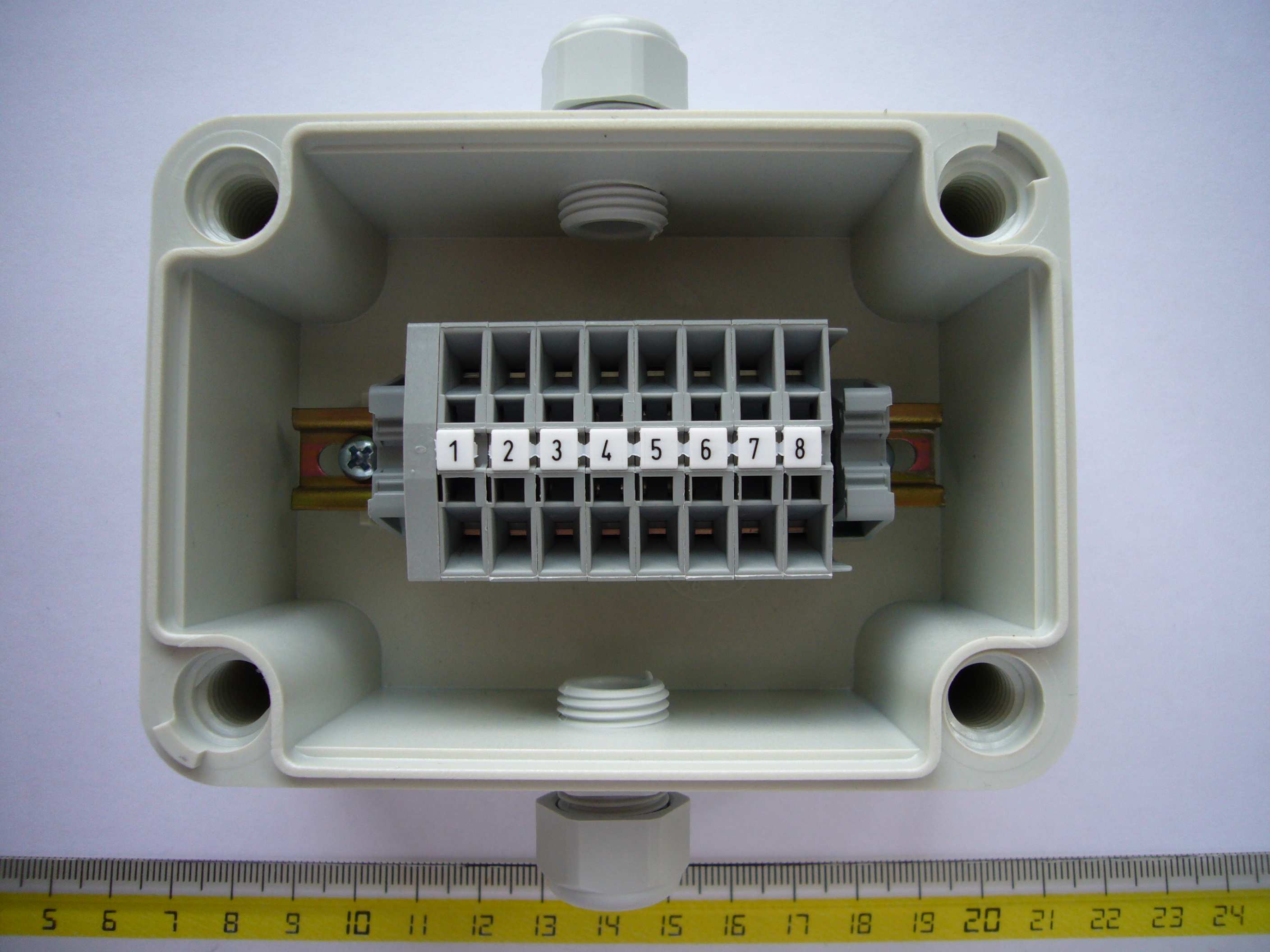

Vaisala GMP343 – Photo (f65dd32ae579_S1-1 S. 1)
Photo · f65dd32ae579_S1-1 · S. 1

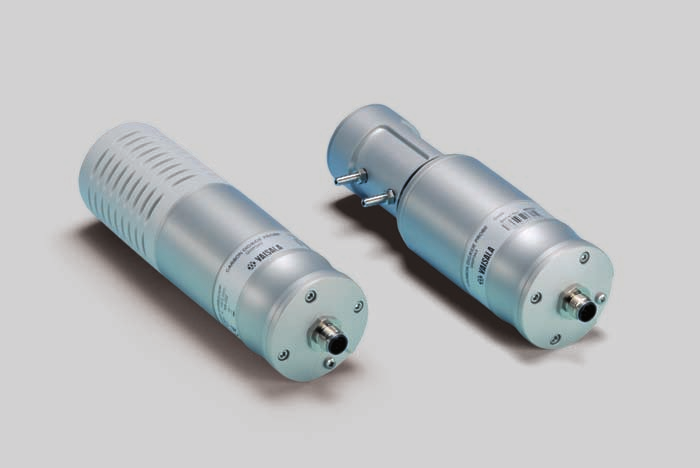

Vaisala GMP343 – Photo (8a6f2f8078e9_S1-2 S. 1)
Photo · 8a6f2f8078e9_S1-2 · S. 1
Vaisala GMP343 – Drawing (f65dd32ae579_S1-1 S. 1)
Drawing · f65dd32ae579_S1-1 · S. 1
Vaisala GMP343 – Drawing (8a6f2f8078e9_S1-2 S. 1)
Drawing · 8a6f2f8078e9_S1-2 · S. 1

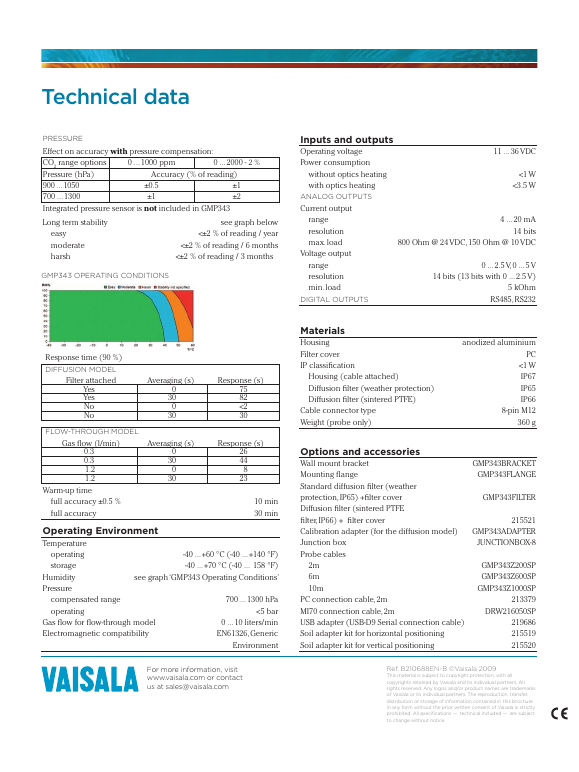

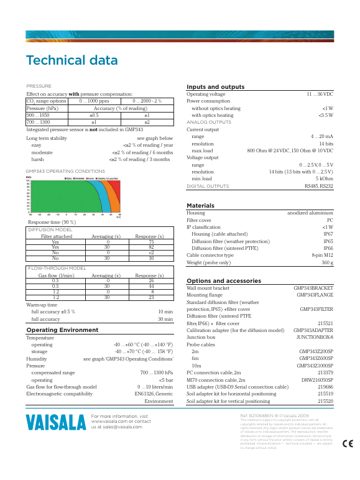

Vaisala GMP343 – Page preview (8a6f2f8078e9_S1-2 S. 2)
Page preview · 8a6f2f8078e9_S1-2 · S. 2

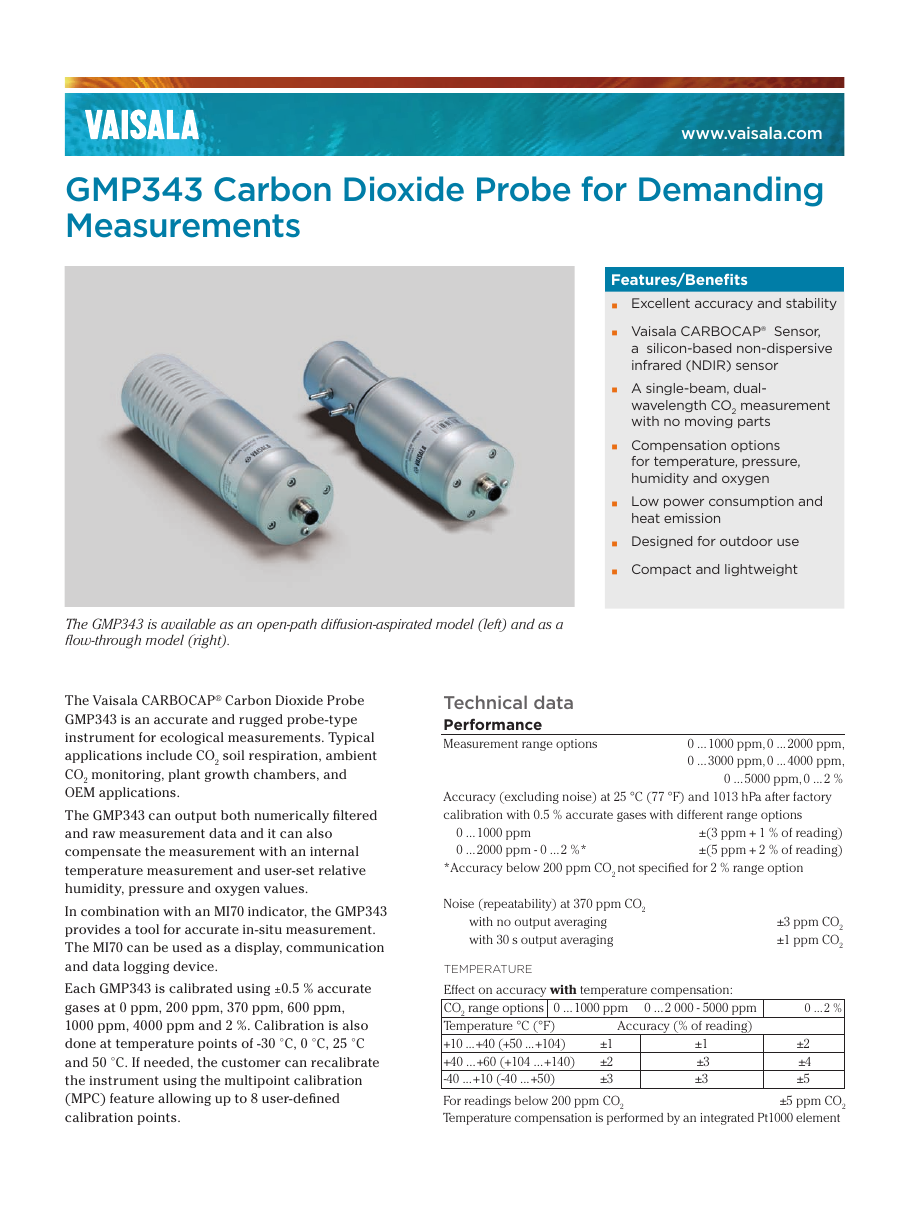

Source: Vaisala GMP343 datasheet, p. 1
