Library› Navigation› Position & Heading› Magnetic Compass (TMC)› ami MD97CSP
ami

MD97CSP

Magnetic Compass (TMC) · Position & Heading

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Performance± 1.0° resolution🔖
Accuracy<= 0.5° after ADC (depending on sensor)🔖
IP ratingIP65🔖
Operating temp-15°C to +55°C🔖
Storage temp-25° C to +70° C🔖
Power Supply24 V dc; 1.5 W🔖
Data Output2x NMEA 0183 Data Channels (Heading)🔖
Safe Distance(MD97CSP): 50cm🔖
ZertifikateIEC 60945; IEC 61162-1🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The MD97CSP is a high-performance magnetic compass designed for marine applications. It provides accurate heading information and features reliable alarms.

Applications

  • Heading Reference

Features

  • High accuracy
  • Reliable performance
  • IP65 rating
  • NMEA 0183 output

Options

  • Mounting options available
  • Sensor calibration service

Standards

  • IEC 60945; IEC 61162-1

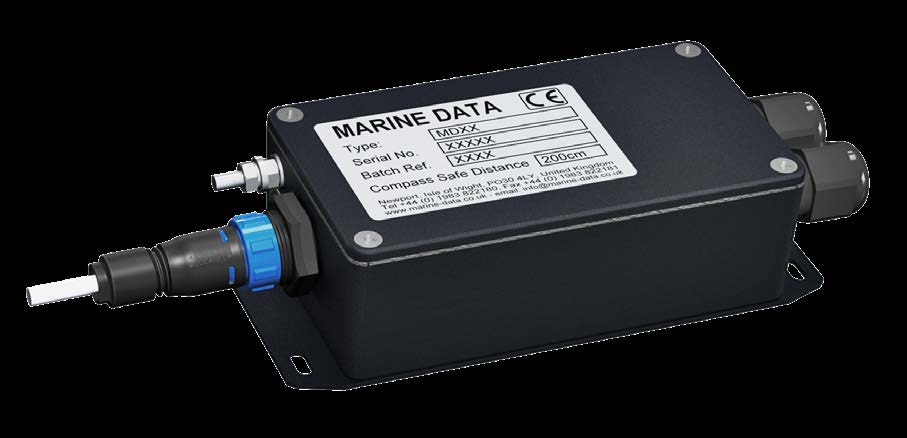

ami MD97CSP – Photo (4b4ac1362fc6_S1-2 S. 1)
Photo · 4b4ac1362fc6_S1-2 · S. 1
ami MD97CSP – Photo (4b4ac1362fc6_S1-2 S. 2)
Photo · 4b4ac1362fc6_S1-2 · S. 2

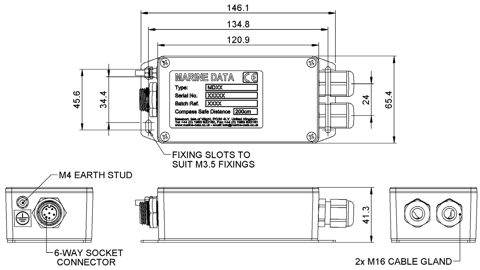

ami MD97CSP – Photo (4b4ac1362fc6_S1-2 S. 2)
Photo · 4b4ac1362fc6_S1-2 · S. 2

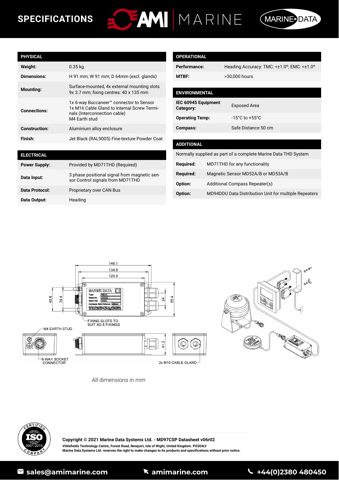

ami MD97CSP – Drawing (4b4ac1362fc6_S1-2 S. 2)
Drawing · 4b4ac1362fc6_S1-2 · S. 2

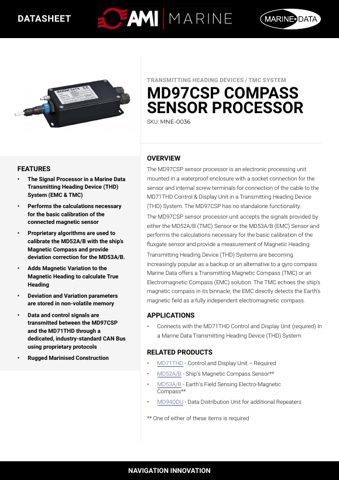

ami MD97CSP – Page preview (4b4ac1362fc6_S1-2 S. 1)
Page preview · 4b4ac1362fc6_S1-2 · S. 1
Source: ami MD97CSP datasheet, p. 2
