Library› Electrical› Instrumentation & Gauges› Pressure Transmitter / Transducer› Klay Instruments TTL
Klay Instruments

TTL

Pressure Transmitter / Transducer · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Material of the cablePoly Urethane (PUR)
Diameter of the cable8 mm
Standard cable length3 meters
Clamp materialstainless steel 304 and PA
Dimensions of junction box80 x 75 x 76 mm
Power consumption< 1,5 mA
Transmission configuration4800, 8, N, 1
Startup Time900 ms
Accuracy0.1 %
Cable Length3 meters
Maximum Cable Length80 meters
Cable diameter8 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“AquaCER-TTL (3 m) If the (adjustment) interface of the transmitter is not going to be used then the adjustment of the transmitter must be specified during the ordering process. After delivery of the…”

Klay Instruments TTL – Drawing (ea418c5658fd_S2-3 S. 2)
Drawing · ea418c5658fd_S2-3 · S. 2

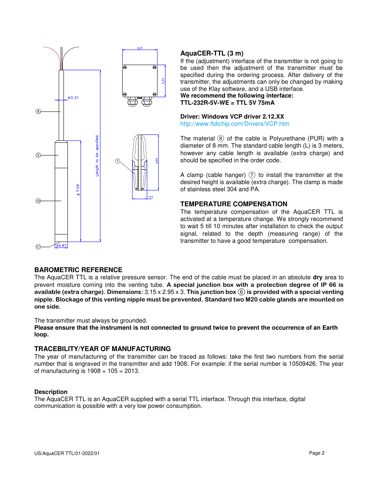

Klay Instruments TTL – Drawing (641126f7b82d_S1-2 S. 2)
Drawing · 641126f7b82d_S1-2 · S. 2

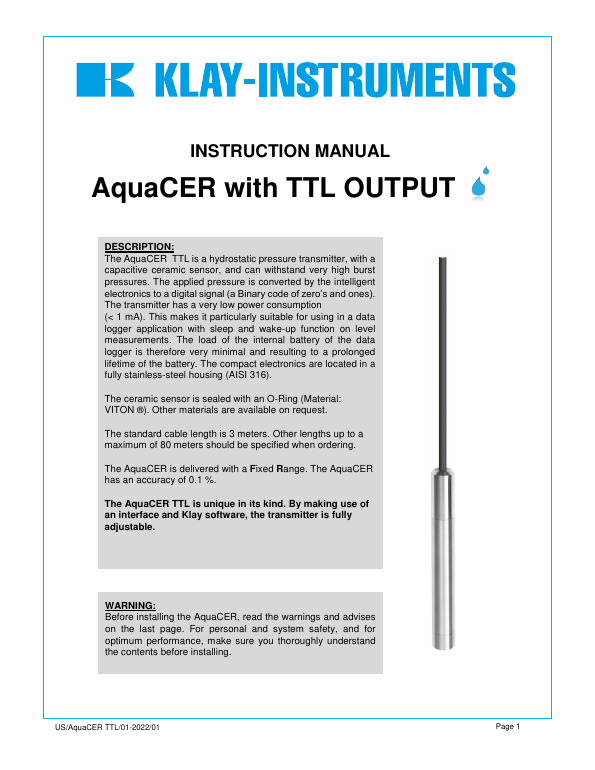

Klay Instruments TTL – Page preview (641126f7b82d_S1-2 S. 1)
Page preview · 641126f7b82d_S1-2 · S. 1
Source: klayinstrumentscom TTL datasheet, p. 1
