GURTECH' 20” (500mm)

Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified​‍⁠⁠‌‍‌‍‍​‌⁠​⁠‍⁠​‌‍​
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Max Delivery Pressure5,800 PSI (400 Bar)
Delivery Rate0.04 oz (1.2ml) per stroke
Grease CompatibiltyNLGI consistency number 0, 1 and 2
Cartridge Compatibility14 oz. /400 g Lipped cartridge
Delivery Hose20” (500mm) DIN1283 nylon braided hose " (mm)
Hose Thread1/8” NPT, 1/8” BSP or M10x1
DimensionsL 181/4” x W 53/4” x H 23/4” (L 460 x W145 x H 70 mm) " (mm)
Weight4.2 Ibs (1.9 kg)
Pump MechanismSelf-priming with pressure return valve
Grease CouplerHeavy-duty, high pressure. Max working pressure 10,000 psi (690 Bar). Trigger ac
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

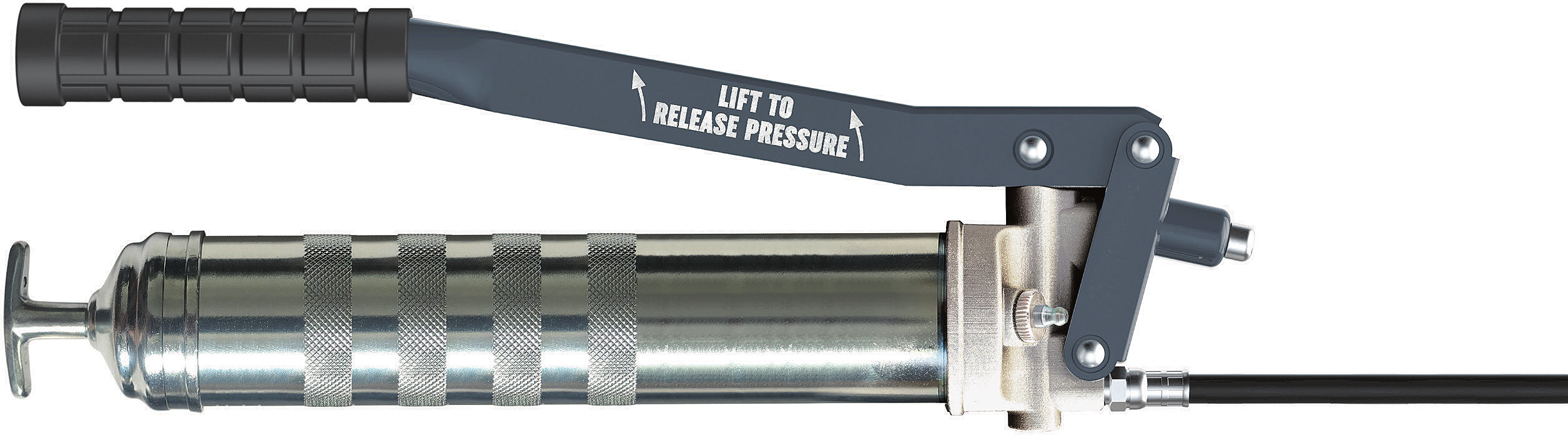

 GURTECH' 20” (500mm) – Photo (a9fbb5ea51b7_S1-1 S. 1)
Photo · a9fbb5ea51b7_S1-1 · S. 1

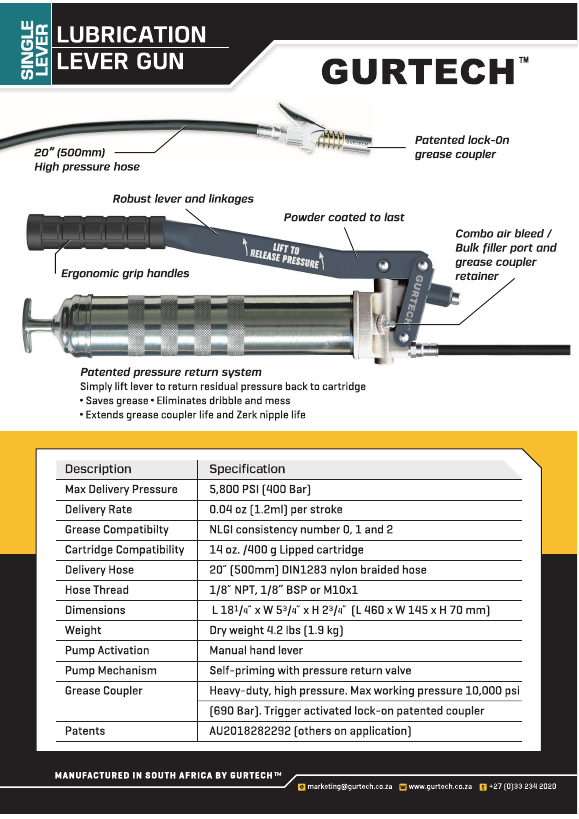

 GURTECH' 20” (500mm) – Page preview (a9fbb5ea51b7_S1-1 S. 1)
Page preview · a9fbb5ea51b7_S1-1 · S. 1
