Library› Navigation› Signaling & Visual› Searchlight› FRANCIS FH560
FRANCIS

FH560

Searchlight · Signaling & Visual

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Pan rotation450
Optional Heaterfitted in barrel
Operational temp-50
External lamp focus3 spot to 18 flood
High quality PSU50/60 Hz 1ph
SealingIP56 Searchlight, PSU IP66
Searchlight weight Deck33kgs
PSU weight23kgs
Luminous flux110.000
Colour Temperature6,000K
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“APPLICATION The FRANCIS FH range of searchlights incorporate the design features required to successfully operate searchlights in the most demanding product operating environments on land and sea.…”

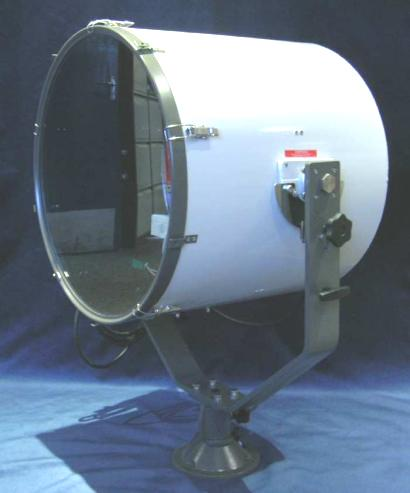

FRANCIS FH560 – Photo (e5bfcb85948b_S1-1 S. 1)
Photo · e5bfcb85948b_S1-1 · S. 1
FRANCIS FH560 – Photo (e5bfcb85948b_S1-1 S. 1)
Photo · e5bfcb85948b_S1-1 · S. 1

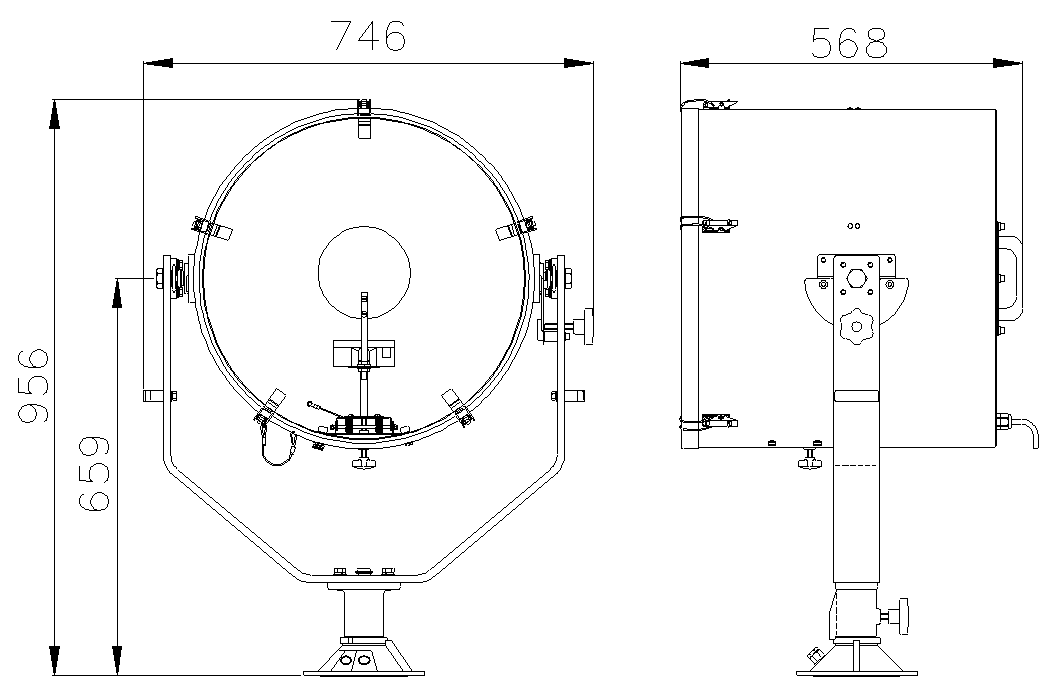

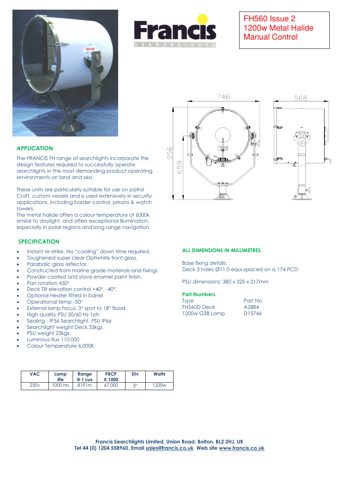

FRANCIS FH560 – Drawing (e5bfcb85948b_S1-1 S. 1)
Drawing · e5bfcb85948b_S1-1 · S. 1

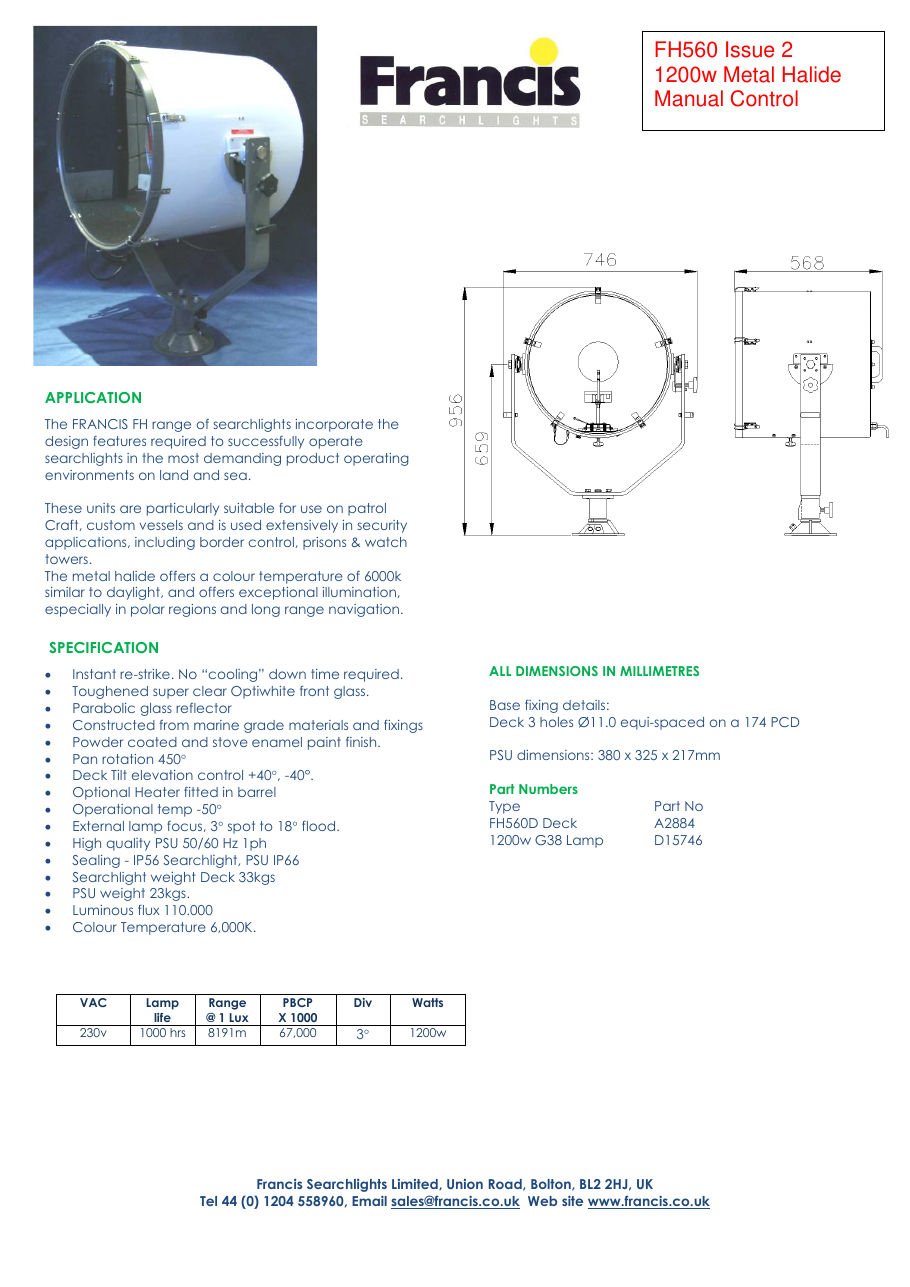

Source: franciscouk FH560 datasheet, p. 1
