Library› Navigation› Signaling & Visual› Searchlight› FRANCIS LH230 70-150w/LH230 250w
FRANCIS

LH230 70-150w/LH230 250w

Searchlight · Signaling & Visual

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

SealingIP66
Searchlight weight8.4kgs
PSU weight1Kg
Lamp life15,000hrs
Range713m
Pbcp508 mm
Div4-8°
Watts70w
Lamp NoD16845
Psu1Kg kg
Supply230v
Control Gear Assy 70w230v
Control Gear Assy 150w230v
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“APPLICATION This high quality Francis luminaire is an ideal substitute where floodlights are unable to provide the throw required to highlight certain architectural features. Whether to be used as an…”

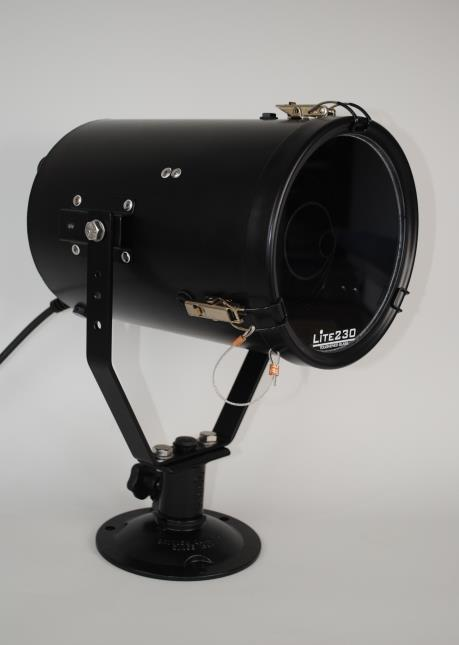

FRANCIS LH230 70-150w/LH230 250w – Photo (75d46a5adc0e_S1-1 S. 1)
Photo · 75d46a5adc0e_S1-1 · S. 1
FRANCIS LH230 70-150w/LH230 250w – Photo (9de8effe1506_S1-1 S. 1)
Photo · 9de8effe1506_S1-1 · S. 1

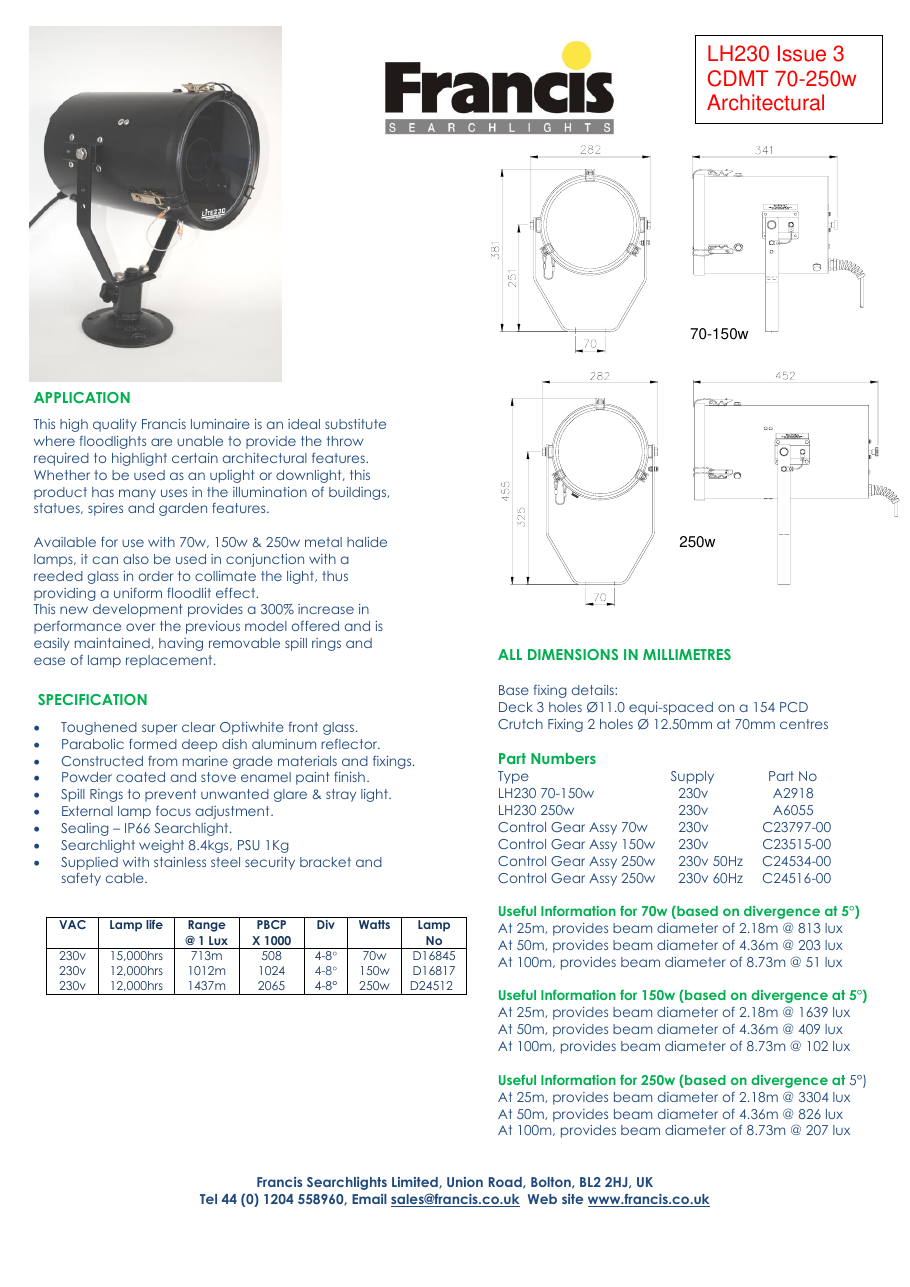

FRANCIS LH230 70-150w/LH230 250w – Drawing (75d46a5adc0e_S1-1 S. 1)
Drawing · 75d46a5adc0e_S1-1 · S. 1

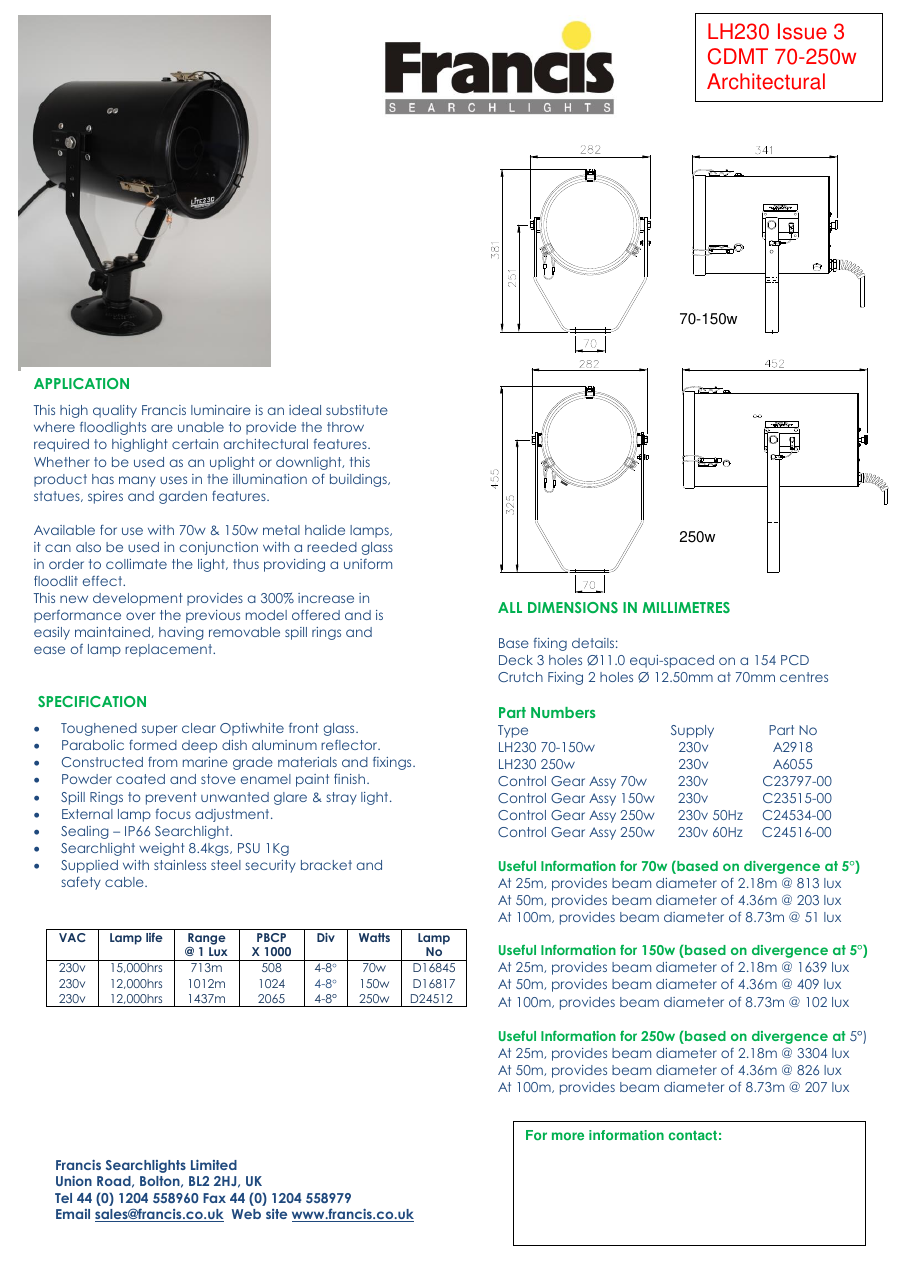

FRANCIS LH230 70-150w/LH230 250w – Drawing (9de8effe1506_S1-1 S. 1)
Drawing · 9de8effe1506_S1-1 · S. 1
Source: LH230 250w datasheet, p. 1
