Shimaden

PAC35

Soft Starter · Motor Control

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Current Capacity:20, 30, 45, 60, 90, 135A🔖
Power Supply:200 to 240 or 380 to 440V AC🔖
Control Input:Current: 4 to 20mA DC/Receiving impedance: 100Ω🔖
Thyristor Element Cooling:20 to 90A (natural air), 135A (fan cooled)🔖
Minimum Loads:10% min. of current capacity (no operation at no load)🔖
Temperature Range:-10 to 50˚C🔖
Operating Ambient Humidity:90% RH max.🔖
Storage temperature :-20 to 65°C🔖
Insulation Resistance:20MΩ min. at 500V DC between control input terminals and power supply terminals🔖
Dielectric Strength:1 min. at 2000V AC between power terminals and ground terminals🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

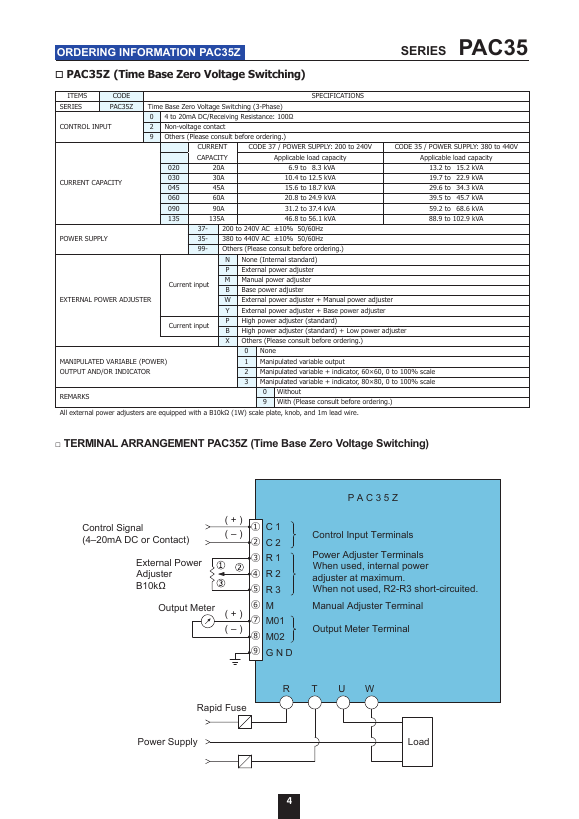

The PAC35 Series is a three-phase power regulator that controls the output voltage of AC power.

Shimaden PAC35 – Drawing (24e16b0576fb_S1-6 S. 2)
Drawing · 24e16b0576fb_S1-6 · S. 2

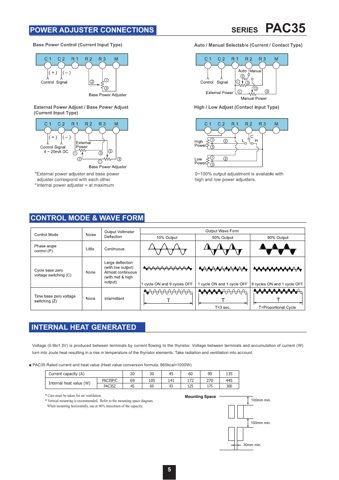

Shimaden PAC35 – Drawing (24e16b0576fb_S1-6 S. 6)
Drawing · 24e16b0576fb_S1-6 · S. 6
Shimaden PAC35 – Drawing (99daf31eccc9_S1-1 S. 1)
Drawing · 99daf31eccc9_S1-1 · S. 1

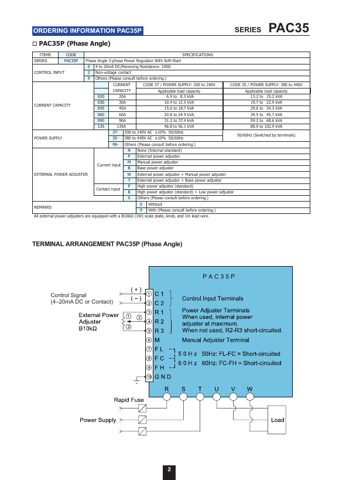

Shimaden PAC35 – Page preview (24e16b0576fb_S1-6 S. 3)
Page preview · 24e16b0576fb_S1-6 · S. 3

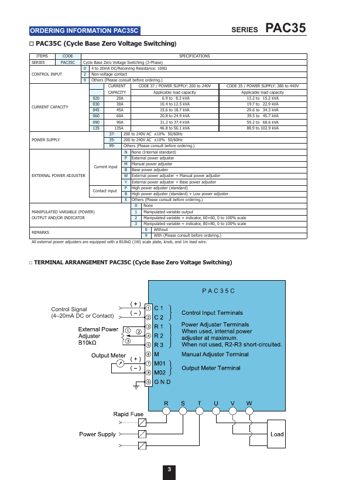

Shimaden PAC35 – Page preview (24e16b0576fb_S1-6 S. 4)
Page preview · 24e16b0576fb_S1-6 · S. 4

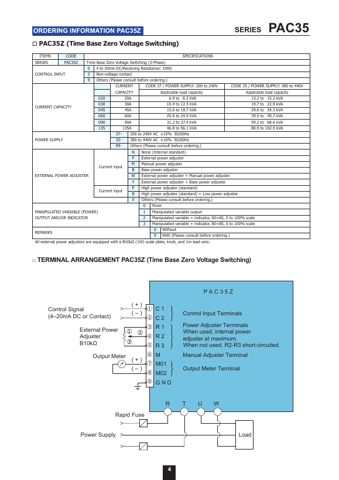

Shimaden PAC35 – Page preview (24e16b0576fb_S1-6 S. 5)
Page preview · 24e16b0576fb_S1-6 · S. 5

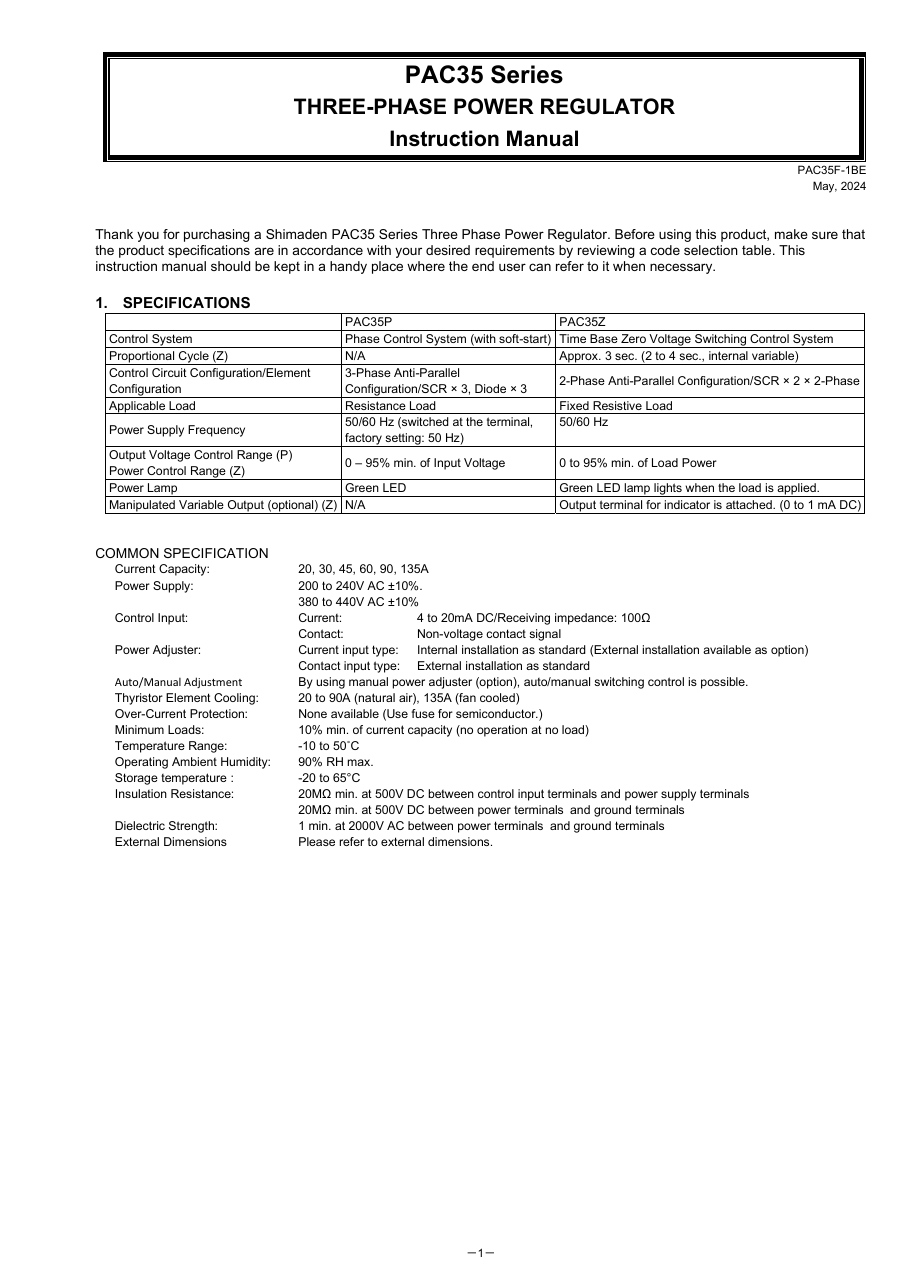

Source: PAC35 Series THREE-PHASE POWER REGULATOR Instruction Manual, p. 1
