Library› Engine Room› Deck Machinery Hydraulics› Hydraulic Component (General)› goltensgreen TG-13E
goltensgreen

TG-13E

Hydraulic Component (General) · Deck Machinery Hydraulics

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Speed Range1100 to 2400 rpm
Drive Power Requirement1/3 to 1/2 hp (248.6 to 373 W)
MAXIMUM WORK CAPACITY OVER FULL GOVERNOR TRAVEL OF 42° IS * FT-LBS.* TG-13E 12.2 ft-lbs (16.532 N.m)
Time Constant Shaft Driven0.090 sec. at 150 psig (1034.25 kPa) operating pressure
HysteresisWithin 3% of maximum stroke
LinearityWithin 0.5%
Capacity1.75 quarts (1.6562 L)
Weight16 lbs (7.2576 kg)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

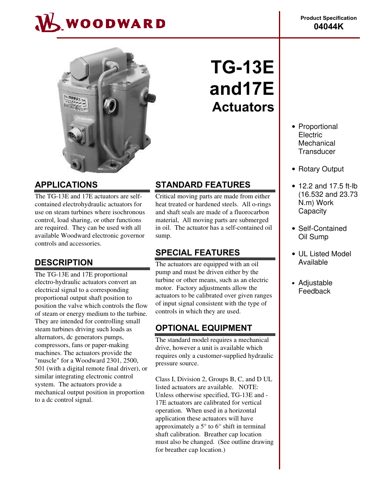

“The TG-13E and 17E actuators are selfcontained electrohydraulic actuators for use on steam turbines where isochronous control, load sharing, or other functions are required. They can be used with all…”

goltensgreen TG-13E – Drawing (24524fb43f34_S1-4 S. 1)
Drawing · 24524fb43f34_S1-4 · S. 1

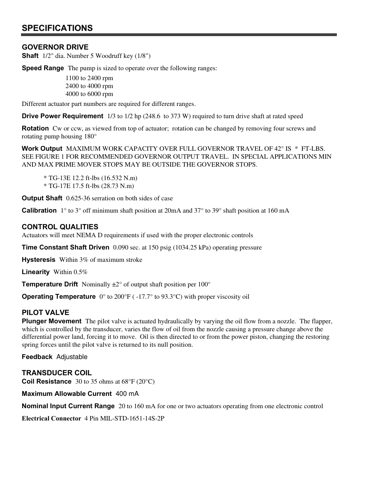

goltensgreen TG-13E – Drawing (24524fb43f34_S1-4 S. 2)
Drawing · 24524fb43f34_S1-4 · S. 2

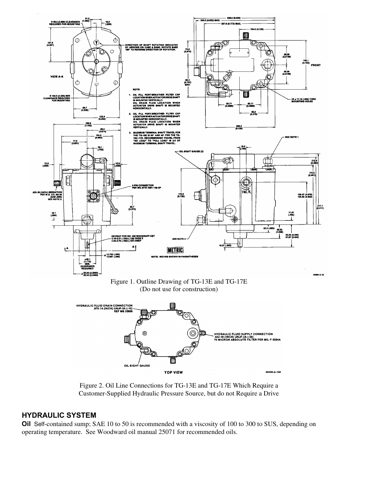

goltensgreen TG-13E – Drawing (24524fb43f34_S1-4 S. 3)
Drawing · 24524fb43f34_S1-4 · S. 3

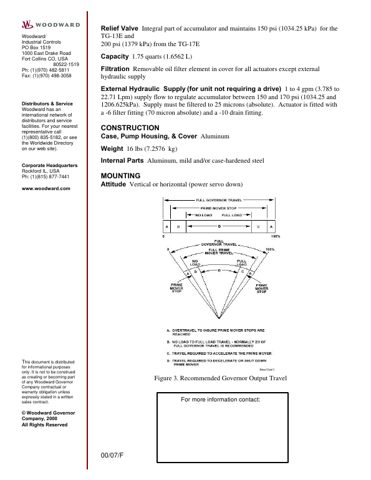

goltensgreen TG-13E – Page preview (24524fb43f34_S1-4 S. 4)
Page preview · 24524fb43f34_S1-4 · S. 4
Source: goltensgreen TG-13E datasheet, p. 1
