Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Courant de mesure Im≤ 403 μA
Résistance interne Ri ,Zi≥ 124 kΩ
Résistance interne en cas de déconnexion du réseautyp. 50 MΩ
Tension DC maxi étrangère Ufg≤ 1200 V
Tension assignée1000 V
Capacité de fuite du réseau admissible Ceen fonction du profil, 0…1000 μF
Plage de mesure fn0,1…460 Hz
Tolérance mesure de fn±1 % ±0,1 Hz
Domaine de tension mesure de fnAC 25…690 V
Plage de mesure UnAC 25…690 V
Ic1/(ic2-5)1000 V
Ic2/(ic3-5)250 V
Ic3/(ic4-5)250 V
Ic4/ic5250 V
Nombre maxi. de requêtes Modbus< 100/s
RaccordementRJ45
Adresse IPDHCP / manuel 192.168.0.5
Nombre Participants ISOnet≤ 20
Tension nominale maximale ISOnetAC, 690 V
Corriente de medida Im≤ 403 μA
Resistencia interna Ri, Zi≥ 124 kΩ
Resistencia interna en desconexión de red Inactivo en I/O, inactivo por ISONet; desconexión) tipo50 MΩ
Tensión ajena continua permitida Ufg≤ 1200 V
Tensión nominal1000 V
Tensión de choque de dimensionado:8 kV
Margen de medida fn0,1…460 Hz
Tolerancia medida de fn±1 % ±0,1 Hz
Margen de tensión medida de fnAC 25…690 V
Tolerancia de medida de Un±5 % ±5 V
Margen de medida Ce0…1000 μF
Tolerancia de medida de Ce±10 % ±10 μF
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

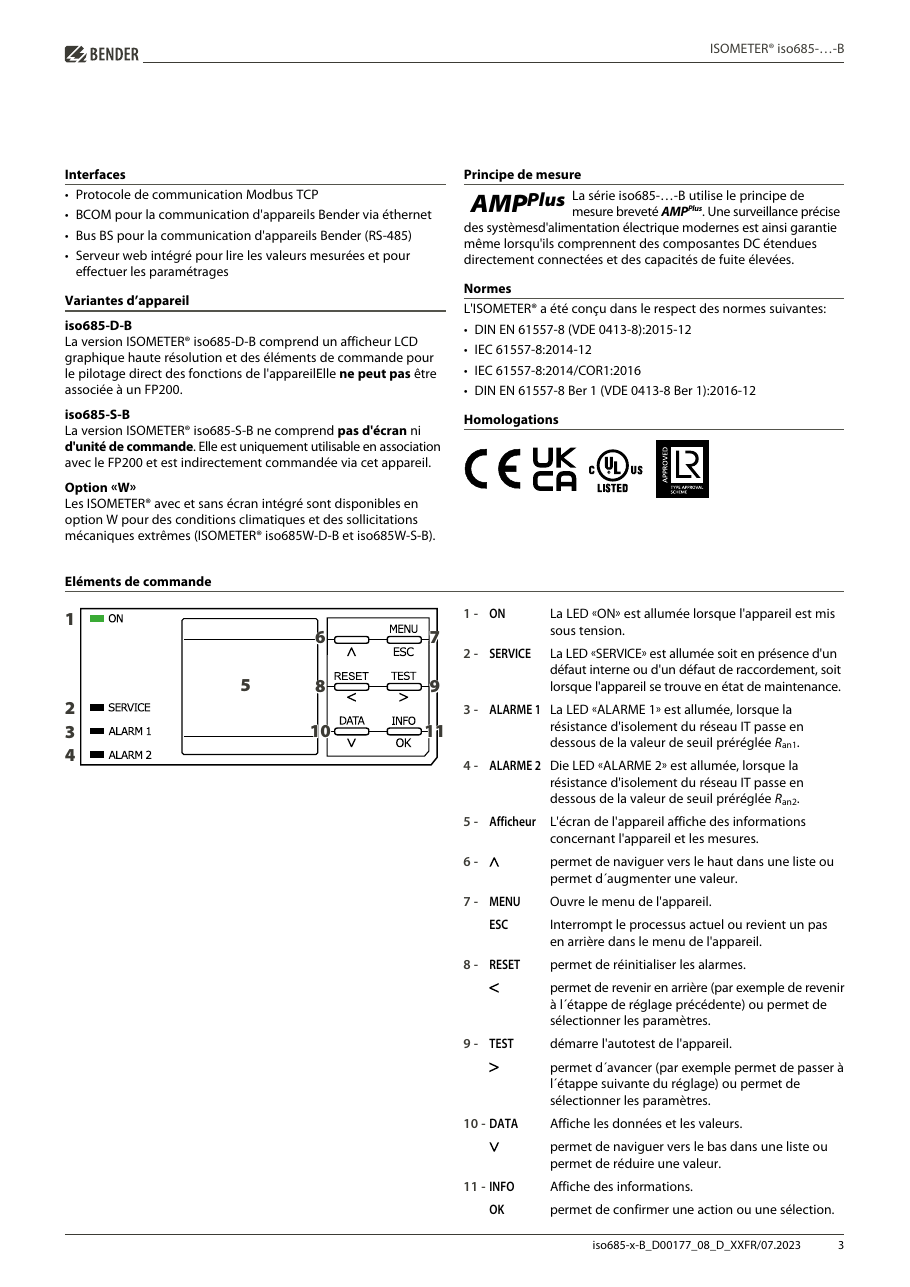

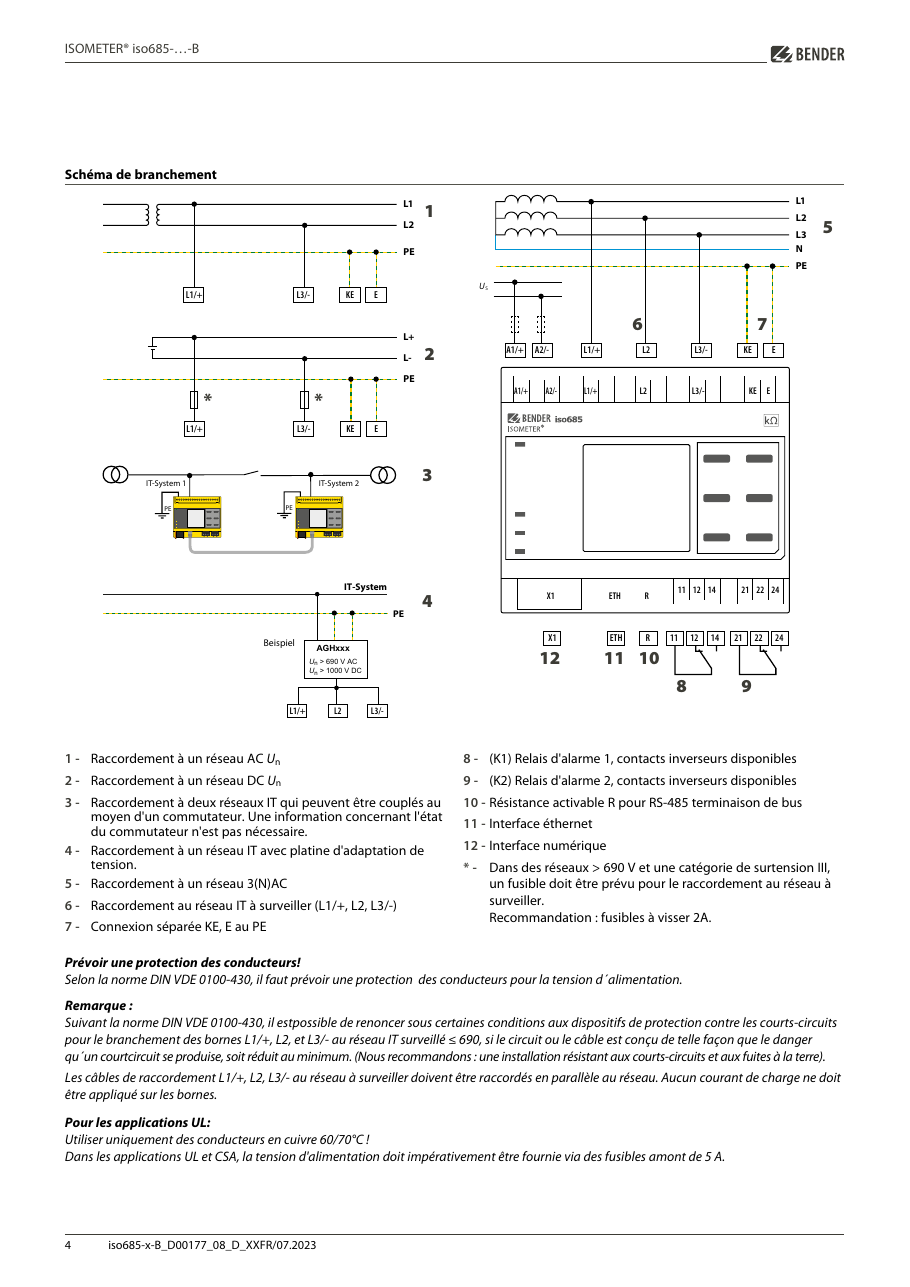

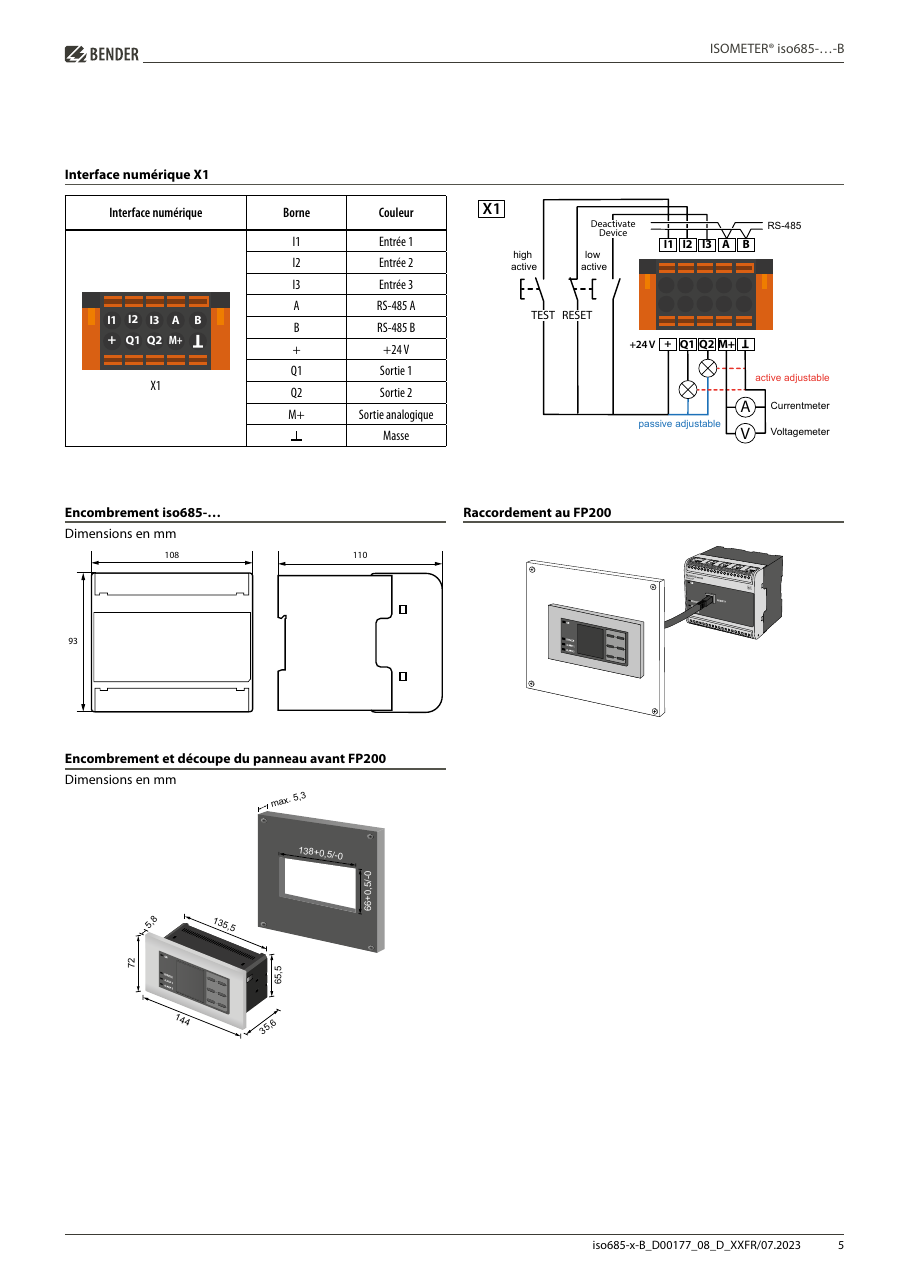

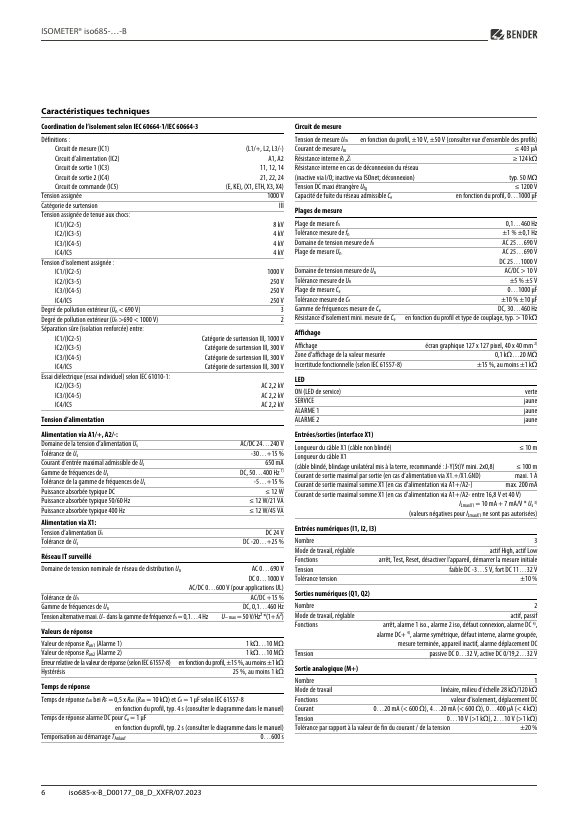

“Description L'ISOMETER® iso685-…-B est un contrôleur permanent d'isolement selon IEC 61557-8 pour réseaux IT. Il peut être utilisé dans les réseaux AC, 3(N)AC, AC/DC et DC. Les réseaux AC peuvent…”

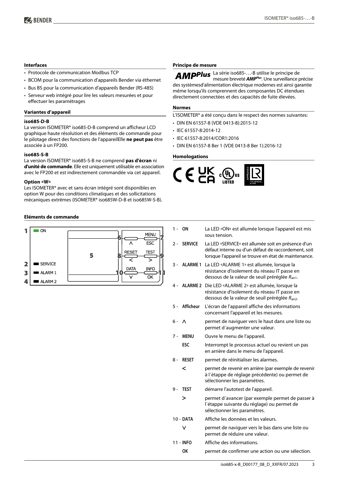

Bender iso685-…-B – Drawing (437d810db636_S2-7 S. 2)
Drawing · 437d810db636_S2-7 · S. 2
Bender iso685-…-B – Drawing (437d810db636_S2-7 S. 3)
Drawing · 437d810db636_S2-7 · S. 3
Bender iso685-…-B – Drawing (437d810db636_S2-7 S. 4)
Drawing · 437d810db636_S2-7 · S. 4

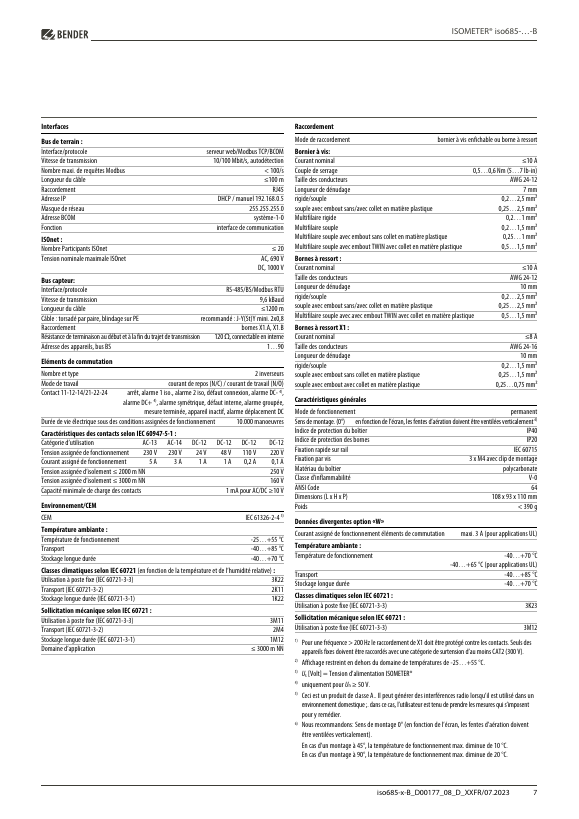

Bender iso685-…-B – Page preview (437d810db636_S2-7 S. 5)
