Library› Electrical› Instrumentation & Gauges› Flow Meter› Tokyo Keiki UFP-30
Tokyo Keiki

UFP-30

Flow Meter · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

測定範囲−30m/s 〜 +30m/s🔖
適用口径13A 〜 5000A🔖
適用材質超音波が安定して伝搬する材質 ( 鋼、ステンレス、ダクタイル、PVC 等 )🔖
ロギング200,000 ポイントを本体内へロギング🔖
温度計入力3 線式測温抵抗体（Pt-100）2 点まで入力可能🔖
厚さ計測定測定範囲 :1mm 〜 100mm / 精度 :±0.1mm 又は ±1.5% の大きい方🔖
音速測定機能測定範囲 :(500m/s 〜 3000m/s)🔖
アナログ出力 (4-20mA)2 出力🔖
保護等級本体：IP65 センサ：IP65 / IP68🔖
センサケーブル長3m( 標準 )+7m(オプション ) / 最長160m🔖
バッテリ動作時間標準使用時 :12 時間🔖
本体動作温度−10℃ 〜 +50℃🔖
本体寸法および質量約 210(W) × 110(H) × 48(D) ( 本体カバーを除く) / 約 0.9kg🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“〒003-0802 札幌市白石区菊水二条 2-2-12 藤井ビル菊水 IV 〒983-0852 仙台市宮城野区榴岡 4-12-12 L.Biz 仙台 〒327-0816 佐野市栄町 1-1 （佐野工場内） 〒461-0005 名古屋市東区東桜 1-14-11 DP スクエア東桜 〒532-0004 大阪市淀川区西宮原 1-7-26 〒730-0041 広島市中区小町 3-19…”

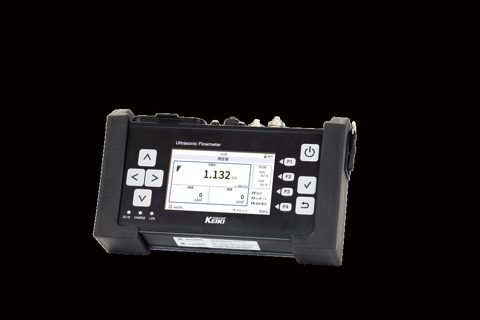

Tokyo Keiki UFP-30 – Photo (c0b85df4397b_S1-1 S. 1)
Photo · c0b85df4397b_S1-1 · S. 1

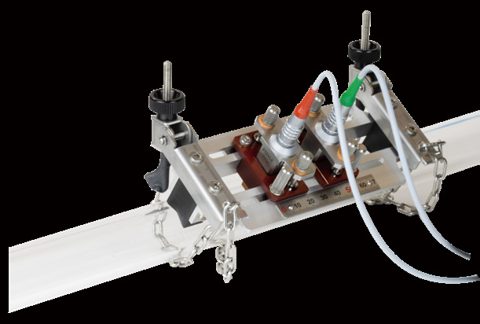

Tokyo Keiki UFP-30 – Photo (c0b85df4397b_S1-1 S. 1)
Photo · c0b85df4397b_S1-1 · S. 1
Tokyo Keiki UFP-30 – Photo (c0b85df4397b_S1-1 S. 1)
Photo · c0b85df4397b_S1-1 · S. 1
Tokyo Keiki UFP-30 – Drawing (c0b85df4397b_S1-1 S. 1)
Drawing · c0b85df4397b_S1-1 · S. 1

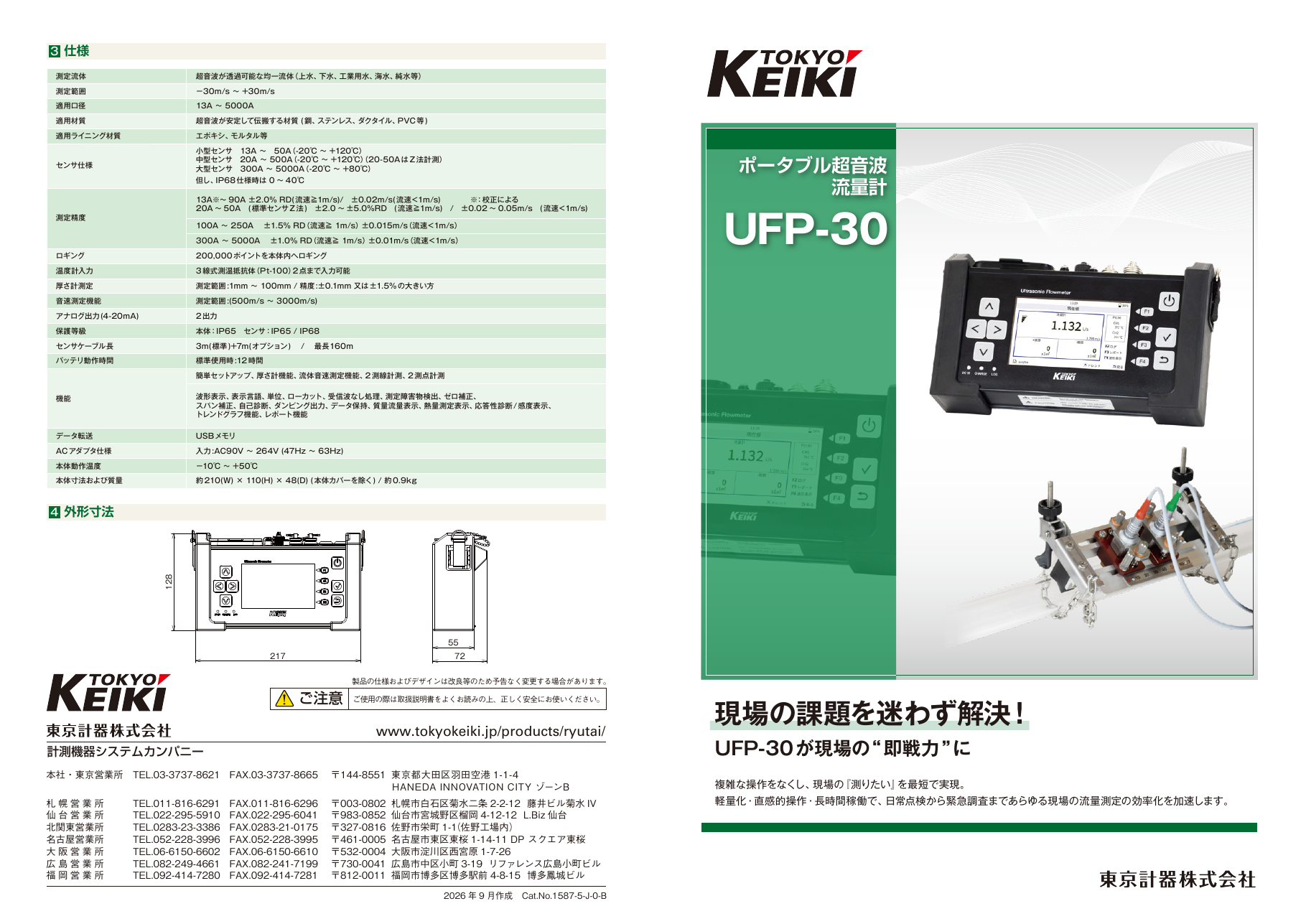

Source: Tokyo Keiki UFP-30 datasheet, p. 1
