Library› Engine Room› Tank Level & Measurement› Tank Level Gauging› Jowa PD765
Jowa

PD765

Tank Level Gauging · Tank Level & Measurement

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Transmitter Excitation24VDC @ 200mA🔖
Input Power85-265VAC🔖
Display IntensityEight user selectable levels🔖
Front PanelNEMA 4X, IP65🔖
Display Update RateProcess/RTD: 3.7-5/sec🔖
Display0.56" (14 mm), Trident X2: 1.20" (31 mm), Four digits (-1999 to 9999), automatic🔖
OverrangeDisplay flashes 9999🔖
UnderrangeDisplay flashes -1999🔖
NOISE FILTERProgrammable from 2 to 199 (0 will disable filter)🔖
NORMAL MODE REJECTION64 dB at 50/60 Hz🔖
Isolation4 kV input/output-to-power line, 500 V input-to-output or output-to-P1/P2 suppli🔖
Operating temperature range:-40 to 65°C🔖
Storage temperature range:-40 to 85°C🔖
Relative humidity:0 to 90% non-condensing🔖

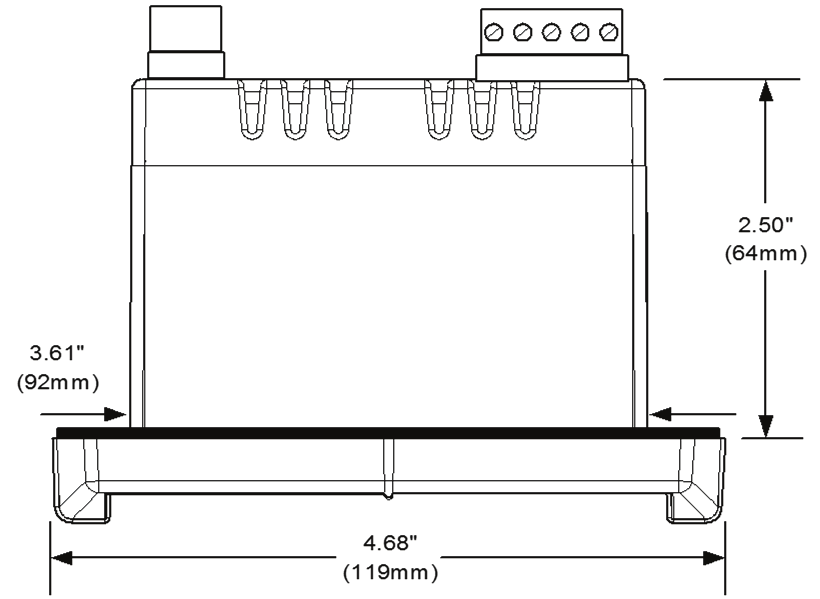

Overall DIMENSIONS:2.45" x 4.68" x 4.19" (62 mm x 119 mm x 106 mm)🔖
Weight:9.5 oz. (269 g) (including options)🔖
InputsField selectable: type J, K, T, or E thermocouples; 100 Ω platinum RTD (0.00385🔖
Resolution1° or 0.1° for all RTD inputs. 1° for all thermocouples. 1° or 0.1° for Type T t🔖
INPUT IMPEDANCEGreater than 100 kΩ🔖
Rating2 SPDT (Form C); rated 3 A @ 30 VDC or 3 A @ 250 VAC resistive load; 1/14 HP @ 1🔖
Recommended suppressor value:0.01 µF/470 Ω, 250 VAC (PDX6901).🔖
Deadband0-100% of full scale, user selectable🔖
TIME DELAY0 to 199 seconds, on and off delays🔖
UL FILE NUMBERE160849🔖
FRONT PANELUL Type 4X, NEMA 4X, IP65; panel gasket provided🔖
LOW VOLTAGEEN 61010-1:2010🔖
EmissionsEN 55011:2009 + A1:2010🔖
ImmunityEN 61326-1:2013🔖
RFI - Amplitude80 -1000 MHz 10 V/m 80% AM (1 kHz)🔖
Modulated1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)🔖
2.0 - 2.7 GHz1 V/m 80% AM (1 kHz)🔖
RFI - Conducted10V, 0.15-80 MHz, 1kHz 80% AM🔖
Power-Frequency Magnetic Field30 A/m 70%V for 0.5 period🔖
Voltage Dips40%V for 5 & 50 periods🔖
Voltage70%V for 25 periods🔖
Interruptions<5%V for 250 periods🔖

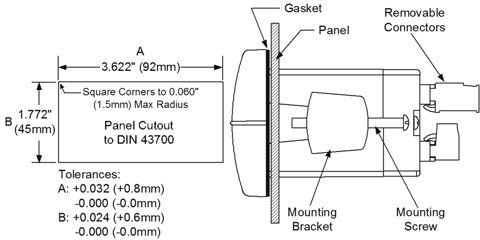

Panel Cutout Dimensions3.622" x 1.772" (92 mm x 45 mm)🔖
Panel Thickness0.04" - 0.25" (1.0 mm - 6.4 mm)🔖
Recommended Minimum Panel Thickness (Type 4X Rating)0.06" (1.5 mm) steel panel, 0.16" (4.1 mm) plastic panel🔖
Clearance Behind Panel4" (102 mm)🔖
Current input-10 VDC to +10 VDC🔖
Inductive relay rating1/14 HP (50 W) at 115/230 VAC🔖
Capacitor rating250 VAC🔖
Input range4-20 mA🔖
Minimum input span0.40 mA🔖
Offset Adjustment±19.9°🔖
Adjust0.0° temp only🔖
Filter10🔖
Bypass0.2🔖
Address00🔖
Trans delay10 ms🔖
Cutoff value0.00 disabled🔖
Byte-to-byte timeout*0.01 sec🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The TRIDENT PD765 is a flow meter designed for measuring fluid flow rates.

Applications

  • Recalibrating Process Inputs
  • Setting the Relay Operation
  • Relay and Alarm Operation
  • Pump Alternation Control Operation
  • Scaling the 4-20 mA Analog Output
  • Program the Sensor Break Output Value
Source: Jowa PD765 datasheet, p. 7

Features

  • Accepts Current, Voltage, TC, & RTD Inputs
  • 4 Digit Display, 0.56" (14 mm) or 1.20" (31 mm)
  • Linear or Square Root with Low-Flow Cutoff
  • Operating temperature range of between -40°C and 65°C
  • Maximum/Minimum Display
  • Type 4X, NEMA 4X, IP65 Front
  • Universal Power Supply 85-265 VAC
  • 12-36 VDC/12-24 VAC Power Option

Options

  • Various transmitter power supply options
  • Different display sizes
Source: Jowa PD765 datasheet, p. 9

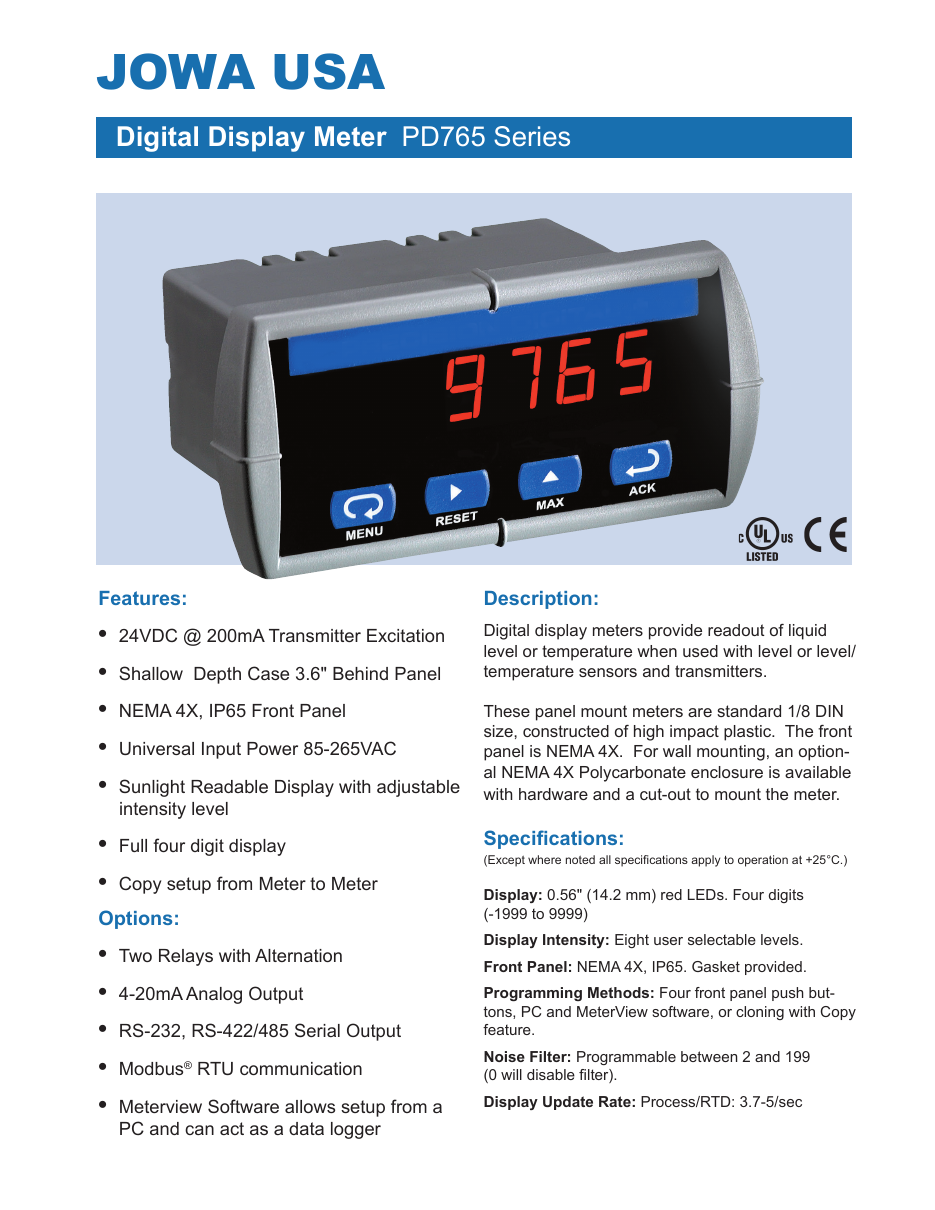

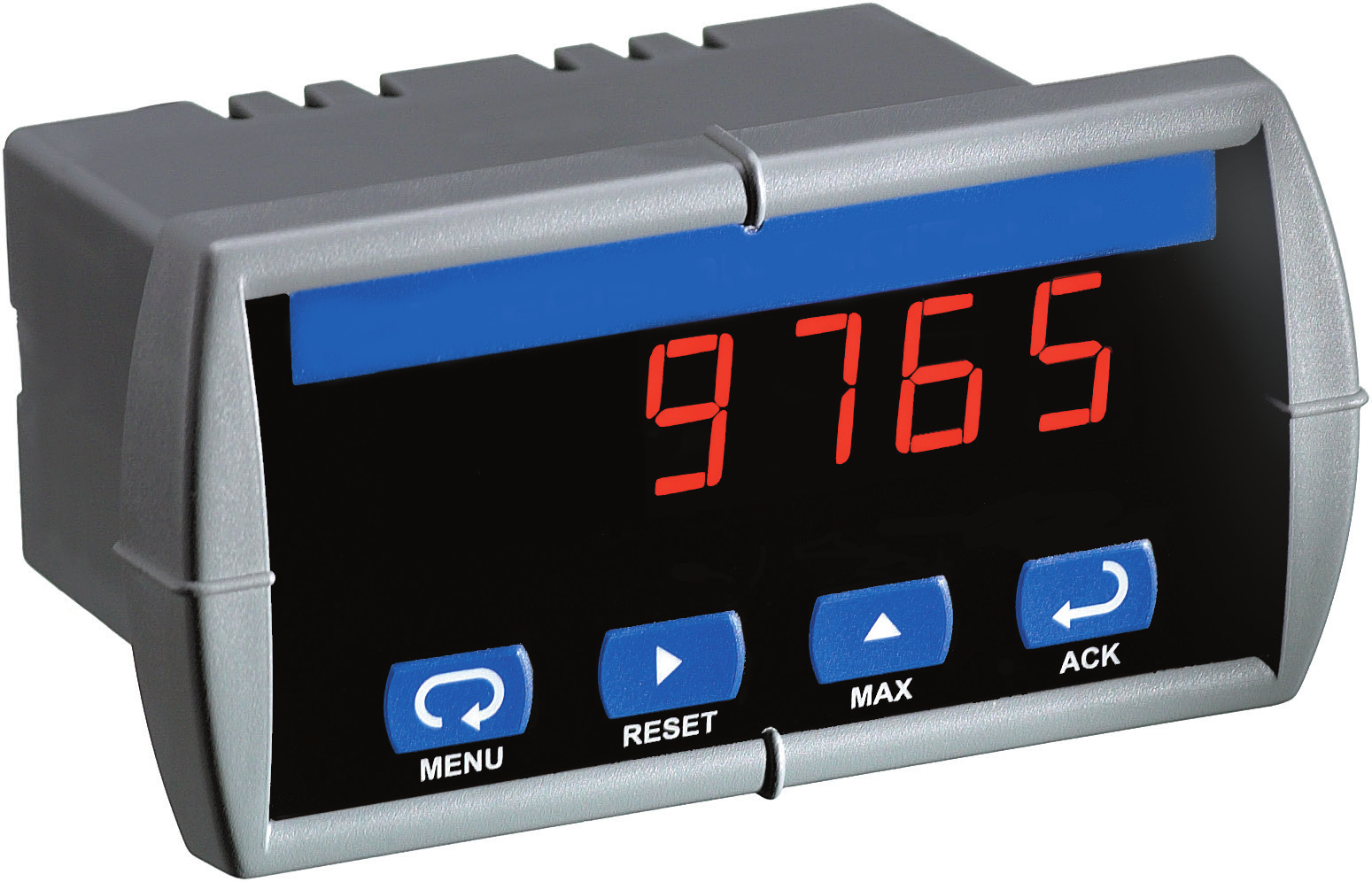

Jowa PD765 – Photo (7c86b74e3504_S1-2 S. 1)
Photo · 7c86b74e3504_S1-2 · S. 1
Jowa PD765 – Photo (0ef0afc7f6bc_S3-72 S. 14)
Photo · 0ef0afc7f6bc_S3-72 · S. 14
Jowa PD765 – Photo (0ef0afc7f6bc_S3-72 S. 64)
Photo · 0ef0afc7f6bc_S3-72 · S. 64
Jowa PD765 – Drawing (7c86b74e3504_S1-2 S. 1)
Drawing · 7c86b74e3504_S1-2 · S. 1

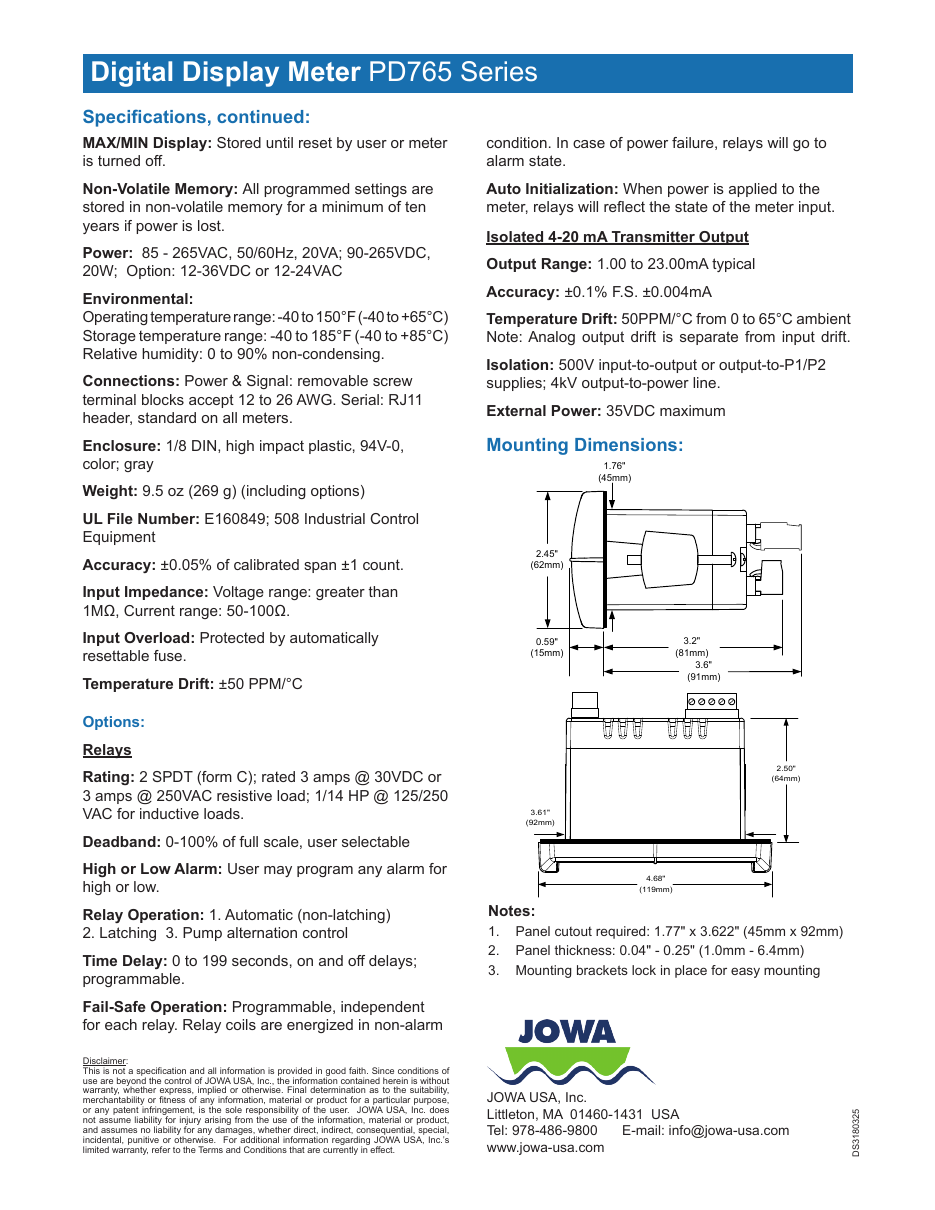

Jowa PD765 – Drawing (7c86b74e3504_S1-2 S. 2)
Drawing · 7c86b74e3504_S1-2 · S. 2
Jowa PD765 – Drawing (0ef0afc7f6bc_S3-72 S. 4)
Drawing · 0ef0afc7f6bc_S3-72 · S. 4

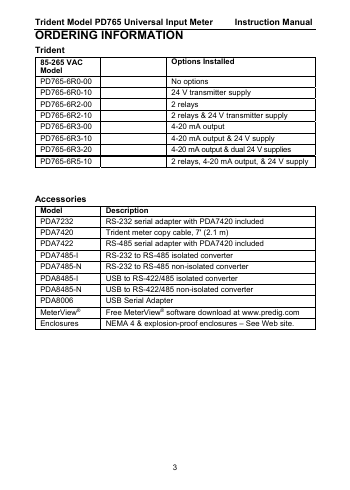

Jowa PD765 – Page preview (0ef0afc7f6bc_S3-72 S. 3)
Page preview · 0ef0afc7f6bc_S3-72 · S. 3
Jowa PD765 – Page preview (0ef0afc7f6bc_S3-72 S. 5)
Page preview · 0ef0afc7f6bc_S3-72 · S. 5
Source: Jowa PD765 datasheet, p. 3
