Temposonics

RD4

Position Transmitter / Encoder · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Stroke length25…5000 mm
Standard stroke length25 … 500 mm
Flange M & C0025…5080 mm
Flange S0025…2540 mm
Threaded flangeM18×1.5-6g, AF23
Connection type2 × 4 pin M12 female, 1 × 4 pin M8 male
Operating temperature-40 °C…+75 °C
Dew point, humidity90% rel. humidity, no condensation
Ingress protectionSensor electronics IP67
Shock test100 g
Vibration test10 g / 1 0 - 2000 Hz
Current drain100 mA typical
Dublette von191041
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A detachable sensor for measuring stroke lengths in various applications.

Applications

  • position measurement

Features

  • detachable sensor electronics
  • integral cable of sensor rod
  • side cable entry
  • bottom cable entry
  • various flange options
  • threaded flange options
  • EtherNet/IP™ output

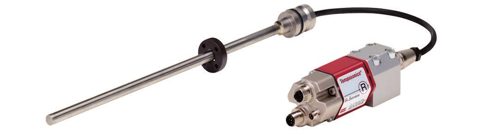

Temposonics RD4 – Photo (b140102ab807_S1-2 S. 1)
Photo · b140102ab807_S1-2 · S. 1

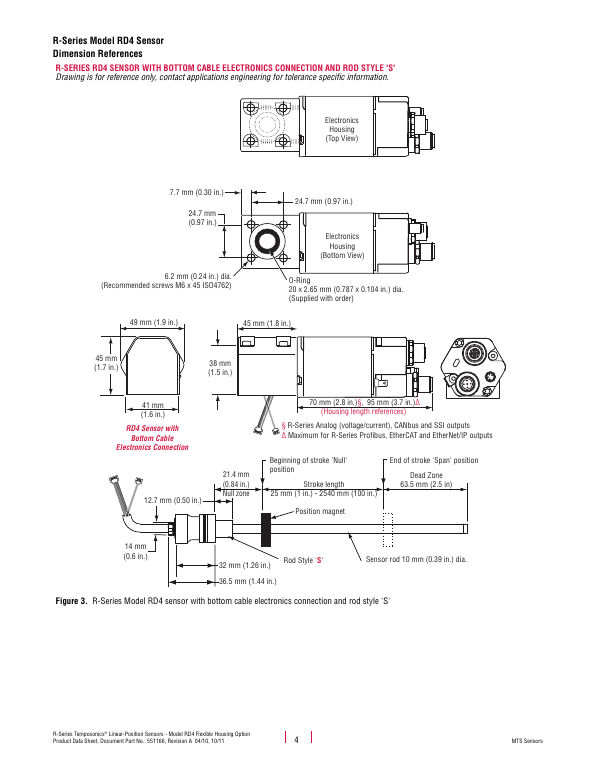

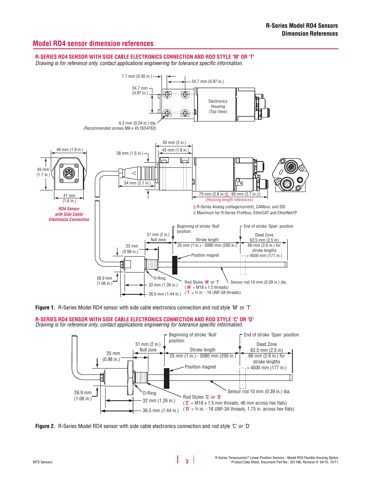

Temposonics RD4 – Drawing (b140102ab807_S1-2 S. 1)
Drawing · b140102ab807_S1-2 · S. 1

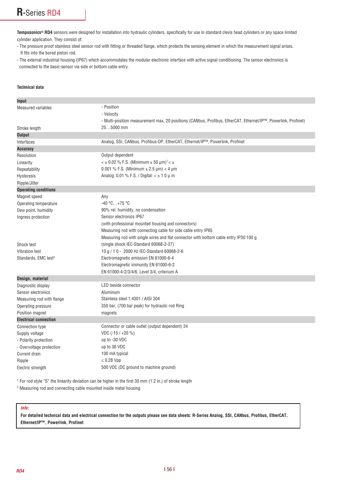

Temposonics RD4 – Drawing (b140102ab807_S1-2 S. 2)
Drawing · b140102ab807_S1-2 · S. 2

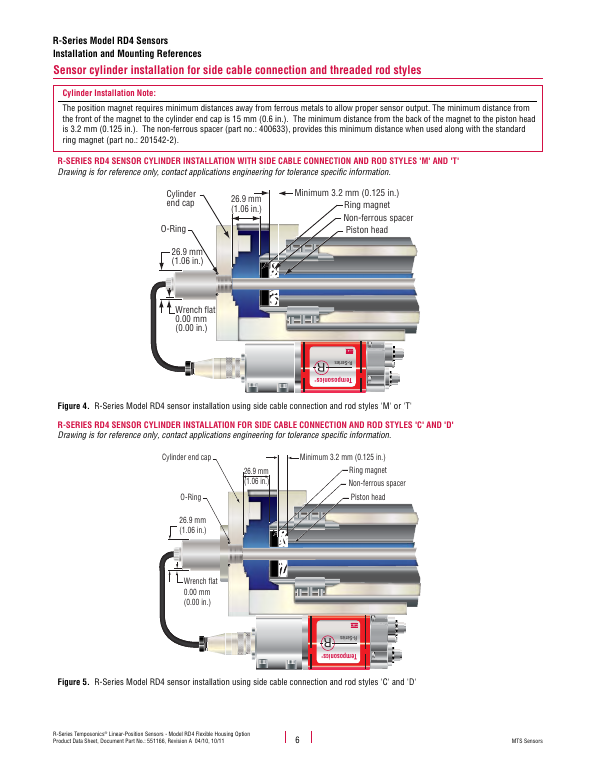

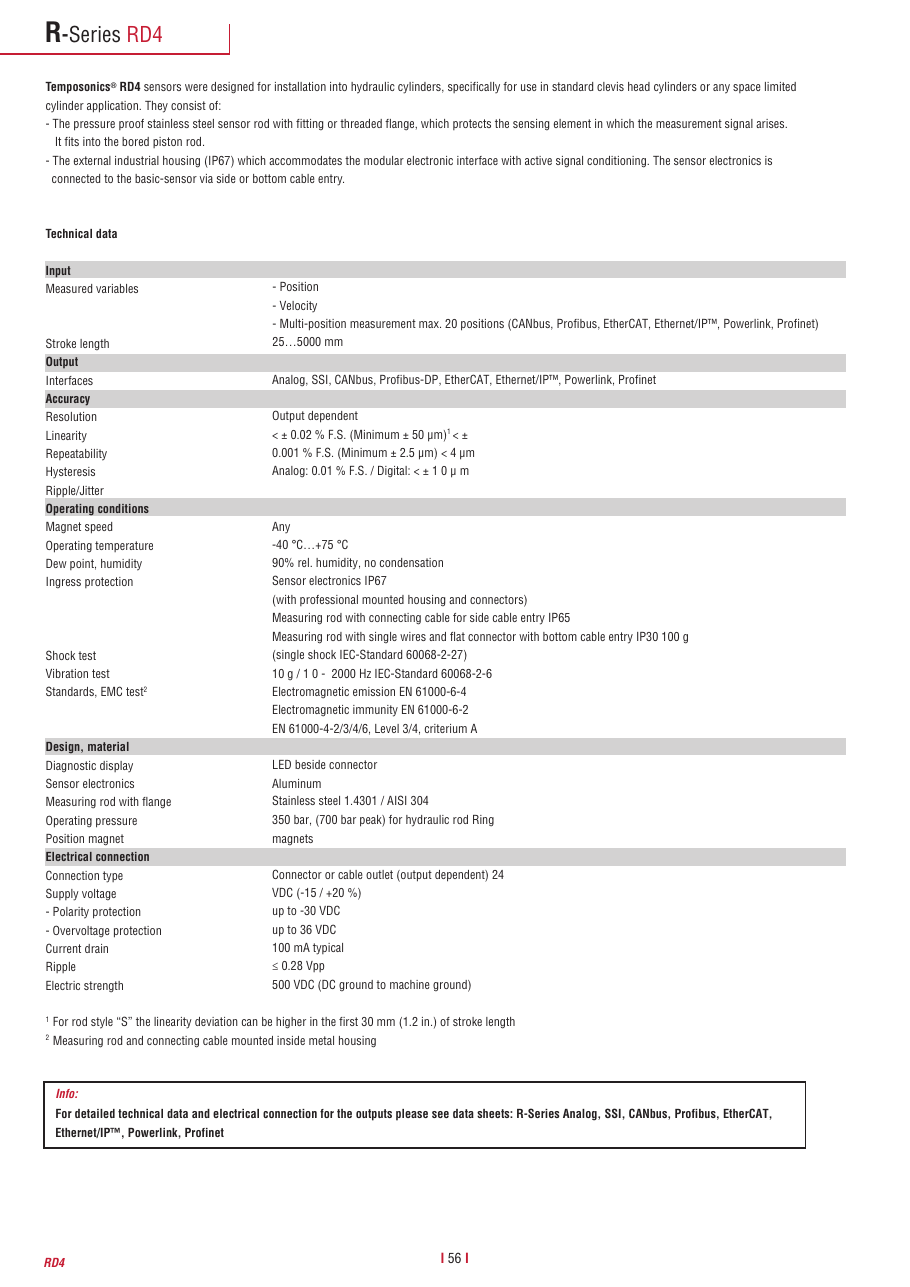

Temposonics RD4 – Drawing (61269c717b54_S2-8 S. 2)
Drawing · 61269c717b54_S2-8 · S. 2

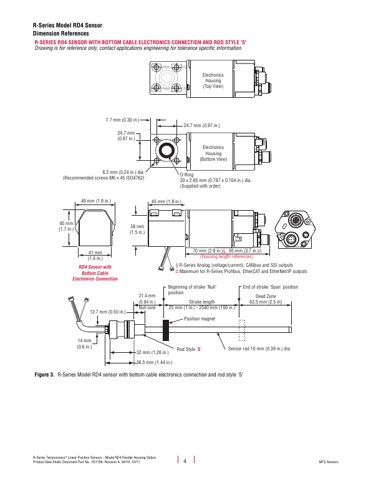

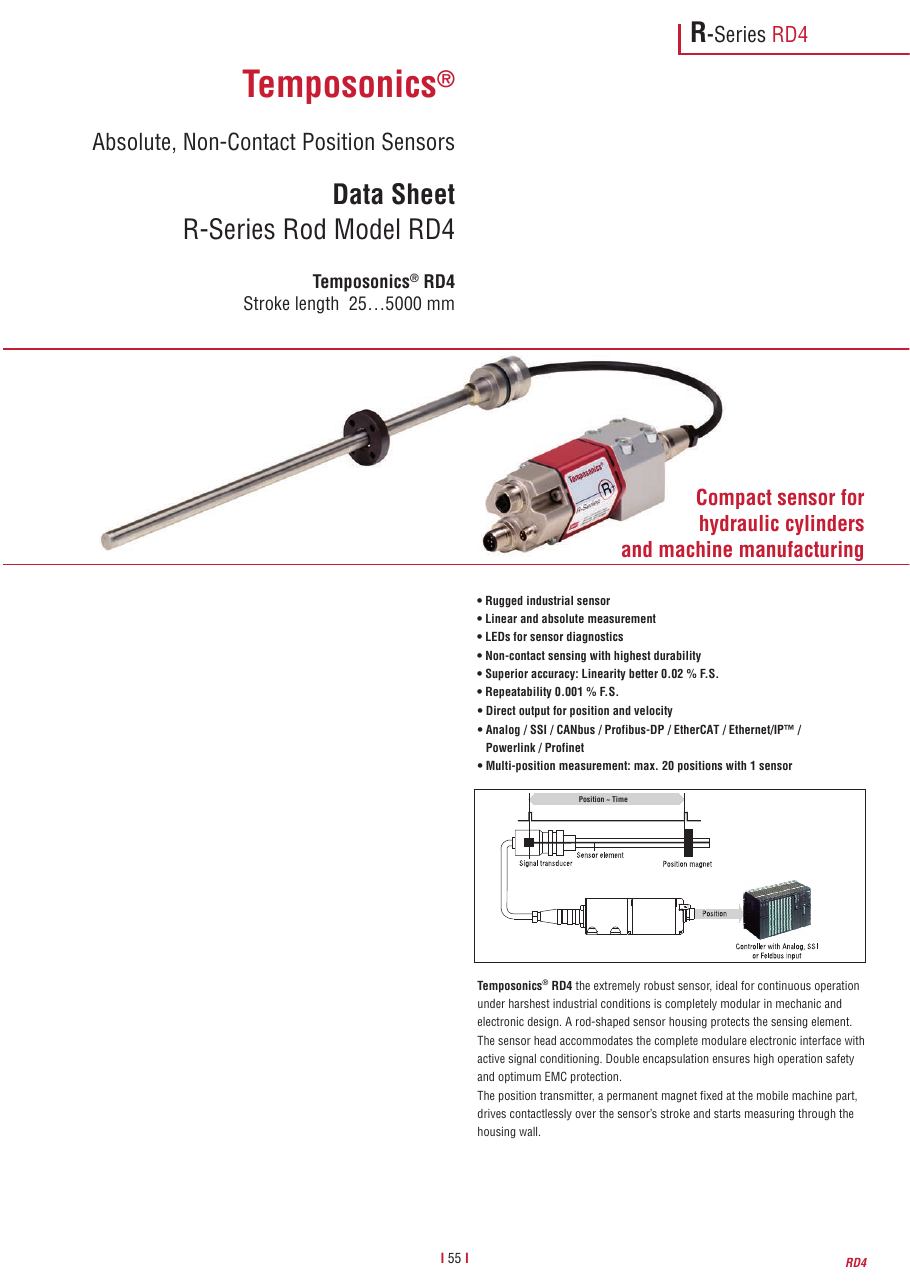

Temposonics RD4 – Page preview (61269c717b54_S2-8 S. 3)
Page preview · 61269c717b54_S2-8 · S. 3

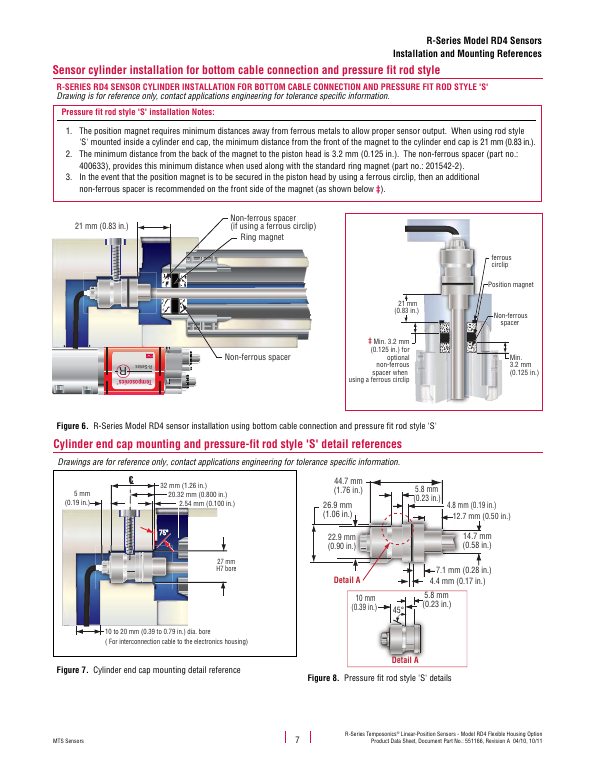

Temposonics RD4 – Page preview (61269c717b54_S2-8 S. 4)
Page preview · 61269c717b54_S2-8 · S. 4

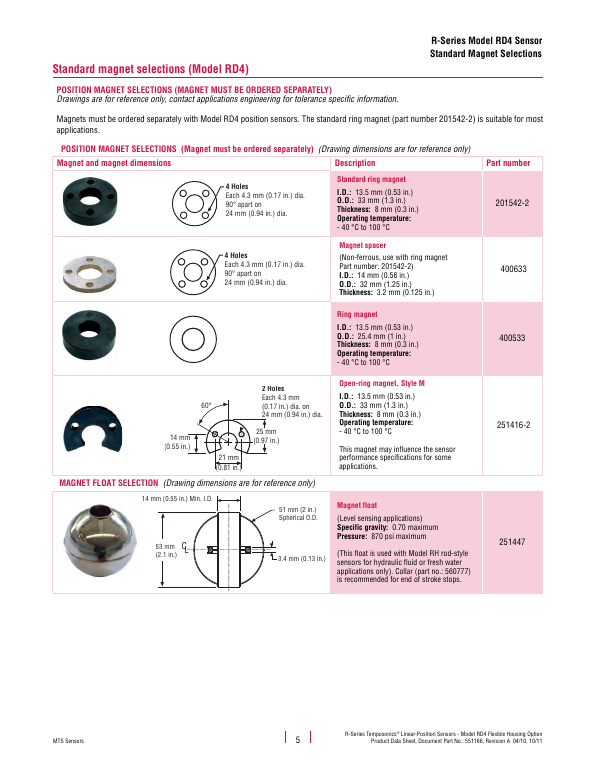

Temposonics RD4 – Page preview (61269c717b54_S2-8 S. 5)
Page preview · 61269c717b54_S2-8 · S. 5

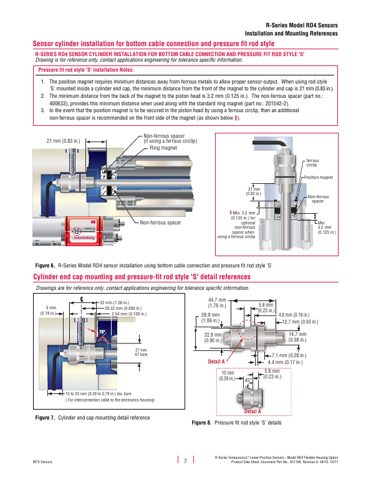

Temposonics RD4 – Page preview (61269c717b54_S2-8 S. 6)
Page preview · 61269c717b54_S2-8 · S. 6
Source: Temposonics RD4 datasheet, p. 6
