Library› HVAC› Potable Water System› Potable Water Treatment System› Everpure EV9328-02
Everpure

EV9328-02

Potable Water Treatment System · Potable Water System

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

System Capacity18,000 gallons (68,100 L)
Overall Dimensions25.59”H x 21.5”W x 6”D
Service Flow RateMaximum 3.34 gpm (12.6 Lpm)
Rated Capacity18,000 gallons
Pressure Requirements10 - 125 psi (0.7 – 8.6 bar), non-shock
Temperature35 - 100°F (2 - 38°C)
Shipping Weight20 lbs.
Operating Weight29 lbs.
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Everpure Coldrink 2-MC² System delivers high-quality water for fountain applications, reducing chlorine taste and odor and other contaminants.

Applications

  • fountain beverage applications
  • single carbonator dispensers

Features

  • reduces chlorine taste and odor
  • improves taste of fountain beverages
  • protects drink system components
  • reduces dirt and particles
  • reduces health contaminants
  • sanitary cartridge replacement

Standards

  • NSF/ANSI Standards 42 and 53
Everpure EV9328-02 – Drawing (6dc70a236f40_S1-2 S. 1)
Drawing · 6dc70a236f40_S1-2 · S. 1

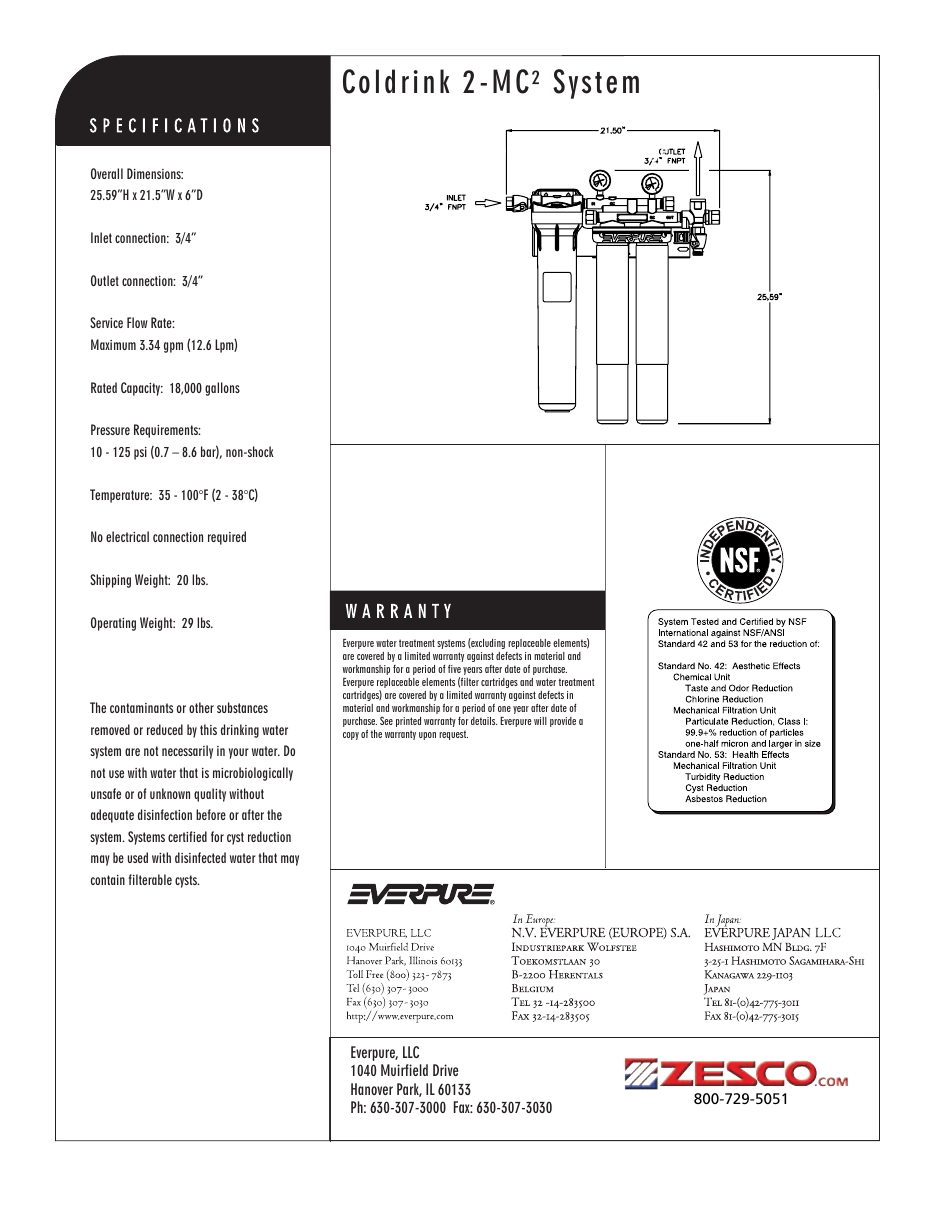

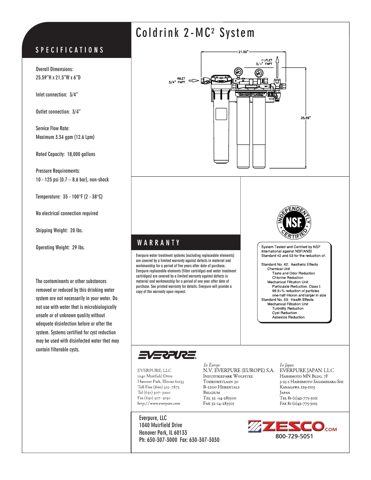

Everpure EV9328-02 – Drawing (6dc70a236f40_S1-2 S. 2)
Drawing · 6dc70a236f40_S1-2 · S. 2

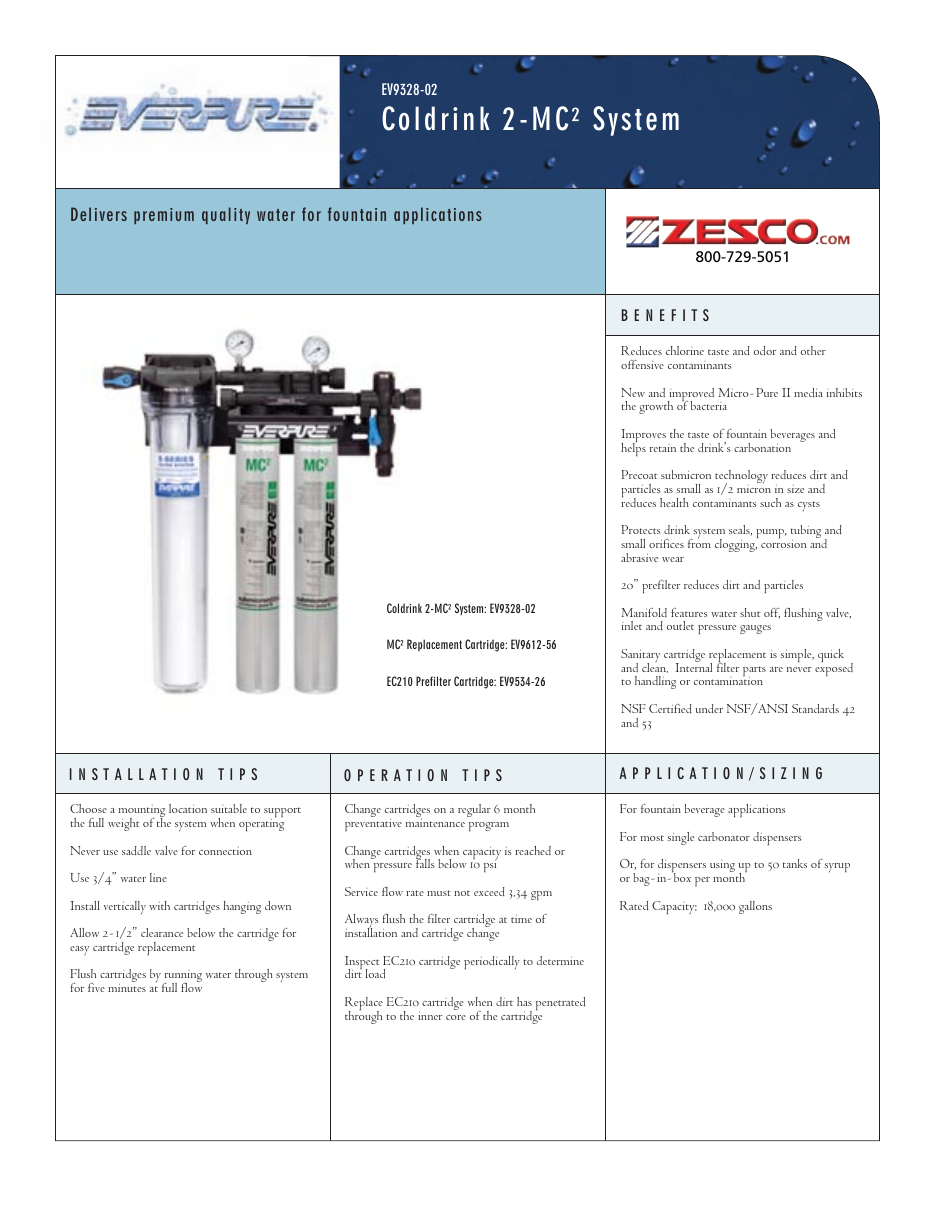

Source: Everpure EV9328-02 datasheet, p. 1
