Library› Cargo› Cargo Level & Temperature Gauging› Temperature Sensor› Uteco BMR/26
Uteco

BMR/26

Temperature Sensor · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Process attachmentadjustable coupling
Measuring insertReplaceable TC temperature probes
Protective SheathGas–proof ceramic internal tube
Outer protective tubeHeat –proof steel for temperature range 0-1200o
Terminal headIP67 rated heavy duty die cast alloy terminal head (M20x1,5 mm)
Temperature range0o to 1200oC
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

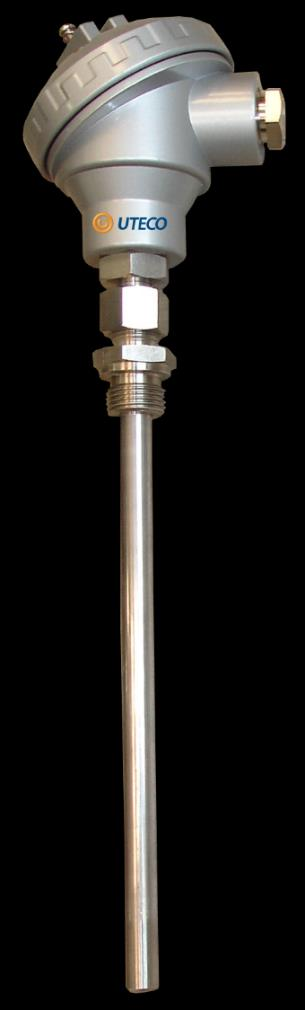

“Series BMR/26 –High Temperature sensor with terminal head Type KNE with screw in mounting fitting. Application: General Purpose. Used for measuring temperature of primary and secondary combustion…”

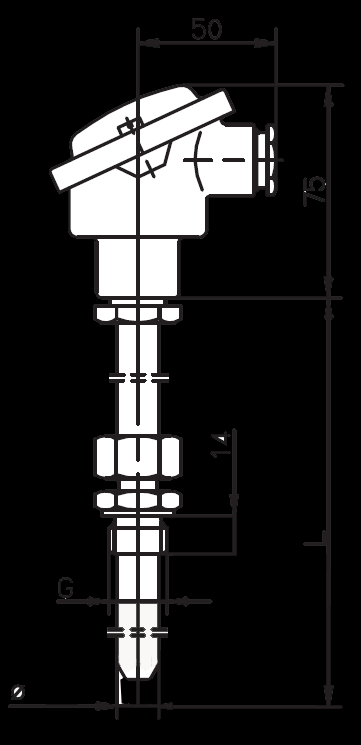

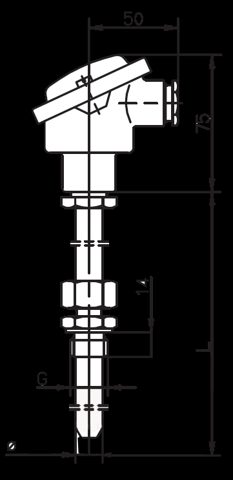

Uteco BMR/26 – Photo (a443f8cdc223_S1-1 S. 1)
Photo · a443f8cdc223_S1-1 · S. 1
Uteco BMR/26 – Photo (a443f8cdc223_S1-1 S. 1)
Photo · a443f8cdc223_S1-1 · S. 1
Uteco BMR/26 – Photo (a443f8cdc223_S1-1 S. 1)
Photo · a443f8cdc223_S1-1 · S. 1
Uteco BMR/26 – Drawing (a443f8cdc223_S1-1 S. 1)
Drawing · a443f8cdc223_S1-1 · S. 1
Source: Temperature Sensors and Special Cables, p. 1
