Library› Navigation› Radar & ECDIS› Radar› Tokyo Keiki MW-10
Tokyo Keiki

MW-10

Radar · Radar & ECDIS

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Operating frequency77〜81GHz
Range0 〜10m
Deviation±2mm
OutputAnalog Output 4-20mA + HART / Bluetooth
Operational PowerDC12〜36V
MassApprox. 500g
Temperature-20 〜 +60 C deg °C
PressureAtmospheric pressure
Beam area [m]10m 15m 30m
Measuring RangeUp to 100m Max.
Antenna Size80mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The MW-10 is a non-contacting level transmitter that uses ultrasonic technology to measure the level of liquids in tanks and open channels.

Applications

  • Reactor tank application

Features

  • ±2mm High Accuracy
  • Advanced Echo Processing
  • Rapid Tracking
  • Flow & Volume Calculation
  • Non-contacting commissioning
  • Wide Measuring Range
  • Stable Measurement
  • User-friendly Design

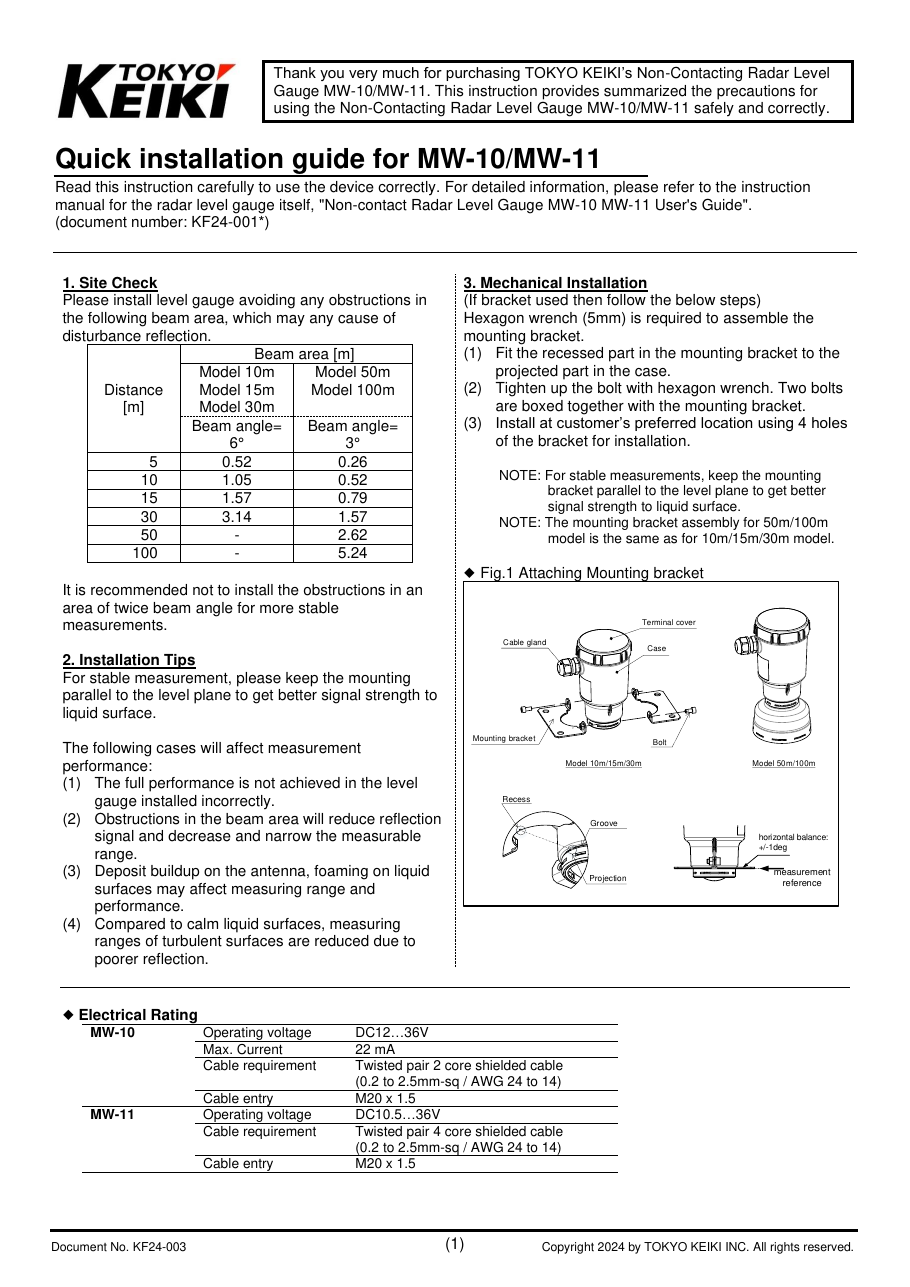

Tokyo Keiki MW-10 – Drawing (df10e3d9e2f4_S1-2 S. 1)
Drawing · df10e3d9e2f4_S1-2 · S. 1

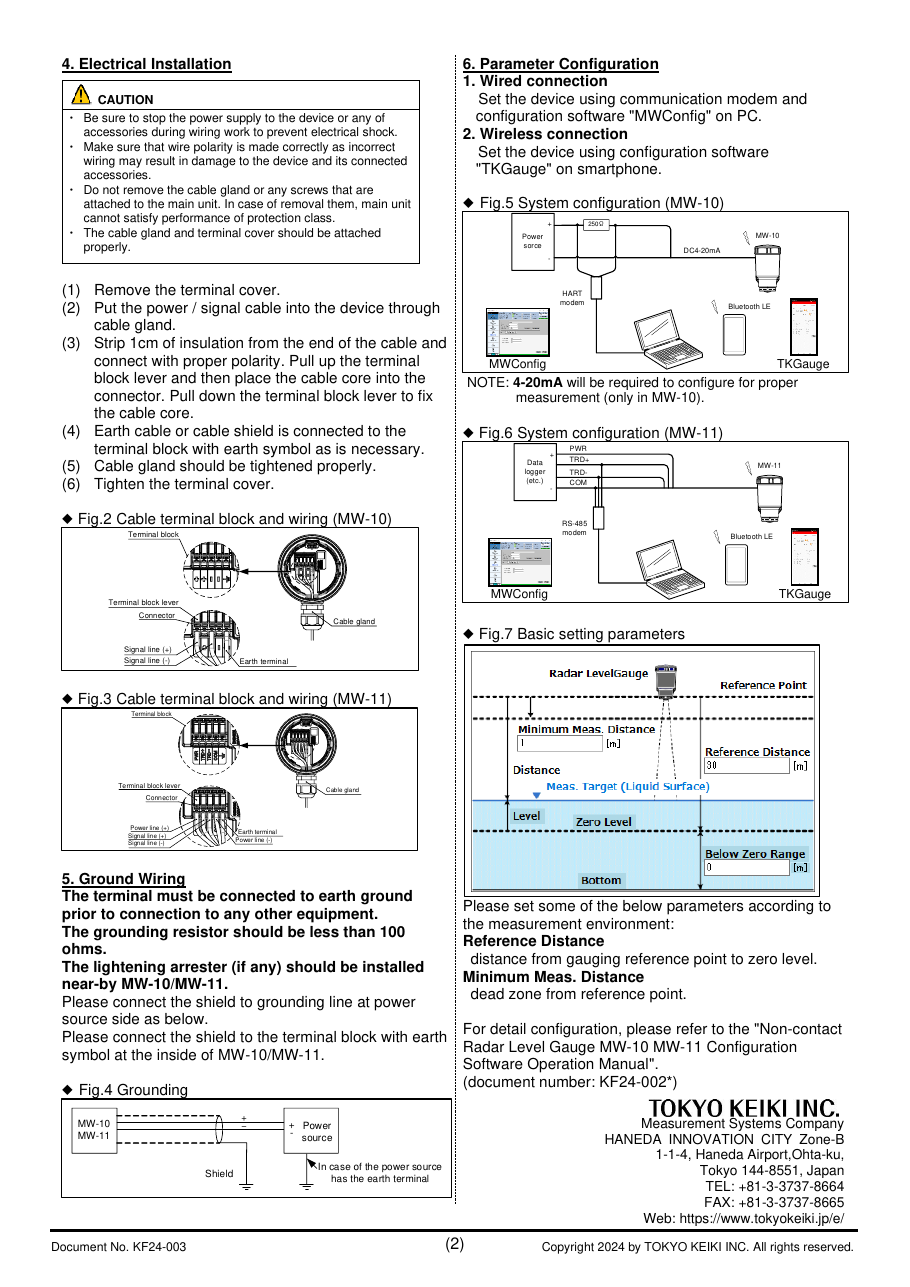

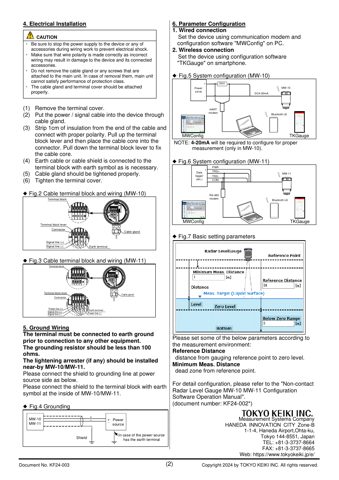

Tokyo Keiki MW-10 – Drawing (df10e3d9e2f4_S1-2 S. 2)
Drawing · df10e3d9e2f4_S1-2 · S. 2
Source: Tokyo Keiki MW-10 datasheet, p. 3
