Library› Engine Room› Automation & Control› Alarm Monitoring System› Netherlands Maritime Technology member – benderbenelux.com RI2000GC
Netherlands Maritime Technology member – benderbenelux.com

RI2000GC

Alarm Monitoring System · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

ConnectionConnect the RC48C as described in the diagram🔖
TEST buttonTEST button (T)🔖
RESET buttonRESET button (R)🔖
ALARM Ground Fault LEDALARM Ground Fault LED (GFA)🔖
Ground Check Safe LEDGround Check Safe LED (GCS)🔖
MElectrical load supplied by the cable being monitored🔖
PwPilot wire🔖
EgcEquipment grounding conductor = GND🔖
A1, A2Connection supply voltage Us.🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Leyenda del diagrama de cableado NGR: Resistencia de puesta a tierra del neutro K2: Interruptor de carga externa, desconecta el sistema monitoreado en caso de alarma. CT: Transformador de corriente…”

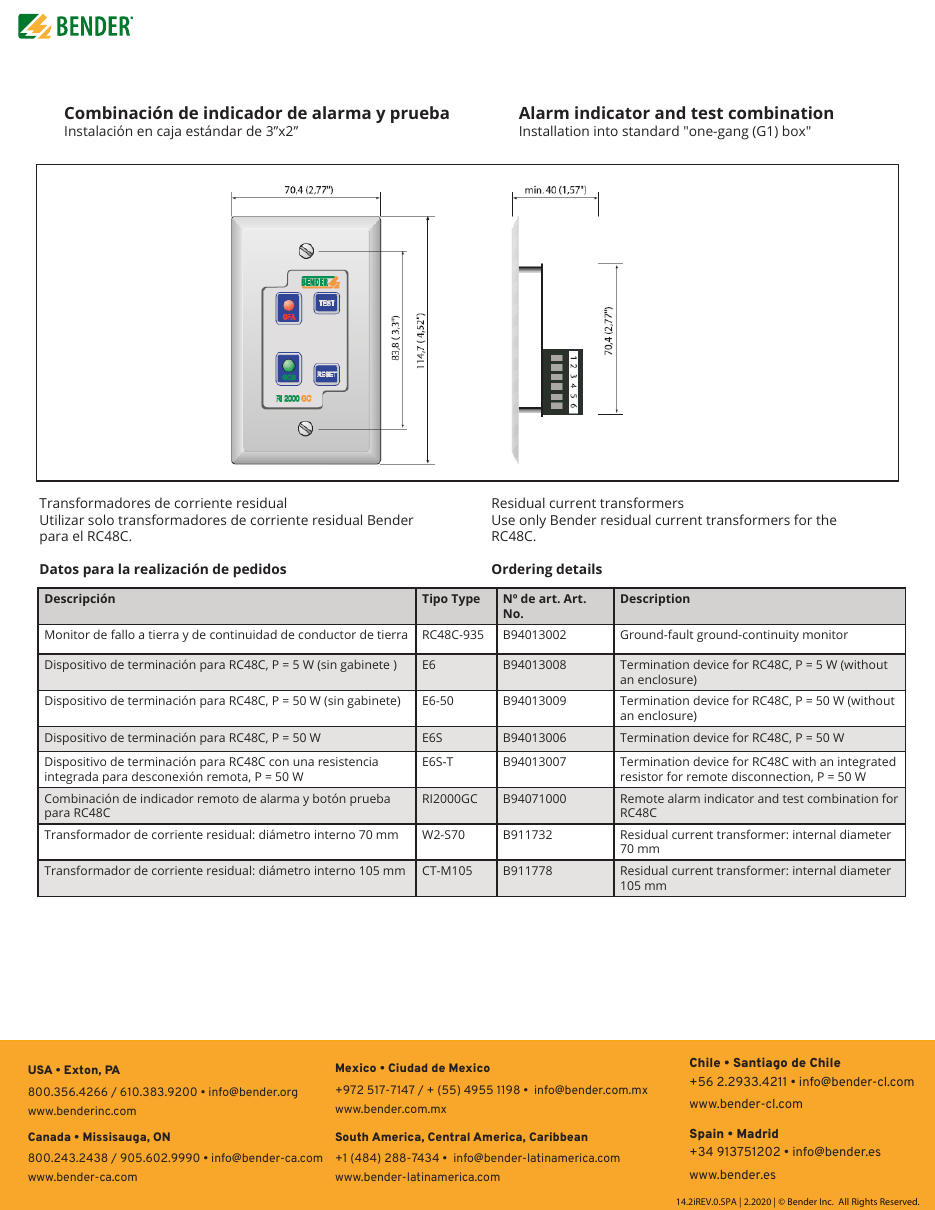

Netherlands Maritime Technology member – benderbenelux.com RI2000GC – Photo (b938b7d930ac_S3-5 S. 3)
Photo · b938b7d930ac_S3-5 · S. 3
Netherlands Maritime Technology member – benderbenelux.com RI2000GC – Drawing (b938b7d930ac_S3-5 S. 3)
Drawing · b938b7d930ac_S3-5 · S. 3
Source: Netherlands Maritime Technology member – benderbenelux.com RI2000GC da, p. 1
